Name: Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 6
Brand: Emko
SKU: 2352511
Availability: InStock

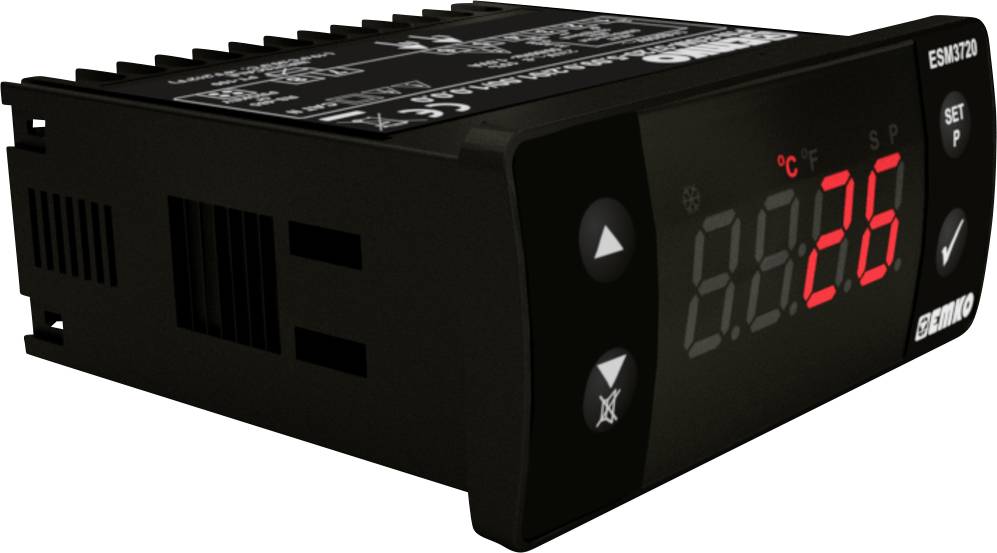

Digital temperature control device with red LED display, showing 26 degrees Celsius. Markings and controls on the right.

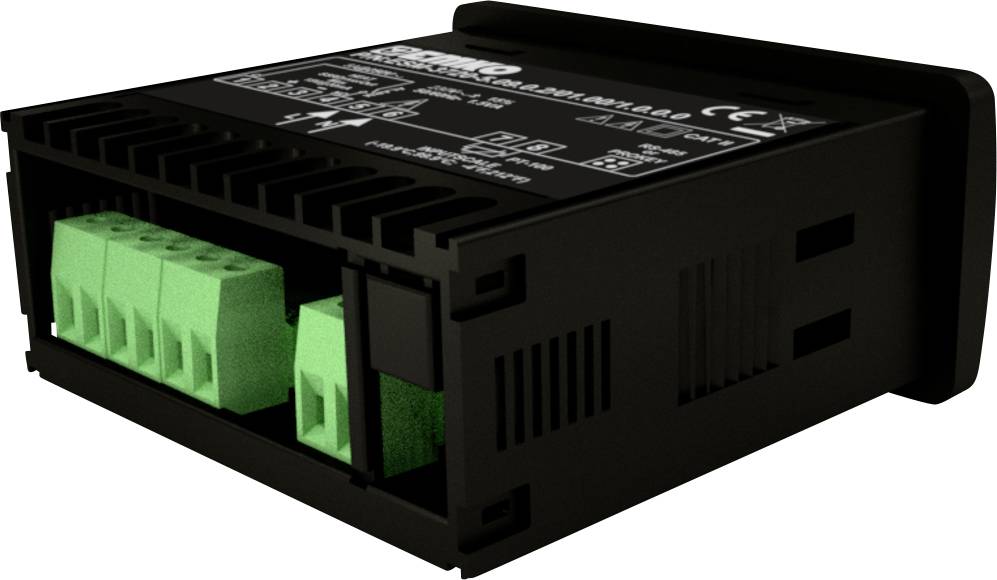

Black electrical device with green connectors, used for industrial control. Technical details label visible at the top.

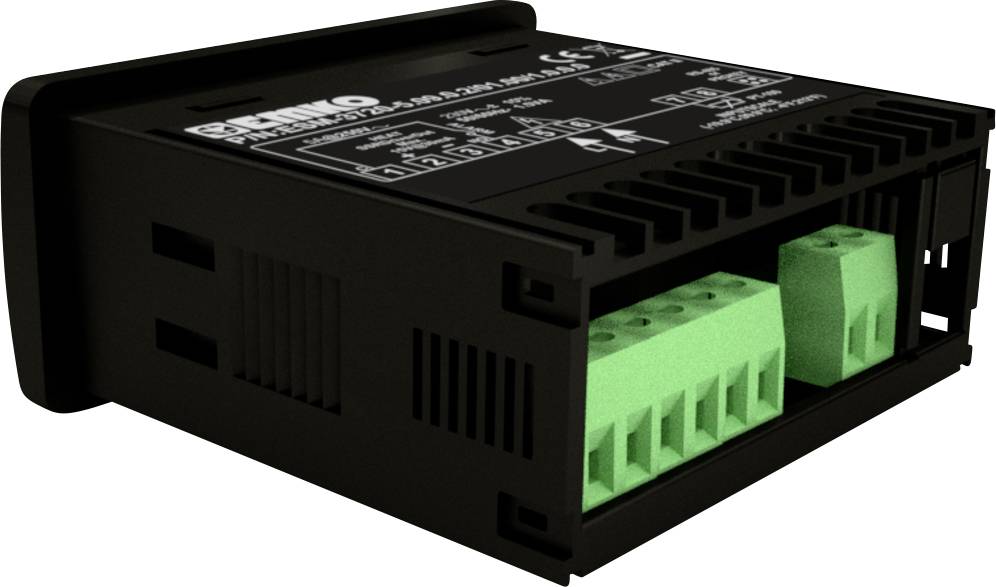

A black electronic device with green ports, possibly a control unit or sensor with serial numbers and technical details.

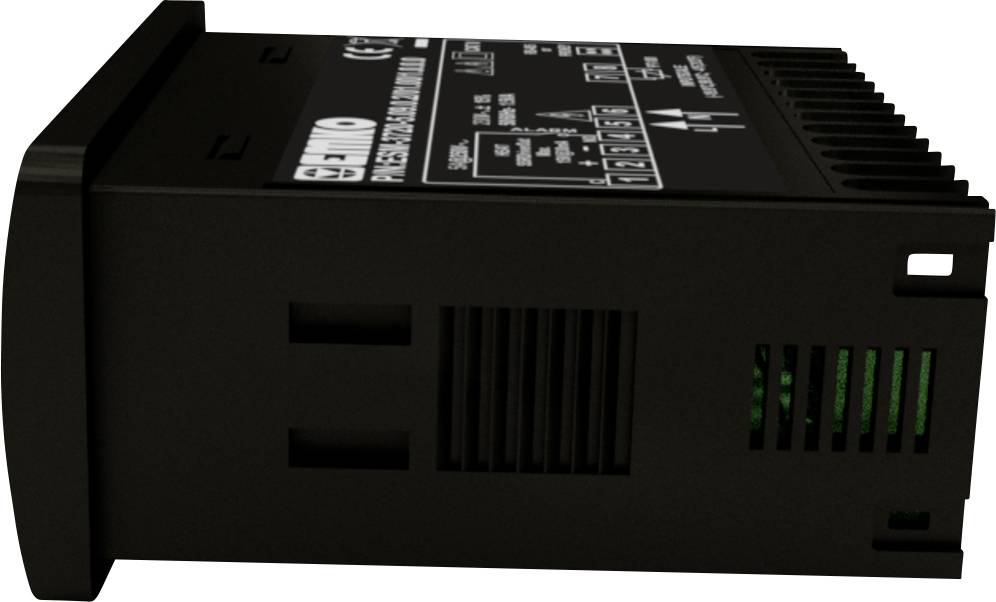

Black electronic device in landscape orientation, showing side view and top view with technical labelling and ventilation slots.

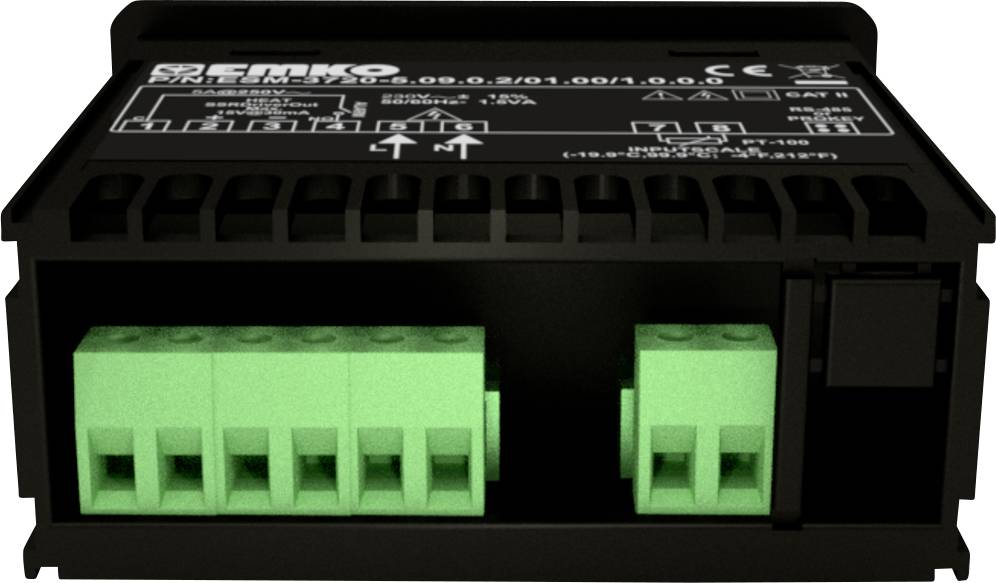

Black EMKO module with green connectors, used for industrial controls. Labelling and symbolism on top.

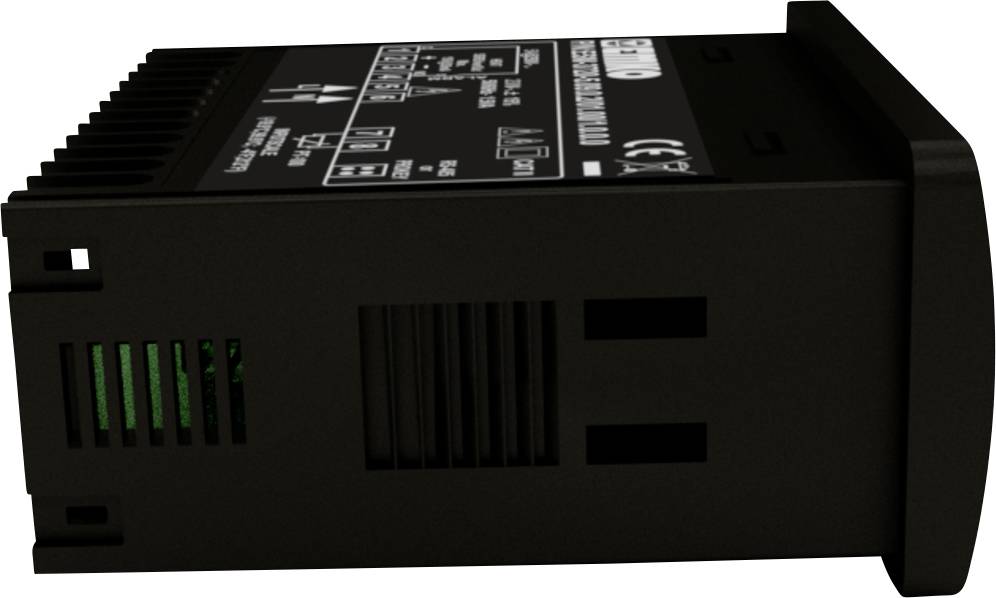

A black electronic device with side ventilation slots and a display on the front, possibly a performance metre or control unit.

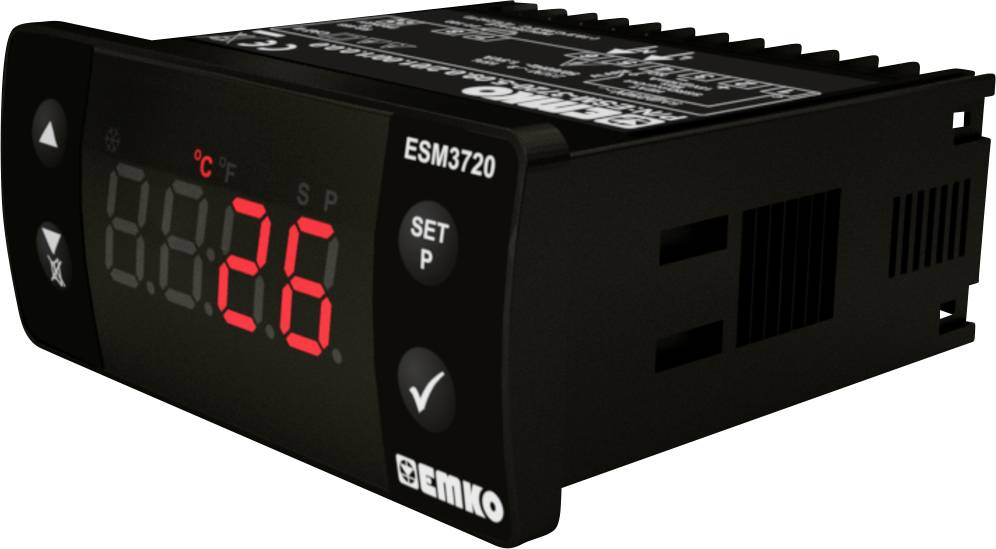

Digital temperature controller displays 26 degrees Celsius on a red LED display. Device is black, compact and suitable for temperature control.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, PID

Operating voltage

230 V AC

Max. temperature reading

130 °C

Outputs (thermostats)

16 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller

4-digit display
2-point or PID temperature control
Heating or cooling function can be selected
Alarm values with alarm output
Hysteresis
Adjustable temperature offset values
Adjustable minimum and maximum setpoints
Function can be set to on, off or cyclic in the event of a sensor failure
Compressor protection through adjustable pause times
Buzzer for alarm value and in case of sensor fault
Password protection for program settings
Can be extended with RS-485 MODULES RS485 Modbus RTU interface
Expandable with PROKEY programming module

Technical specifications

Product type: Temperature controller

Type: ESM-3720.5.12.0.1/01.00/1.0.0.0

Thermostat type: Bang-bang, PID

Operating voltage: 230 V AC

Reading range: -50 up to 130 °C

Max. temperature reading: 130 °C

Min. temperature reading: -50 °C

Outputs (thermostats): 16 A relay

No. of relay outputs: 2

Dim: (L x W x H) 65 x 76 x 35 mm

Factory colour: Black

Height: 35 mm

Length: 65 mm

Width: 76 mm

: Front: IP65 / connection: IP20

Sensor type: PTC

Manufacturer part #: ESM-3720.5.12.0.1/01.00/1.0.0.0

Recess depth: 65 mm

Mounting type: Recess-mount

Sensor type: PTC

Weight: 200 g

Variants(All information include VAT, plus shipping costs)

Max. temperature reading

Operating voltage

Outputs (thermostats)

Sensor type

Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352511

Fast track dispatch on Thu 29 Oct

1 Piece(s)Conrad Electronic

This article

130 °C

230 V AC

16 A relay

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720 Bang-bang, PID Temperature controller Pt100 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:1717654

Fast track dispatch on Thu 29 Oct

29 Piece(s)Conrad Electronic

400 °C

230 V AC

16 A relay

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 83.99^*

Emko ESM-3720.5.05.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller J 0 up to 800 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352513

Fast track dispatch on Thu 29 Oct

8 Piece(s)Conrad Electronic

800 °C

230 V AC

16 A relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720.5.05.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller J 0 up to 800 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352497

Dispatches on Mon 9 Nov

Conrad Electronic

800 °C

230 V AC

SSR

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Emko ESM-3720.5.10.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352504

Fast track dispatch on Thu 29 Oct

5 Piece(s)Conrad Electronic

999 °C

230 V AC

16 A relay

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.10.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller K 0 up to 999 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352495

Available soon

Conrad Electronic

999 °C

230 V AC

SSR

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.11.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt100 -50 up to 400 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352502

Fast track dispatch on Thu 29 Oct

9 Piece(s)Conrad Electronic

400 °C

230 V AC

SSR

Pt100

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.12.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352499

Available soon

Conrad Electronic

130 °C

230 V AC

SSR

PTC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Emko ESM-3720.5.14.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to 400 °C 16 A relay (L x W x H) 65 x 76 x 35 mm

Item no:2352509

Available soon

Conrad Electronic

400 °C

230 V AC

16 A relay

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Emko ESM-3720.5.14.0.2/01.00/1.0.0.0 Bang-bang, PID Temperature controller Pt1000 -50 up to 400 °C SSR (L x W x H) 65 x 76 x 35 mm

Item no:2352512

Available soon

Conrad Electronic

400 °C

230 V AC

SSR

Pt1000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

Documents & Downloads

Datasheet

Datasheet 2352511 Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 6

User & Safety Instructions

User & Safety Instructions 2352511 Emko ESM-3720.5.12.0.1/01.00/1.0.0.0 Bang-bang, PID Temperature controller PTC -50 up to 130 °C 16 A relay (L x W x H) 6

Description

Emko ESM-3720 is a 2-point and PID temperature controller for control panel installation. With adjustable temperature setpoint, the controller is used for heating or cooling applications. The controller has an alarm function with alarm output and internal buzzer. With the separately available PROKEY stick the program settings can be transferred to other devices, so the parameters do not have to be set individually on each device. With the separately available RS-485 MODULE stick the controller can be extended by a RS485 Modbus RTU interface.
