Name: Emko ESM-4450.2.20.2.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17
Brand: Emko
SKU: 2352538
Availability: BackOrder

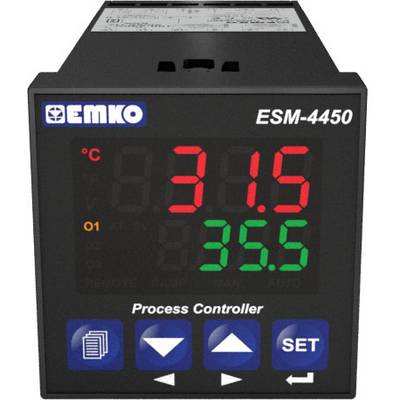

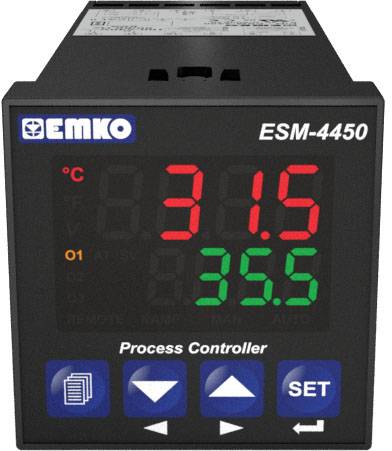

A black digital display with the inscription 'EMKO ESM-4450' shows temperature values of 31.5°C in red and 35.5°C in green.

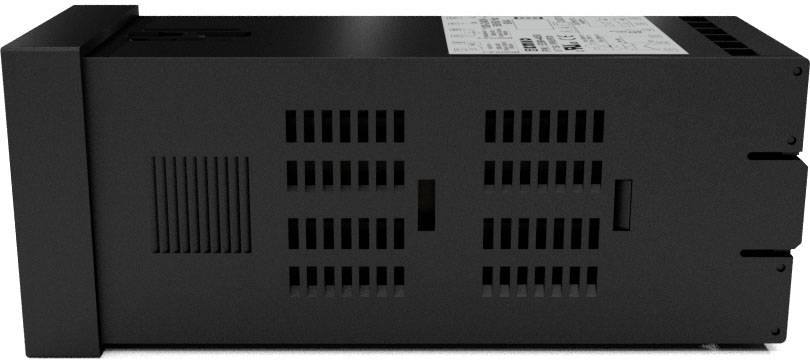

Black electric control cabinet with ventilation slots and label on top, for industrial automation applications.

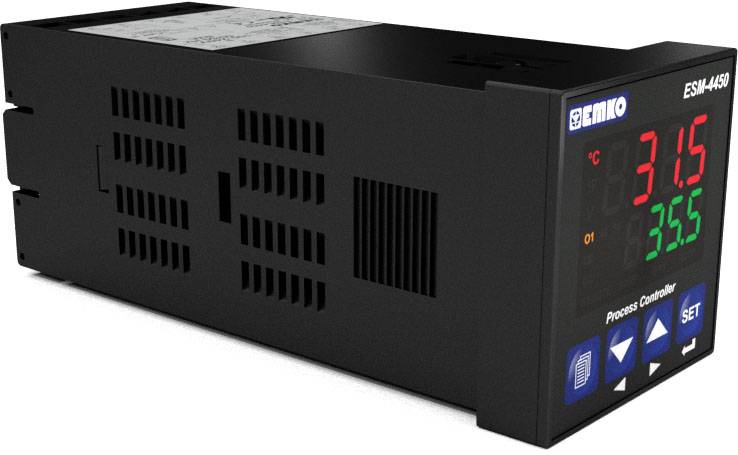

Digital temperature controller with LED display showing '31.5°C' and '35.5°C'. Contains buttons for settings and menu navigation.

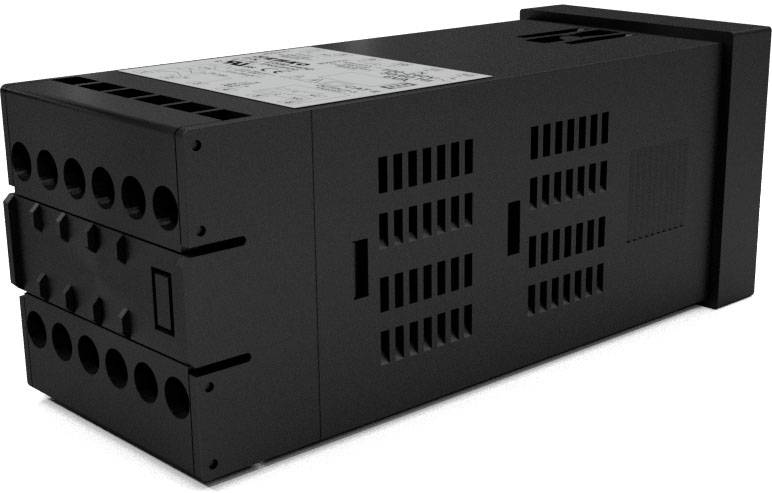

Black and grey electrical component with multiple connections, ventilation slots, and labels on top. Predominantly rectangular in shape.

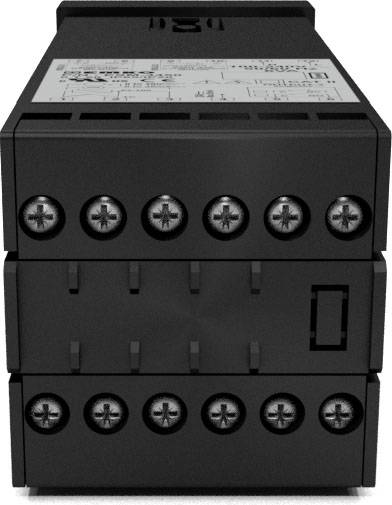

Black electronic device with screw terminals and a diagram on top. Possibly an electrical relay or module.

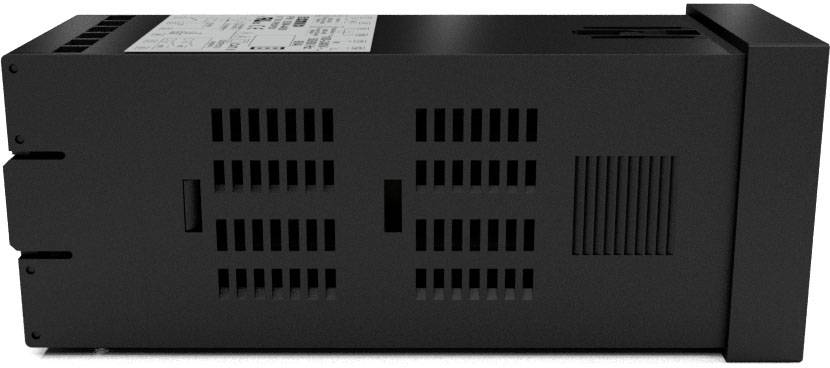

A black electric device with ventilation slots, lying on its side. A label with technical information is visible on the top.

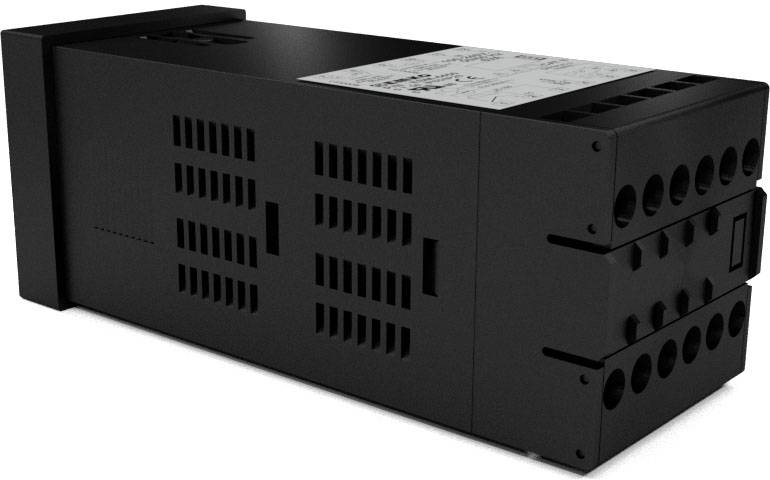

A black, rectangular plastic component with multiple ventilation slots and connections at one end, likely an electronic device.

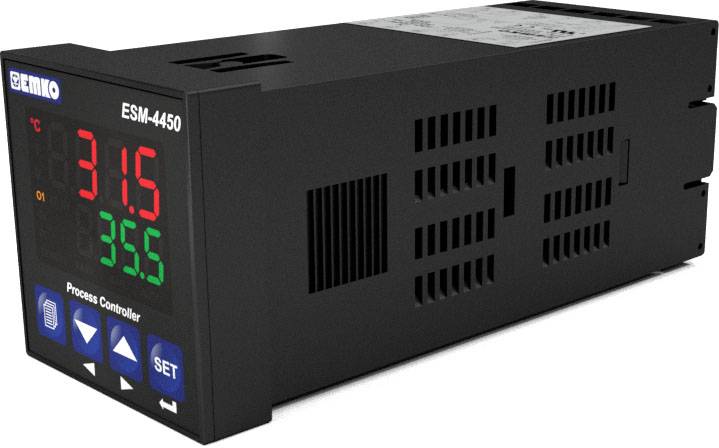

Black process control device shows temperature display with '31.5°C' in red and '35.6°C' in green. Device by EMKO, Model ESM-4450.

1/8

Product type

Temperature controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

24 V DC/AC

Max. temperature reading

1700 °C

Outputs (thermostats)

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 189.99 / piece)

€ 189.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-4450.2.20.2.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller

4-digit process display
4-digit setpoint display
Universal measuring input for Pt100, J, K, R, S, T, 0-50mV, 0-10V, 0/4-20 mA
2-point, P, PI, PD or PID control
PID self-optimization function
Two-point or multi-point calibration Analogue signals
8-step sequential control when using the EMI-400 digital input plug-in
Soft start-up.
Engine valve control
Alarm values
Hysteresis
Offset values
Relay output
Password protection for program settings
Communication interface
2 slots for EMI-400 and EMO-400 series I/O expansion modules

Technical specifications

Product type: Temperature controller

Type: ESM-4450.2.20.2.1/00.00/0.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 24 V DC/AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay

No. of relay outputs: 1

Dim: (L x W x H) 117 x 48 x 48 mm

Factory colour: Black

Height: 48 mm

Length: 117 mm

Width: 48 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
J
K
R
S
T

Manufacturer part #: ESM-4450.2.20.2.1/00.00/0.0.0.0

Recess depth: 105 mm

Mounting type: Recess-mount

Interfaces: RS 485

Sensor type: PT00||J||K||R||S||T

Weight: 210 g

Documents & Downloads

Datasheet

Datasheet 2352538 Emko ESM-4450.2.20.2.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

User & Safety Instructions

User & Safety Instructions 2352538 Emko ESM-4450.2.20.2.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Temperature controller Pt100, J, K, R, S, T -200 up to 17

Description

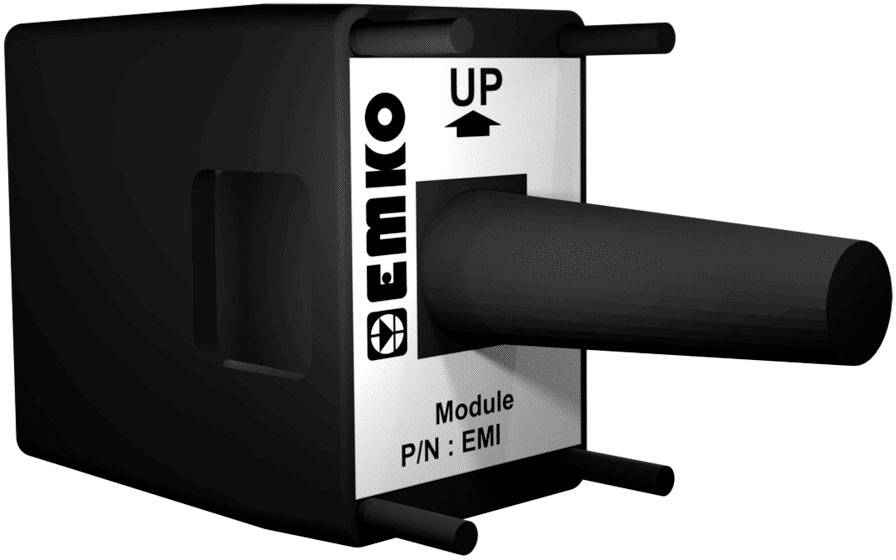

ESM-4450 is a universal controller for process control. The controller can be set to 2-point, P, PI, PD or PID control. In addition, the controller has a PID self-optimization function, can be set to Auto-Tune (cycle limitation) or Self-Tune (step feedback). Other functions are 8-step sequential control when using the EMI-400 digital input, soft start-up and motor valve control add-on module. In the basic version, the controller has a universal input for temperature sensors and analogue signal, communication interface and a relay output. The controller can be expanded with I/O modules via two slots. The EMI-400 input modules are available in digital input, 0/4-20 mA or 0-10 V/DC analogue input, thermocouple, 0-5 A for current transformers and Pt100. The EMO-400 modules relay output, SSR output, transistor output and 0/4-20 mA analogue output are available as output modules.

This text is machine translated.
