Name: Emko ESM-7750.1.20.1.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C
Brand: Emko
SKU: 2352544
Availability: BackOrder

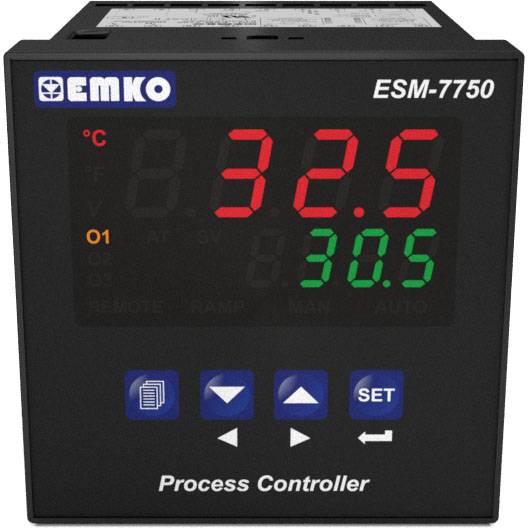

A process controller with a digital display shows the current temperature of 32.5 °C in red and the target temperature of 30.5 °C in green.

A black, rectangular industrial device with ventilation slots on the side.

A black electronic device with multiple ports and ventilation slots, likely an industrial control module.

A black, rectangular electronic device with ventilation slots and an information label on top.

A black electronic device with multiple screw terminals on the top and bottom, likely an electrical circuit board.

A digital process controller displaying '32.5 °C' in red and '30.5' in green. Model 'EMKO ESM-7750'.

Black electronic device with multiple ventilation slots and ports on the side. It appears to be a technical component.

1/8

Product type

Universal controller

Thermostat type

Bang-bang, P, PI, PD, PID

Operating voltage

115 V AC

230 V AC

Max. temperature reading

1700 °C

Outputs (thermostats)

5 A relay

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Emko ESM-7750.1.20.1.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller

4-digit process display
4-digit setpoint display
Universal measuring input for Pt100, L, J, K, R, S, T, B, E, N, C, 0-50 mV, 0-10 V, 0/4-20 mA
2-point, P, PI, PD or PID control
PID self-optimization function
Two-point or multi-point calibration Analogue signals
8-step sequential control when using the EMI-400 digital input plug-in
Soft start-up.
Engine valve control
Alarm values
Hysteresis
Offset values
Relay output
Password protection for program settings
Communication interface

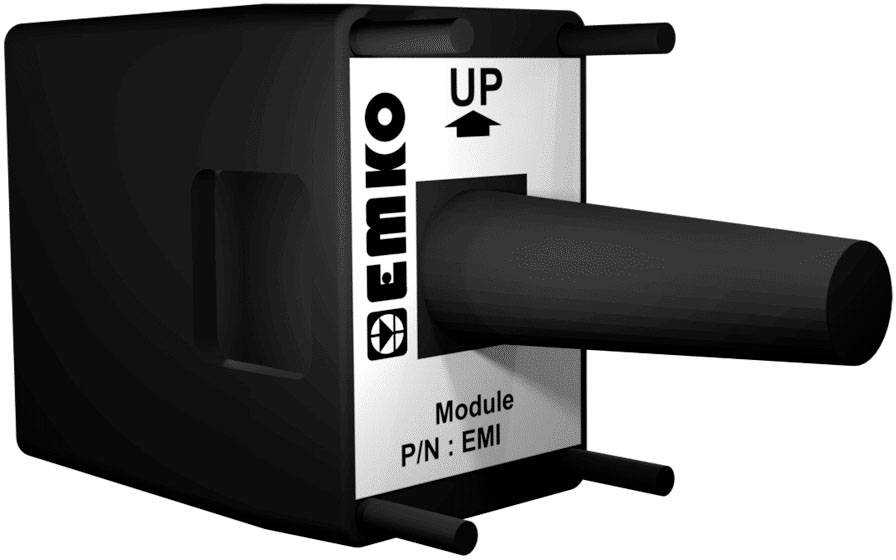

2 slots for EMI-700 and EMO-700 series I/O expansion modules

Technical specifications

Product type: Universal controller

Type: ESM-7750.1.20.1.1/00.00/0.0.0.0

Thermostat type: Bang-bang, P, PI, PD, PID

Operating voltage: 115 V AC
230 V AC

Reading range: -200 up to 1700 °C

Max. temperature reading: 1700 °C

Min. temperature reading: -200 °C

Outputs (thermostats): 5 A relay

No. of relay outputs: 1

Dim: (L x W x H) 88 x 72 x 72 mm

Factory colour: Black

Height: 72 mm

Length: 88 mm

Width: 72 mm

: Front: IP65 / connection: IP20

Sensor type: Pt100
L
J
K
R
S
T
B
E
N
C
Show more

Manufacturer part #: ESM-7750.1.20.1.1/00.00/0.0.0.0

Recess depth: 76 mm

Mounting type: Recess-mount

Interfaces: RS 232

Sensor type: PT00||L||J||K||R||S||T||B||E||N||C

Weight: 250 g

Documents & Downloads

Datasheet

Datasheet 2352544 Emko ESM-7750.1.20.1.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C

User & Safety Instructions

User & Safety Instructions 2352544 Emko ESM-7750.1.20.1.1/00.00/0.0.0.0 Bang-bang, P, PI, PD, PID Universal controller Pt100, L, J, K, R, S, T, B, E, N, C

Description

ESM-7750 is a universal controller for process control. The controller can be set to 2-point, P, PI, PD or PID control. In addition, the controller has a PID self-optimization function, can be set to Auto-Tune (cycle limitation) or Self-Tune (step feedback). Other functions include 8-step sequential control when using the EMI-700 Digital Input, Soft Start, and Engine Valve Control add-on module. In the basic version, the controller has a universal input for temperature sensors and analogue signal, communication interface and a relay output. The controller can be expanded with I/O modules via two slots. The EMI-700 input modules are available in digital input, 0/4-20 mA or 0-10 V/DC analogue input, thermocouple, 0-5 A for current transformers and Pt100. The EMO-700 modules relay output, SSR output, transistor output and 0/4-20 mA analogue output are available as output modules.
