encitech DTZK09-K 6560-0105-01 D-SUB housing Number of pins: 9 Solid metal 180 ° Silver 1 pc(s)

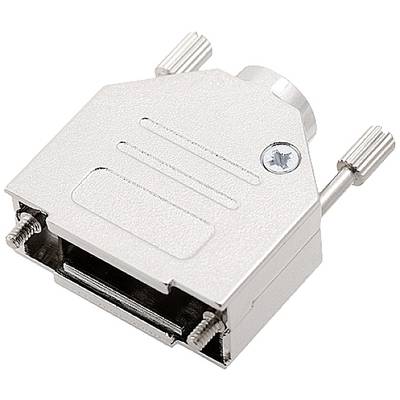

A silver, rectangular cable connection housing with screws and metal locks that can be mechanically opened.

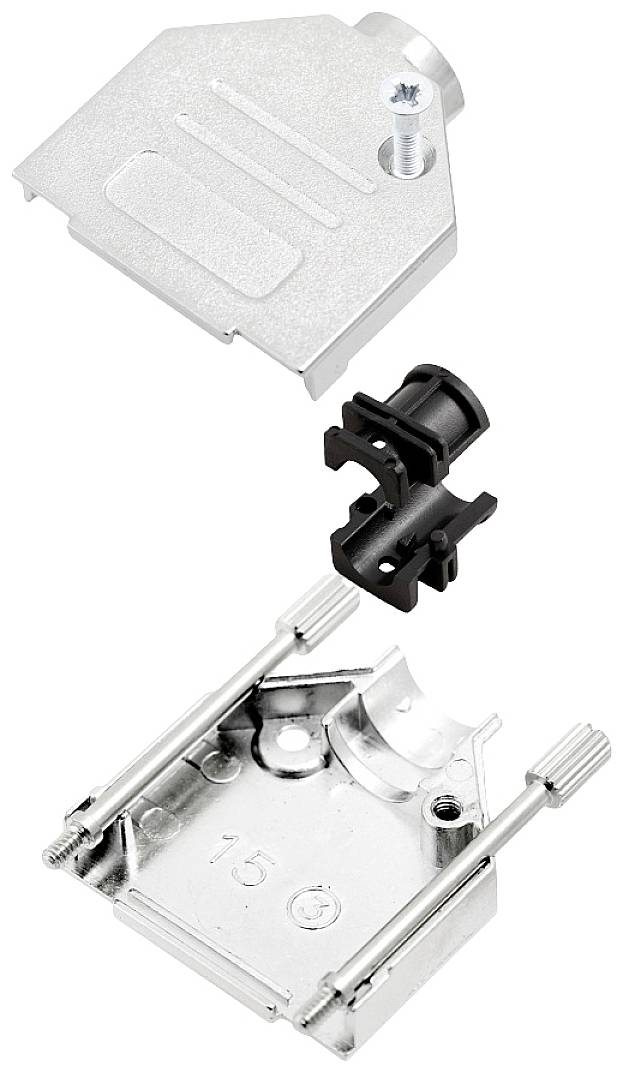

Metal enclosure set in an open state, comprising three parts: upper housing section, middle plastic section, and lower housing section.

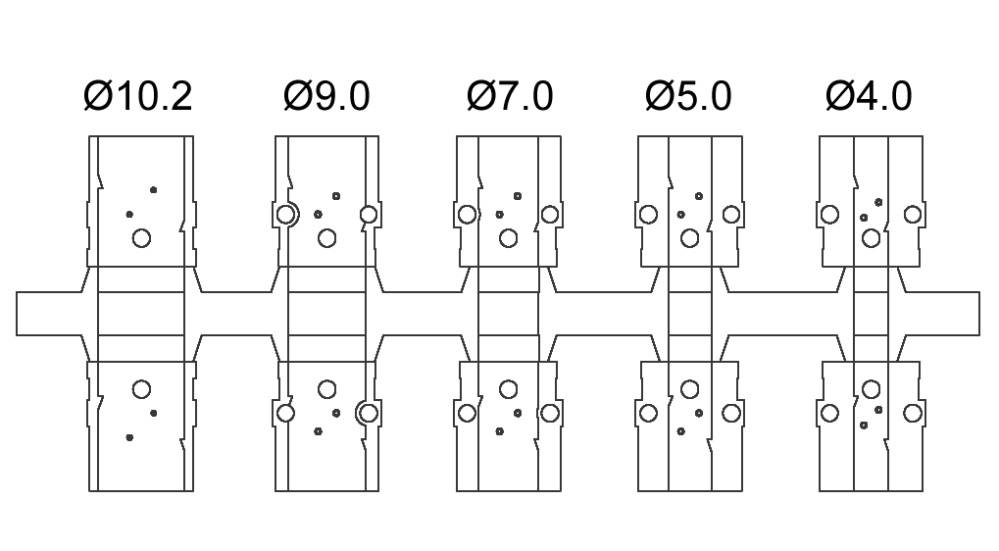

Five linear guide elements with varying diameters from Ø10.2 to Ø4.0, arranged from left to right.

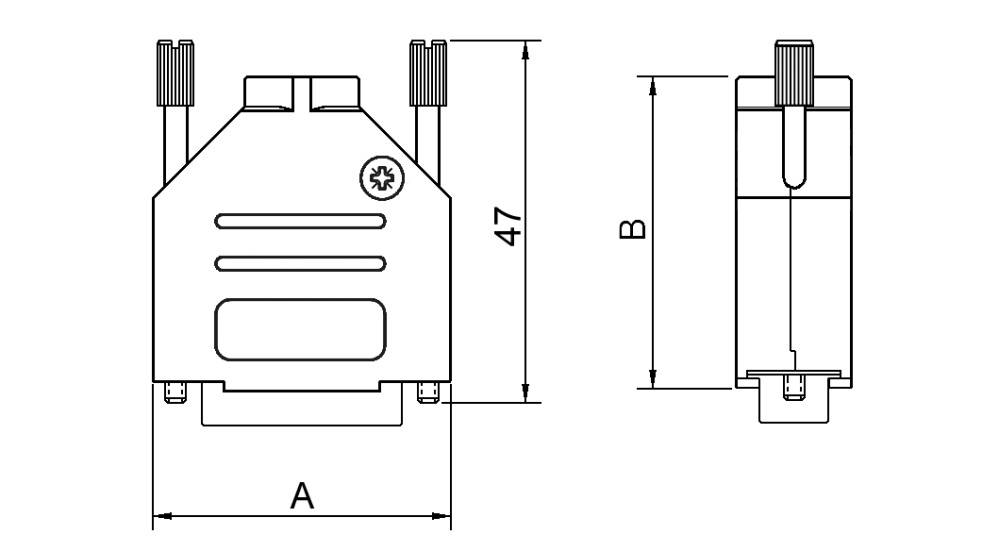

Technical drawing of a connector, front and side views. Dimensions A and B are marked with arrows.
1/4
Product type
D-SUB housing
Number of pins
9
Case material
Solid metal
Cable outlets
1
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

D-SUB housing DTZK

  • Number of pins: 9
  • Solid metal

Technical specifications

Product type

D-SUB housing

Number of pins

9

Case material

Solid metal

Cable outlets

1

Factory colour

Silver

Connection angle

180°

Content

1 pc(s)

Shielded

Yes

Manufacturer part #

6560-0105-01

Industrial packaging

No

Width

15 mm

Height

39.5 mm

Length

31 mm

Features

1x cable entry (straight)

Temperature range

-40°C to +120 °C

Type

DTZK09-K

Cable diameter (details)

11.50 mm
