encitech DTZK09-PCBK-K 6560-3105-01 D-SUB housing Number of pins: 9 Solid metal 180 ° Silver 1 pc(s)

Metallic connector in individual components: upper housing, plastic insert, lower housing with screw. For electrical applications.

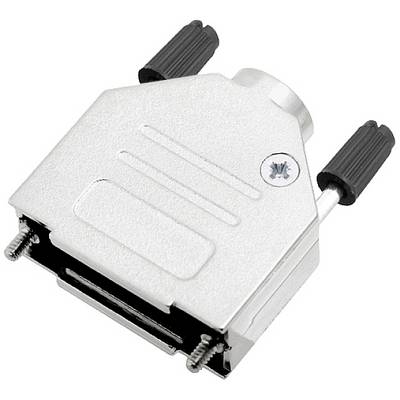

Grey, rectangular plastic housing with a black metal plug and two side screws; used for connecting electronic devices.
Technical drawing with five structured modules, marked with diameters: 10.2, 9.0, 7.0, 5.0 and 4.0.
Technical drawing of a connector with dimensions: Width A and Height B. Overall size 47 mm, side view shows details.
1/4
Product type
D-SUB housing
Number of pins
9
Case material
Solid metal
Cable outlets
1
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 11 Nov
3 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.99 / piece)
€ 2.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

D-SUB housing DTZK

  • Number of pins: 9
  • Solid metal

Technical specifications

Product type

D-SUB housing

Number of pins

9

Case material

Solid metal

Cable outlets

1

Factory colour

Silver

Connection angle

180°

Content

1 pc(s)

Shielded

Yes

Manufacturer part #

6560-3105-01

Industrial packaging

No

Width

15 mm

Height

39.5 mm

Length

31 mm

Features

1x cable entry (straight)

+ 4-40 knurl head screw

Temperature range

-40°C to +120 °C

Type

DTZK09-PCBK-K

Cable diameter (details)

11 mm
