Name: Endress+Hauser RMA42 RMA42-CPC 1 pc(s)
Brand: Endress+Hauser
SKU: 2989262
Availability: BackOrder

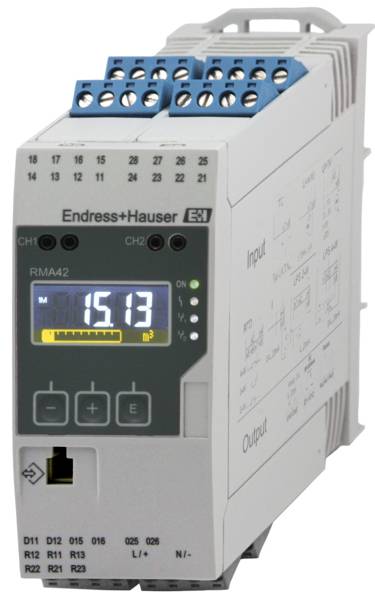

A digital display device from Endress+Hauser with two channels and a display showing '15.13' m³.<br><br>Note: In British English, decimal numbers use a full stop (.) rather than a comma (,) as the decimal separator.

Type

RMA42

Dim

(L x W x H) 118 x 45 x 115 mm

Output (current)

0/4-20 mA

Operating voltage

24, 24 - 230, 230 V DC, V AC

Max. operating voltage

230 V DC

230 V AC

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 459.00 / piece)

€ 459.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Process transmitter Limit switches / Transmitter RMA42-CPC CSA General Purpose 1x Universal; 1x Analogue + 2 Relays

Approval: CSA General Purpose
Input; output: 1x universal; 1x analogue + 2 relays

Technical specifications

Type: RMA42

Dim: (L x W x H) 118 x 45 x 115 mm

Output (current): 0/4-20 mA

Operating voltage: 24, 24 - 230, 230 V DC, V AC

Max. operating voltage: 230 V DC
230 V AC

Min. operating voltage: 24 V DC
24 V AC

Input signal (voltage): 0-10V

Input signal (current): Strom

Content: 1 pc(s)

Width: 45 mm

Height: 115 mm

Length: 118 mm

RoHS-compliant: Yes

Max. ambient temperature: 60 °C

Min. ambient temperature: -20 °C

Operating voltage U(B): Schleifenstromversorgung

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2989262 Endress+Hauser RMA42 RMA42-CPC 1 pc(s)

Description

The RMA42 process transmitter displays analog measured values. Two-wire sensors can be supplied with the integrated loop power supply. The universal inputs enable the connection of current, voltage, RTDs and TCs. The multi-colored LCD-display with 7-segment bar graph enables the display of the device.

This text is machine translated.

Features

A device that covers a large number of functions and applications: Loop power supply, barrier, integrated relays, calculations and display of measured values.
Perfect complement for fill level measurements, as it can be used as overfill protection, offers calculations such as mean value or difference, e.g. for differential pressure applications, and can be used to linearize a tank.
Simple on-site configuration with 3 buttons and remote commissioning from a safe and convenient location.

Description

Features

A device that covers a large number of functions and applications: Loop power supply, barrier, integrated relays, calculations and display of measured values.
Perfect complement for fill level measurements, as it can be used as overfill protection, offers calculations such as mean value or difference, e.g. for differential pressure applications, and can be used to linearize a tank.
Simple on-site configuration with 3 buttons and remote commissioning from a safe and convenient location.
