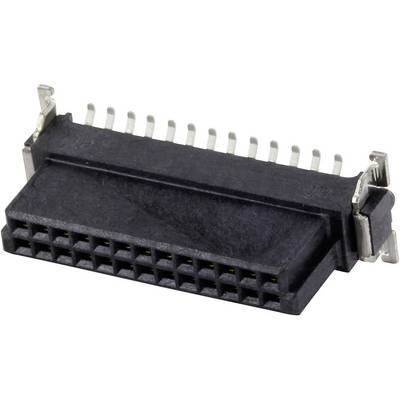

ERNI 154717 SMC multipole connector Total number of pins 12 No. of rows 2 1 pc(s)

Close-up of a black connector with multiple metal pins, suitable for electronic devices and circuits.
Several electronic connectors in various sizes and shapes, distributed across a white background.
Technical drawing of four valve types: knife and spring side in high and low construction forms, with dimensions and labels.
Technical drawing of five different switch types with dimensions in millimetres, each with standard and low profile heights.
Technical drawing of four different spring strip designs with measurements and annotations.

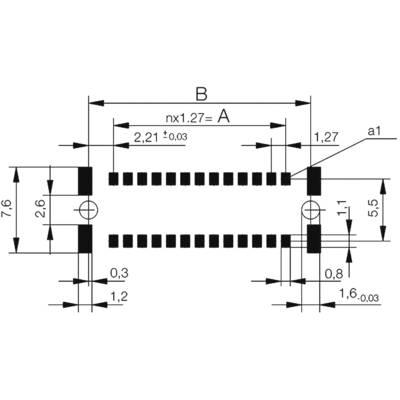

'Diagram showing the dimensions of a technical component. Contains horizontal and vertical dimensional specifications in millimetres with tolerances.'
Technical drawing of a connector. Dimensions: Width 7.2 mm, various internal spacings (1.55 to 4.2 mm) and segment lengths (C, D, E marked).
1/7
Image similar
Product type
SMC multipole connector
Total no. of pins
12
Connector type
Edge connector, straight
CS
1.27 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
99 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.29 / piece)
€ 3.29
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

SMC-terminal block

  • No. of rows 2
  • Content 1 pc(s)

Technical specifications

Product type

SMC multipole connector

Total no. of pins

12

Connector type

Edge connector, straight

Connector orientation

Perpendicular (to the PCB)

No. of rows

2

CS

1.27 mm

Nominal current

1.7 A

Nominal current - rounded value

1.7 A

DIN standard

B

Pins per row

6

Connection

SMT

Factory colour

Black

Case material

LCP

Manufacturer part #

154717

Content

1 pc(s)

Contact material

Copper alloy

Width

12.7 mm

Height

9.35 mm

Length

7.2 mm

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

154717

Dim

(L x W x H) 7.2 x 12.7 x 9.35 mm

Resistance

Max. 25 mΩ

Number of pins

12

Contact surface

Gold plated

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1169152 ERNI 154717 SMC multipole connector Total number of pins 12 No. of rows 2 1 pc(s)

Information

Information 1169152 ERNI 154717 SMC multipole connector Total number of pins 12 No. of rows 2 1 pc(s)
