ERNI 284258 Edge connector (sockets) Total number of pins 96 No. of rows 3 1 pc(s)

A beige socket connector with two rows of metal pins used for electronic devices or circuit boards.

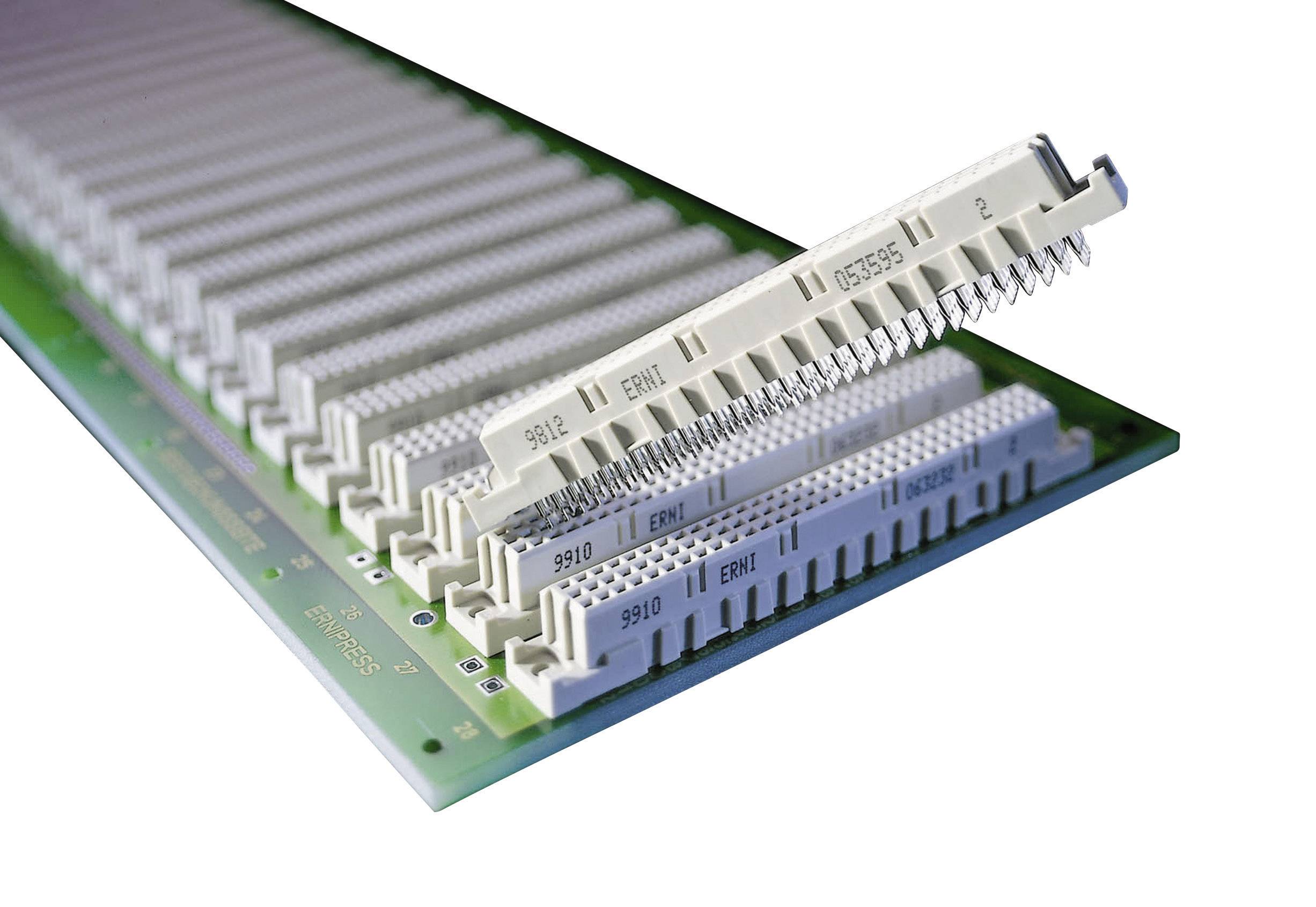

A green circuit board with several white connectors, one of which is partially extracted, reveals internal metal contacts.

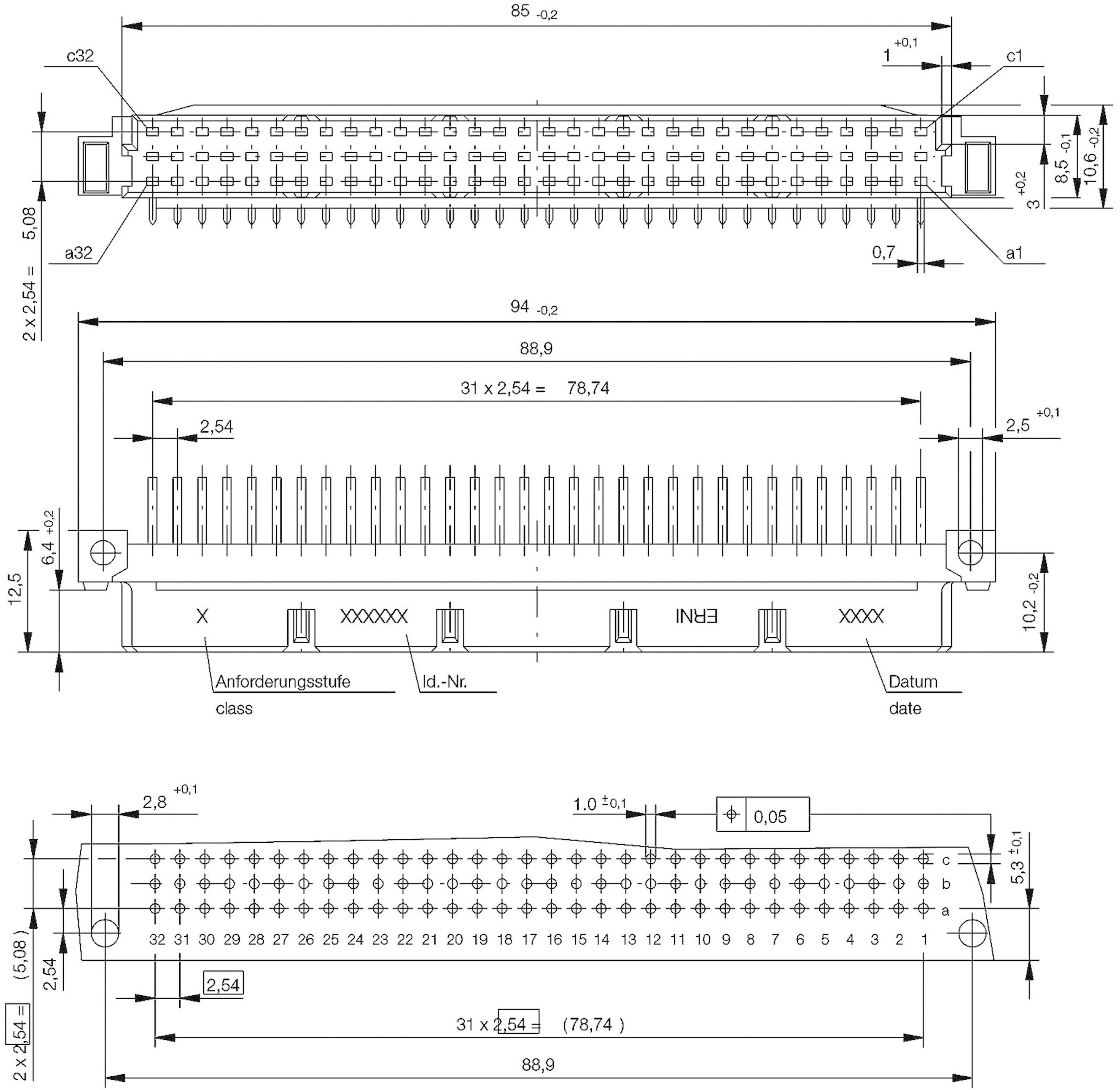

Technical drawing of an electrical connector with dimensional specifications in millimetres, profile views, pin numbers, and contact designation.

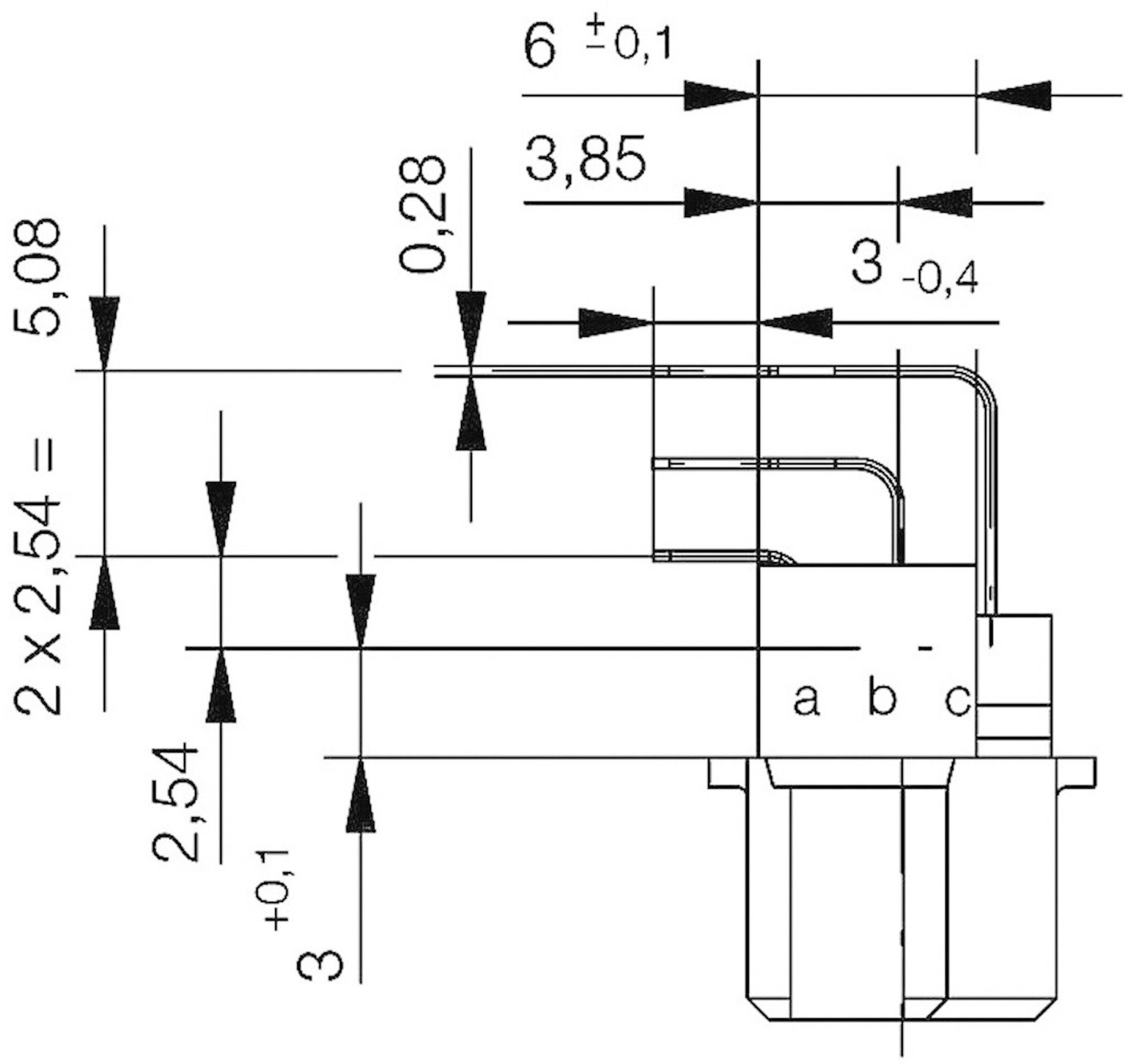

Technical drawing of an electrical component with dimensions in millimetres. Dimensions: 6 ±0.1; 3.85; 0.28; 5.08; 2 x 2.54; 3 ±0.1.

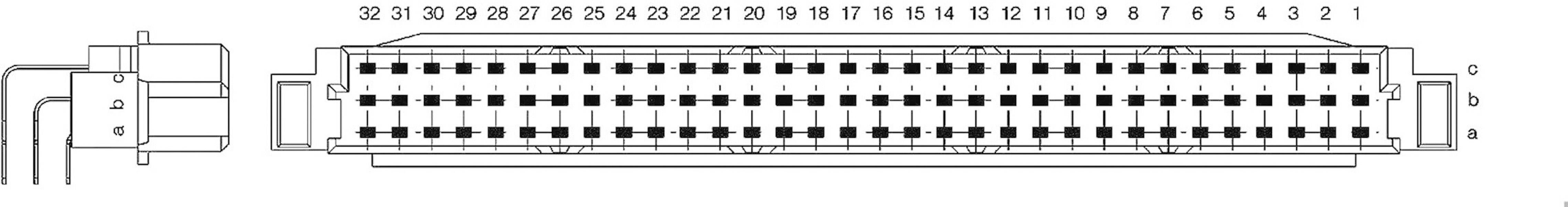

Technical drawing of a connector with contact points numbered from 1 to 32. Upper and lower rows display contact points.
1/5
Image similar
Product type
Edge connector (sockets)
Total no. of pins
96
Connector type
Edge connector, right angle
CS
2.54 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
70 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 9.99 / piece)
€ 9.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Head connector plates RM 1:27

  • No. of rows 3
  • Content 1 pc(s)

Technical specifications

Product type

Edge connector (sockets)

Total no. of pins

96

Connector type

Edge connector, right angle

Connector orientation

Parallel (to the PCB)

No. of rows

3

CS

2.54 mm

Nominal current

2 A

Nominal current - rounded value

2 A

DIN standard

R

Pins per row

32

Connection

Print

Factory colour

Light grey

Case material

PBT GF

Manufacturer part #

284258

Content

1 pc(s)

Contact material

Copper alloy

Width

94 mm

Height

17.58 mm

Length

10.6 mm

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

284258

Dim

(L x W x H) 10.6 x 94 x 17.58 mm

Configuration

(a+b+c)

Resistance

max. 20 A mΩ

Certification marks

DIN 41612

Number of pins

96

Pin length

3 mm

Contact surface

Gold plated

Material (details)

Tin-plated

Suitable for

Flat cable for direct Soldering to the conductor plates

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1169137 ERNI 284258 Edge connector (sockets) Total number of pins 96 No. of rows 3 1 pc(s)

Information

Information 1169137 ERNI 284258 Edge connector (sockets) Total number of pins 96 No. of rows 3 1 pc(s)

Description

Head connector plates 2-row, for Flat cable connection with pitch 0.635 mm for direct Soldering to the Conductors.
