ERNI 413170 Edge connector (sockets) Total number of pins 125 No. of rows 5 1 pc(s) Tray

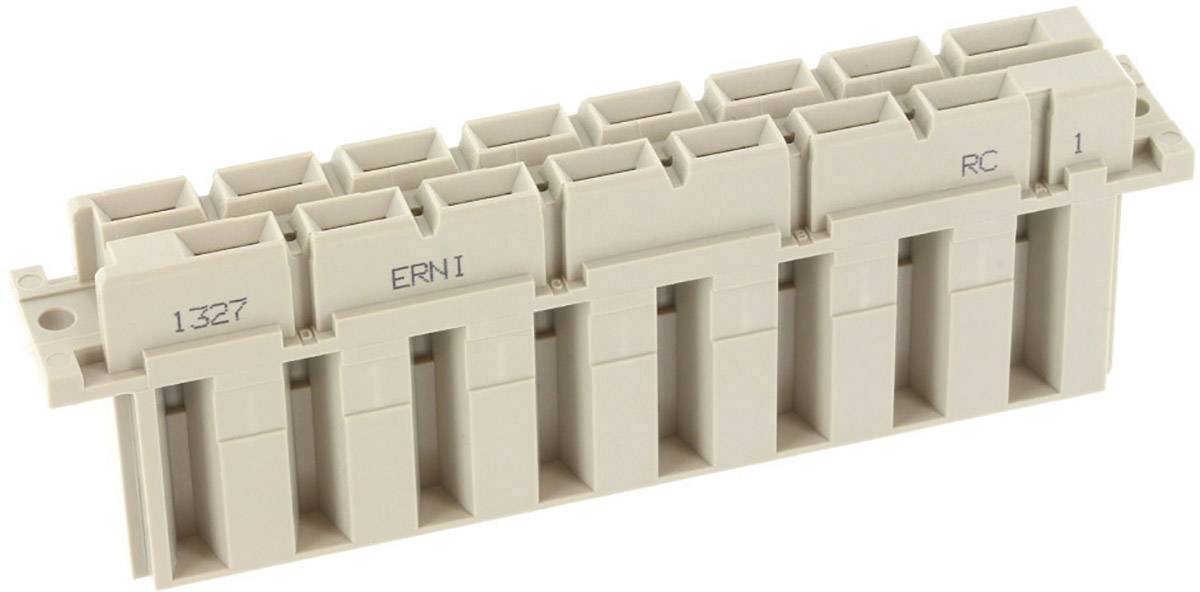

Beige electrical connector with multiple connection openings, labelled on the side with '1327', 'ERNI' and 'RC 1'.

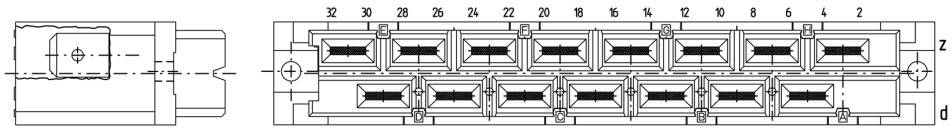

Technical drawing of a mechanical component with multiple symmetrically arranged holes and dimensions in millimetres.
Technical drawing of a cylindrical component with diameter specification: 12.4 -0.2 mm and longitudinal dimension 3 mm.

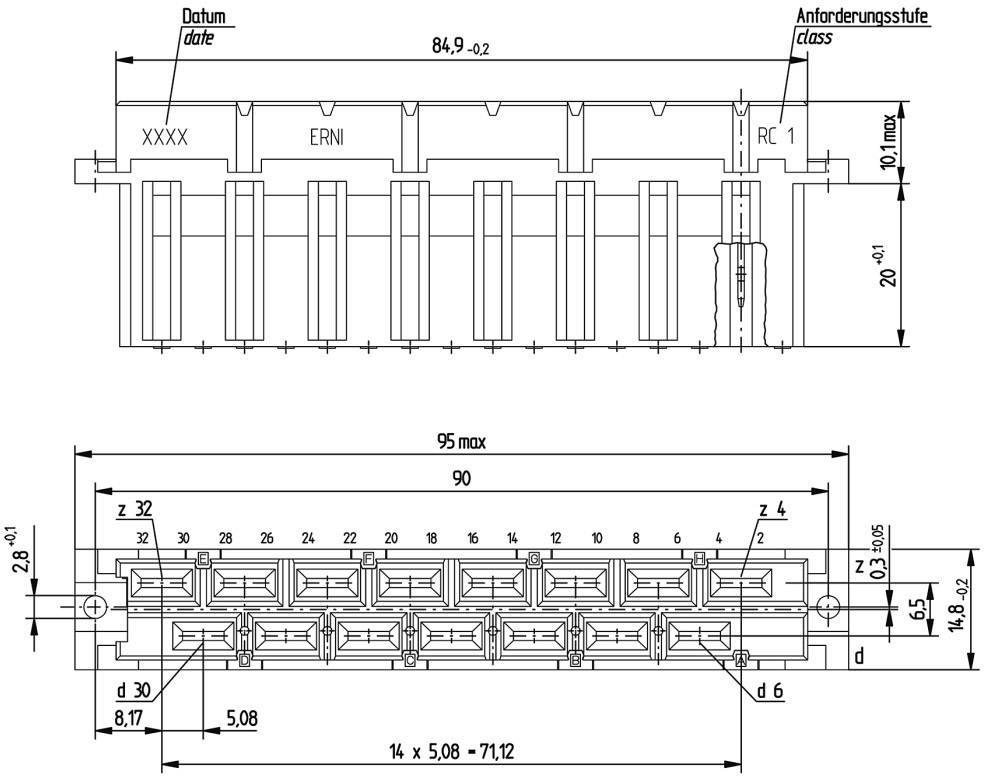

Technical drawing of a connector with dimensions and specifications, including width, length, and specific tolerances.
1/4
Image similar
Product type
Edge connector (sockets)
Total no. of pins
125
Connector type
Edge connector, right angle
CS
2 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
64 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.49 / piece)
€ 7.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

  • Total number of pins 125
  • No. of rows 5
  • Content 1 pc(s)

Our service for you

Technical specifications

Packaging type

Tray

Product type

Edge connector (sockets)

Total no. of pins

125

Connector type

Edge connector, right angle

Connector orientation

Parallel (to the PCB)

Total number of pins

125

No. of rows

5

CS

2 mm

Pins per row

25

Connection

Press-in

Factory colour

Beige

Case material

LCP

Manufacturer part #

413170

Content

1 pc(s)

Contact material

Phosphorus bronze

Max. temperature

125 °C

Min. temperature

-55 °C

Type

413170

Configuration

(a+b+c+d+e)

Actuation direction

Parallel (to the PCB)

Board contact surface

Tin plated

Connector contact surface

Gold plated

Number of pins

125

RoHS-compliant

Yes

Packaging type (details)

Tray

Documents & Downloads

Datasheet

Datasheet 2162880 ERNI 413170 Edge connector (sockets) Total number of pins 125 No. of rows 5 1 pc(s) Tray
