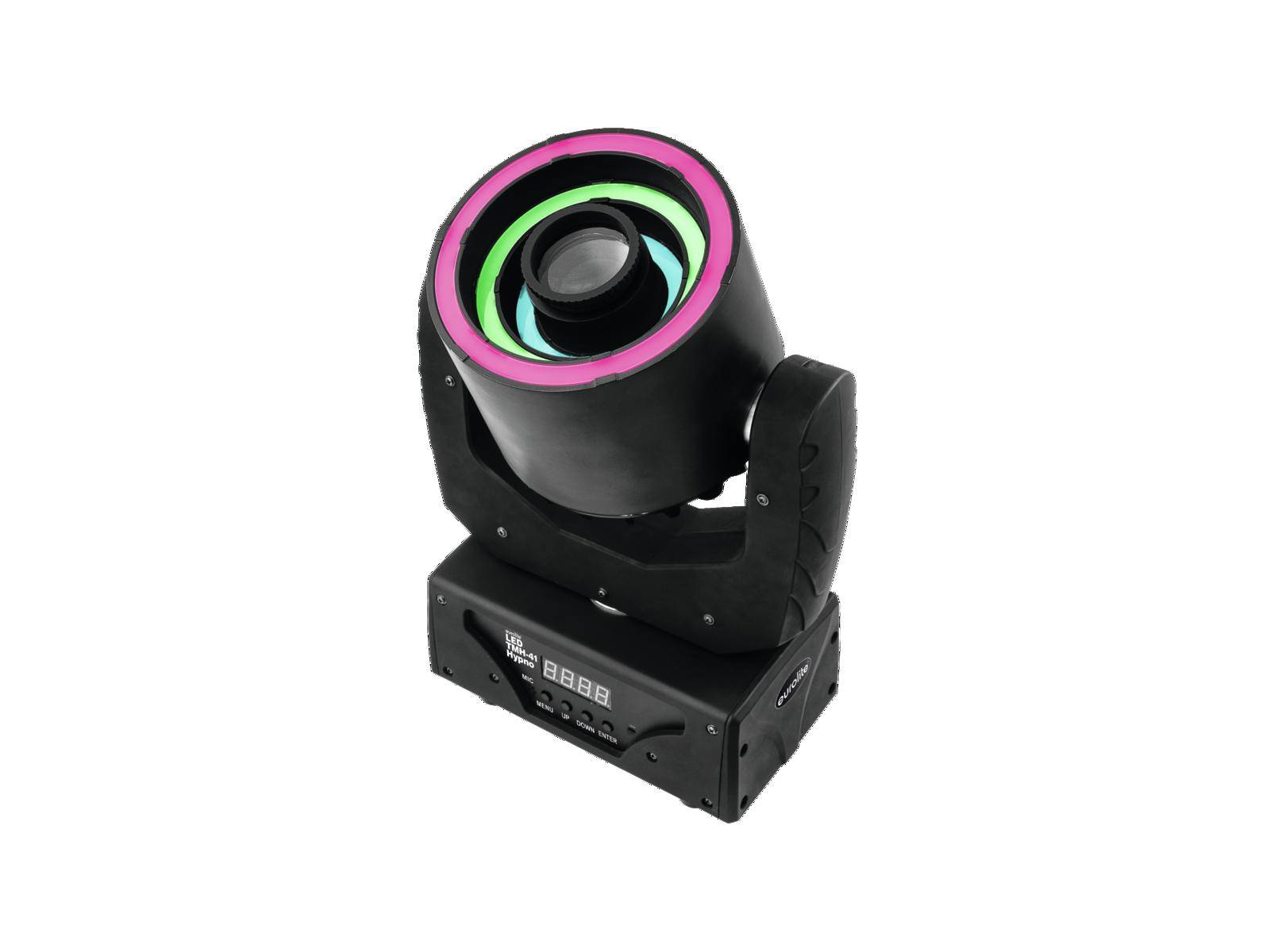

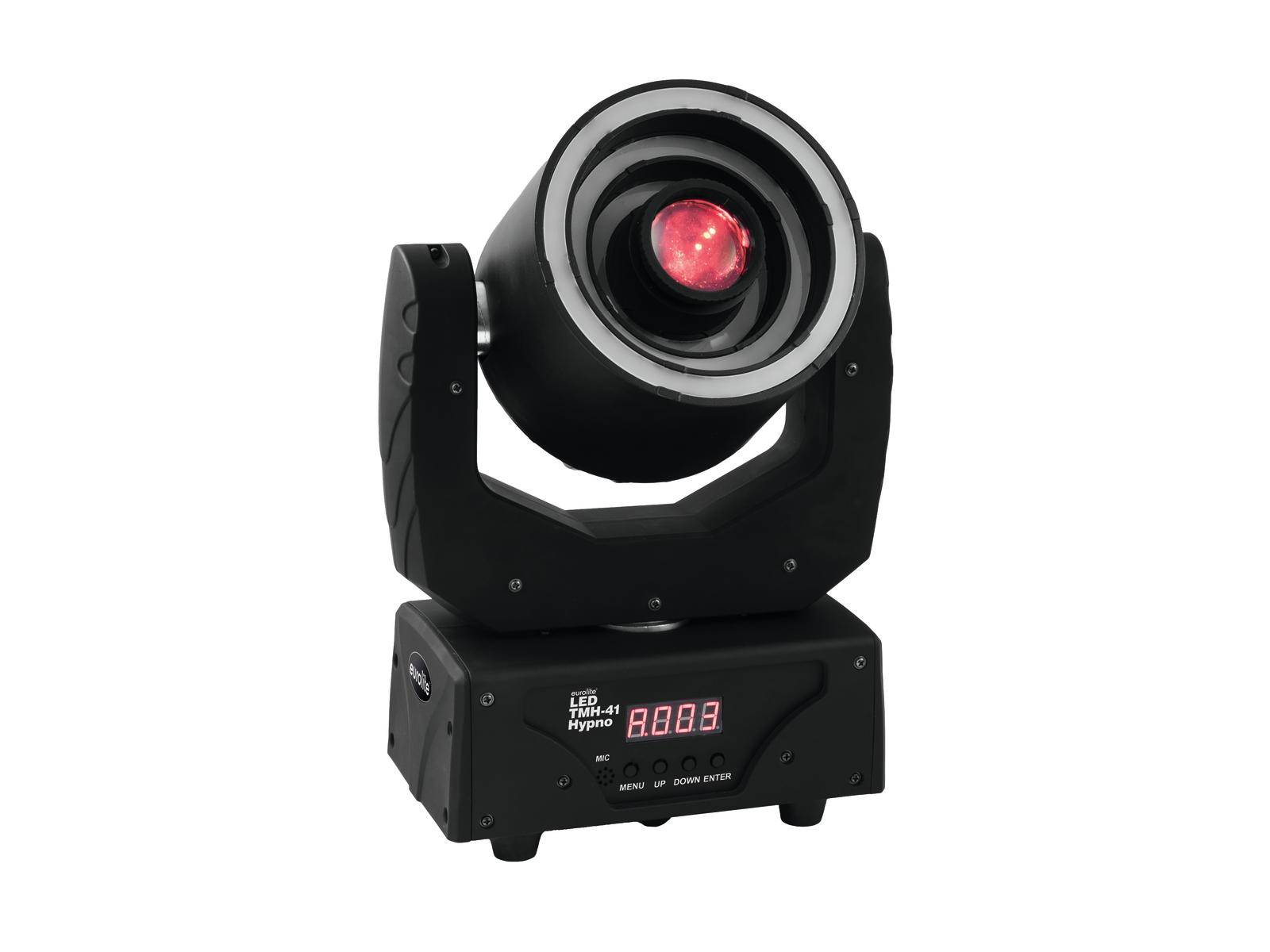

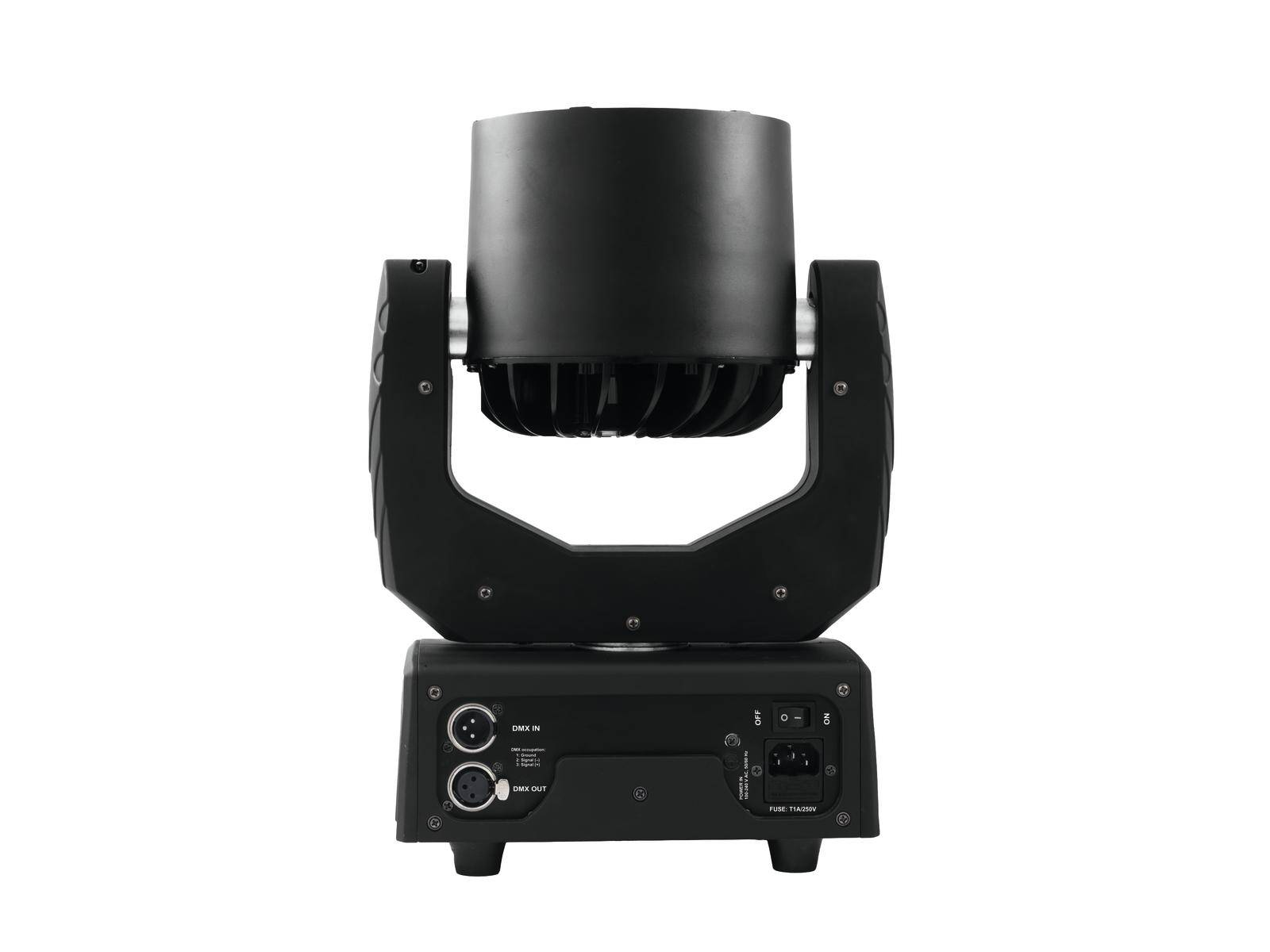

Eurolite 51785895 LED TMH-41 Hypno LED moving head spot No. of LEDs (details):1 x 30 W
EAN:
Part number:
Item no:
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
Highlights & Details
LED moving head spot with LED-Hypno-Ringen
- With a powerful white 30 W COB LED
- With 3 LED Hypno-Ringen with a total of 76 RGB SMD LEDs
- Compact light-weight
- Flicker-free projection
- Color wheel with 9 different dichroic color filters and open
- Gobo wheel with 9 static gobos plus open
- LED Hypno-Ringe with continuous RGB color mixing
- Each ring can be controlled individually
- This text is machine translated.
Technical specifications
- Power supply: 100-240 V AC 50/60 Hz ~
- Total connection value: 70 W
- DMX control channels: 12/23
- DMX512 connection: 3-pin. XLR
- Music control: via built-in microphone
- Flash rate: 25 Hz
- Number of LEDs: 1 x COB + 76 x SMD
- LED type: 30-W-COB white, RGB SMD
- Color wheel 9 dichroic colors and open
- Static gobo wheel 9 gobos and open
- Max. PAN: 630°
- Max. Tilting movement (TILT): 210°
- Dimensions (L x W x H): 245 x 350 x 165 mm
- Weight: 5 kg.
- Shipping weight: 6.00 kg
- Subject to eco-design: Yes
- Special product: not intended for the room lighting in households
- Purpose: lighting for show effects
- LEDs
1 x
- Dim
(L x W x H) 165 x 245 x 350 mm
- Weight
5 kg
n.rel.
- Height
350 mm
- Length
165 mm
- Width
245 mm
- Bulb type
LED (monochrome)
- Colour
RGB
- Watt per LED
30 W
70 W
- UKCA
yes
- Product type
LED moving head spot
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1529967 Eurolite 51785895 LED TMH-41 Hypno LED moving head spot No. of LEDs (details):1 x 30 W
Description
Features
- Spot effect with powerful white 30 W COB LED and 3 LED Hypno-Ringen with a total of 76 RGB SMD LEDs
- Compact light-weight
- 12 or 23 DMX channels can be selected
- Flicker-free projection
- Color wheel with 9 different dichroic color filters and open
- Gobo wheel with 9 static gobos plus open
- With Gobo shake function
- Master dimmer
- Strobe effect with 1-25 flashes per second and with variable speed
- Strobe effect of random generator
- Internal programs
- Manual focus
- LED Hypno-Ringe with continuous RGB color mixing-each color and each ring can be controlled individually, preset colors and color change
- Automatic position correction
- Positioning within 630° pan and 210° tilt
- PAN angle between 630° and 540° switchable
- Exact positioning via 16-bit resolution of the PAN/TILT motion
- DMX-controlled operation or standalone mode with master/slave function is possible
- Music control via built-in microphone, adjustable sensitivity
- Addressing and settings via control unit with four-digit LED display
- Switched-mode power supply technology for mains voltage between 100 and 240 Volt
- Ready to connect via cold-device mains cable with earthing contact plug
- DMX512 control is possible with any standard DMX controller
