Name: Eurolite 51785988 LED TMH-X1 LED moving head spot No. of LEDs (details):1 x 60 W
Brand: Eurolite
SKU: 1529972
Availability: InStock

Black, rotatable LED spotlight with a digital display on the front. 'eurolite LED TMH-7' inscription on the side.

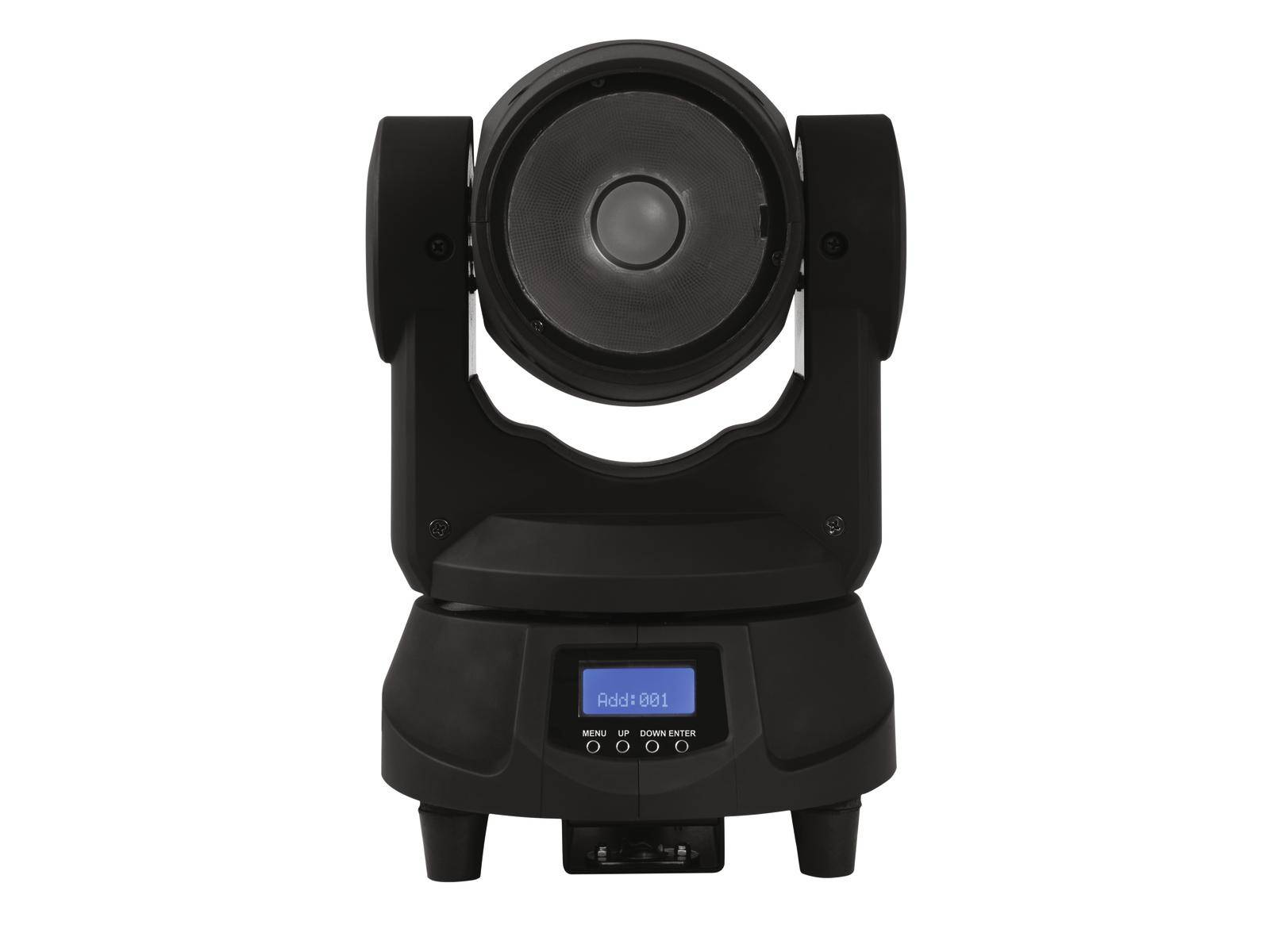

Black, rotating speaker with display and controls at the bottom, suitable for events and stage use.

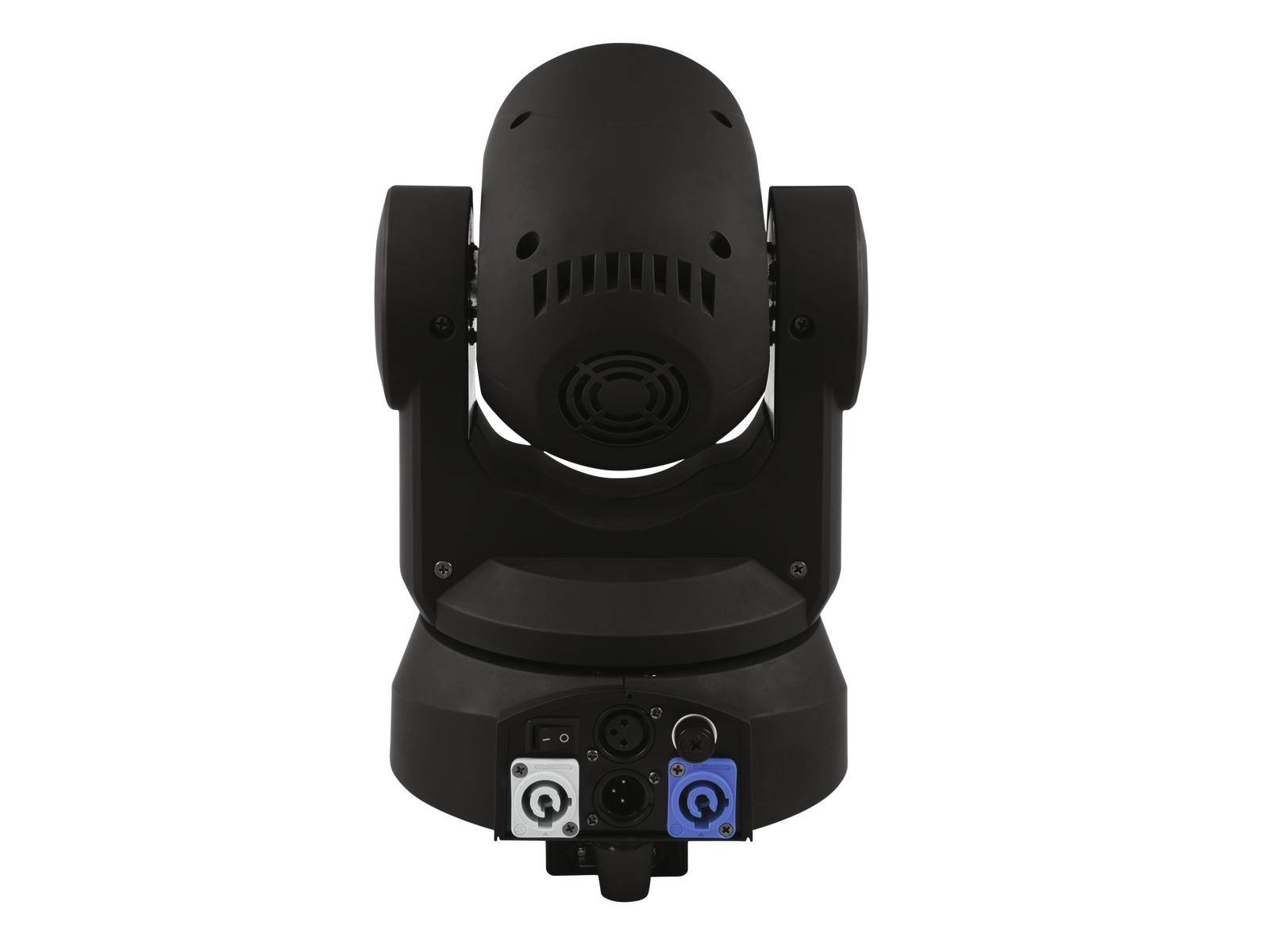

Black stage spotlight with rotatable head, shown from the front. Connections and control panel visible at the bottom.

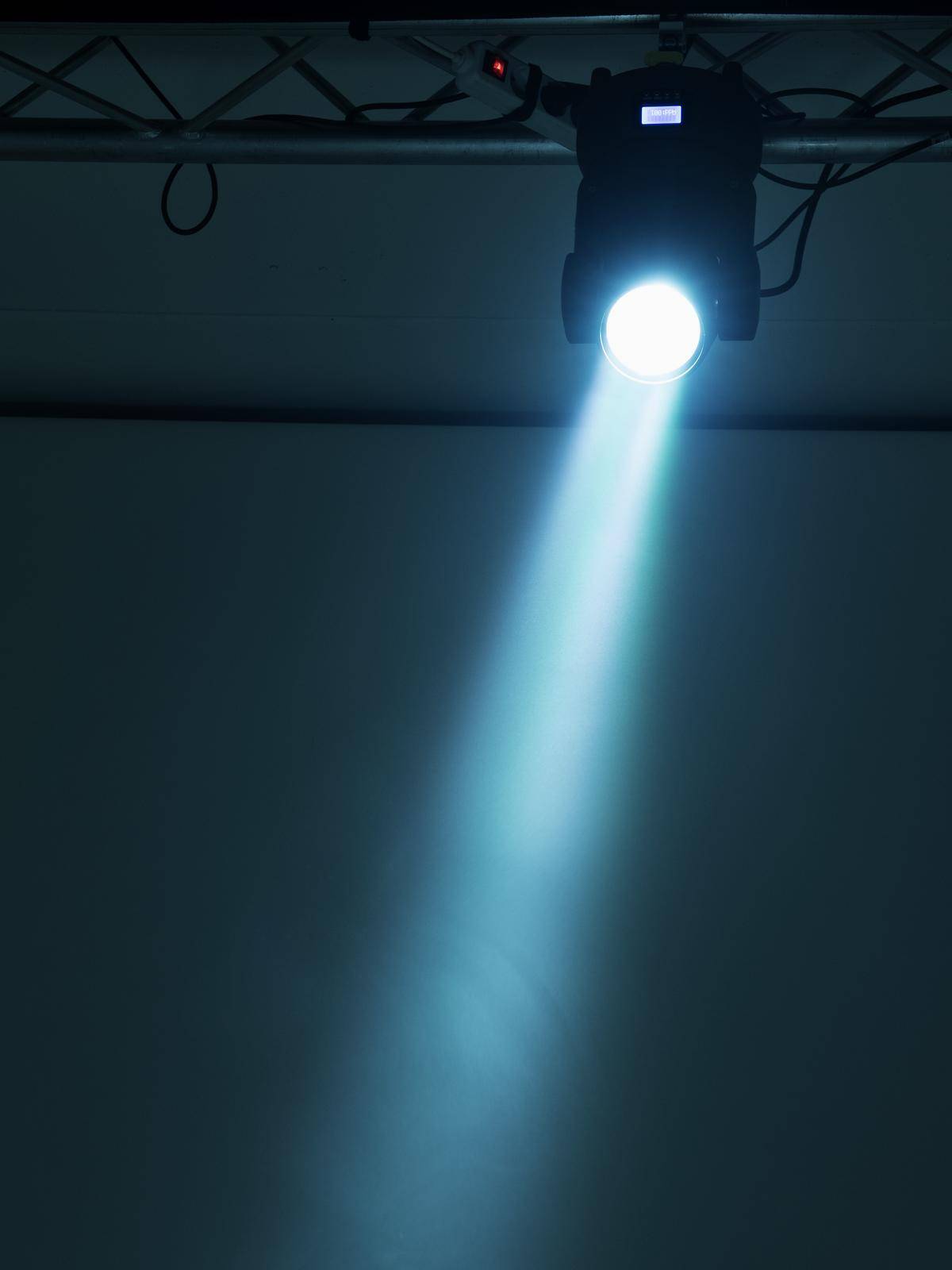

A bright spotlight beams down onto a neutral, empty surface, creating a concentrated beam of light against a dark background.

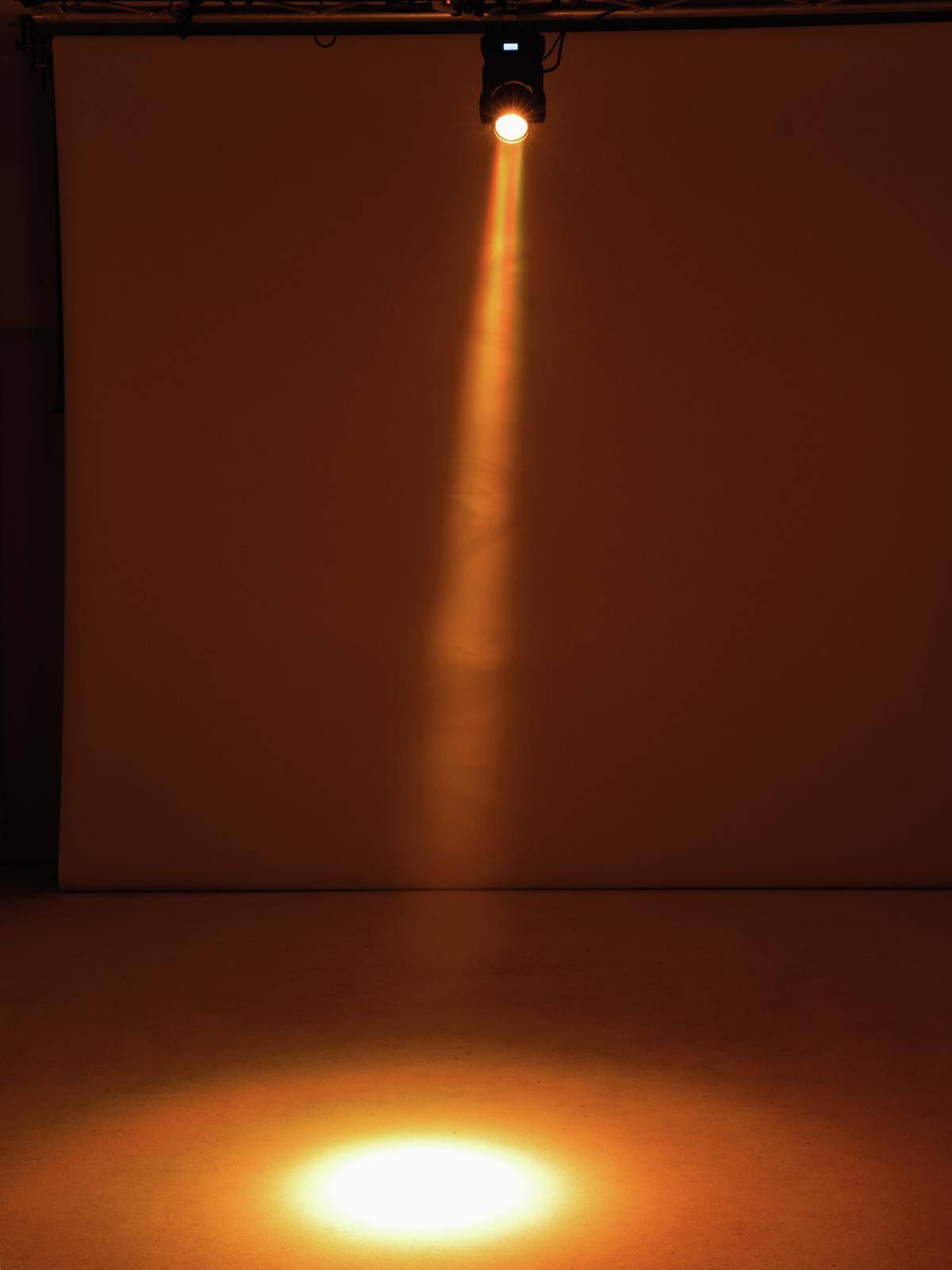

A single spotlight casts a cone of light onto the floor, surrounded by darkness.

1/5

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

36 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 365.00 / piece)

€ 365.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED moving head-beam light with 60-W-COB LED

Compact light-weight
Narrow beam angle of 3°
Flicker-free projection
Fully variable RGBW color mixing
Master dimmer
Internal programs
Color presets
Exact positioning via 16-bit resolution of the PAN/TILT motion
This text is machine translated.

Technical specifications

Power supply: 100-240 V AC 50/60 Hz ~
Total connection value: 90 W
DMX control channels: 14
DMX512 connection: 3-pin. XLR
Flash rate: 10 Hz
Music control: via built-in microphone
Number of LEDs: 1
LED type: 60-W-COB, RGBW
Radiation angle: 3°
Max. PAN: 540°
Max. Tilting movement (TILT): 220°
Dimensions (lxwxh): 207 x 196 x 313 mm
Weight: 4 kg.
Shipping weight: 5.18 kg
Subject to eco-design: Yes
Special product: not intended for the room lighting in households
Purpose: lighting for show effects

Product type: LED moving head spot

: 60 W

LEDs: 1 x

Colour: RGB

Dim: (L x W x H) 207 x 196 x 313 mm

Weight: 4 kg

: n.rel.

Bulb type: LED (monochrome)

Width: 196 mm

Height: 313 mm

Length: 207 mm

Watt per LED: 60 W

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1529972 Eurolite 51785988 LED TMH-X1 LED moving head spot No. of LEDs (details):1 x 60 W

Features

Equipped with a 60-W-COB LED with RGBW colors from Osram
Compact light-weight
Close angle of radiation
Flicker-free projection
Positioning within 540° pan and 220° tilt
Fully variable RGBW color mixing
Master dimmer
Internal programs
Music control via built-in microphone, adjustable sensitivity
Color presets
Strobe-effect with variable speed
Automatic position correction
Exact positioning via 16-bit resolution of the PAN/TILT motion
DMX-controlled operation or standalone mode with master/slave function is possible
Control Board with LCD display for setting the DMX start address, pan/tilt reverse, Reset
Switched-mode power supply technology for mains voltage between 100 and 240 Volt
Mains connection via P-powercon socket and the supplied power cable with earthing contact plug
Loop-through output for power supply of up to 8 devices.
DMX512 control is possible with any standard DMX controller

Description

Features

Equipped with a 60-W-COB LED with RGBW colors from Osram
Compact light-weight
Close angle of radiation
Flicker-free projection
Positioning within 540° pan and 220° tilt
Fully variable RGBW color mixing
Master dimmer
Internal programs
Music control via built-in microphone, adjustable sensitivity
Color presets
Strobe-effect with variable speed
Automatic position correction
Exact positioning via 16-bit resolution of the PAN/TILT motion
DMX-controlled operation or standalone mode with master/slave function is possible
Control Board with LCD display for setting the DMX start address, pan/tilt reverse, Reset
Switched-mode power supply technology for mains voltage between 100 and 240 Volt
Mains connection via P-powercon socket and the supplied power cable with earthing contact plug
Loop-through output for power supply of up to 8 devices.
DMX512 control is possible with any standard DMX controller
