Cylindrical metal spiral drill with gold-coloured coating, suitable for drilling hard materials.

Cylindrical metal spiral drill with gold-coloured coating, suitable for drilling hard materials.

A metal drill is boring a hole into a metal plate, surrounded by metal shavings.

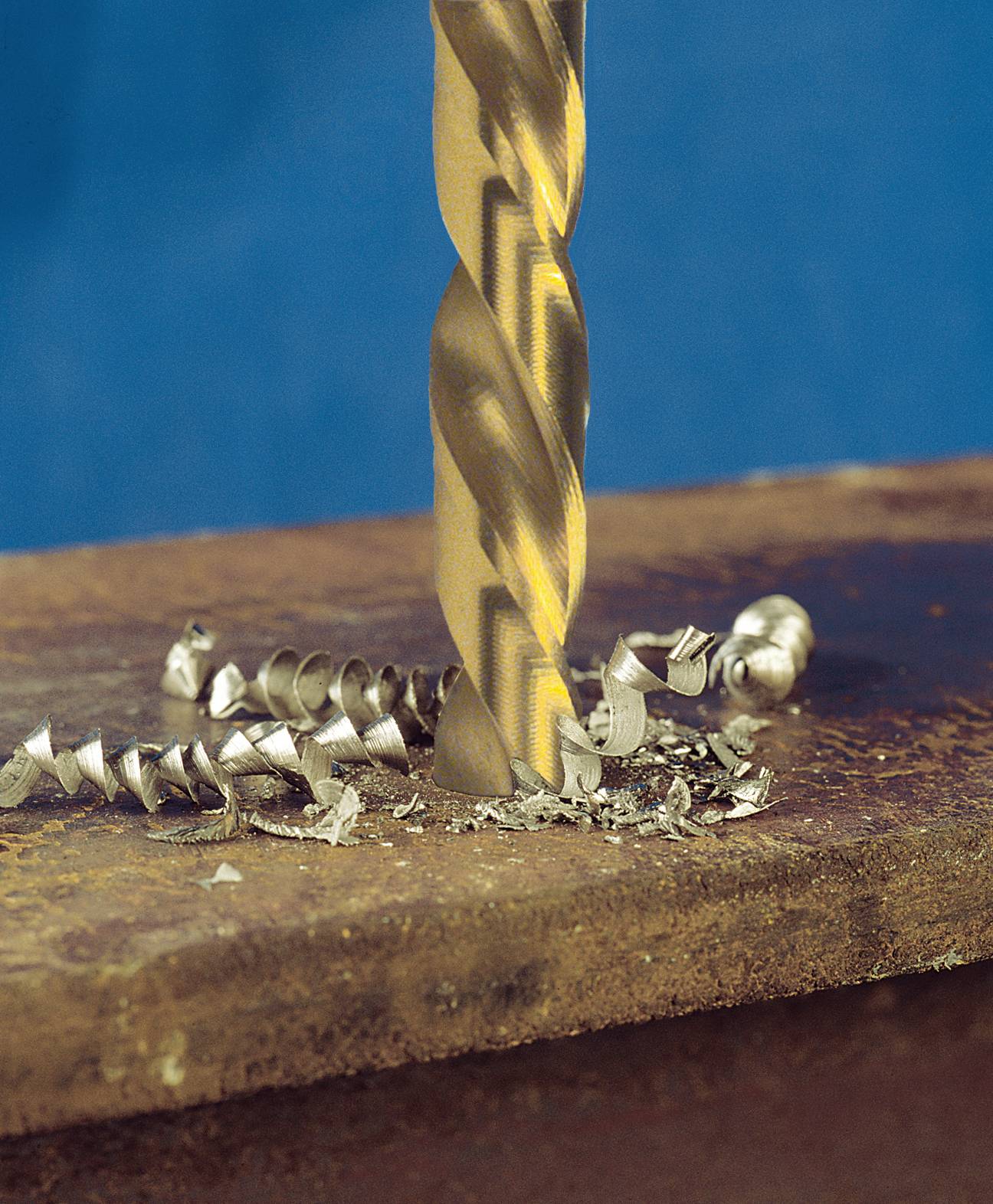

A metal drill bores into a metal plate, surrounded by metal shavings. In the background is a blurry blue area.

1/3

Exact

Product type

Metal twist drill bit

Drill hole Ø

1 mm

Content

10 pc(s)

Material

HSS

Material suitability

Metal

Plastic

Non-ferrous metal

Perspex

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

6 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 9.49 / piece)

€ 9.49

incl. VAT

Only 6 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 1 mm

Content: 10 pc(s)

Material: HSS

Material properties: cut
TiN

Material suitability: Metal
Plastic
Non-ferrous metal
Perspex

Tensile strength (max.): 900 N/mm²

Tool holder: Cylinder shank

Shank Ø: 1 mm

Working length: 12 mm

Total length: 34 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1215652 Exact 32508 HSS Metal twist drill bit 1 mm Total length 34 mm cut, TiN DIN 338 Cylinder shank 10 pc(s)

Description

Usage areas: For steel, cast steel alloyed and unalloyed (up to 900 N/mm² strength), grey cast iron, malleable cast iron, spheroid iron and pressure casting, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze Spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting • Ausspitzung: from Ø 3.0 mm · etched to DIN 1412 C · tip angle: 118° · Surface: titanium nitride coated properties · As HSS-G plus titanium nitride coating · The TIN coating increases the surface hardness of approx. 2300 HV and the heat hardened resistance up to 600°C.

Hints

This text is machine translated.

Description

Usage areas: For steel, cast steel alloyed and unalloyed (up to 900 N/mm² strength), grey cast iron, malleable cast iron, spheroid iron and pressure casting, sintered iron, nickel silver, graphite, short-chipping aluminium alloys, brass and bronze Spiral angle: 20 - 30°Ø-tolerance h 8 • right-handed cutting • Ausspitzung: from Ø 3.0 mm · etched to DIN 1412 C · tip angle: 118° · Surface: titanium nitride coated properties · As HSS-G plus titanium nitride coating · The TIN coating increases the surface hardness of approx. 2300 HV and the heat hardened resistance up to 600°C.

Hints

This text is machine translated.
