Name: Extech Extech EX840A Clamp meter Digital IR thermometer, LoZ CAT IV 600 V Display (counts): 6000
Brand: Extech
SKU: 3192098
Availability: InStock

Highlights & Details

Clamp Series EX-800

With integrated infrared thermometer
CAT III 600 V

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Clamp meter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 0.1 mV

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 0.1 A

A DC reading range (max.): 1000 A

A AC reading range (min.): 0.1 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 0 - 40 MΩ

Reading range - capacity: 0 - 40 mF

Frequency reading range: 0 -4000 kHz

Temperature: Infrared -50 to +270

Basic accuracy: 2.5 %

Measurement type (details): True RMS

Frequency range: 50 - 60 Hz

Power supply (details): 9 V battery pack

Height: 270 mm

Width: 110 mm

Length: 50 mm

Weight: 396 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: Extech EX840A

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 50 x 110 x 270 mm

Temperature reading range (max.): +760 °C

Temperature reading range (min.): -20 °C

Features: IR thermometer
LoZ

Opening range of current clamps: 43 mm

Resolution: 0.1 A

Basic accuracy: ± 8 %

Displays: 4000 counts

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3192098 Extech Extech EX840A Clamp meter Digital IR thermometer, LoZ CAT IV 600 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 3192098 Extech Extech EX840A Clamp meter Digital IR thermometer, LoZ CAT IV 600 V Display (counts): 6000

Description

Fully packed with extended functions. LoZ prevents false readings caused by ghost voltage. Low-pass filter (LPF) for the exact measurement of electrically noisy devices. Inrush current for monitoring the start-up current. In-built IR-thermometer for contact-less temperature measurements, background-lit LCD-display with 6000 counters and safety classification CAT IV-600V.

This text is machine translated.

Features

1000A AC/DC-current clamp with IR
Low-pass filter (LPF)
Low impedance mode (LoZ)
Includes 8-part industrial test lead set

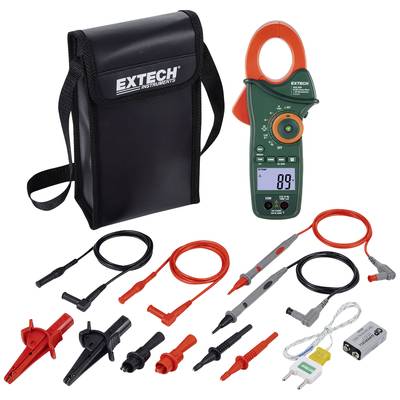

Scope of delivery

EX840A
Bag of 8 piece professional test lead set (TL808) Temperature of bead wire type K.
9V battery
User manual

Description

Fully packed with extended functions. LoZ prevents false readings caused by ghost voltage. Low-pass filter (LPF) for the exact measurement of electrically noisy devices. Inrush current for monitoring the start-up current. In-built IR-thermometer for contact-less temperature measurements, background-lit LCD-display with 6000 counters and safety classification CAT IV-600V.

This text is machine translated.
