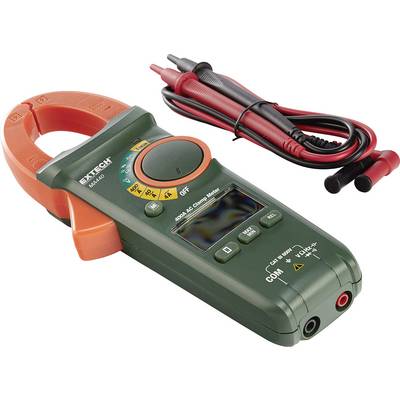

Name: Extech MA440 Handheld multimeter, Clamp meter Digital incl. testing cable CAT III 600 V Display (counts): 4000
Brand: Extech
SKU: 1589960
Availability: InStock

Highlights & Details

AC current clamp meter MA 440

CAT III 600 V

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 600 V

V AC reading range (min.): 1 mV

V AC reading range (max.): 600 V

A AC reading range (min.): 0.001 A

Amperage reading range AC (max.): 400 A

Reading range - capacity: 0.01 nF -100 µF

Frequency reading range: 01 Hz - 1 MHz

Basic accuracy: 0.8 %

Measurement type (details): Average

Power supply (details): 3x AAA battery

Height: 228 mm

Width: 77 mm

Length: 41 mm

Weight: 265 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V

Voltage metering: AC/DC

Current reading: AC

Type: MA440

Display: Digital

Display (counts): 4000

Dim: (L x W x H) 41 x 77 x 228 mm

Features: incl. testing cable

Opening range of current clamps: 30 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1589960 Extech MA440 Handheld multimeter, Clamp meter Digital incl. testing cable CAT III 600 V Display (counts): 4000

User & Safety Instructions

User & Safety Instructions 1589960 Extech MA440 Handheld multimeter, Clamp meter Digital incl. testing cable CAT III 600 V Display (counts): 4000

Description

The MA440 is a 10-Function, 400 A True RMS AC current clamp and NCV detector. This pliers is a compact measuring device with type K temperature measurement. True RMS function for accurate readings, regardless of waveforms. 30 mm clamp opening. CAT III 600 V safety class CE and ETL certified. Complete with test leads, three AAA batteries and case.

This text is machine translated.

Scope of delivery

Test Leads
Batteries
Bag
User manual.

Description

The MA440 is a 10-Function, 400 A True RMS AC current clamp and NCV detector. This pliers is a compact measuring device with type K temperature measurement. True RMS function for accurate readings, regardless of waveforms. 30 mm clamp opening. CAT III 600 V safety class CE and ETL certified. Complete with test leads, three AAA batteries and case.

This text is machine translated.
