Image similar

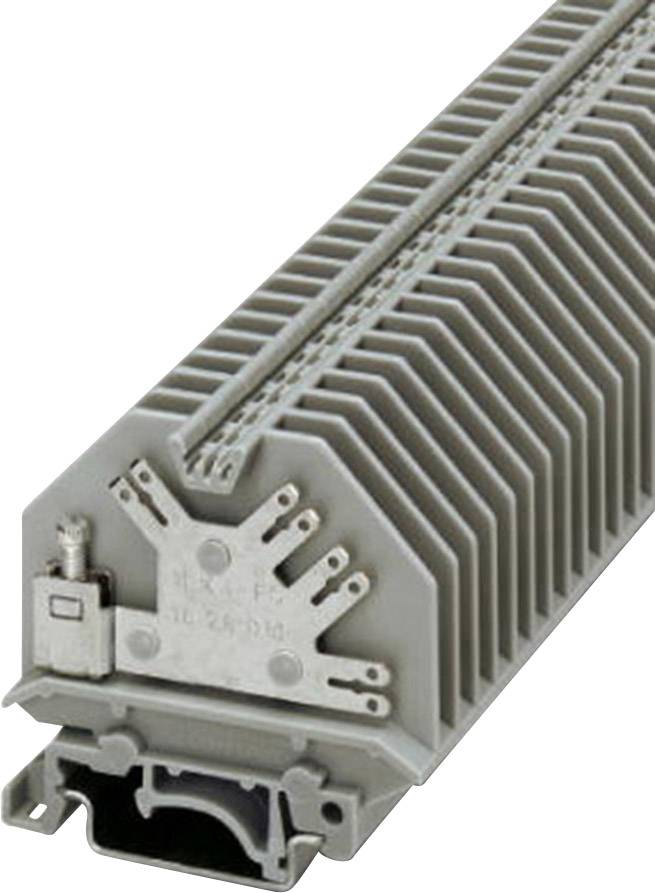

Feed-through terminal block HK 4-FS(8-2,8-0,8) 2017017 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 6.10 / piece)
€ 305.00
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
9
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Stripping length (max.)
9 mm
- Manufacturer part #
2017017
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
HK 4-FS(8-2,8-0,8)
- Dim
(L x W x H) 54 x 6.2 x 51.5 mm
- Width
6.2 mm
- Height
51.5 mm
- Length
54 mm
- Flammability rating
V2
- Insulation material
PA
- Insulation
PA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565121 Feed-through terminal block HK 4-FS(8-2,8-0,8) 2017017 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565121 Feed-through terminal block HK 4-FS(8-2,8-0,8) 2017017 Phoenix Contact
Description
Feed-through terminal block, Connection type: Screw connection, Slip-on connection, Cross section: 0.2 mm² - 4 mm², AWG :24- 14, Width: 6.2 mm, Color: gray, Mounting: NS 32
Hints
Special order, no right of withdrawal.
