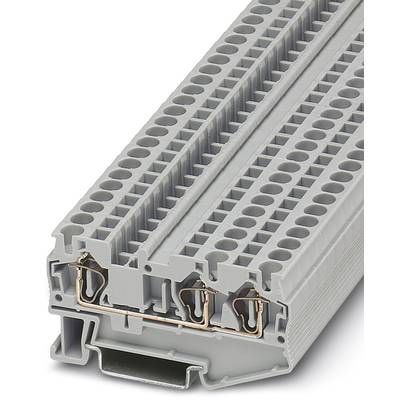

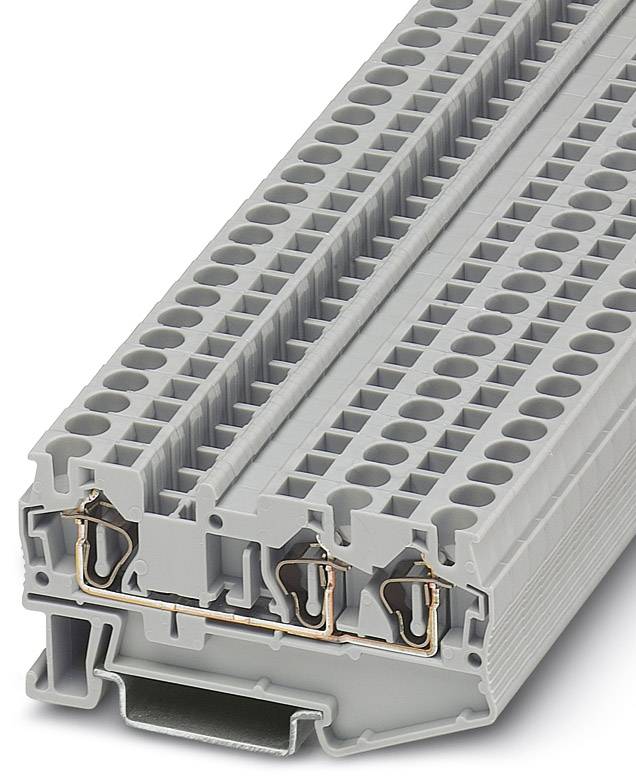

Image similar
Feed-through terminal block ST 4-TWIN BU 3031403 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 2.00 / piece)
€ 160.00
-38 %
€ 99.99
incl. VAT
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
3
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
3031403
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
ST 4-TWIN BU
- Dim
(L x W x H) 71.5 x 6.2 x 36.5 mm
- Width
6.2 mm
- Height
36.5 mm
- Length
71.5 mm
- Flammability rating
V0
- Connector colour
Blue
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 589605 Feed-through terminal block ST 4-TWIN BU 3031403 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 589605 Feed-through terminal block ST 4-TWIN BU 3031403 Phoenix Contact
Description
Feed-through terminal block, Connection method: Spring-cage connection, Cross section: 0.08 mm² - 6 mm², AWG: 28 - 10, Width: 6.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15
