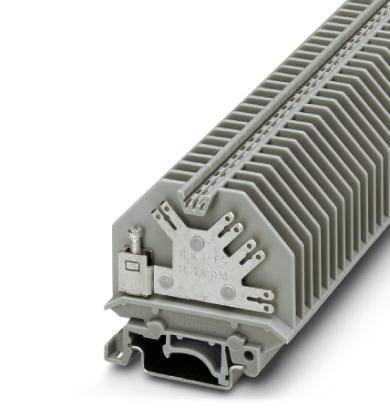

Name: Feed-through terminal block UHK 4-FS(8-2,8-0,8) 2017237 Phoenix Contact
Brand: Phoenix Contact
SKU: 565124
Availability: InStock

Technical specifications

Packaging type: Piece

Product type: Serial continuity

Features: with screw connection

Connection: Screws

Cross section (flexible) (min.): 0.2 mm²

Cross section (flexible) (max.): 4 mm²

Cross section (inflexible) (min.): 0.2 mm²

Cross section (inflexible) (max.): 4 mm²

AWG (min.): 24

AWG max.: 12

Clamp width: 6.2 mm

No. of rows: 1

Pins per row: 2

Number of pins: 2

Factory colour: Grey

Nominal current: 32 A

Nominal current - rounded value: 32 A

Nominal voltage: 800 V

Stripping length (max.): 9 mm

Manufacturer part #: 2017237

Content: 50 pc(s)

Industrial packaging: Yes

Type: UHK 4-FS(8-2,8-0,8)

Dim: (L x W x H) 54 x 6.2 x 51.5 mm

Width: 6.2 mm

Height: 51.5 mm

Length: 54 mm

Contamination level: 3

Flammability rating: V2

Insulation material: PA

Insulation: PA

: DIN rail (top hat rail) 35 mm

: Grey

: 6.2

: 54 mm

: 51.5 mm

: 800 V

: -60-105 °C

: V2

: TRUE

: Screw connection

: Screw connection

: 1

: 2

: FALSE

: 0.2-4 mm²

: 0.25-0.25 mm²

: 0.2-4 mm²

: 0.2-1.5 mm²

: Other

: 32 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 565124 Feed-through terminal block UHK 4-FS(8-2,8-0,8) 2017237 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565124 Feed-through terminal block UHK 4-FS(8-2,8-0,8) 2017237 Phoenix Contact

Description

Feed-through terminal block, Connection type: Screw connection, Slip-on connection, Cross section: 0.2 mm² - 4 mm², AWG :24- 14, Width: 6.2 mm, Color: gray, Mounting: NS 35/7,5, NS 35/15, NS 32

Description

Feed-through terminal block, Connection type: Screw connection, Slip-on connection, Cross section: 0.2 mm² - 4 mm², AWG :24- 14, Width: 6.2 mm, Color: gray, Mounting: NS 35/7,5, NS 35/15, NS 32
