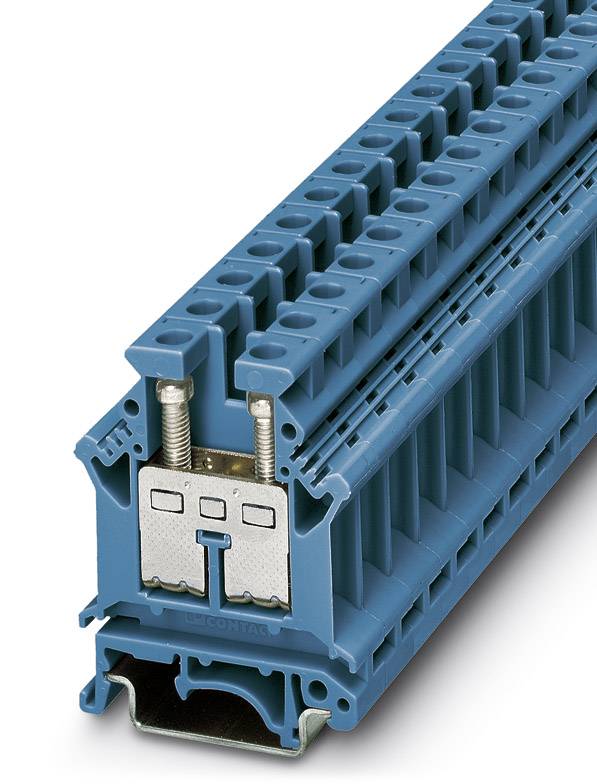

Feed-through terminal block UK 16 BU 3006098 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
16 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 7.58 / piece)
€ 529.00
-28 %
€ 379.00
incl. VAT
Only 5 Set(s) available
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Features
with screw connection
- Connection
Screws
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
10.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Blue
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
800 V
- Stripping length (max.)
11 mm
- Manufacturer part #
3006098
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 16 BU
- Dim
(L x W x H) 42.5 x 10.2 x 54 mm
- Width
10.2 mm
- Height
54 mm
- Length
42.5 mm
- Flammability rating
V2
- Connector colour
Blue
- Insulation material
PA
- Insulation
PA
Documents & Downloads
Datasheet
Datasheet 565240 Feed-through terminal block UK 16 BU 3006098 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565240 Feed-through terminal block UK 16 BU 3006098 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.5 mm² - 16 mm², AWG: 20 - 6, Width: 10.2 mm, Color: blue, Mounting type: NS 35/7,5, NS 35/15, NS 32
