Image similar

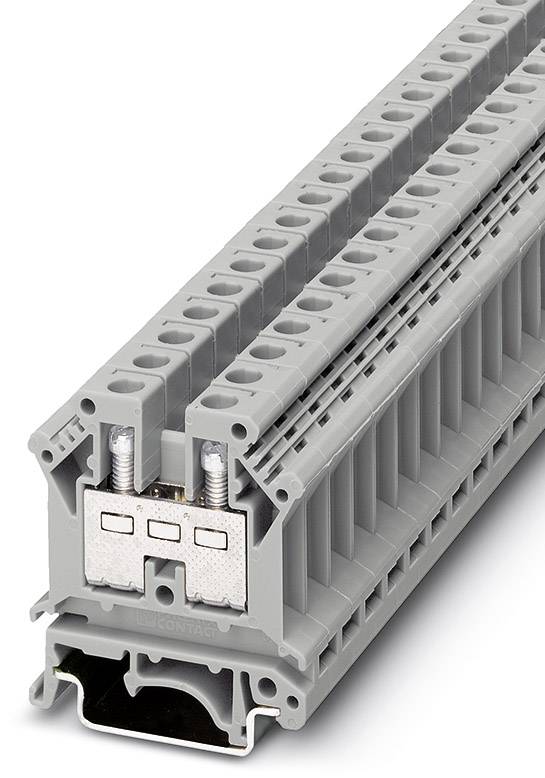

Feed-through terminal block UK 4 3003017 Phoenix Contact
Packaging type
Piece
Product type
Serial continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number (Package size 50 pc(s))
Total (€ 5.70 / piece)
€ 285.00
incl. VAT
14-day return policy included
Highlights & Details
Feed-through terminal block UK 4
- UK 4
Technical specifications
- Packaging type
Piece
- Product type
Serial continuity
- Connection
Screws
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
24
- AWG max.
12
- Clamp width
6.2 mm
- No. of rows
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Stripping length (max.)
8 mm
- Manufacturer part #
3003017
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
UK 4
- Dim
(L x W x H) 42.5 x 6.2 x 47 mm
- Width
6.2 mm
- Height
47 mm
- Length
42.5 mm
- Connector colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 565208 Feed-through terminal block UK 4 3003017 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 565208 Feed-through terminal block UK 4 3003017 Phoenix Contact
Description
Feed-through terminal block, Connection method: Screw connection, Cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, Width: 6.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
