Feed-through terminal block UT 2,5/1P 3045017 Phoenix Contact

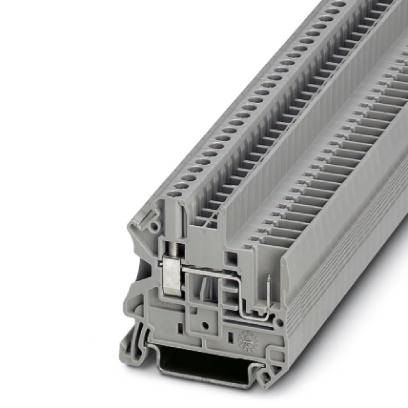

A grey terminal block with multiple connection points for electrical cables, typically used in electrical cabinet applications.
Packaging type
Piece
Product type
Continuity
Connection
Screws
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 30 Oct
3476 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 0.94 / piece)
€ 46.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Feed-through terminal block UT 2,5/1P

  • UT 2,5/1P

Technical specifications

Packaging type

Piece

Product type

Continuity

Features

with screw connection

Connection

Screws

Cross section (flexible) (min.)

0.14 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.14 mm²

Cross section (inflexible) (max.)

4 mm²

AWG (min.)

26

AWG max.

12

Clamp width

5.2 mm

No. of rows

1

Number of pins

2

Factory colour

Grey

Nominal current

24 A

Nominal current - rounded value

24 A

Nominal voltage

500 V

Stripping length (max.)

9 mm

Manufacturer part #

3045017

Content

50 pc(s)

Industrial packaging

Yes

Type

UT 2,5/1P

Dim

(L x W x H) 49.1 x 5.2 x 47.5 mm

Width

5.2 mm

Height

47.5 mm

Length

49.1 mm

Flammability rating

V0

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 588875 Feed-through terminal block UT 2,5/1P 3045017 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 588875 Feed-through terminal block UT 2,5/1P 3045017 Phoenix Contact

Description

Feed-through terminal block, Connection method: Screw/plug-in connection, Cross section: 0.14 mm² - 4 mm², AWG: 26 - 12, Width: 5.2 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
