Name: FESTO 1384892 DSBC-100-50-PPSA-N3 Standard cyclinder Stroke length: 50 mm 1 pc(s)
Brand: FESTO
SKU: 2122364
Availability: BackOrder

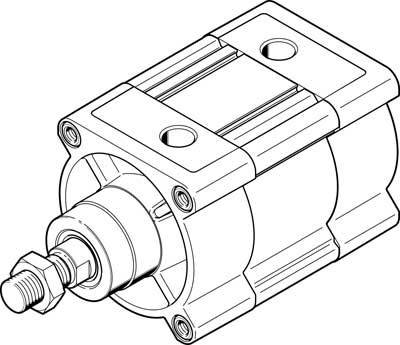

Technical drawing of a pneumatic cylinder with two mounting holes and a threaded connection at one end.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 415.00 / piece)

€ 415.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Pneumatic connection: G1/2
All mounting positions permitted

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Standard cyclinder

Stroke length: 50 mm

Min. operating pressure: 0.4 bar

Max. operating pressure: 12 bar

(Ø): 100 mm

Manufacturer part #: 1384892

Size: 100

Operating medium: Compressed air

Sealant: TPE-U

Piston diameter: 100 mm

Piston rod thread: M20 x 1.5

Medium: Compressed air

Standard: ISO 15552

Max. ambient temperature: +80 °C

Min. ambient temperature: -20 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Manufacturer part #

Max. operating pressure

Product type

Stroke length

FESTO 1366949 DSBC-50-40-PPVA-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

Item no:1944083

Dispatches on Tue 10 Nov

Conrad Electronic

1366949

12 bar

Standard cyclinder

40 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

FESTO 1366951 DSBC-50-80-PPVA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 80 mm 1 pc(s)

Item no:1893652

Dispatches on Tue 10 Nov

Conrad Electronic

1366951

12 bar

Round cylinder

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 209.99^*

FESTO 1366953 DSBC-50-125-PPVA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 125 mm 1 pc(s)

Item no:1893654

Dispatches on Tue 10 Nov

Conrad Electronic

1366953

12 bar

Round cylinder

125 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO 1366956 DSBC-50-250-PPVA-N3 Standard cyclinder Stroke length: 250 mm 1 pc(s)

Item no:1944084

Dispatches on Tue 10 Nov

Conrad Electronic

1366956

12 bar

Standard cyclinder

250 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

FESTO 1366957 DSBC-50-320-PPVA-N3 Standard cyclinder Stroke length: 320 mm 1 pc(s)

Item no:1944085

Dispatches on Tue 10 Nov

Conrad Electronic

1366957

12 bar

Standard cyclinder

320 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 239.99^*

FESTO 1366958 DSBC-50-400-PPVA-N3 Standard cyclinder Stroke length: 400 mm 1 pc(s)

Item no:1944086

Dispatches on Tue 10 Nov

Conrad Electronic

1366958

12 bar

Standard cyclinder

400 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 249.99^*

FESTO 1366959 DSBC-50-500-PPVA-N3 Standard cyclinder Stroke length: 500 mm 1 pc(s)

Item no:1944087

Dispatches on Tue 10 Nov

Conrad Electronic

1366959

12 bar

Standard cyclinder

500 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

FESTO 1376304 DSBC-50-40-PPSA-N3 Standard cyclinder Stroke length: 40 mm 1 pc(s)

Item no:1944088

Dispatches on Tue 10 Nov

Conrad Electronic

1376304

12 bar

Standard cyclinder

40 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 199.99^*

FESTO 1376309 DSBC-50-160-PPSA-N3 Round cylinder Enclosure material: Aluminium (die-cast) Stroke length: 160 mm 1 pc(s)

Item no:1893662

Dispatches on Tue 10 Nov

Conrad Electronic

1376309

12 bar

Round cylinder

160 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 214.99^*

FESTO 1376312 DSBC-50-320-PPSA-N3 Standard cyclinder Stroke length: 320 mm 1 pc(s)

Item no:1944090

Dispatches on Tue 10 Nov

Conrad Electronic

1376312

12 bar

Standard cyclinder

320 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Documents & Downloads

Datasheet

Datasheet 2122364 FESTO 1384892 DSBC-100-50-PPSA-N3 Standard cyclinder Stroke length: 50 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2122364 FESTO 1384892 DSBC-100-50-PPSA-N3 Standard cyclinder Stroke length: 50 mm 1 pc(s)

Description

Standard cylinder DSBC -100-50 PPSA-N3 with self-adjusting pneumatic end position damping. Hub = 50 mm, piston diameter = 100 mm, Piston Rod Thread = M20x1.5, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
