FESTO 195994 DSNU-40-100-P-A Round cylinder Stroke length: 100 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

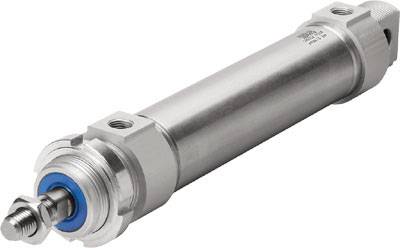

Round cylinder DSNU-40-100-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Round cylinder
- Stroke length
100 mm
- Min. operating pressure
1 bar
- Max. operating pressure
10 bar
- (Ø)
40 mm
- Material (details)
Cover: aluminum wrought alloy
- Manufacturer part #
195994
- Type
Mounting type: with accessories
- Weight
901 g
- Size
40
- Operating medium
Compressed air
- Sealant
NBR
TPE-U
- Pneumatics connector
G1/4"
- Piston diameter
40 mm
- Piston rod material
Steel
- Piston rod thread
M12 x 1.25
- Force (max.)
752.9 N
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
