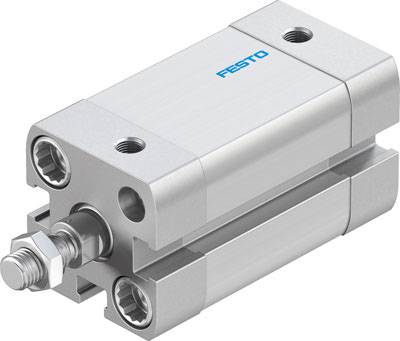

FESTO 536222 ADN-16-20-A-P-A Compact cylinder Stroke length: 20 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 63.99 / piece)
€ 63.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Compact cylinder ADN-16-20-A-P-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
20 mm
- Max. operating pressure
10 bar
- Manufacturer part #
536222
- Type
Compact cylinder ADN -16-20-A-P-A for position detection, with external thread on the piston rod. Hub = 20 mm, piston diameter = 16 mm, Piston Rod Thread = M6, dampening = P: elastic damping rings/plates on both sides, mounting position=any
- Size
16
- Sealant
TPE-U
- Pneumatics connector
M5
- Piston rod material
Steel (stainless)
- Piston rod diameter
16 mm
- Force (max.)
121 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1939503 FESTO 536222 ADN-16-20-A-P-A Compact cylinder Stroke length: 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939503 FESTO 536222 ADN-16-20-A-P-A Compact cylinder Stroke length: 20 mm 1 pc(s)
