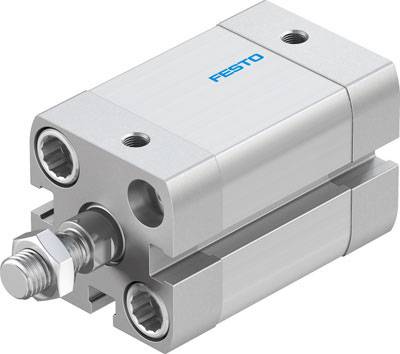

FESTO 577168 ADN-20-20-A-PPS-A Compact cylinder Enclosure material: PPS Stroke length: 20 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 81.99 / piece)
€ 81.99
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Compact cylinder ADN-20-20-A-PPS-A
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Compact cylinder
- Stroke length
20 mm
- Max. operating pressure
10 bar
- Manufacturer part #
577168
- Type
Compact cylinder ADN -20-20-A-PPS-A self-adjusting pneumatic end position damping. Hub = 20 mm, piston diameter = 20 mm, Piston Rod Thread = M8, dampening = PPS: Self-adjusting pneumatic end position damping, mounting position=any
- Size
20
- Sealant
TPE-U
- Pneumatics connector
M5
- Enclosure material
PPS
- Piston rod material
Steel (stainless)
- Piston rod diameter
20 mm
- Force (max.)
188 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1939901 FESTO 577168 ADN-20-20-A-PPS-A Compact cylinder Enclosure material: PPS Stroke length: 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1939901 FESTO 577168 ADN-20-20-A-PPS-A Compact cylinder Enclosure material: PPS Stroke length: 20 mm 1 pc(s)
