ElectromechanicsRelaysIndustrial Relays

Finder 48.P5.7.024.5050 Relay component Nominal voltage: 250 V AC Switching current (max.): 15 A 2 change-overs 1 pc(s)

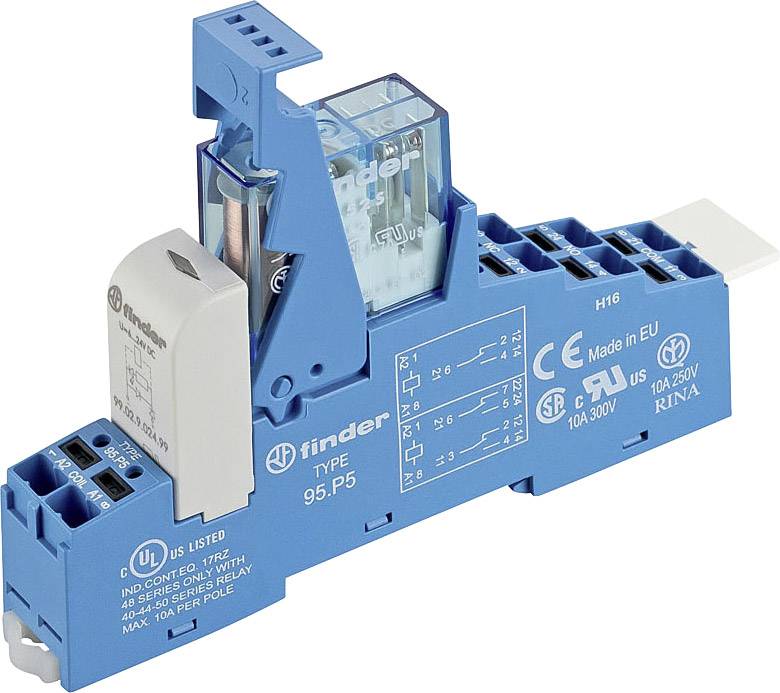

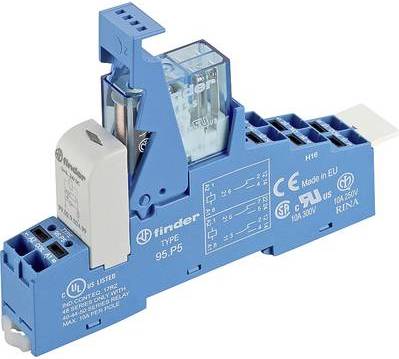

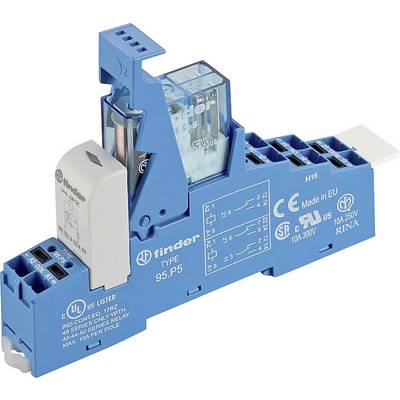

Electrical Component: Finder relay in a blue housing. Multiple connection options, technical markings, and certifications are visible.
Image similar
Product type
Relay component
Contact type
2 change-overs
Nominal voltage
250 V AC
Switching voltage (max.)
250 V AC
Switching current (max.)
15 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon, 4 Jan 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Interface relay, series 48 with push-in terminals

  • A triangular sign with the letters 'D', 'V', 'E'.
  • A black and white, abstract circular design with geometric shapes and a black segment in the upper right area of the circle.
  • 'UL' Mark: A test mark in a circle with the letters 'c' on the left and 'us' on the right. Stands for safety certification.
  • Abstract image featuring large, block-shaped letters 'E', 'A', 'D', reminiscent of a modern art style and designed in a minimalist manner.
  • Black, stylised logo with the letters 'Y', 'M' and 'Q' intertwined.
  • 'Lloyd's Register logo with the inscription Type Approval.'

Technical specifications

Product type

Relay component

Type

48.P5.7.024.5050

Connection

Push-in connector

Contact type

2 change-overs

Contact material

AgNi

Nominal voltage

250 V AC

Switching voltage (max.)

250 V AC

Switching current (max.)

15 A

Max. switching capacity

2000 VA

Features

+ LED

+ EMC emission suppressor

Length

95.5 mm

Width

15.8 mm

Height

71.7 mm

Dim

(L x W x H) 95.5 x 15.8 x 71.7 mm

Content

1 pc(s)

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1842183 Finder 48.P5.7.024.5050 Relay component Nominal voltage: 250 V AC Switching current (max.): 15 A 2 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1842183 Finder 48.P5.7.024.5050 Relay component Nominal voltage: 250 V AC Switching current (max.): 15 A 2 change-overs 1 pc(s)

Information

Information 1842183 Finder 48.P5.7.024.5050 Relay component Nominal voltage: 250 V AC Switching current (max.): 15 A 2 change-overs 1 pc(s)

Description

Interface relay for DIN-rail with push-in connections with integrated LED and EMC interference suppression.

This text is machine translated.

Hints

APPROVALS: CULUS, EAC, NF, IMQ, RINA, VDE, LR, CSA.
