Finder SSR 77D390248671 60 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)

Finder Relay Module with Input and Output Terminals, Technical Data Printed. Suitable for Voltage Applications from 24V to 660V.

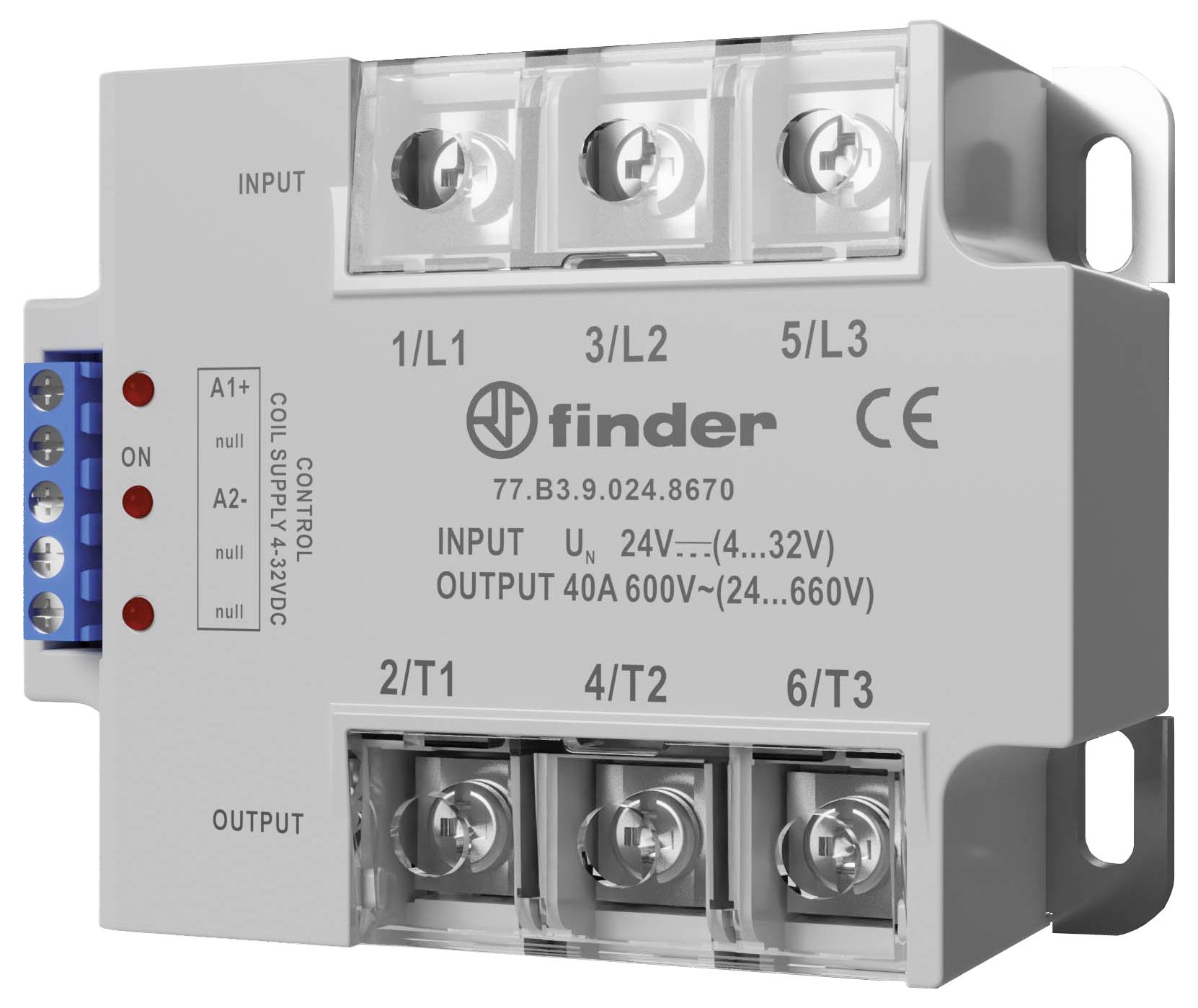

Image similar
Packaging type
Single
Product type
SSR
Switching voltage (max.)
660 V AC
Current load (max.)
60 A
Output voltage (max.)
600 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 209.99 / piece)
€ 209.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Input voltage 24 V/DC
  • Inrush current: Up to 700 A for 10 ms
  • Thermal output at In:216 W
  • Periodic Peak Reverse Voltage: 1600 Vpk
  • Residual current in "OFF" state at rated voltage: 10 mA
  • Dielectric strength input to output 4 kV
  • Design: With LED
Packaging type

Single

Product type

SSR

Type

77.D3.9.024.8671

Switching type

Instantaneous

Connection

Screw terminal

Surge current (max.)

700 A

Switching voltage (min.)

24 V AC

Switching voltage (max.)

660 V AC

Current load (max.)

60 A

Output voltage (min.)

24 V AC

Output voltage (max.)

600 V AC

Max. output current

60 A

Contact type

3 makers

Min. temperature

-30 °C

Max. temperature

+80 °C

IP20

Width

78 mm

Height

38 mm

Depth

105 mm

Length

105 mm

RoHS-compliant

Yes

Permanent current (max.)

60 A

Content

1 pc(s)

Nominal control voltage

24 V DC

Documents & Downloads

Datasheet

Datasheet 3343703 Finder SSR 77D390248671 60 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3343703 Finder SSR 77D390248671 60 A Switching voltage (max.): 660 V AC Instantaneous 1 pc(s)

Description

Features

  • Three-pin SSR relay
  • Hockey puck design
  • For mounting on a control cabinet or heatsink
  • Long life and switching speed
  • Arc-and bounce-free switching
  • Low control power
  • This text is machine translated.
