Name: Fischer 084334 N 6 x 60/30 S K NV Nail plug 60 mm 6 mm 1 Set
Brand: Fischer
SKU: 3065886
Availability: InStock

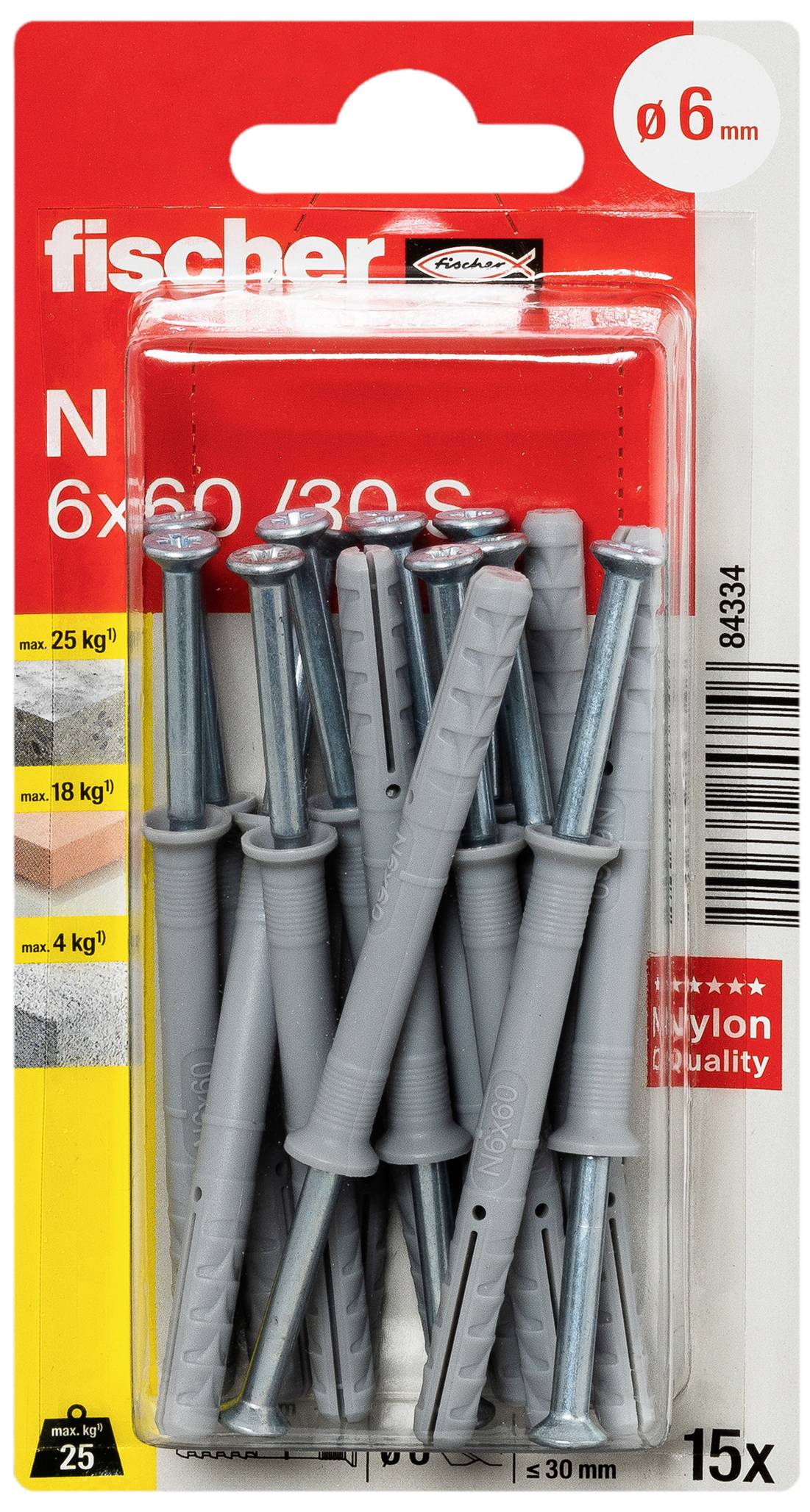

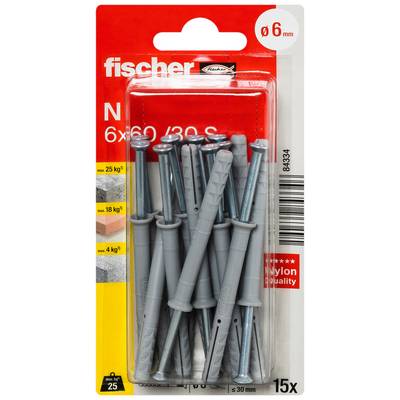

Package of Fischer nylon wall plugs and screws, marked 6 mm, N 6x30/30 S, 15-piece set.<br>

A white wall anchor with a silver screw partially inserted, shown on a plain white background.

Product package back showing QR code, screw size diagrams and installation steps for Fischer 6x60/30 S fasteners, made in Germany.

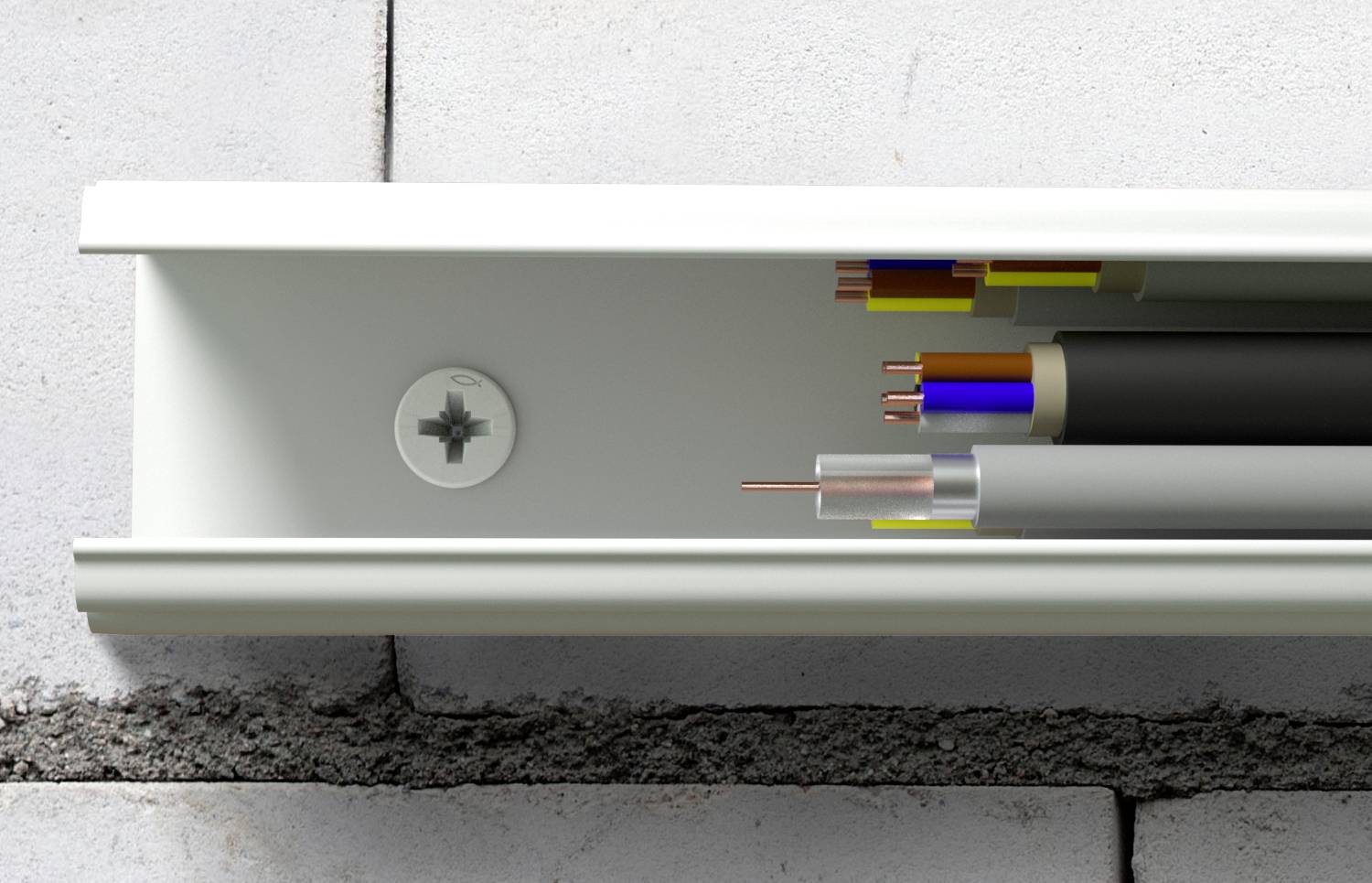

Cutaway of a wall-mounted cable tray showing bundled electrical wires inside a gray metal conduit.

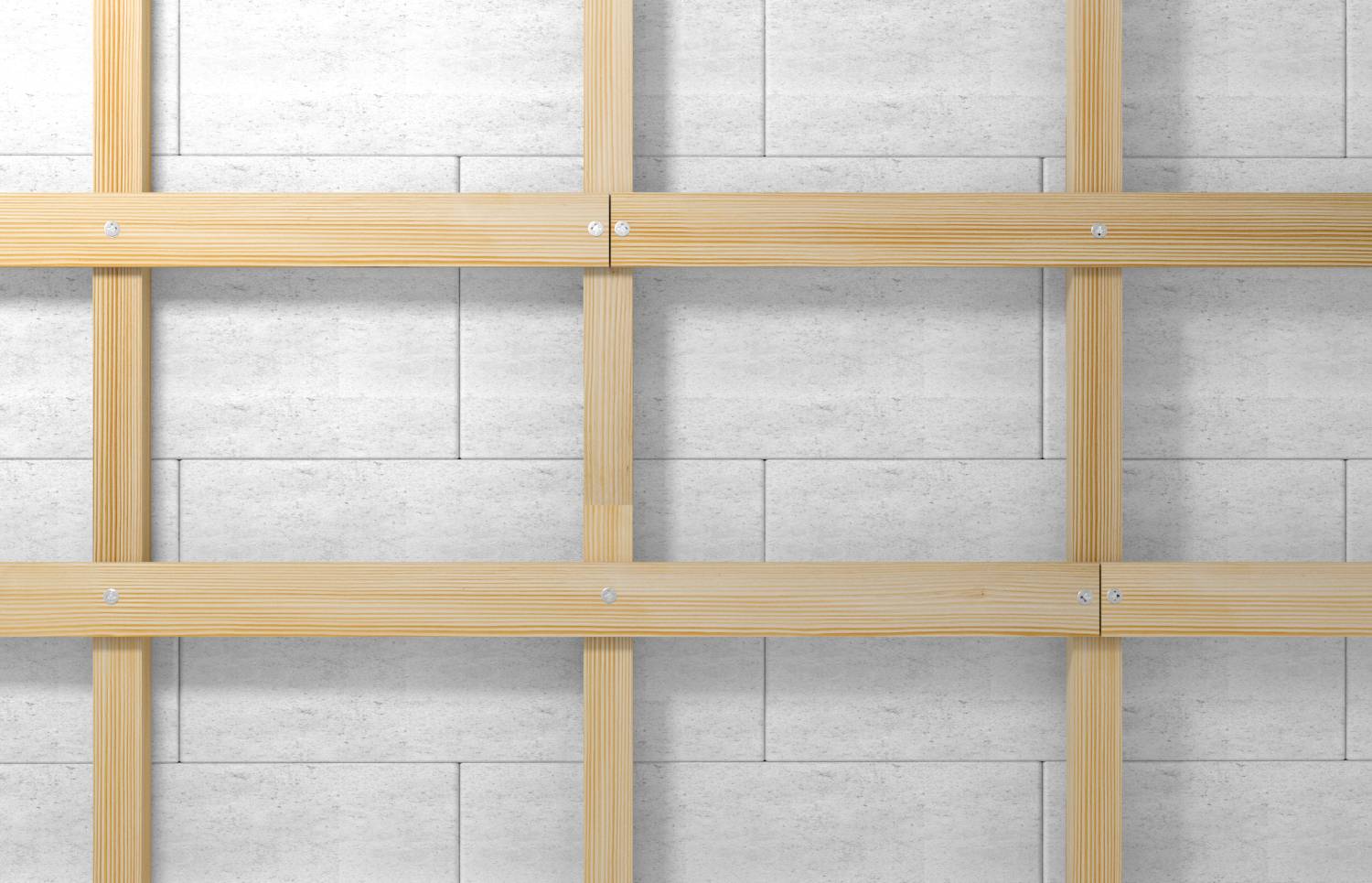

Wooden framing grid mounted over a gray concrete block wall, showing a structural support or panel framework.

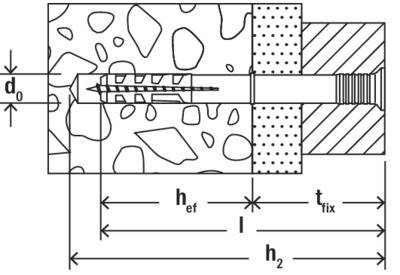

Side view of a wall anchor inserted into a drilled hole in concrete, with a screw partly threaded into the anchor beside a wood block spacer.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer N 6 x 60 / 30 S nail plug with screw

Quick fitting saves time: Ideal for serial assembly.
Simple and safe installation: Integrated impact lock prevents the plug from spreading out prematurely.
Later removal of the nail screw with cross-head mounting possible.
With countersunk head.

Technical specifications

(Ø): 6 mm

Product type: Nail plug

Material: Plastic

Length: 60 mm

Dim: (Ø x L) 6 mm x 60 mm

Suitable for: Concrete
Flintlime bricks
Bricks
Natural stone
Solid stone
Drywall sheet
Cored bricks
Flintlime hollow bricks

Content: 1 Set

Outside Ø: 6 mm

Material (details): Plastic nail plug

Suitable for: Wall connection and plaster section, base sections, film sheets, timber beams, cable and pipe clamps, casings, substructures made of wood and metal

Documents & Downloads

Datasheet

Datasheet 3065886 Fischer 084334 N 6 x 60/30 S K NV Nail plug 60 mm 6 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065886 Fischer 084334 N 6 x 60/30 S K NV Nail plug 60 mm 6 mm 1 Set

Description

The Fischer N-S nail plug with countersunk head consists of a high-quality nylon plug and a galvanized nail screw. These are pre-assembled for quick assembly. The fixing plug is inserted through the attachment in the time-saving through-hole mounting. When driving in the nail screw the dowel sleeve expands and anchors securely in the building material. The Fischer N-S nail plug with countersunk head is Ideal for fixing wood construction in all internal materials.

This text is machine translated.
