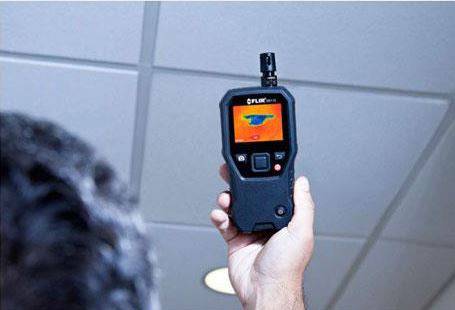

A person is holding a thermal imaging device pointed at a blanket. The display shows a colourful thermal representation.

A hand is holding a digital measuring device displaying '24.7'. The device appears to be measuring the humidity or temperature of a wall.

Black, portable device with a sensor and antenna on top, specifically designed for measurements or specialised applications.

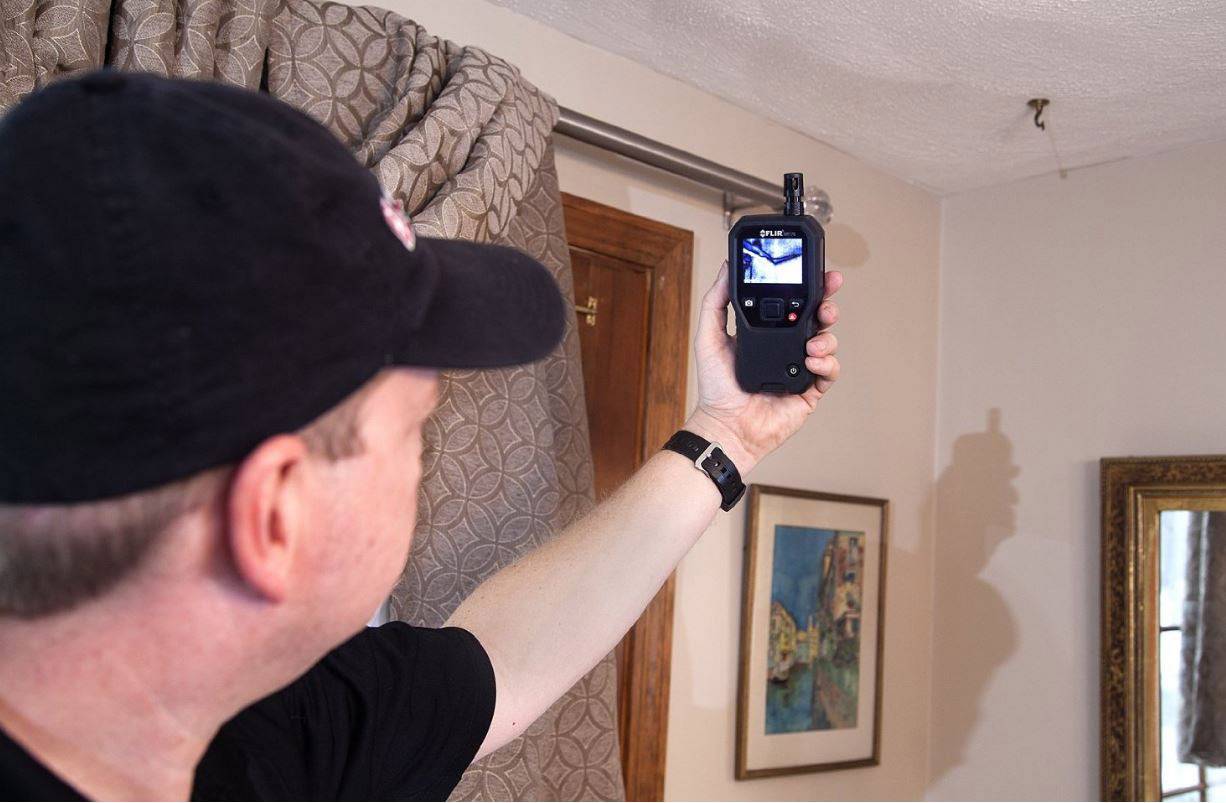

A person is holding a handheld device with a screen, checking thermal images in a room. The background shows a curtain and wall decoration.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,189.08 / piece)

€ 1,189.08

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Flir MR 176 Humidity meter plus with IGM™

Highlights & Details

Suitable for

Technical specifications

Thermal image resolution (W × H) 4,800 pixels (80×60)
Spectral sensitivity 8 to 14 μm
Field of vision (W × H) 51° x 38°
Sensitivity< 150 mK
Detection limit (wet zone detection at 10m) 49 cm2
Image update frequency 9 Hz
Color Palettes iron. Rainbow, ice, Grayscale
Minimum focus distance infrared 10 cm

Product type: Moisture meter

Temperature: 0 °C to 50 °C

Temperature accuarcy (details): ± 0.6 °C

: Manufacturer's standards (no certificate)

Power supply (details): 3.7V/3000 mAh Li-ion battery

Features: Built-in IR camera

Building moisture reading range (max.): 100 vol%

Building moisture reading range (min.): 0 vol%

Power supply: Li-ion rechargeable battery

Documents & Downloads

Datasheet

Datasheet 1403763 FLIR MR176 Moisture meter Building moisture reading range 0 up to 100 vol% Built-in IR camera

User & Safety Instructions

User & Safety Instructions 1403763 FLIR MR176 Moisture meter Building moisture reading range 0 up to 100 vol% Built-in IR camera

Description

The FLIR MR 176 Humidity meter plus with IGM™ is a complete solution with integrated thermal imaging camera that you exactly to indicate where you can measure the moisture in the most effective way. With its infrared-controlled measuring help Technology Infrared Guided Measurement (IGM) helps you to check the MR 176, moisture problems quickly and anzuvisieren. With its optical laser shows it on the spot, at the most effective to run your measurement and the corresponding values can analyze. With its integrated pen-free sensors and its external pin sensor, it offers you the flexibility, in every situation to decide if they want to make a non-invasive or invasive measurement. In connection with the field-replaceable temperature and relative humidity sensor and the automatically calculated ambient measurement values allows you to MR 176 a more comfortable and easy working and provides you with faster the right measuring values.

This text is machine translated.

Scope of delivery

MR 01 changeable temperature and relative air humidity sensor
MR02 external standard pin sensor
Quick guide
International USB charger
USB cable.
