VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44
EAN:
Part number:
Item no:
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Highlights & Details
VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44 vol%
- Direct value display in vol.-%
- Ideal for checking firewood
- Dimension: 139 mm x 47 mm x 25 mm
Technical specifications
- Product type
Moisture meter
- Measurement type (details)
Invasive
- Temperature
-
- Building moisture reading accuracy ±
0.05 %
- Wood moisture reading accuracy ±
1 %
Manufacturer's standards (no certificate)
- Interfaces
none
- Power supply (details)
3 batteries CR2032
- Dim
(L x W x H) 25 x 47 x 139 mm
- Weight
100 g
- Building moisture reading range
0.2 -2 vol%
- Building moisture reading range (max.)
2 vol%
- Building moisture reading range (min.)
0.2 vol%
- Reading range - wood moisture
6 - 44 vol%
- Wood moisture reading range (max.)
44 vol%
- Wood moisture reading range (min.)
6 vol%
- Moisture reading range (max.) (misc.)
85 %
- Moisture reading range (min) (misc.)
0 %
- Width
47 mm
- Height
139 mm
- Length
25 mm
- Humidity reading accuracy
(Construction materials) ± 0.05 %, (wood) ± 1 %
- Humidity reading range
(Construction material) 0.2 - 2 %, (wood) 6 - 44 %
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 100842 VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44
Conformity certificate
Conformity certificate 100842 VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44
Warranty Terms
Warranty Terms 100842 VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44
Description

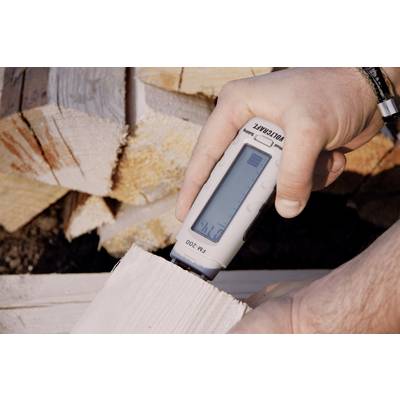

The VOLTCRAFT FM-200 Moisture meter Building moisture reading range 0.2 up to 2 vol% Wood moisture reading range 6 up to 44 vol% is a robust and precise measuring device for determining the moisture in wood and construction material like plaster, floor etc. Two measuring ranges for construction materials and wood guarantee a high accuracy. Bar scale and direct value display make the reading easier.
The plug gauges are wear and tear parts and can be exchanged. The battery-operated measuring device shows the degree of humidity on an LC display as a bar diagram or value. A function and battery test is integrated in the protective cap.
The plug gauges are wear and tear parts and can be exchanged. The battery-operated measuring device shows the degree of humidity on an LC display as a bar diagram or value. A function and battery test is integrated in the protective cap.
Features
- Changeable steel measuring pins
- Low-bat display
- Robust housing with sprayed rubber protection
- Protective cap with reference adapter.
Scope of delivery
- 3 batteries (type: CR-2032)
- 10 spare feeler pins
- User manual.
Hints
The wood humidity measured value in percent is the water content in the wood sample in relation to dry mass. Dry mass differs depending on wood type (wood specific weight). With this measuring device is, however, an average value of the most common types of wood for the specific wood weight used a simple comparison measurement. For a comparative measurements, e.g. for control of the drying process, this measuring principle are adequate.
