Buy VOLTCRAFT MF-80 Moisture meter Building moisture reading range 0 up to 100.0 % Wood moisture reading range 0 up to 100 %

A black measuring device displays a reading of '25.5'. It has several buttons and a metallic sensor plate on top.

Sound level meter with battery compartment open, showing two empty AA batteries. Straight plug lies beside it.

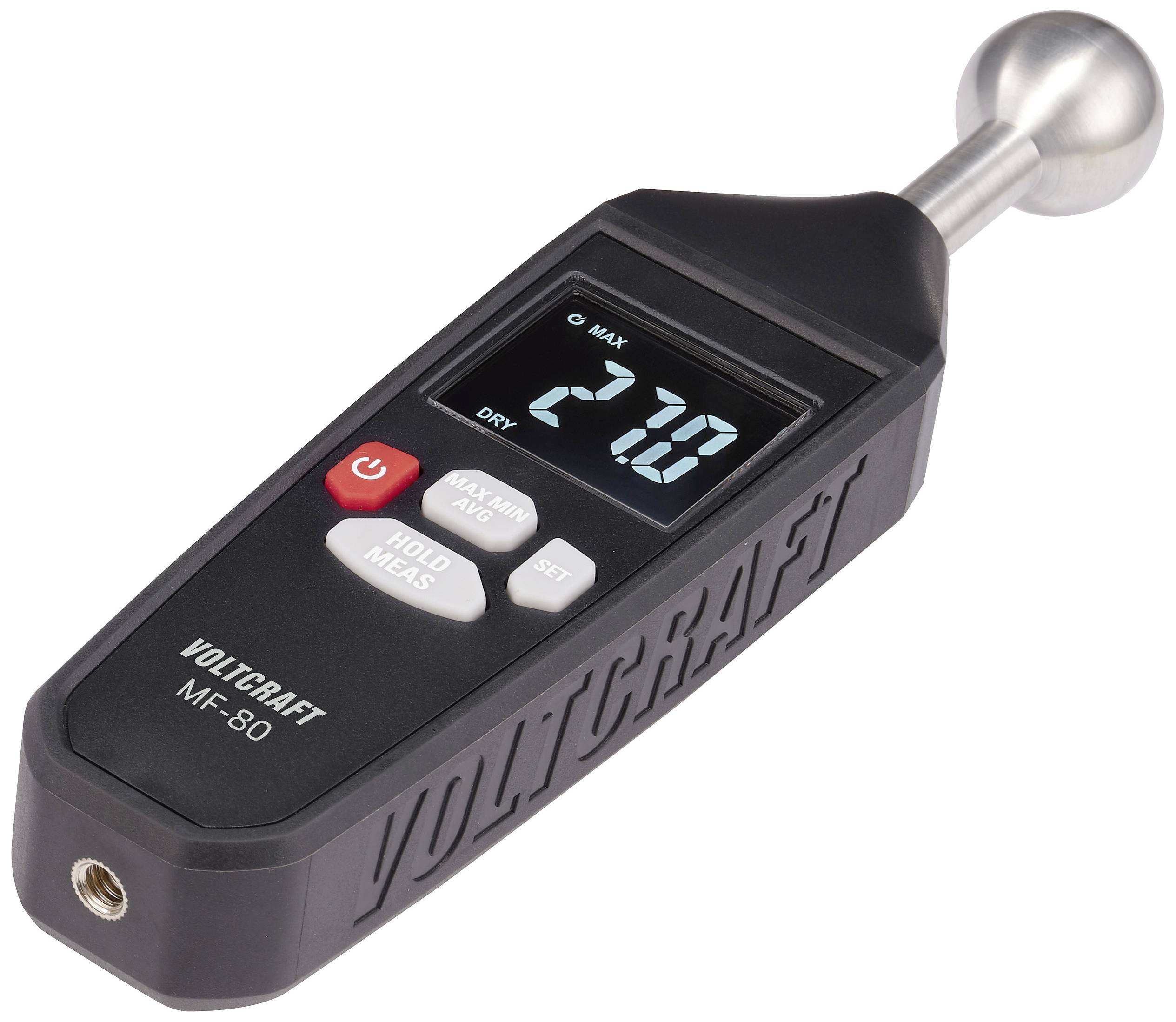

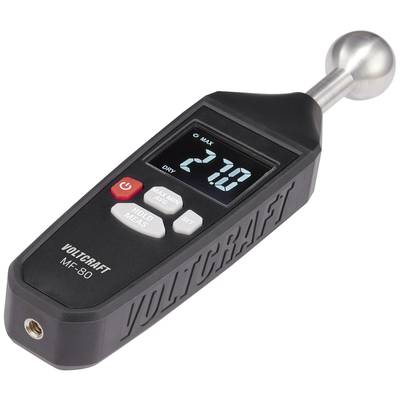

Moisture metre with digital display showing '27.0'. Black casing, red power button, aluminium measuring ball. Marked 'VOLTCRAFT MF-80'.

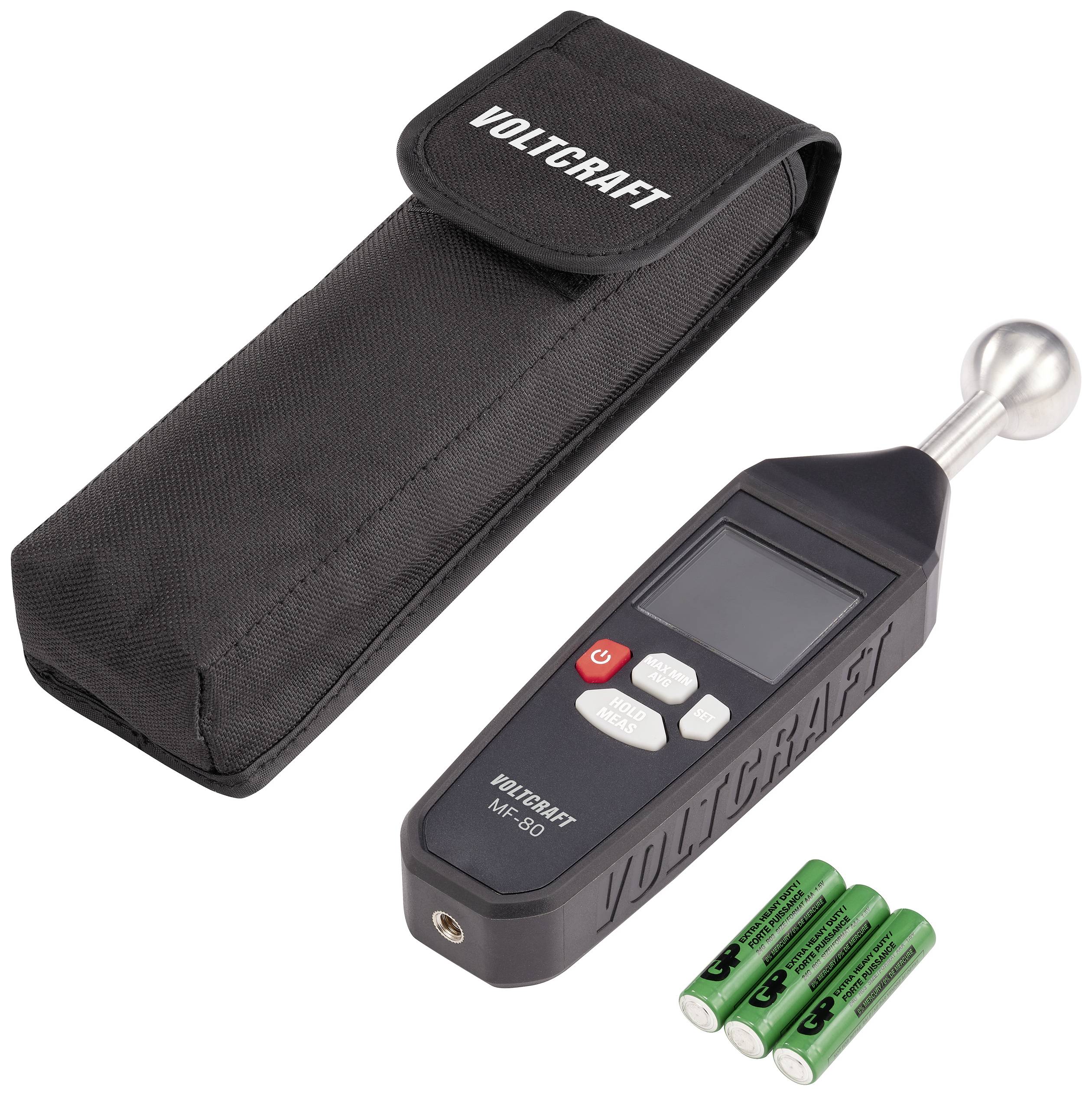

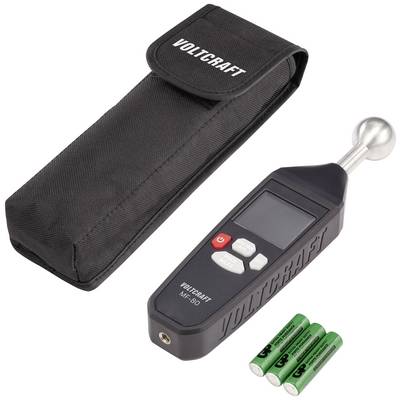

A sound level meter with a digital display, plastic casing, three buttons and a removable ball probe. Beside it, a black case and three batteries.

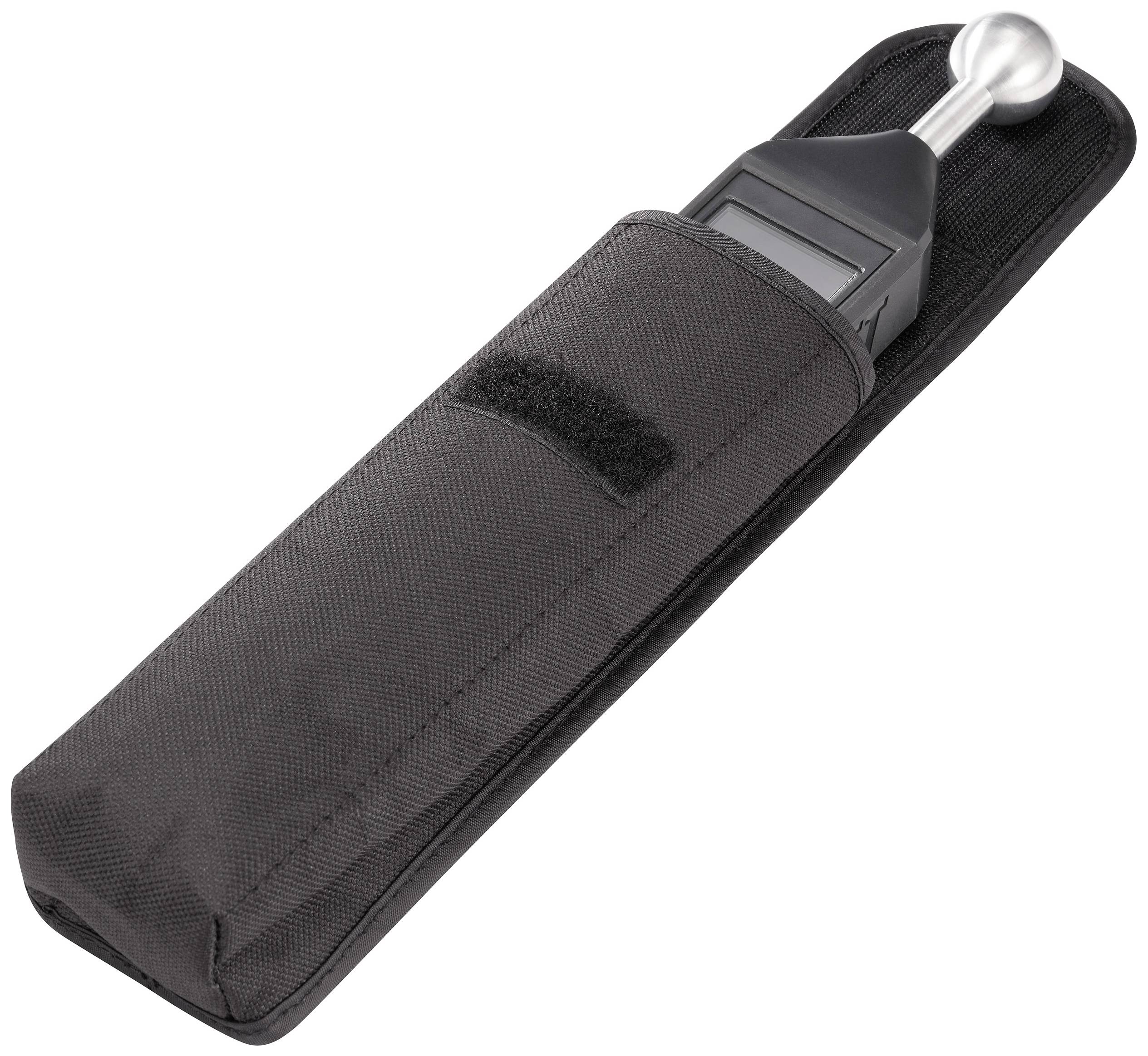

A black case contains a measuring device with an aluminium handle and digital display.

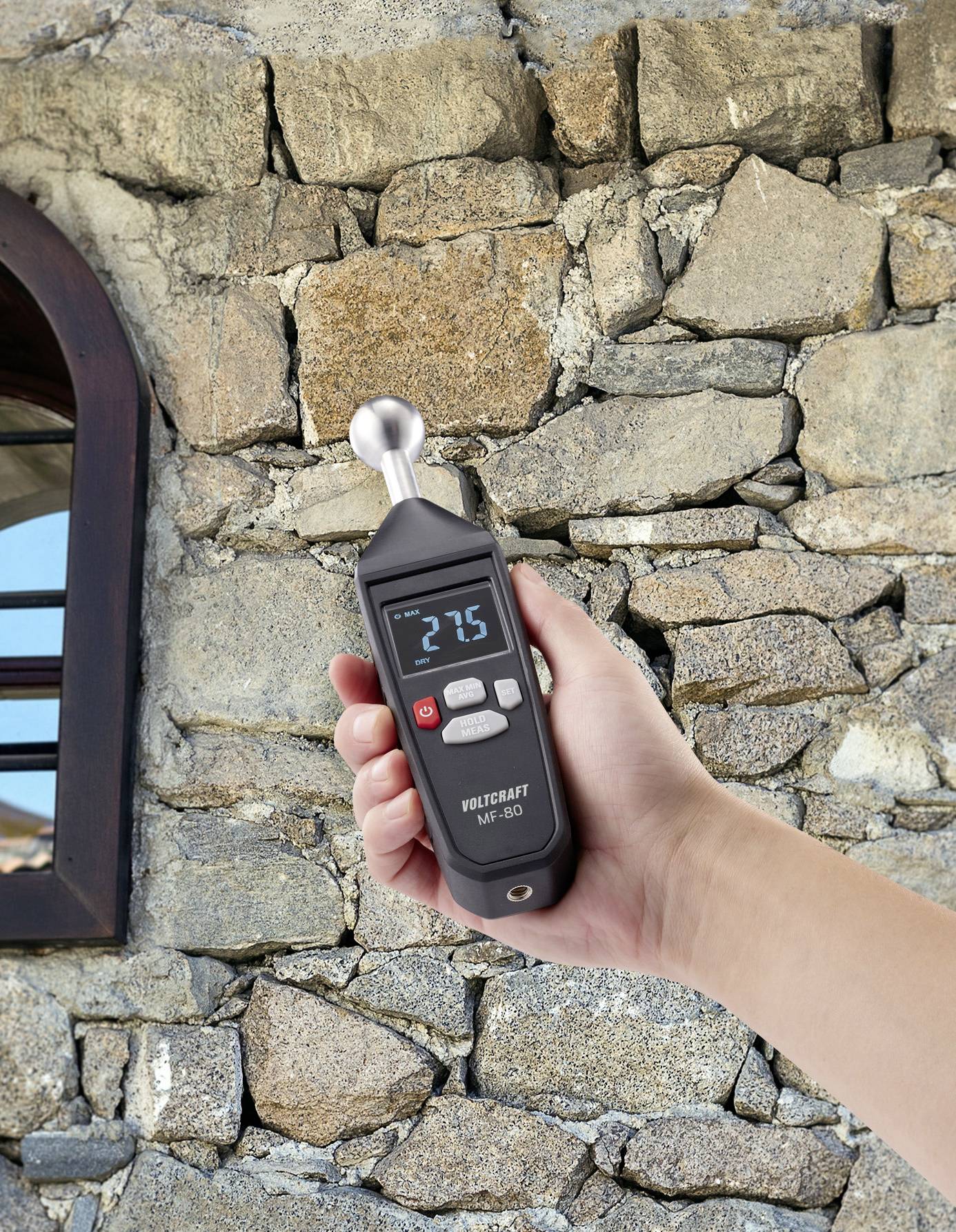

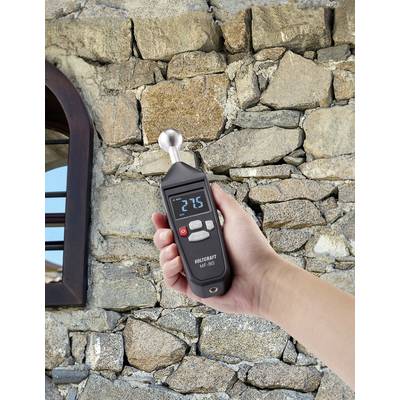

A hand is holding a moisture metre showing '27.5' in front of a stone wall. A window is visible on the left side of the image.

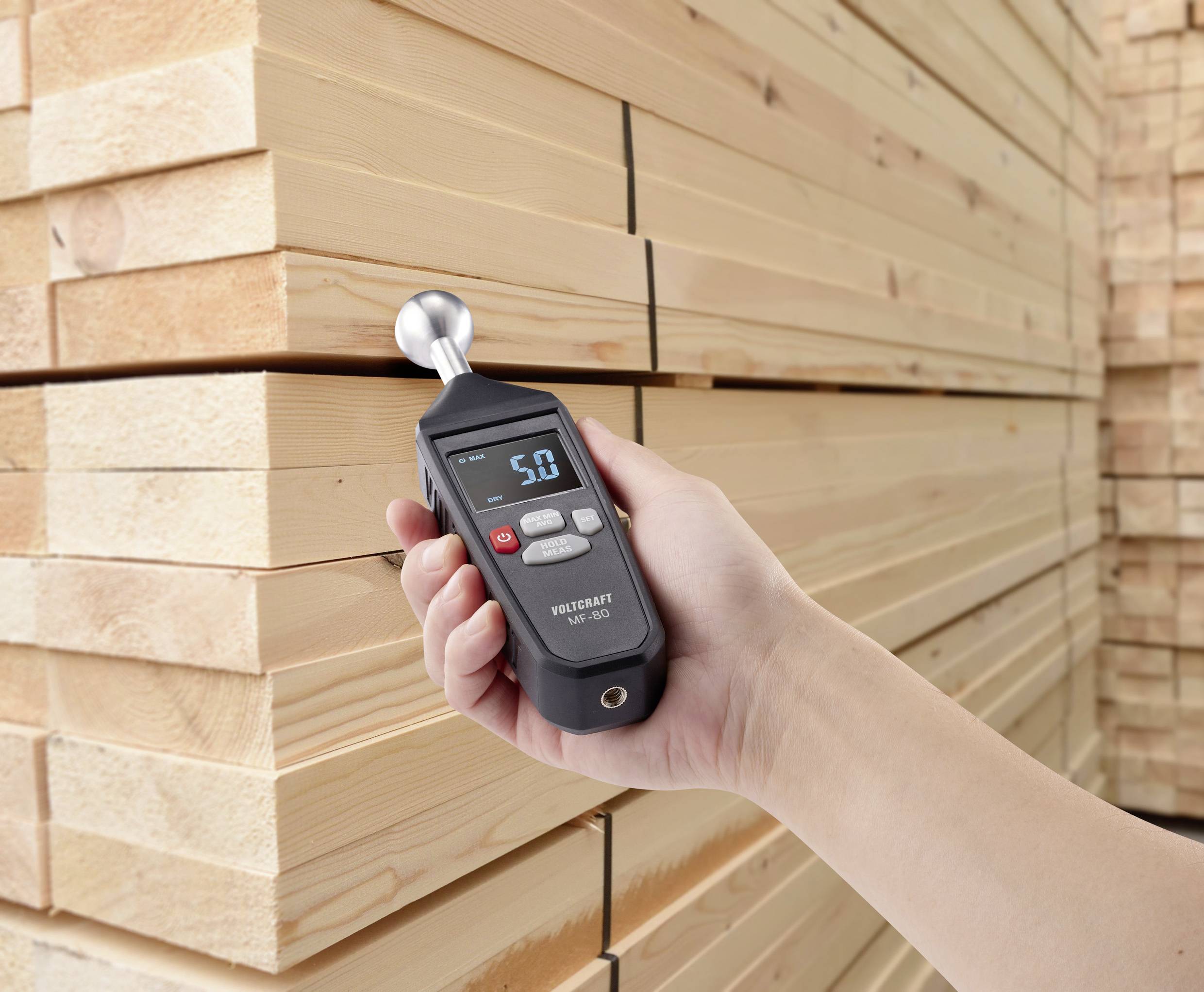

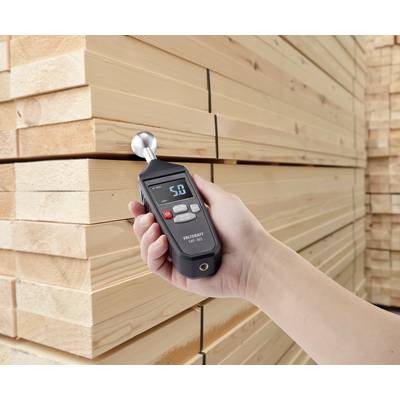

A hand holds a moisture metre in front of stacked wooden planks. The display shows a reading of 5.0.

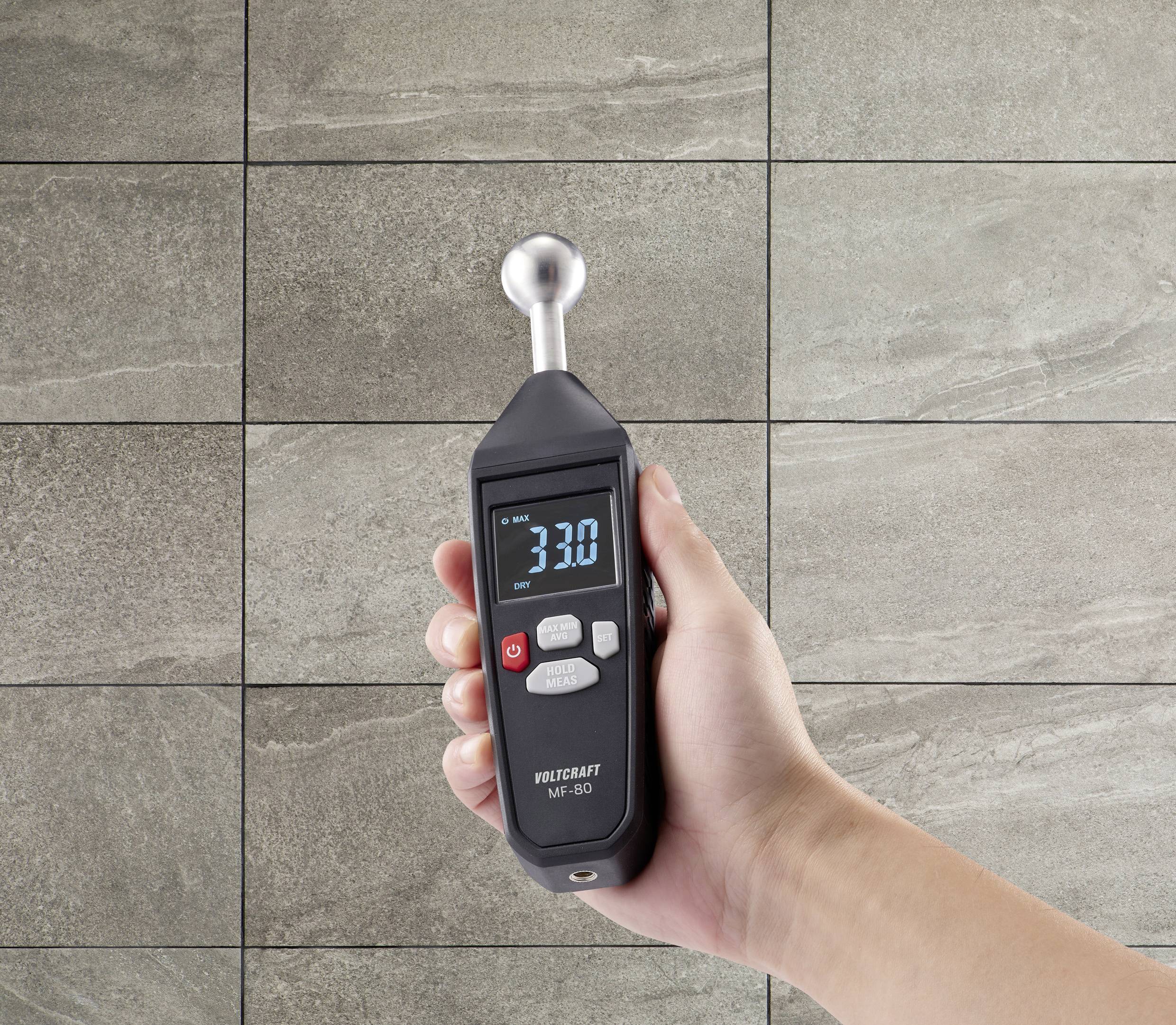

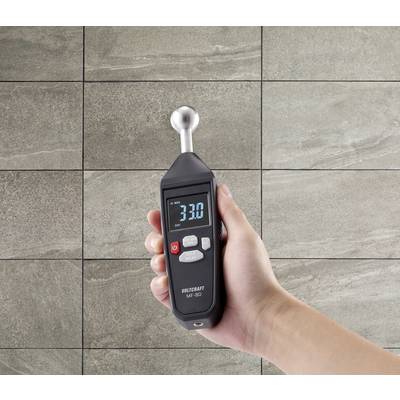

A hand holds a digital measuring device in front of a wall with beige tiles. The display shows '3.30'.

1/8

Our service for you

Datasheet (PDF)

Fast track dispatch on Thu, 16 Jul

176 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 57.13 / piece)

€ 57.13

plus VAT.

Report legal concerns

Highlights & Details

MF-80 Moisture meter

Non-destructive determination of material moisture for all types of building materials
Adjustable audible alarm
MIN/MAX function
Depth of penetration: 20-40 mm
Measurement method: CM %

Technical specifications

Product type: Moisture meter

Measurement type (details): Non-invasive

Building moisture reading accuracy ±: 5 %

Wood moisture reading accuracy ±: 5 %

: Manufacturer's standards (no certificate)

Suitable for: Wood
Building materials

Moisture reading accuracy (misc.) ±: 5 %

Power supply (details): 3*1.5V AAA

Dim: (L x W x H) 48.5 x 27 x 206 mm

Weight: 155 g

Building moisture reading range: 0.0 ~ 100.0

Building moisture reading range (max.): 100.0 %

Building moisture reading range (min.): 0 %

Reading range - wood moisture: 0~100 %

Wood moisture reading range (max.): 100 %

Wood moisture reading range (min.): 0 %

Moisture reading range (max.) (misc.): 100 %

Moisture reading range (min) (misc.): 0 %

Reading accuracy - building moisture: 5 %

Reading accuracy - wood moisture: 5 %

Width: 27 mm

Height: 206 mm

Length: 48.5 mm

Power supply: 4.5 V

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2620275 VOLTCRAFT MF-80 Moisture meter Building moisture reading range 0 up to 100.0 % Wood moisture reading range 0 up to 100 %

User & Safety Instructions

User & Safety Instructions 2620275 VOLTCRAFT MF-80 Moisture meter Building moisture reading range 0 up to 100.0 % Wood moisture reading range 0 up to 100 %

Warranty Terms

Warranty Terms 2620275 VOLTCRAFT MF-80 Moisture meter Building moisture reading range 0 up to 100.0 % Wood moisture reading range 0 up to 100 %

Description

Recognize moisture in the building fabric early on
Components made of wood and stone in particular are endangered by mold formation if the moisture is too high. With the VOLTCRAFT MF-80 humidity meter, the material humidity can be measured in depth up to 40 mm non-destructive. The CM process (calcium carbide method) used is state-of-the-art and the only measuring method approved by law in Germany.

Target-oriented functions for practical application
During the measurement, the minimum and maximum measured values are recorded and if the display is not visible, the Hold function allows the subsequent reading. An adjustable acoustic alarm draws attention to extreme values. Furthermore, the device warns with decreasing battery power and switches off automatically after 15 minutes of inactivity in order to save energy. Three AAA batteries are included in the delivery in order to be ready for immediate use, in addition to the VOLTCRAFT MF-80 with instructions for use

This text is machine translated.

Features

Measure and hold function
MAX/MIN display function
Alarm function
Auto power-off (15 min) function
Low battery indicator

Scope of delivery

Moisture meter
Carrying bag
3x AAA batteries
User manual
