Name: Fluke 1535 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ
Brand: Fluke
SKU: 3062712
Availability: BackOrder

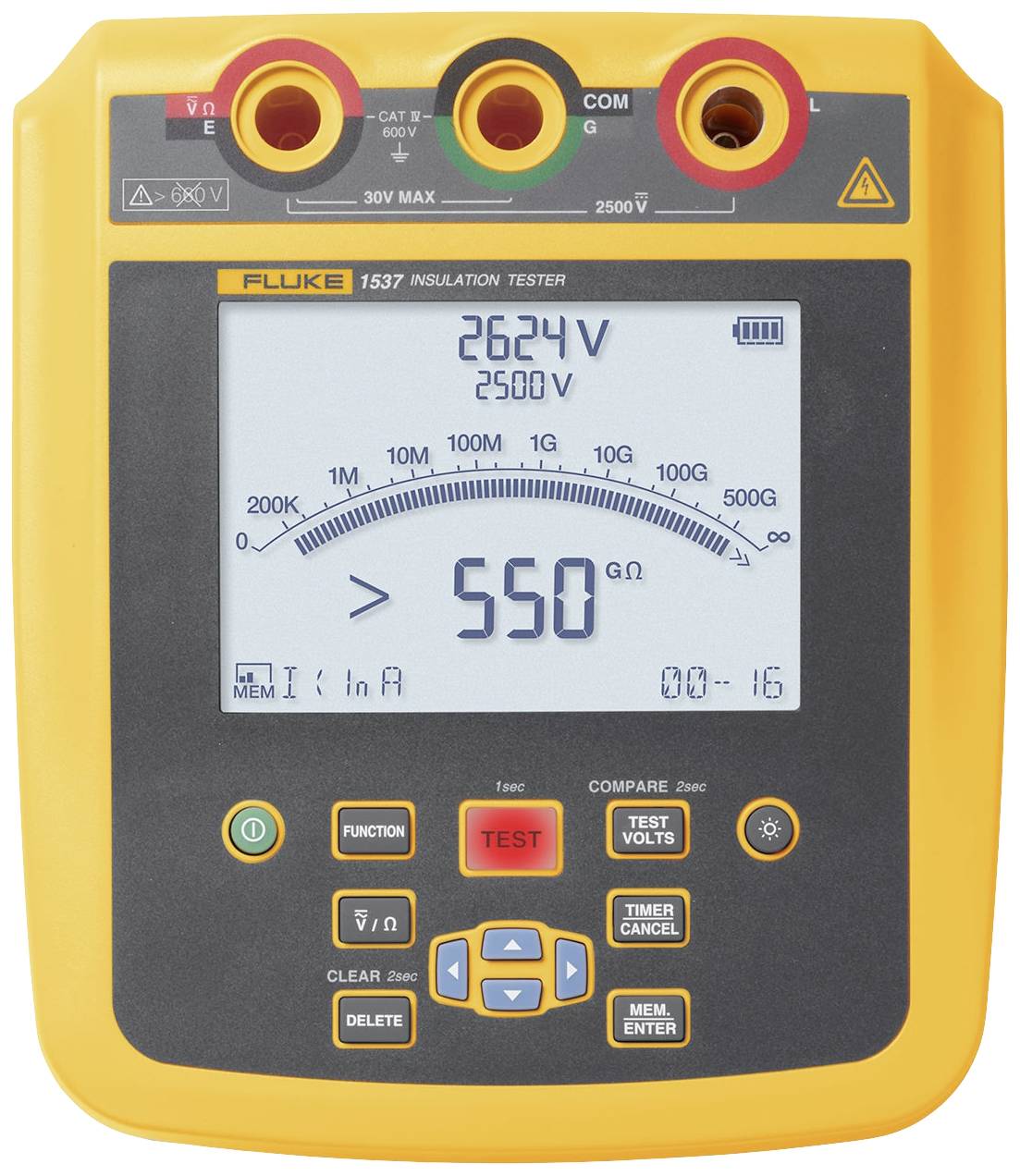

An insulation measuring device with a yellow casing displays a reading of 2,624V and 550MΩ on a digital display.

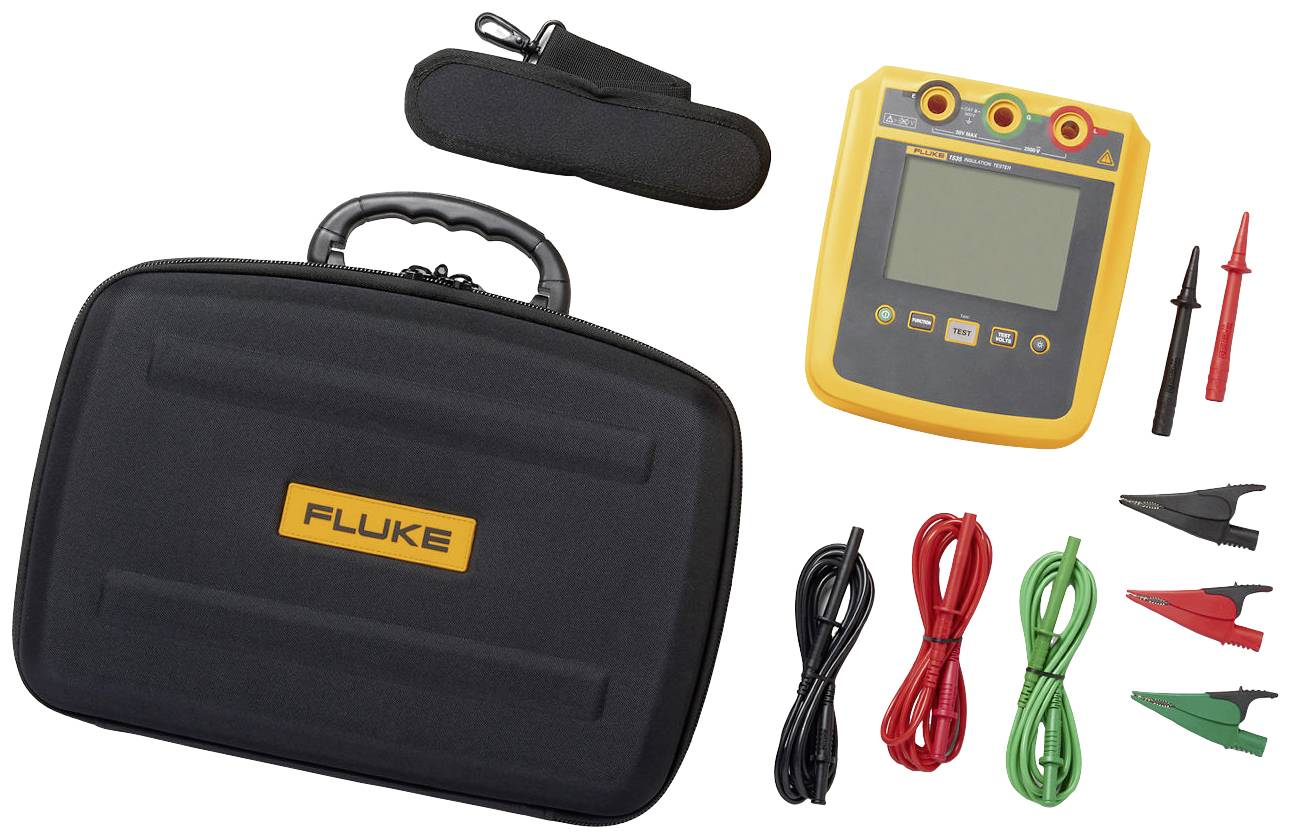

A multimeter set with carry case, yellow measuring device, crocodile clips, test leads, and metal probes for electrical measurements.

A man wearing safety glasses and gloves is checking a large machine with a measuring instrument in a workshop.

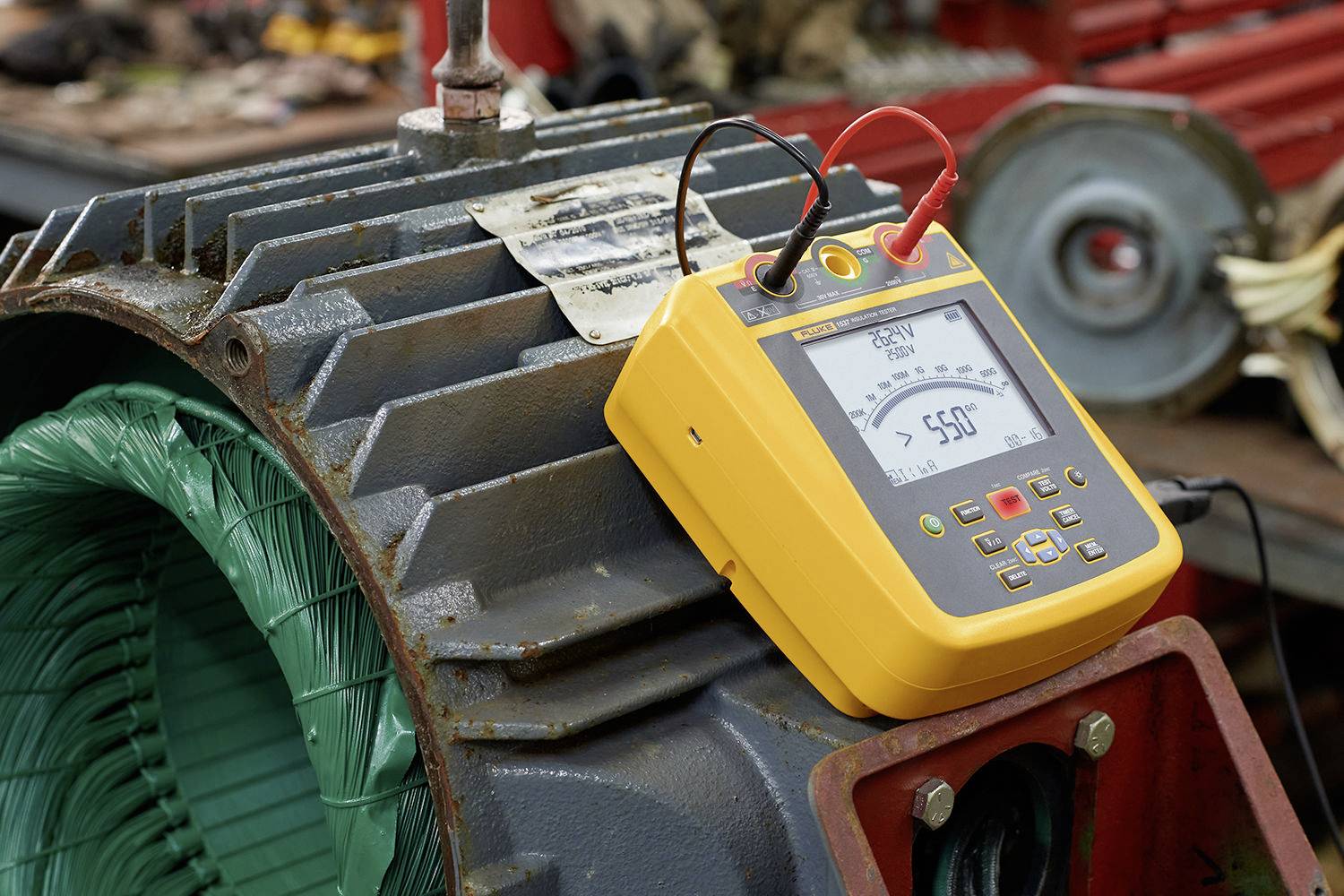

A yellow electrical measuring device with a display shows '550V' and is lying on a large, open electric motor. The surrounding environment is a workshop.

1/4

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,929.00 / piece)

€ 1,929.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Insulation measuring device 1535 for service technicians, electricians and companies

User selectable voltages from 250 V to 2,500 V.
Insulation resistance measurement up to 500 GΩ
Short-circuit current up to 5 mA for fast, stable measurements
Automatic calculation of the polarization index (PI) and the dielectric absorption rate (DAR)
Performs over 1300 insulation tests with a set of batteries

Technical specifications

Display size 73.5 x 104 mm

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V
2500 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

: IP40

Power supply (details): 8x AA battery

Dim: (L x W x H) 9.3 x 21.1 x 18.4 cm

Weight: 1.3 kg

Display type: Digital

Insulation resistance (max.): 500 GΩ

Reading category: CAT IV 600 V

Width: 21.1 cm

Height: 18.4 cm

Length: 9.3 cm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3062712 Fluke 1535 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ

User & Safety Instructions

User & Safety Instructions 3062712 Fluke 1535 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ

Description

This measuring instrument offers selectable test voltages from 250 to 2,500 V and resistance measurements up to 500 GΩ for fast and stable measurements. Improve productivity and plant safety with a single tool that simplifies troubleshooting and provides fast and accurate results. With the user-selectable test voltage, intelligent measurement functions such as automatic calculation of the polarization index (PI) and dielectric absorption rate (DAR), wide ranges and high security acc . To CAT IV 600 V and the integrated voltage alarm, the Fluke 1535 offers reliable and stable insulation tests with a compact device. The insulation measuring device 1535 for service technicians, electricians and companies who service motors, transformers, switch cabinets and solar systems for example.
