Name: Fluke 1537 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ
Brand: Fluke
SKU: 3062713
Availability: BackOrder

An insulation measurement device displays 2624 V voltage and 550 kΩ resistance on a digital display. Operational buttons are present.

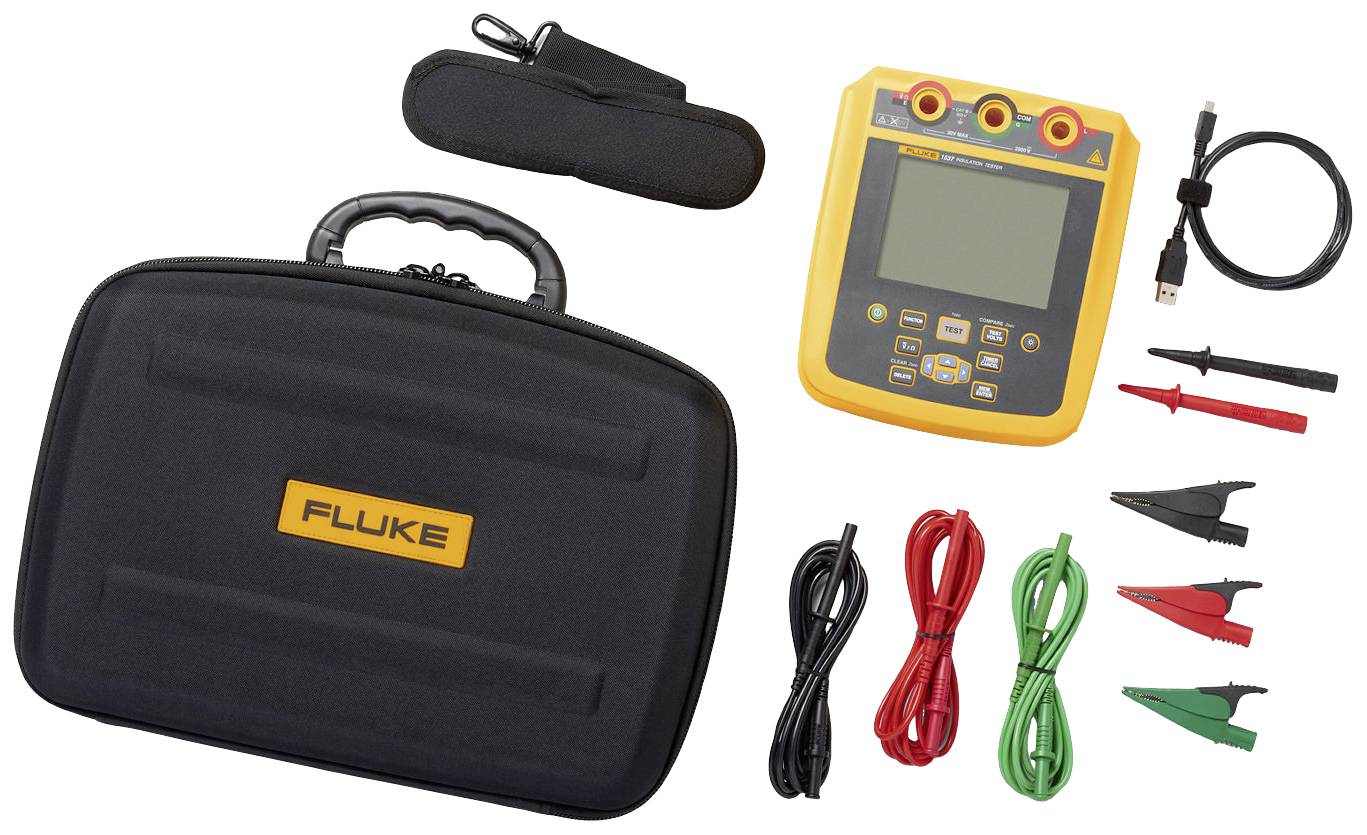

A yellow electrical testing device with accessories including cables, clamps, and a black carry case, designed for electrical measurements.

A man in work attire and safety glasses is checking a machine with a measuring device in a workshop environment.

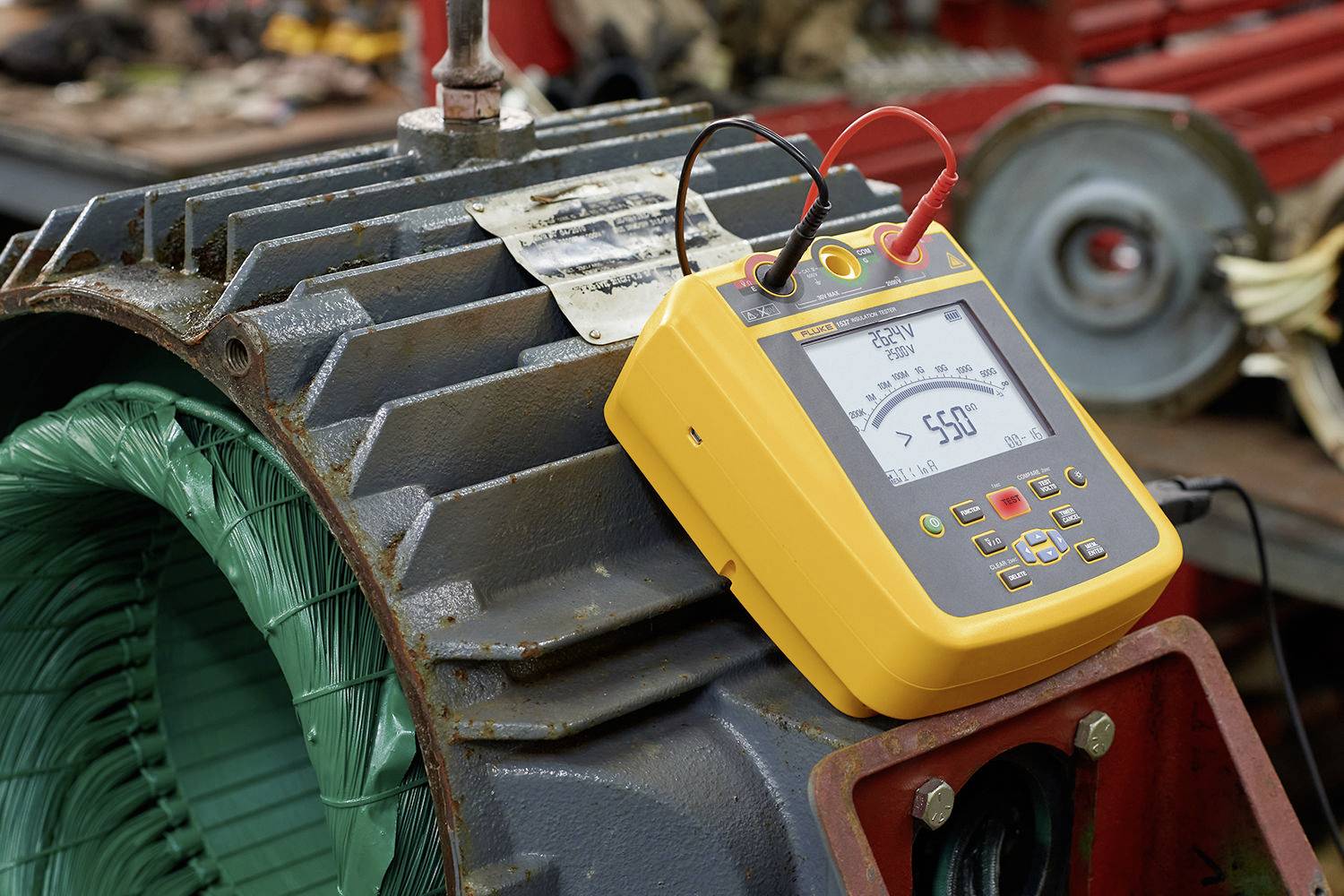

A yellow measuring device with cables displays a reading of '550V' on an electrical motor component; industrial environment.

1/4

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2,849.00 / piece)

€ 2,849.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Display size 73.5 x 104 mm

Product type: Insulation tester

Test voltage: 250 V
500 V
1000 V
2500 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 0 Ω - 60.00 kΩ

: IP40

Power supply (details): 8x AA battery

Dim: (L x W x H) 9.3 x 21.1 x 18.4 cm

Weight: 1.3 kg

Display type: Digital

Insulation resistance (max.): 500 GΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 0 V

Reading category: CAT IV 600 V

Width: 21.1 cm

Height: 18.4 cm

Length: 9.3 cm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3062713 Fluke 1537 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ

User & Safety Instructions

User & Safety Instructions 3062713 Fluke 1537 Insulation tester 250 V, 500 V, 1000 V, 2500 V 500 GΩ

Description

This measuring device offers finely adjustable test voltages from 250 to 2,500 V, resistance measurements up to 500 GΩ and a short-circuit current up to 5 mA and thus enables fast and stable measurements. Improve productivity and plant safety with a single tool that simplifies troubleshooting and provides fast and accurate results. With intelligent measurement functions such as automatic calculation of the polarization index (PI) and dielectric absorption rate (DAR), wide measuring ranges and high security acc . To CAT IV 600 V and the integrated voltage alarm, the Fluke 1537 offers reliable and stable isolation tests with a compact device. Additional functions like voltage and resistance measurements for DC and AC current and simple data management with the software package included in the delivery make it the best choice for insulation tests. The insulation measuring device 1537 with extended functions for service technicians, electricians and companies who service motors, transformers, switch cabinets and solar systems for example.
