Fluke FLK-TI480U 9HZ/AP IR camera -20 up to 1200 °C 640 x 480 Pixel 9 Hz

1/7
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 16,605.00 / piece)
€ 16,605.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

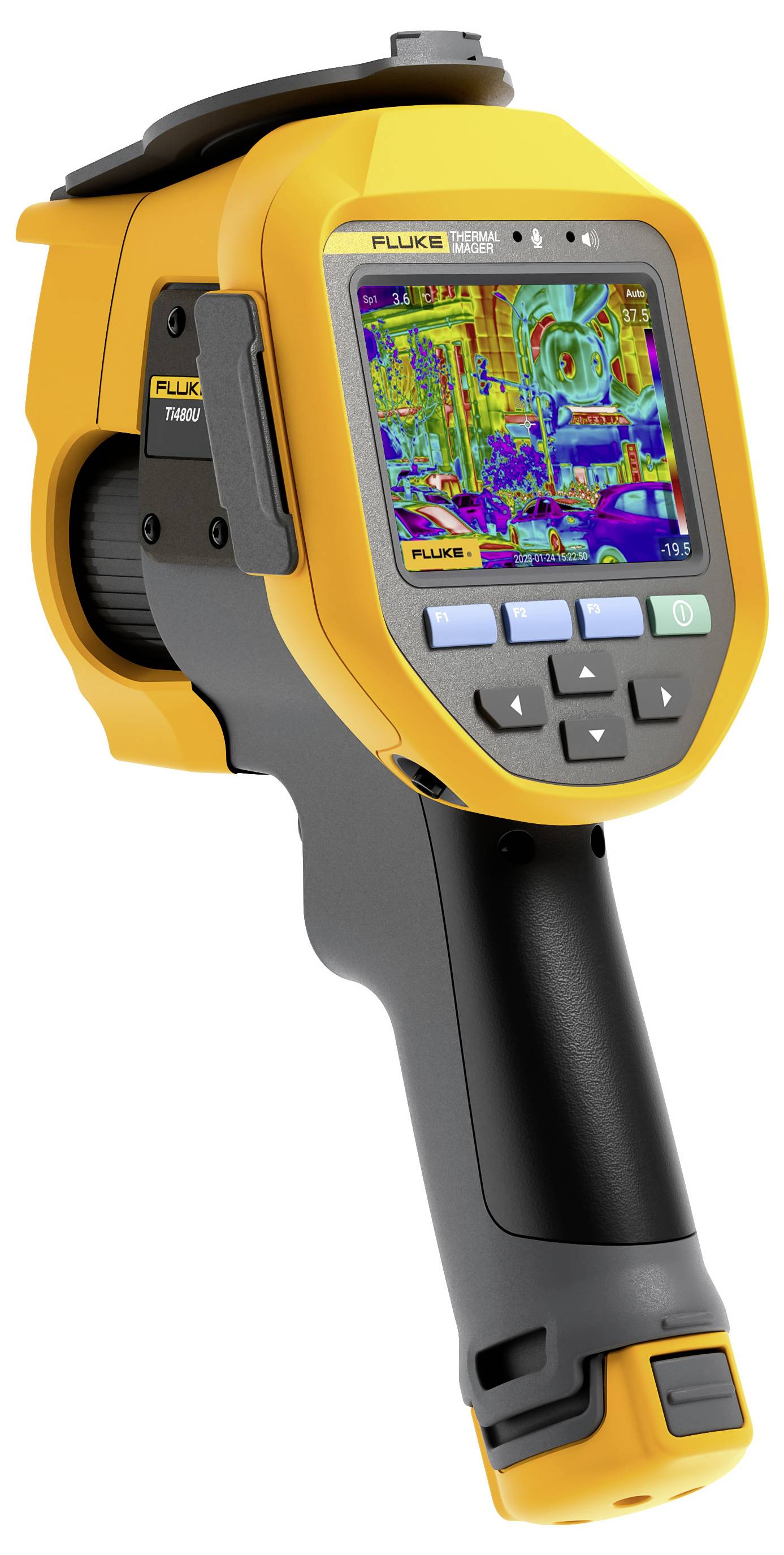

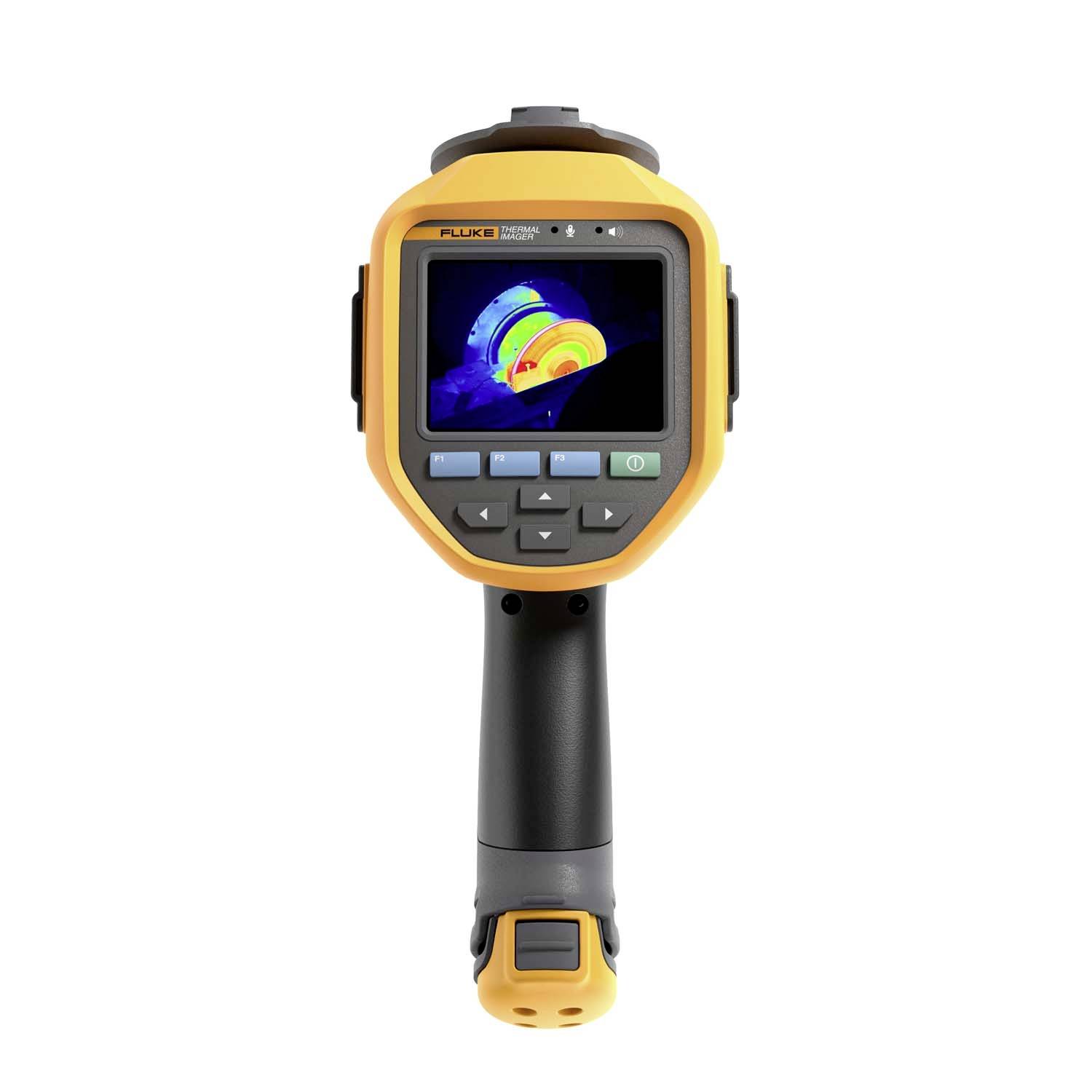

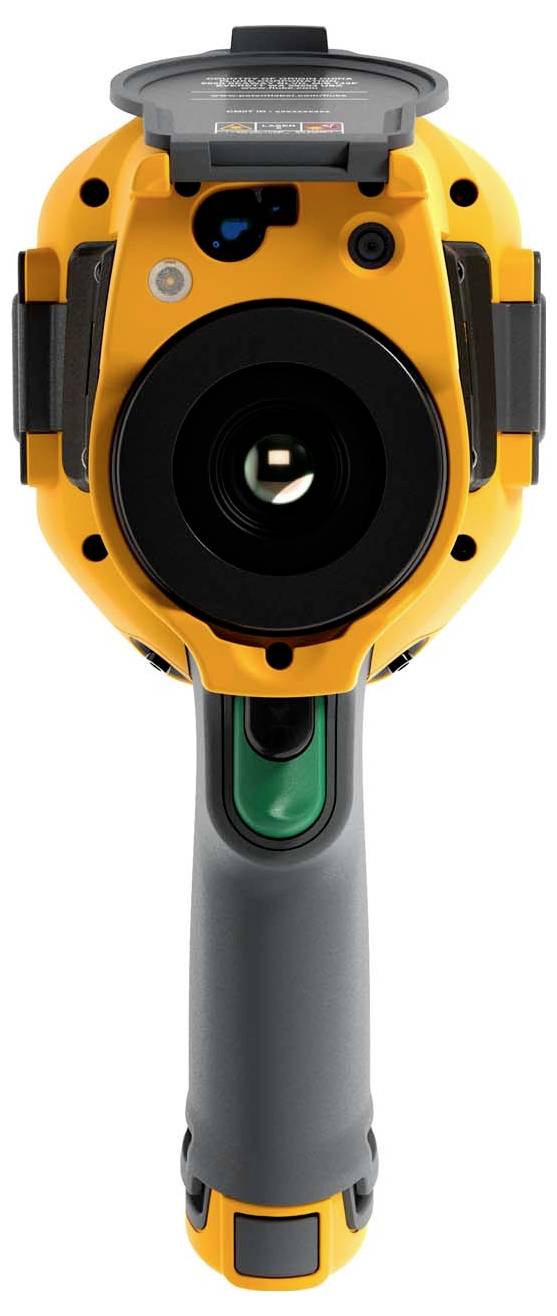

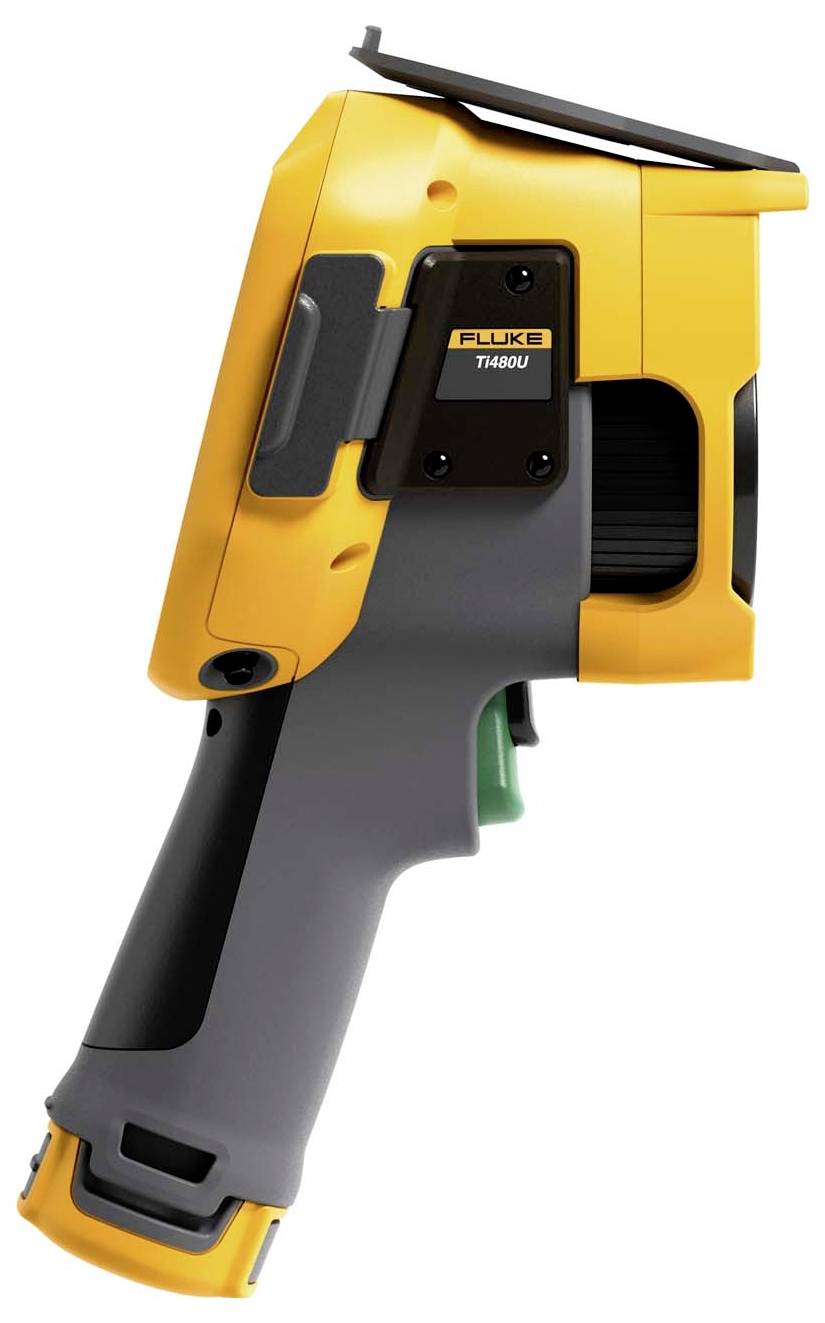

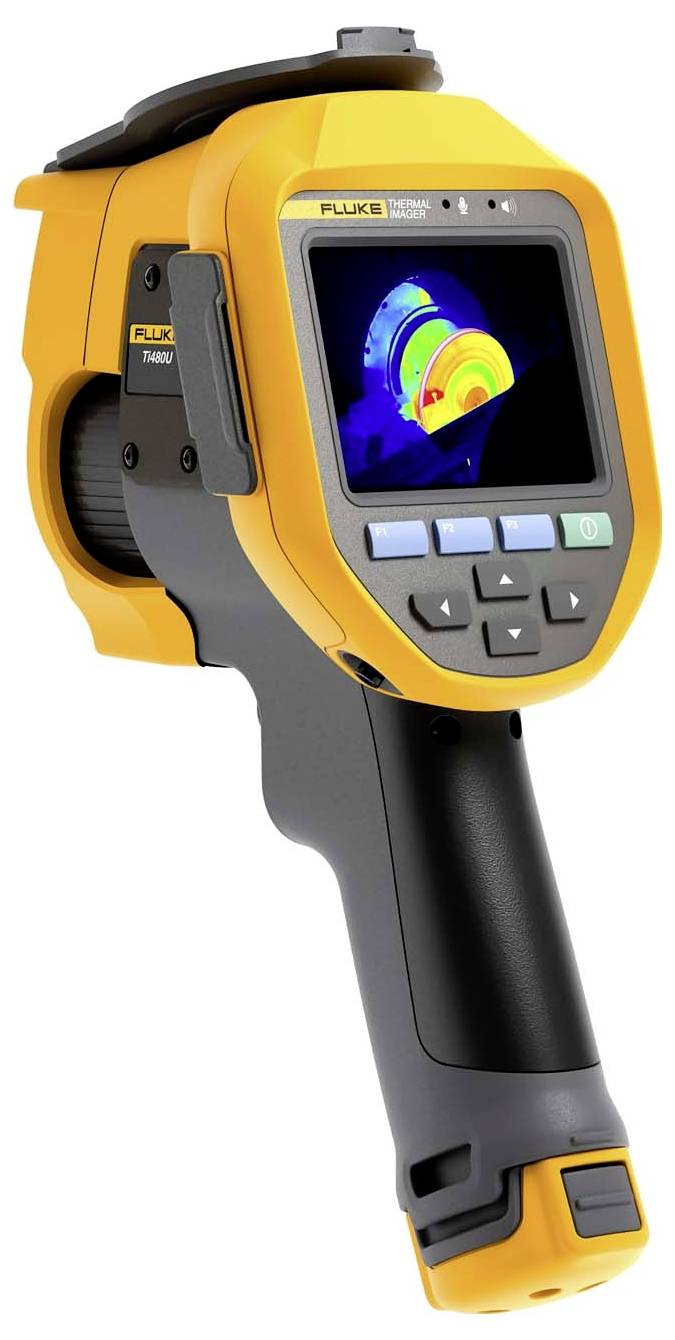

Thermal imaging camera Fluke Ti480U Ultra 9 Hz

  • 9 Hz Thermal imaging camera
  • Temperature reading range -20 up to 1200 °C
  • 640 x 480 Pixel Bolometer matrix
  • Thermal sensitivity 50 mK

Technical specifications

Type

FLK-TI480U 9HZ/AP

Product type

IR camera

Bolometer array

640 x 480 Pixel

Interfaces

USB

HDMI™

Bluetooth

Temperature reading range (max.)

1200 °C

Colour schemes

8

Temperature reading range (min.)

-20 °C

Frame rate

9 Hz

Display resolution

648 x 480 Pixel

IP52

Thermal sensitivity

50 mK

Dim

(L x W x H) 279 x 122 x 175 mm

Temperature resolution

0.05 °C

Weight

1188 g

Basic accuracy

2 %

Accuracy ± °C

2 °C

Temperature reading range

-20 up to 1200 °C

Width

122 mm

Height

175 mm

Length

279 mm

Connection

USB

HDMI

Bluetooth

Power supply (details)

Replaceable lithium rechargeable battery

Manufacturer's standards (with certificate)

Documents & Downloads

Datasheet

Datasheet 3813208 Fluke FLK-TI480U 9HZ/AP IR camera -20 up to 1200 °C 640 x 480 Pixel 9 Hz

User & Safety Instructions

User & Safety Instructions 3813208 Fluke FLK-TI480U 9HZ/AP IR camera -20 up to 1200 °C 640 x 480 Pixel 9 Hz

Description

The Fluke Ti480U delivers powerful infrared images for professional use by combining improved image quality, increased thermal sensitivity and an simplified workflow to detect fine temperature differences and capture clear, onscreen details. With high pixel resolution, improved spatial resolution, and UltraFocus technology, it provides fast, precise focusing and the necessary clarity to get the job done right - all in the context of Fluke's proven industrial design, which supports faster and more efficient workflows.

This text is machine translated.

Scope of delivery

  • Thermal imaging camera (standard wide-angle lens included)
  • 2x SBP3 Smart battery pack
  • SBC3 Power supply
  • SBC3 battery charging station
  • Strap
  • Hard case
  • Mini-HDMI cable
  • USB-A cable Dual port
  • 64 GB MicroSD card
  • Quick guide
  • Safety information
  • Calibration report
