Foscam FNA108E-T4-2T black LAN IP-CCTV camera set 8-channel incl. 4 cameras 3840 x 2160 p

EAN:
Part number:
Item no:
1/16
Datasheet (PDF)
Fast track dispatch on Tue 27 Oct

2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 525.00 / piece)
€ 525.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included

Highlights & Details

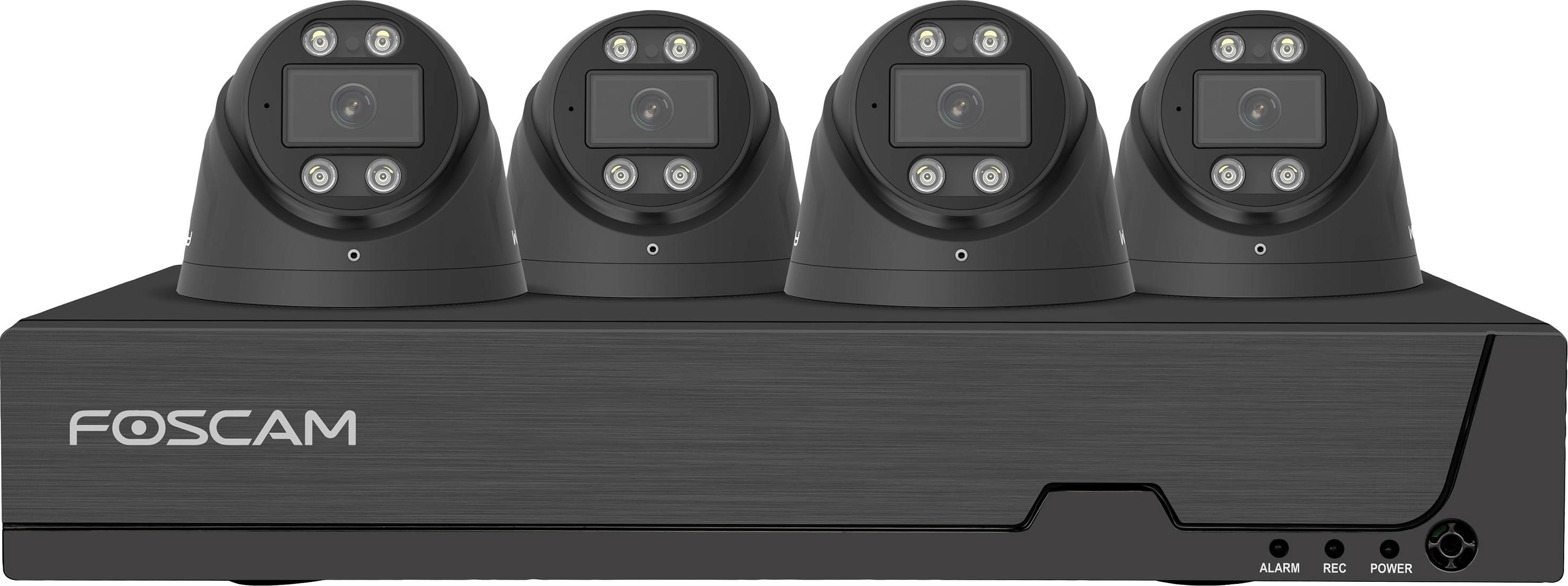

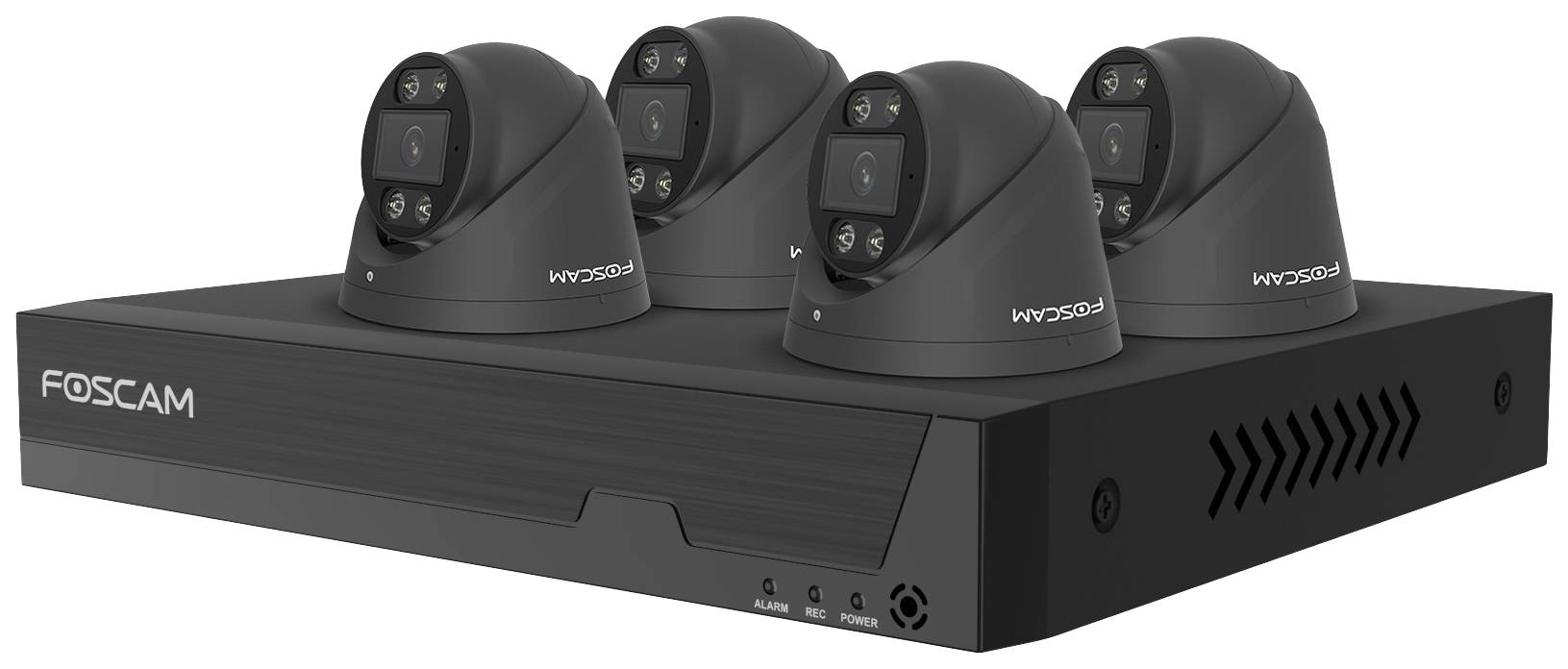

Foscam 8-channel IP CCTV camera set incl. 4 cameras for Outdoors

  • 8 megapixel 4K UHD resolution
  • Simple Plug & Play installation.
  • PoE
  • Intelligent detection of persons and vehicles
  • Two-way audio and alarm siren
  • 'Works with Amazon Alexa' next to a blue Echo symbol, indicating compatibility with Amazon Alexa features.
  • Logo of Google Assistant with the words 'Google Assistant' next to it. A blue, red, yellow, and green dot symbolise the assistant.

Technical specifications

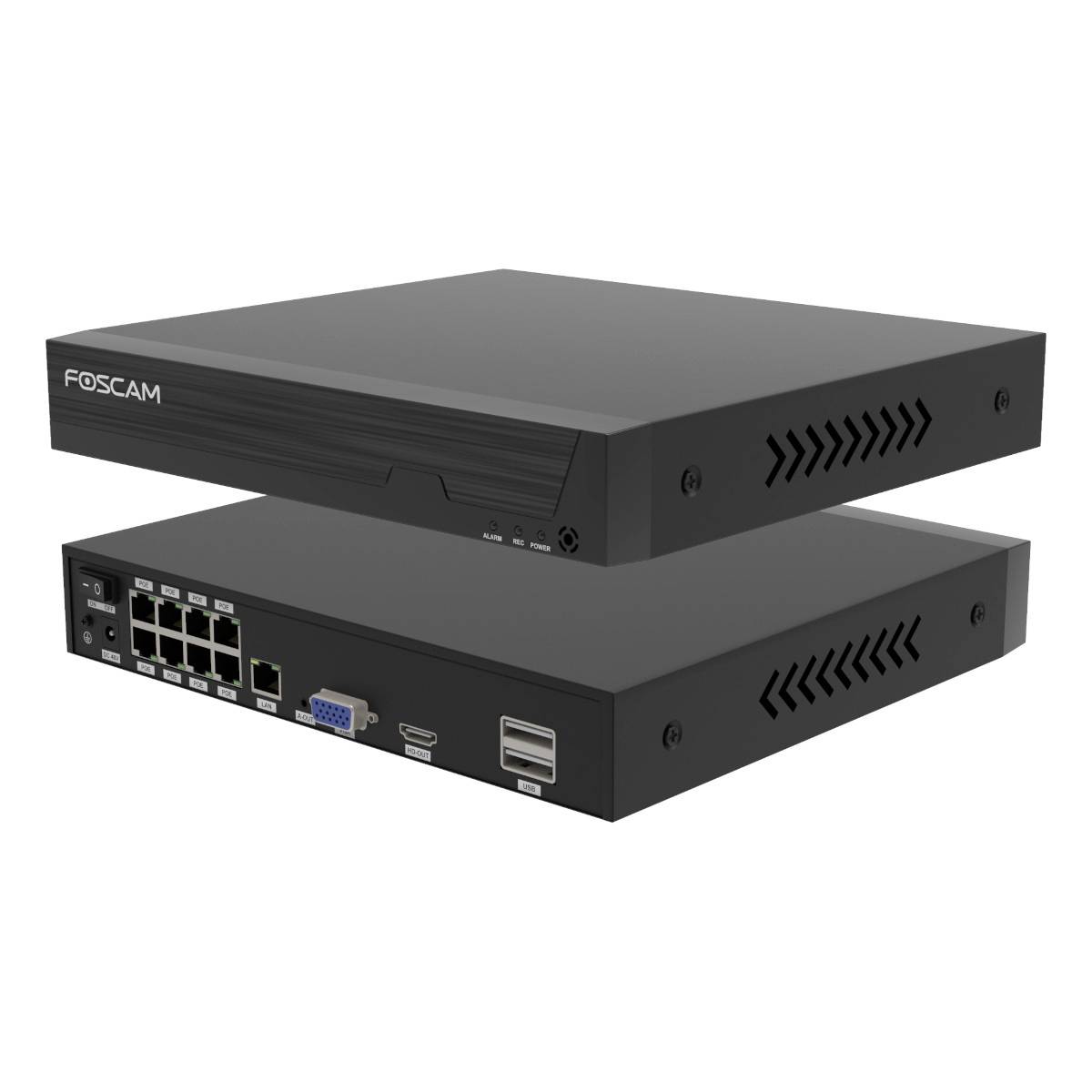

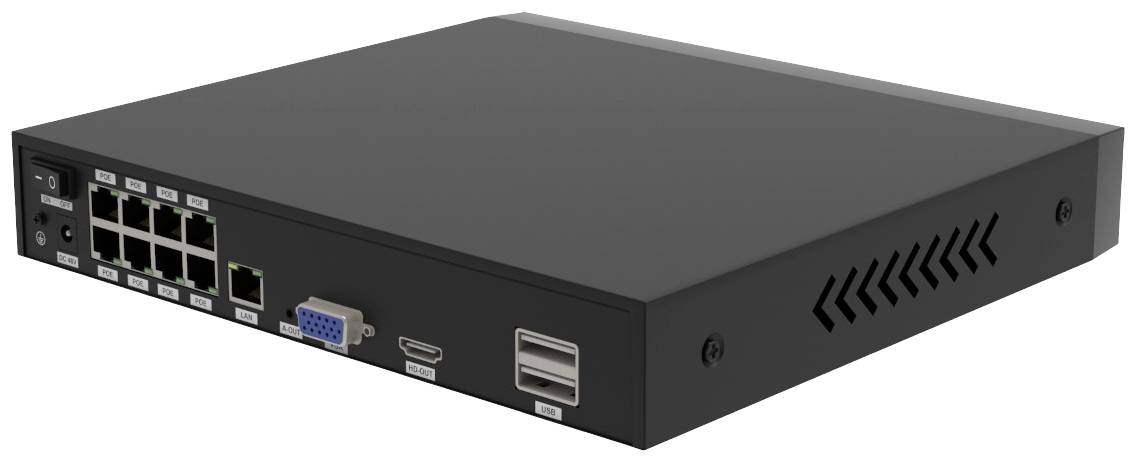

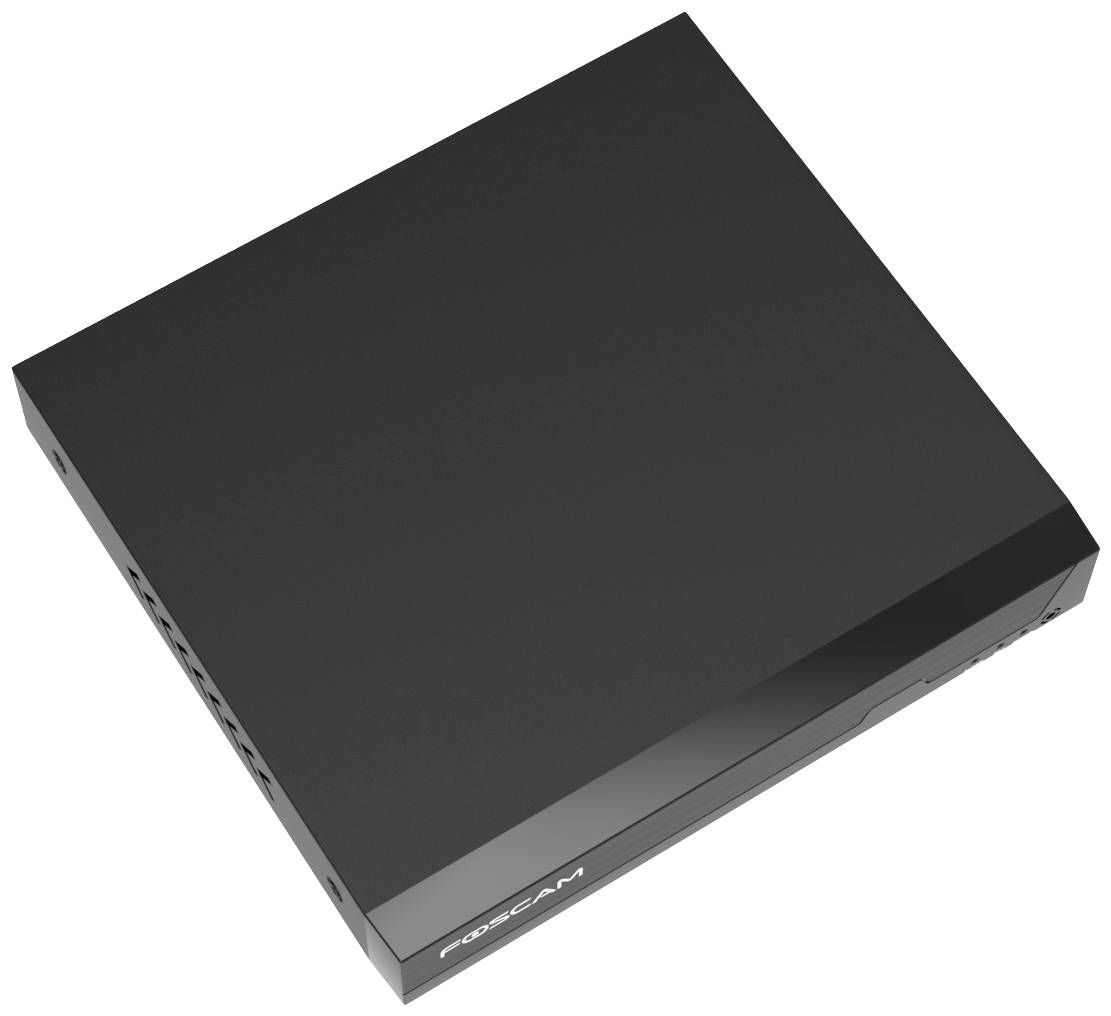

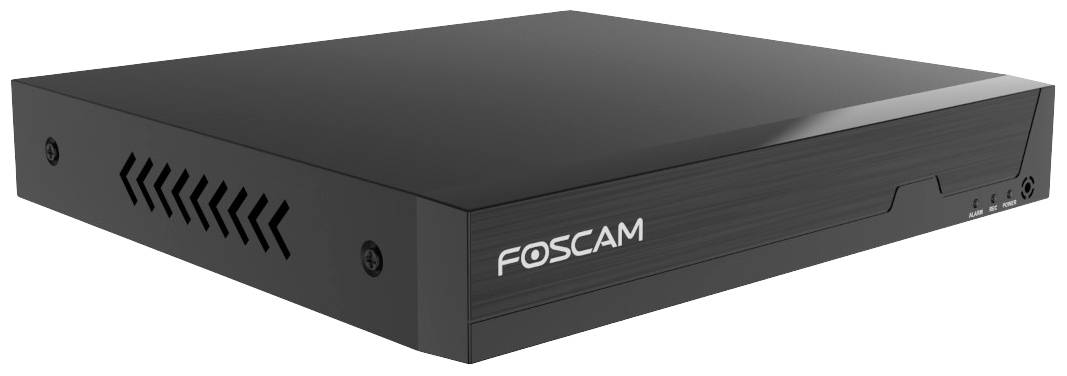

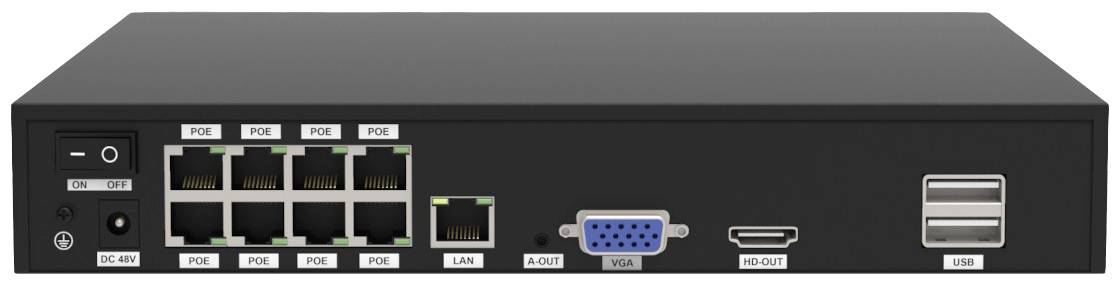

  • Foscam FNA108HE 8-channel PoE network video recorder
  • 8-channel UHD IP camera inputs
  • HDMI output 1×HDMI
  • VGA output 1×VGA
  • Screen resolution 3840 x 2160, 2560 x 1440, 1920 x 1080, 1440 x 900, 1280 x 1024. 1280 x 800, 1280 x 720, 1024 x 768
  • Recording resolution : Up to 8 MP per channel (8 channels at 8 MP)
  • Compression format H.264/H. 264+
  • Synchronous playback: 8 channels of synchronous video playback
  • Playback mode: Pause / stop / slow / fast / single frame playback
  • Hard disk capacity: Up to 16 TB, 2TB HDD pre-installed
  • Network interface 1× 10/100/1000 Mbit/s RJ45 port
  • USB-interface 2× USB2.0-interface mouse and external memory
  • Power supply: Direct current 48 V/2 A.
  • Net weight: 880 g
  • Operating temperature: 0 °C to 55 °C
  • Camera model: T8EP (black)
  • Spotlight color temperature 4500K
  • Sensor: High-resolution color CMOS sensor
  • Resolution 8.0 mega pixel (3840 x 2160)
  • Min Illumination 0 lux (with IR lamp)
  • Lens type f:4.3 mm, F1.6
  • Viewing angle: Horizontal: 90.1 °; vertical: 46.2 °; diagonal: 108.5 °
  • Image compression: H.265/H.264
  • Resolution: 4K (3840 x 2160) 6 M/20 fps, 1080P (1920 x 1080) 1M/25fps, 720P (1280 x 720) 1M/15fps
  • Ethernet 10/100 Mbit/s RJ45 port
  • POWER CONNECTION DC 12 V/1.0 A
  • PoE standard 802.3af
  • Power consumption (max.) 5 W
  • Net weight: 380 g
  • Operating temperature -20 °C to 40 °C.
Product type

CCTV camera set

CCTV features

IR LEDs

Identity recognition

Vehicle recognition

Saves footage on SD card

2-way communication

Speaker

Microphone

Sounder

White spotlight

Signal standard

IP

Channels

8

Sensor type

CMOS

Camera type

Dome camera

Transfer type

LAN

Used at

Outdoors

Recording mode

Preset

Movement detection

Outputs

HDMI

VGA

PoE (802.3af)

Inputs

USB

RJ45

IR range (max.)

20 m

Focal length

4,3 mm

Max. viewing angle hor.

90.1°

Vertical viewing angle

46.2°

Light sensitivity (+ IR)

0 lx

Receiver size

255 x 238 x 50 mm

Transmitter dimensions

Ø 110 x 100 mm

Factory colour

Black

Weight

6.68

App compatibility

Yes

Resolution (max.)

3840 x 2160 p

F-numbers

F1.6

Alexa

Google Home

IP66

Memory expansion up to

16 TB

Power supply

PoE (Power over Ethernet)

Built-in memory

2 TB

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3098811 Foscam FNA108E-T4-2T black LAN IP-CCTV camera set 8-channel incl. 4 cameras 3840 x 2160 p

User & Safety Instructions

User & Safety Instructions 3098811 Foscam FNA108E-T4-2T black LAN IP-CCTV camera set 8-channel incl. 4 cameras 3840 x 2160 p

Description

This plug-and-play video surveillance system allows you to automatically connect four cameras to the NVR after you turn on the device, and WAS provides complete protection for your home.
The network recorder records video on all channels in real time and in very good 4K resolution. The surveillance cameras deliver unbelievably vivid and detailed pictures and videos by day and night.
Installation is very simple thanks to the support of POE connections. You do not need to provide a separate power supply for your PoE-enabled cameras, because they can be powered easily via the Ethernet cable. This is especially useful if you want to install cameras in places where there are no sockets available or where cable management is a challenge.

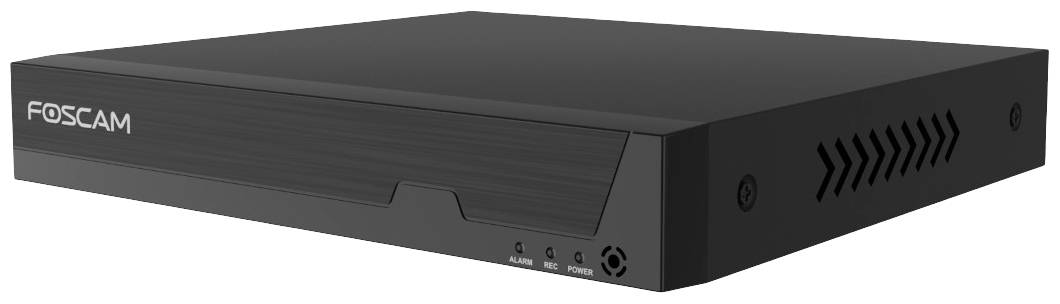

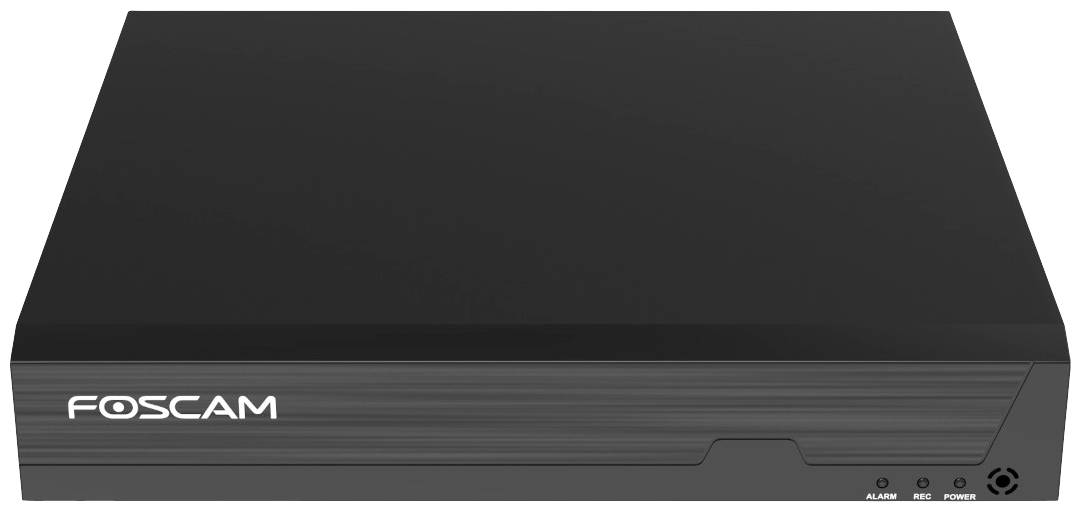

The network video recorder is easy to use and has a user-friendly interface that enables you easy access and management of video recordings. You can also connect the network video recorder to a monitor or TV using an HDMI cable to view the video recordings on a larger screen.

The easy remote access via the VMS software or a mobile APP makes it possible to access the cameras at any time and from any location and to carry out the surveillance in real time. In this way you have complete control and are always informed that WAS is currently taking place in the monitoring area.

Video files can easily be recorded and stored on a hard disk using the NVR. The integrated 2 TB hard disk can record all cameras in continuous operation. If needed, the storage capacity can be extended to up to 16 TB.

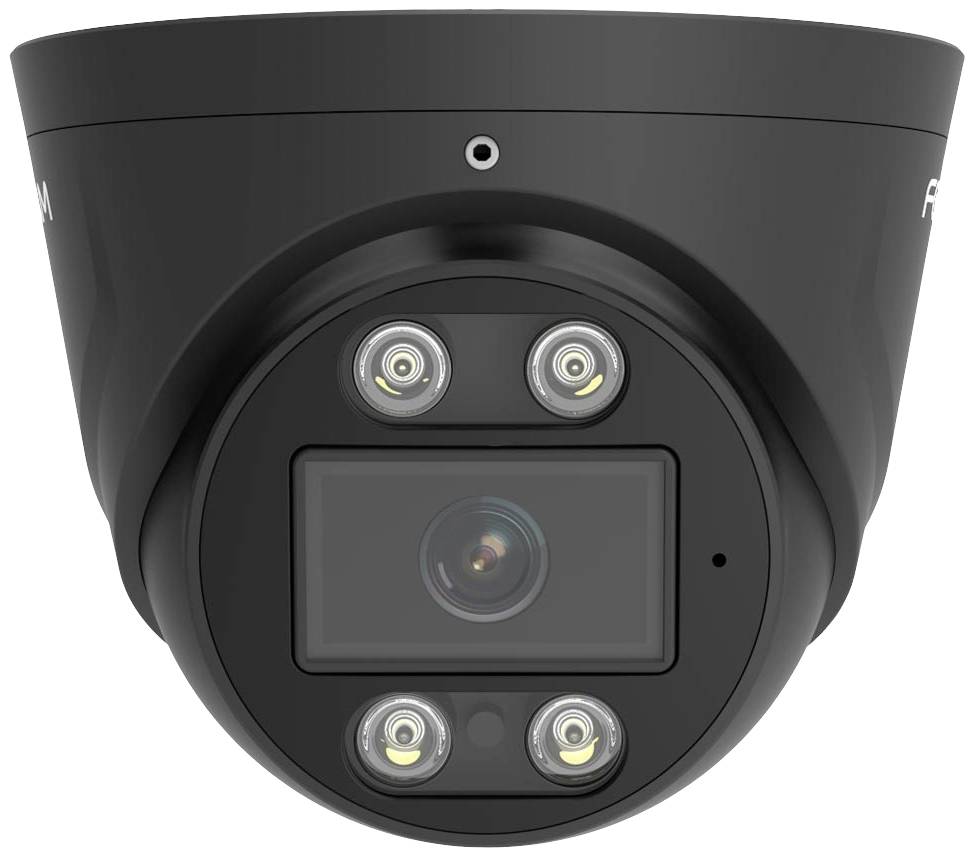

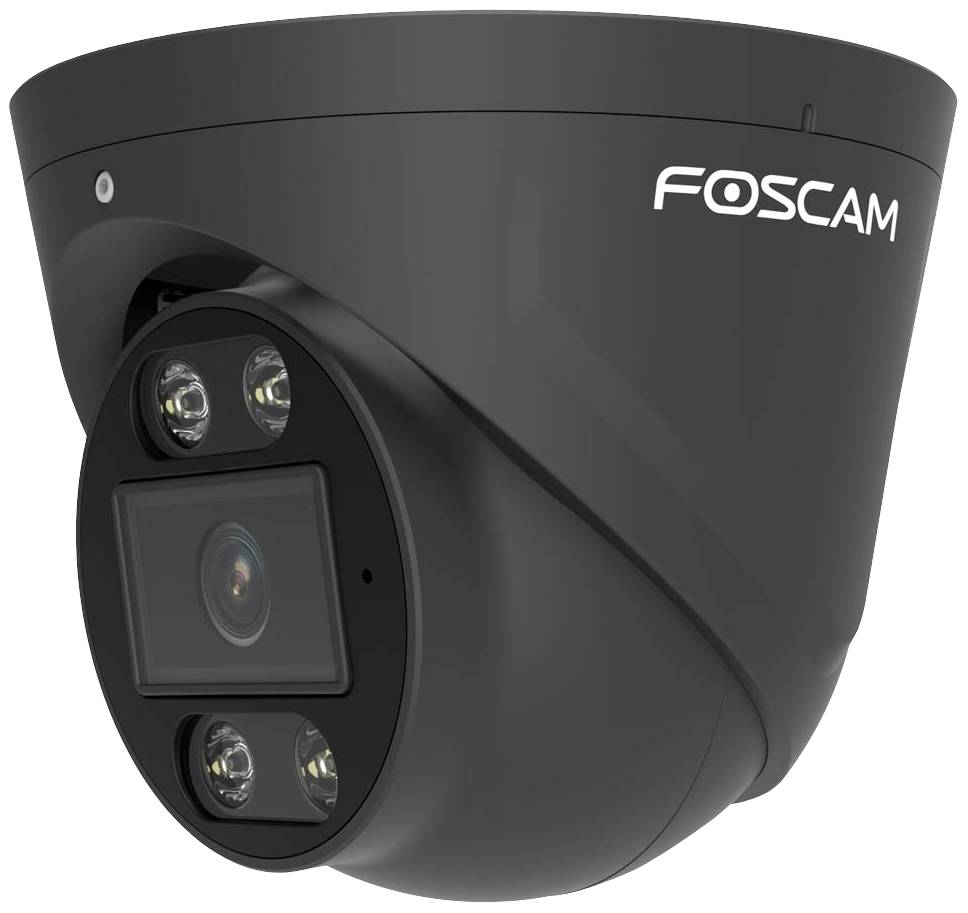

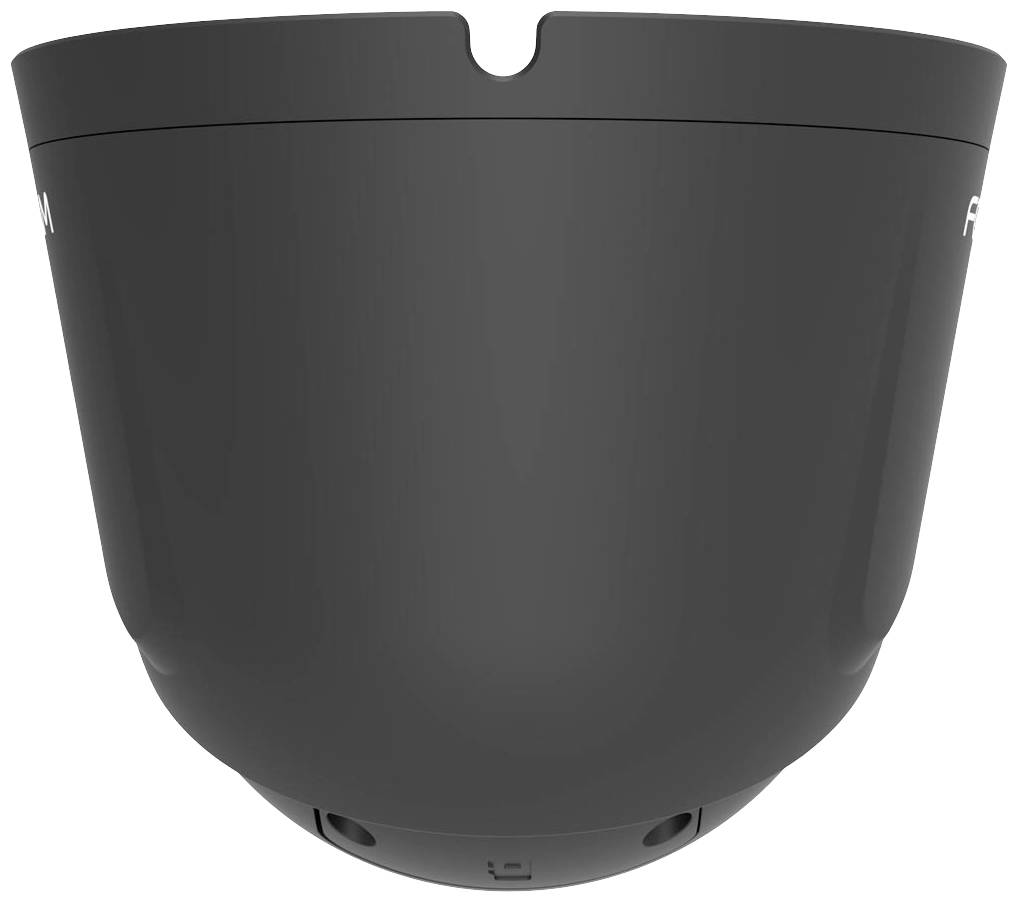

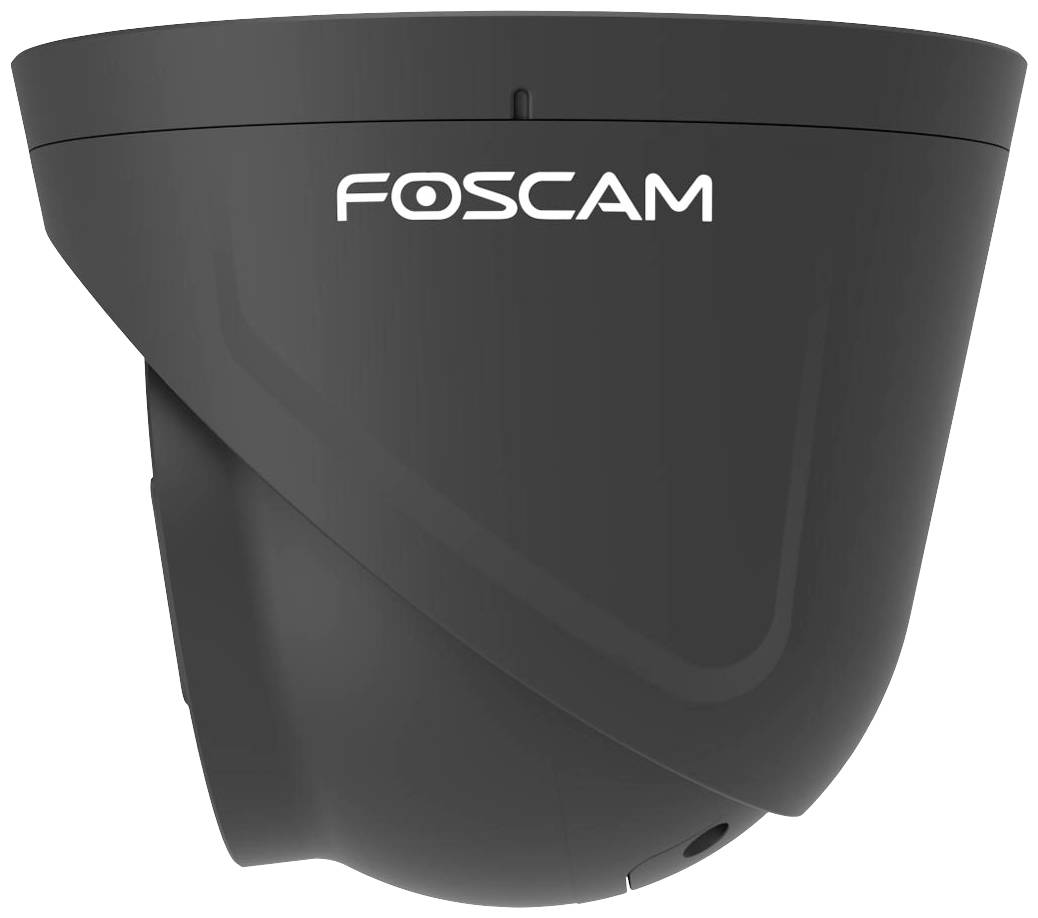

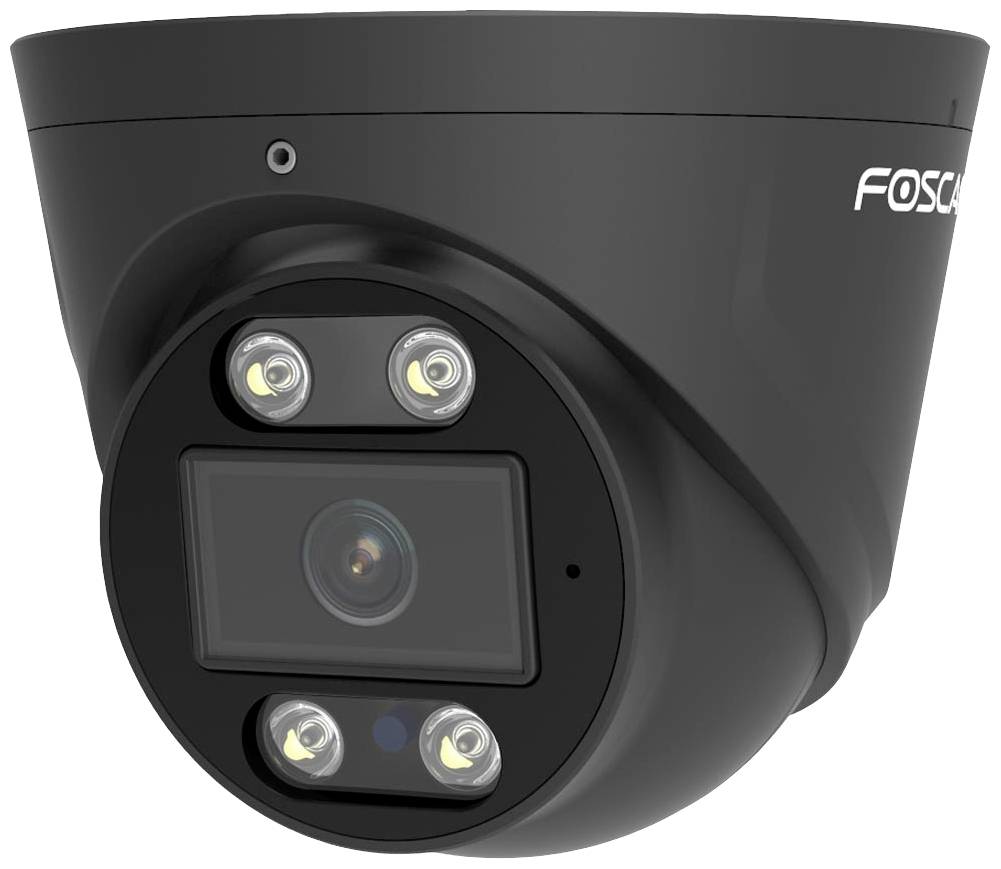

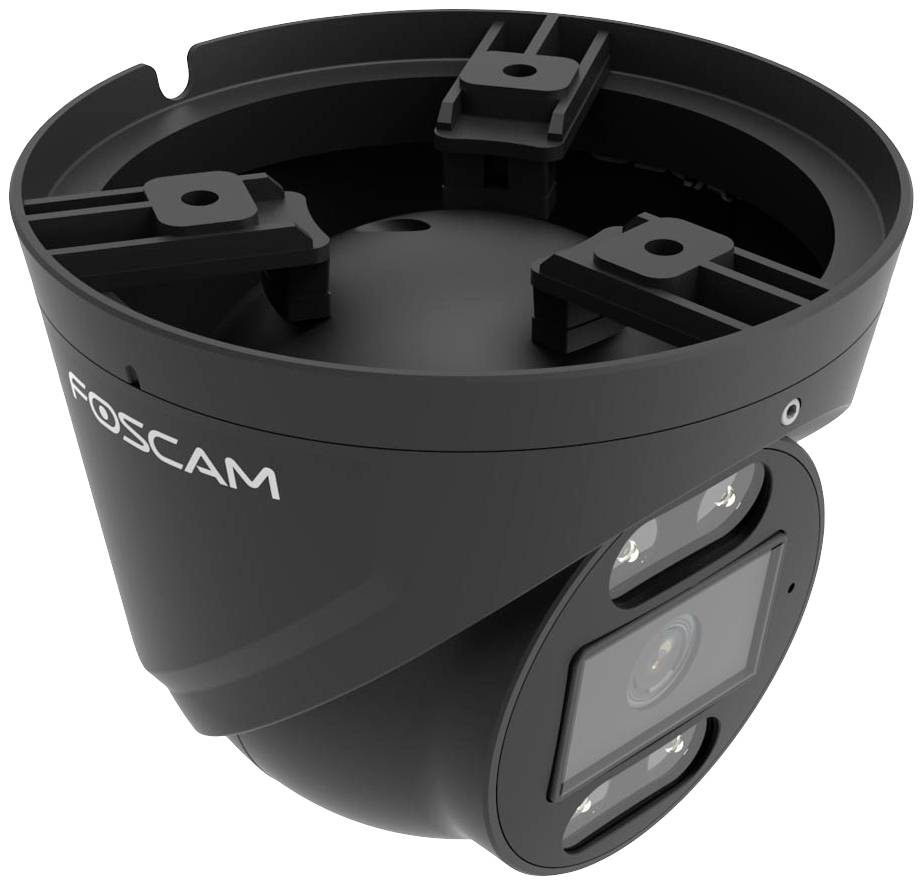

Foscam T8EP monitoring cameras
With its high resolution of 8 megapixels, the Foscam T8EP offers clear and sharp images that can record details and sensitivities.
The advanced detection of people and vehicles in the Foscam T8EP 8 MP POE IP camera is a great feature that helps to minimize unwanted alarms and only detect real security risks. Focussing on the detection of persons and vehicles enables the surveillance camera to ignore the movements of branches, flying insects or other moving objects, which would otherwise lead to false alarms.
The Foscam T8EP 8 MP POE IP camera has a built-in microphone and speaker that enables real-time communication with the people captured by the camera.
The security camera is equipped with an integrated spotlight and a siren, which are activated when an intruder is detected.
The camera is compatible with Amazon Alexa and Google Assistant voice control. So you can control your camera with simple voice commands and view the live stream on a compatible Amazon or Google device.
The IP66-certified, weatherproof housing of the Foscam V8EP 8 MP POE surveillance camera was developed especially for the protection against weather influences. This allows the camera to be used in many different environments, including indoors and outdoors.

This text is machine translated.

Features

  • Remote access via the Foscam APP or the video management system (VMS)
  • Pre-installed 2 TB hard disk for continuous 24/7-recording
  • Waterproof IP66 surveillance cameras for indoor and outdoor use
  • Supports Alexa & Google assistant
  • Foscam FNA108HE 8-channel PoE network video recorder
  • NETWORK PROTOCOL: IP, TCP, UDP, SMTP, DHCP, RTSP
  • Button: 1 × on/off button, 1 × reset button
  • Language: 17 languages
  • Camera model: T8EP (black)
  • Stream: Dual-stream
  • Image setting: Hue, brightness, contrast, saturation, sharpness
  • Mirror image function: Rotate and mirror
  • Night mode: Manual and automatic mode when the white light is on, the night view image is colored
  • Night vision: With 4 IR LEDs and headlights, night vision range up to 20 m.
  • Input / output: Integrated microphone and speakers, 2-way audio possible in full-duplex real-time
  • Audio compression: PCM/AAC
  • Siren: Max. 100 dB alarm siren
  • Remote access P2P
  • NETWORK PROTOCOL: IP, TCP, UDP, SMTP, FTP, DHCP, RTSP
  • Operating system: Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam APP), IOS (Foscam APP)
  • Motion detection: Alarm via email, FTP and Foscam APP
  • Person recognition: Alarm message by e-mail, FTP and Foscam APP
  • Vehicle detection: Alarm via e-mail, FTP and Foscam APP
  • User accounts: Three levels of user role
  • Firewall: Supports IP filtering
  • Storage: Supports max. 256 GB microSD-card, local and FTP-storage, Foscam-cloud storage
  • HDR: Improved picture quality in complex scenarios
  • Zoom: 6-fold digital zoom

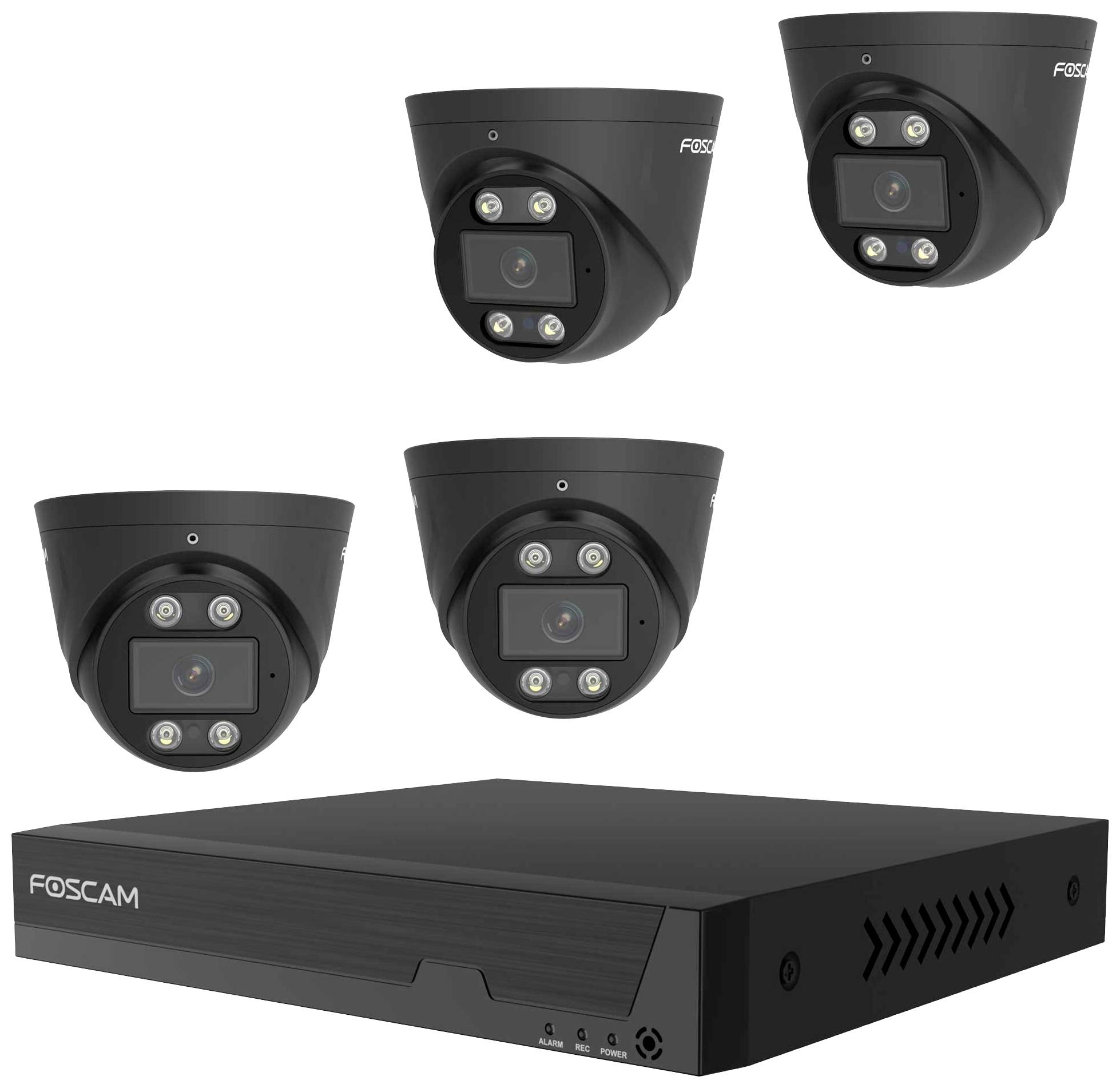

Scope of delivery

  • 1 x Foscam FNA108HE 8-channel PoE network video recorder, incl. 2 TB hard drive
  • 4 x Foscam T8EP Turret surveillance cameras (black)
  • 4 x set of screws
  • 1 x power supply for NVR
  • 1 x network cables 1.5 m
  • 4 x network cables 18 m
  • 1 x HDMI cable
  • 4 x waterproof protective cap
  • 4 x boring template
  • 1 x USB Mouse
  • 5 x sign video surveillance
  • Installation guide.

System requirements

  • Operating system: Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam APP), iOS (Foscam APP)
    Smartphone: IOS, Android, 3G/4G/5G smartphones
