Fuse modular terminal block ST 4-FSI/C-LED 24 3036505 Phoenix Contact

EAN:
Part number:
Item no:

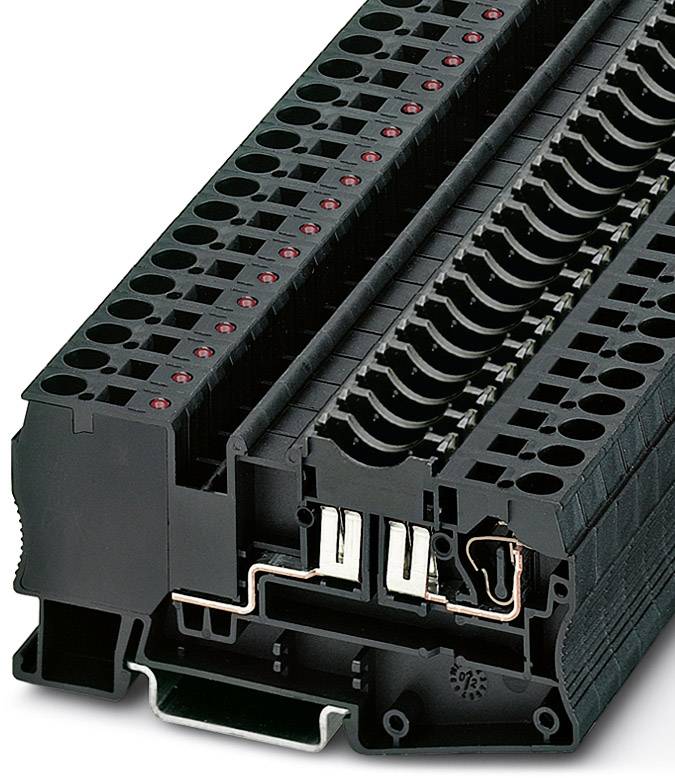

Electrical connector with a black housing, displaying internal copper conductors and wire socket outlets, suitable for electrical control cabinets.
Image similar
Packaging type
Piece
Product type
Fuse serial terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Dispatches on Fri 30 Oct
1 Set(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number (Package size 50 pc(s))
Total (€ 13.78 / piece)
€ 689.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 1 Set(s) available
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Product type

Fuse serial terminal

Features

+ LED display

Connection

Pull spring

Cross section (flexible) (min.)

0.08 mm²

Cross section (flexible) (max.)

4 mm²

Cross section (inflexible) (min.)

0.08 mm²

Cross section (inflexible) (max.)

6 mm²

AWG (min.)

28

AWG max.

12

Clamp width

8.2 mm

No. of rows

1

Number of pins

2

Factory colour

Black

Nominal current

30 A

Nominal current - rounded value

30 A

Nominal voltage

24 V

Stripping length (max.)

10 mm

Manufacturer part #

3036505

Content

50 pc(s)

Industrial packaging

Yes

Type

ST 4-FSI/C-LED 24

Dim

(L x W x H) 86.5 x 8.2 x 43.5 mm

Width

8.2 mm

Height

43.5 mm

Length

86.5 mm

Contamination level

3

Flammability rating

V0

Connector colour

Black

Insulation material

PA

Insulation

PA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 565644 Fuse modular terminal block ST 4-FSI/C-LED 24 3036505 Phoenix Contact

User & Safety Instructions

User & Safety Instructions 565644 Fuse modular terminal block ST 4-FSI/C-LED 24 3036505 Phoenix Contact

Description

Fuse terminal block with LED for mounting on NS 35, for miniature circuit breakers, terminal width: 8.2 mm, color: Black
