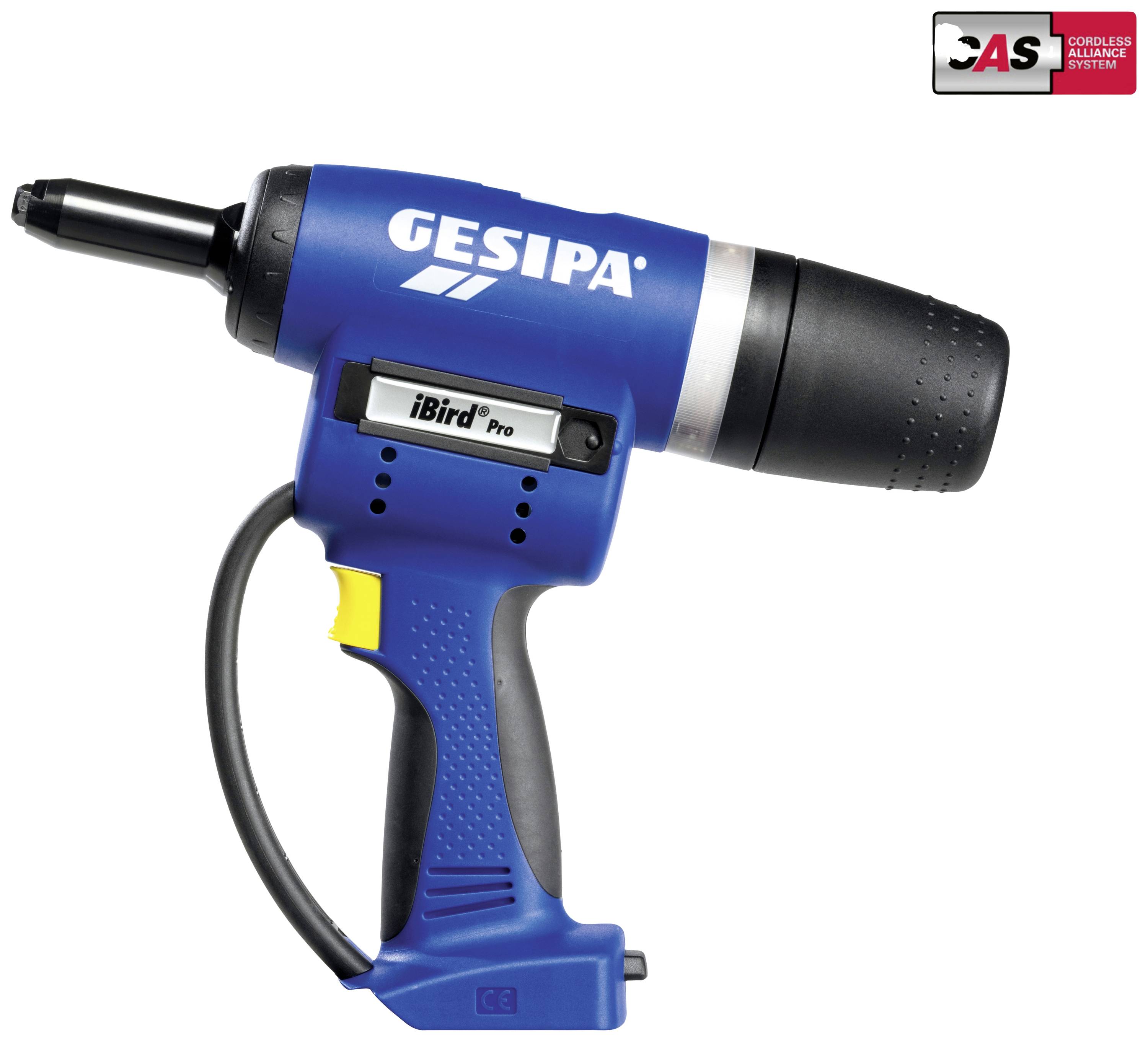

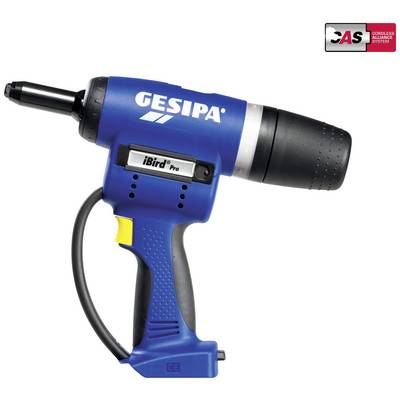

Gesipa 1679681 Cordless riveter 1 pc(s)

IBird Pro
The linked battery setting device is operated via WiFi or Bluetooth
Connected to smartphones and tablets via the GESIPA app.

Industrial 4.0 with the iBird Pro
Industry 4.0, M2M or also known as the Internet of Things,
Refers to intelligent and digitally networked systems in the manufacturing industry.
The aim is to produce as independently as possible.

The iBird Pro is a connected battery-setting device,
Which uses Wi-Fi or Bluetooth with smartphones and tablets
Can be connected via a free GESIPA app.
The networking offers numerous additional values, such as the control of rivet processes,
Processing reliability, status and service displays as well as fast and simple
Access to operating, maintenance and repair instructions; ultimately, optimization
The value-added chain.

Advantages
- For smartphone, tablet
- Easy pairing of the device with the APP via QR code
- Data available anytime, anywhere
- Andonring for visualization of the rivet processes
- Optional connection to three mobile devices simultaneously
- Setup process assistant available as premium software as an option

Technical facts
- Wireless connection Wi-Fi 2.4/5.0 GHz and Bluetooth (LE)
- Tilt sensor can be activated via APP, when used the device will only be used for the next rivet operation
  Released when the tilt movement to dispose of the rivet punch has been performed
- ANDON ring: Signal ring for visualization of the rivet process,
  The color is individually adjustable via APP

Technical data
Wireless connection Wi-Fi 2.4/5.0 GHz and Bluetooth
Setting force 20,000 N
Weight: 2.2 kg including Battery (2.0 Ah)
Drive: Brushless motor (BLDC)
Device travel 25 mm

Included in the delivery
Mouthpieces 17/32, 17/36, 17/40 and 17/45
Additional pressure socket for smaller blind-rivet dimensions

Working range
Blind rivets up to Ø 6.4 mm of all materials (max. Mandrel Ø 4.3 mm)
