Goaltek ExMP52R Cordless handheld searchlight, Cordless handheld searchlight, Work light Ex Zoning: 1, 2, 21, 22 340 lm
EAN:
Part number:
Item no:
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
Highlights & Details
GOALTEK EX hand lamp ExMP52R, zone 1/2,21/22
- Certified for hazardous areas of zones 1/2 and 21/22
- Temperature resistant from -40 to +55 °C
- Protection class IP66/67 and shock proof up to 1 m.
- Multiple lighting modes: Working light (180 lm), strong light (340 lm) and SOS (180 lm)
- High performance casing made of flame-retardant nylon, with anti-static and corrosion resistance
- Constant current output switching
Technical specifications
- Product type
Cordless handheld searchlight
- Ex Zoning
1
2
21
22
- Factory colour
Black
- Dim
(L x W x H) 92 x 193 x 105 mm
- ATEX no.
II 2 G Ex ib IIC T4 Gb, II 2 D Ex ib IIIB T130°C Db
- Operating voltage
3.6 V
- Weight
610
- Weight, information
incl. rechargeable battery
- Light duration (high)
14 h
- Light duration (low)
24 h
- Illumination range (high)
118 m
- Illumination range (low)
118 m
- Luminous flux (range)
200 lm - 499.9 lm
- Luminous flux (high)
340 lm
- Luminous flux (low)
340 lm
- Material
Metal
Nylon
- Width
193 mm
- Height
105 mm
- Length
92 mm
IP67
- Power supply (LOV)
Li-ion rechargeable batteries
- Waterproof
Yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3740275 Goaltek ExMP52R Cordless handheld searchlight, Cordless handheld searchlight, Work light Ex Zoning: 1, 2, 21, 22 340 lm
Description

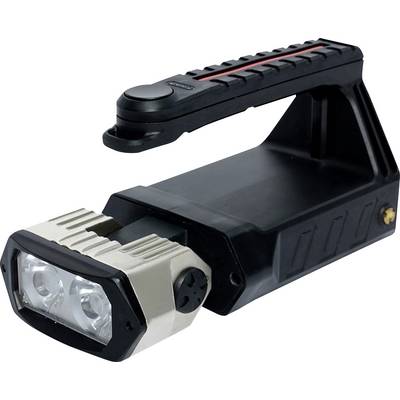

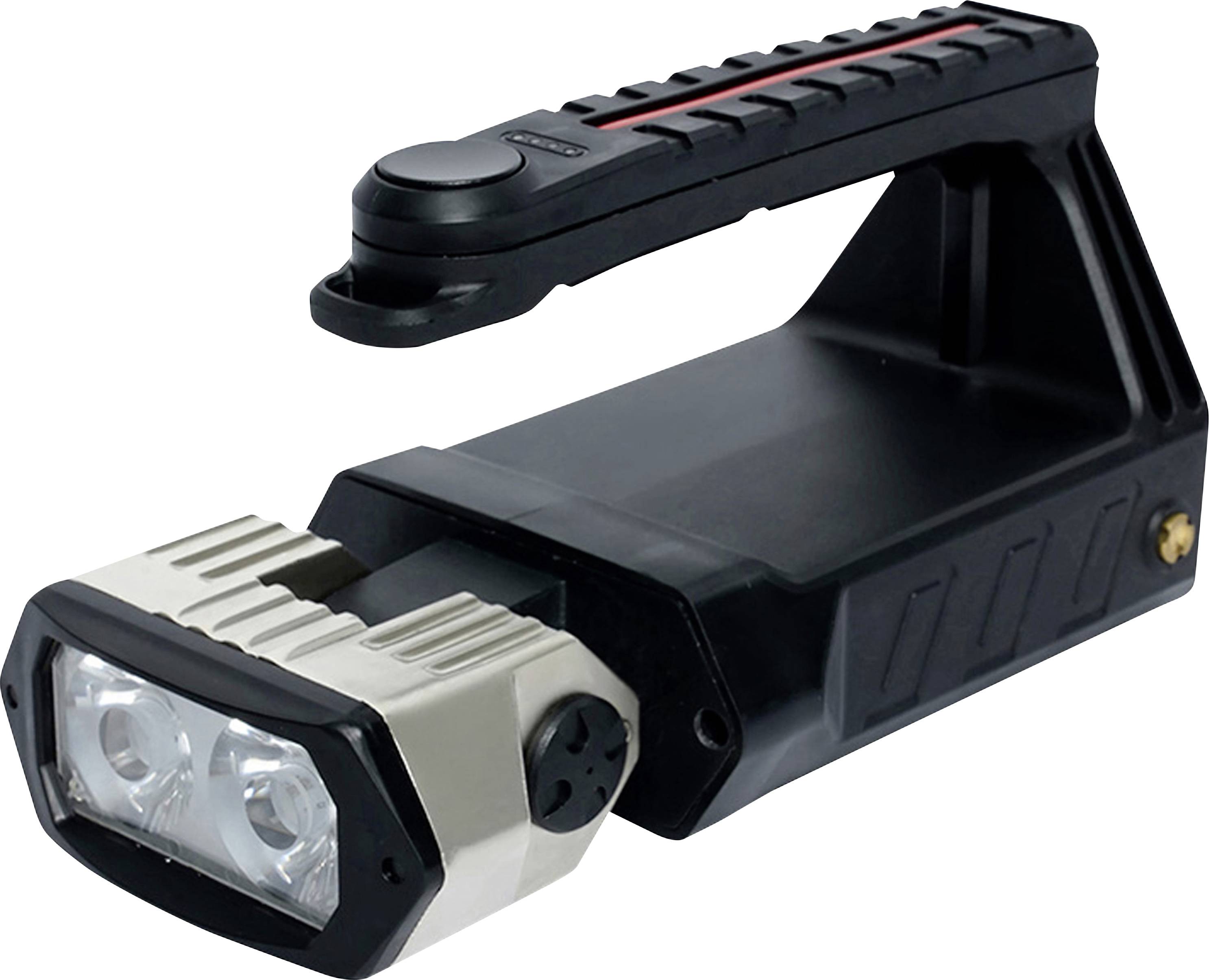

The GOALTEK EX battery-operated hand-held spotlight EXMP52R is a mobile work light for the professional use in industrial environments. The model is specially designed for operation in explosive areas and is delivered in environmentally friendly plastic-free packaging. With its ergonomic design the device is aimed primarily at business customers who need a permanent and reliable light source for demanding activities.

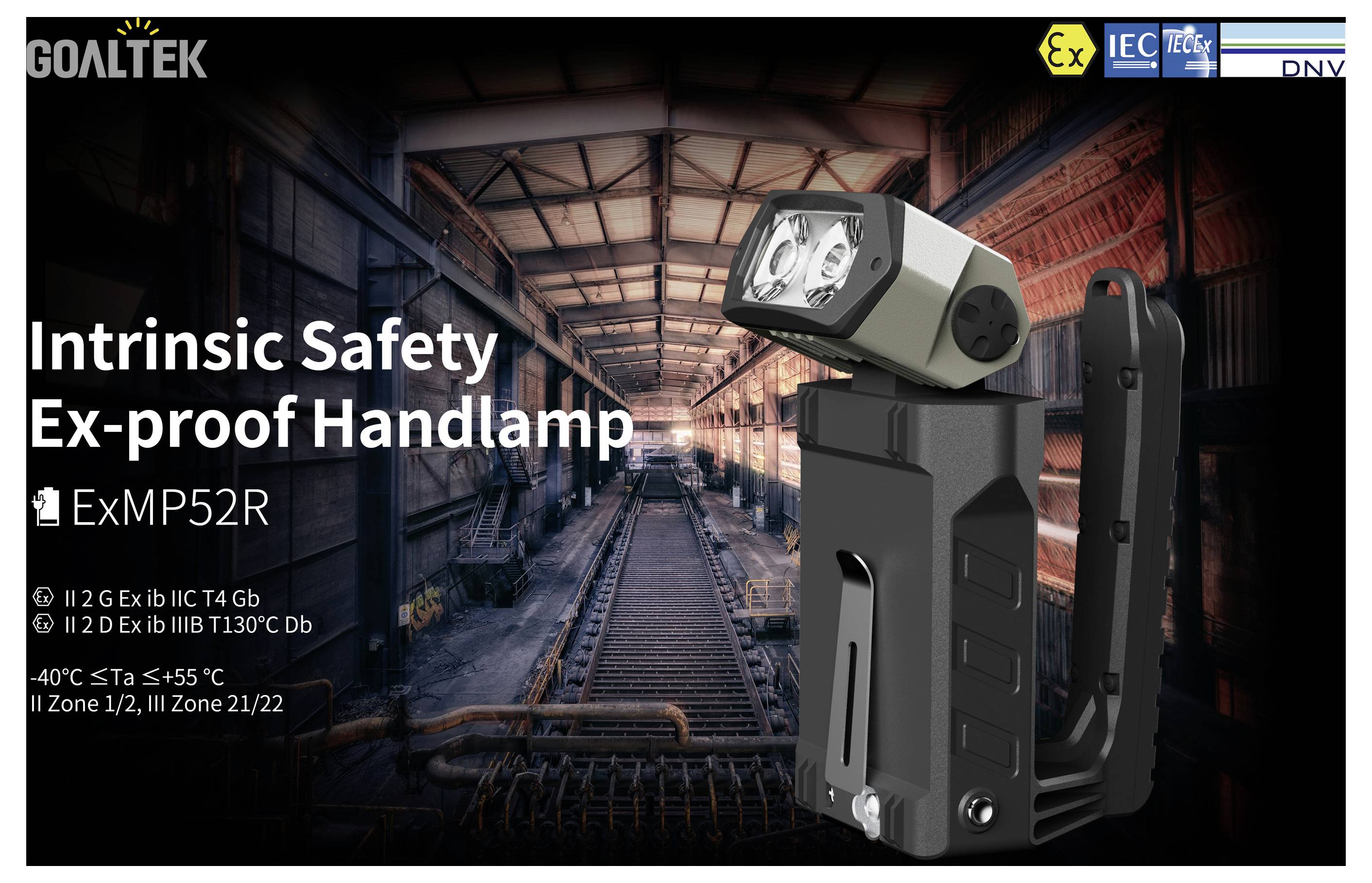

Certified explosion protection and temperature resistance

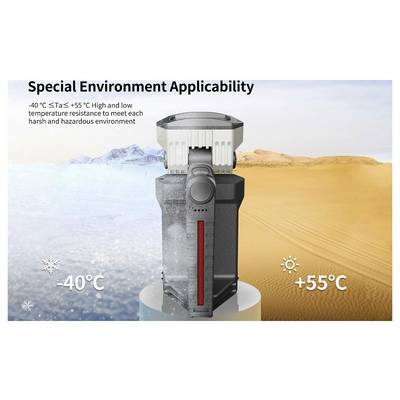

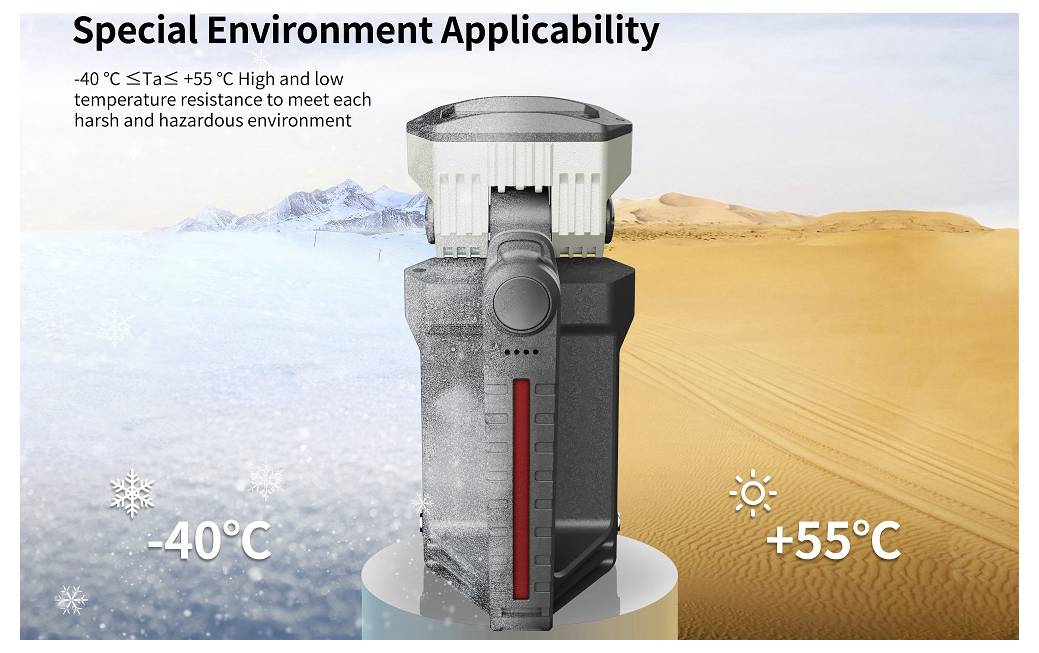

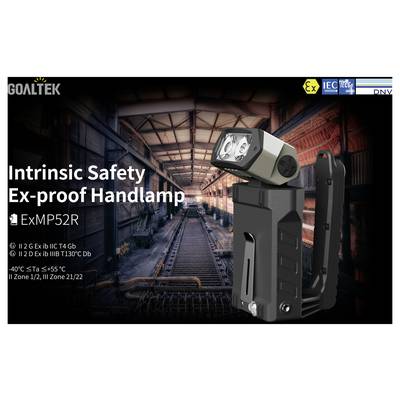

The hand lamp has an ATEX certification and is approved for use in hazardous areas of zones 1/2 and 21/22. In addition, the lamp is designed for extreme environmental conditions and ensures its function in a temperature range of -40 to +55 °C. This provides users with a correct lighting solution for sensitive industrial areas.

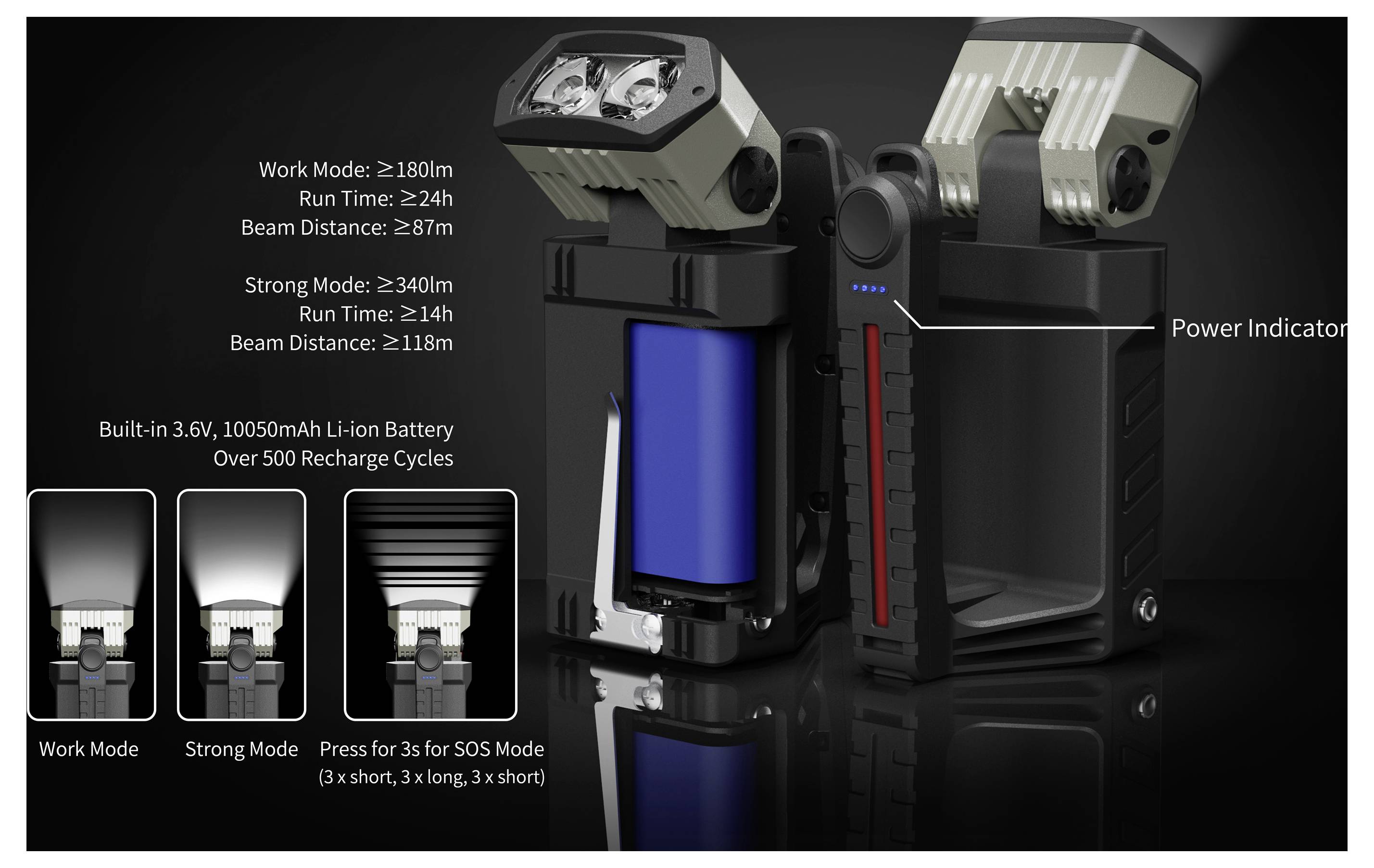

Flexible lighting modes and rotating light head

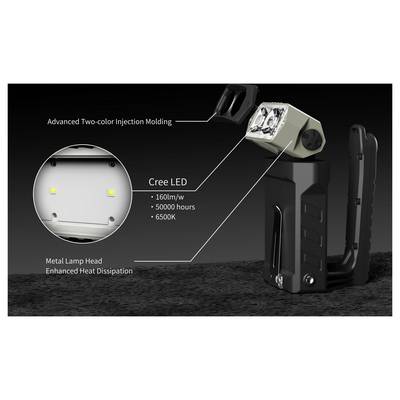

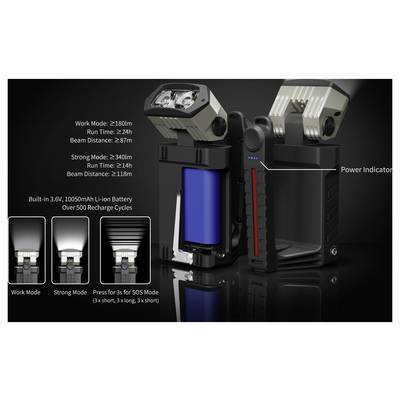

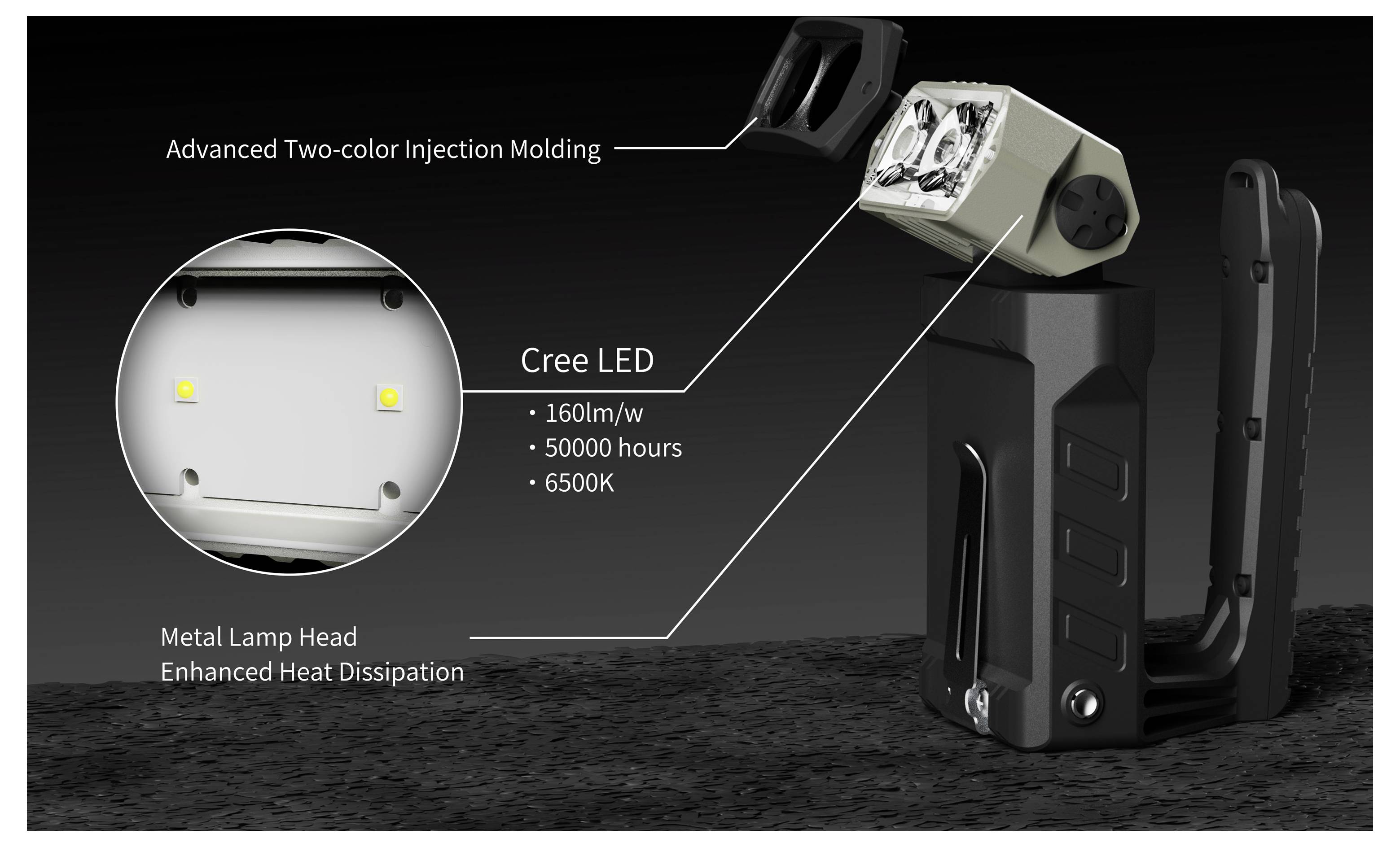

The device offers three different lighting modes: A working light (180 lumens), a high light (340 lumens) and an SOS function (180 lumens). The maximum light range is 118 meters. The 180-degree rotating metal head allows the beam to be precisely aligned to the particular work area. An integrated constant current output switch ensures a constant light output.

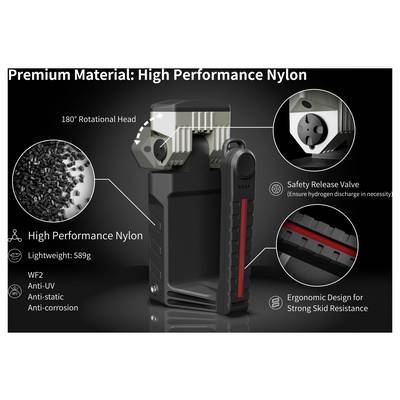

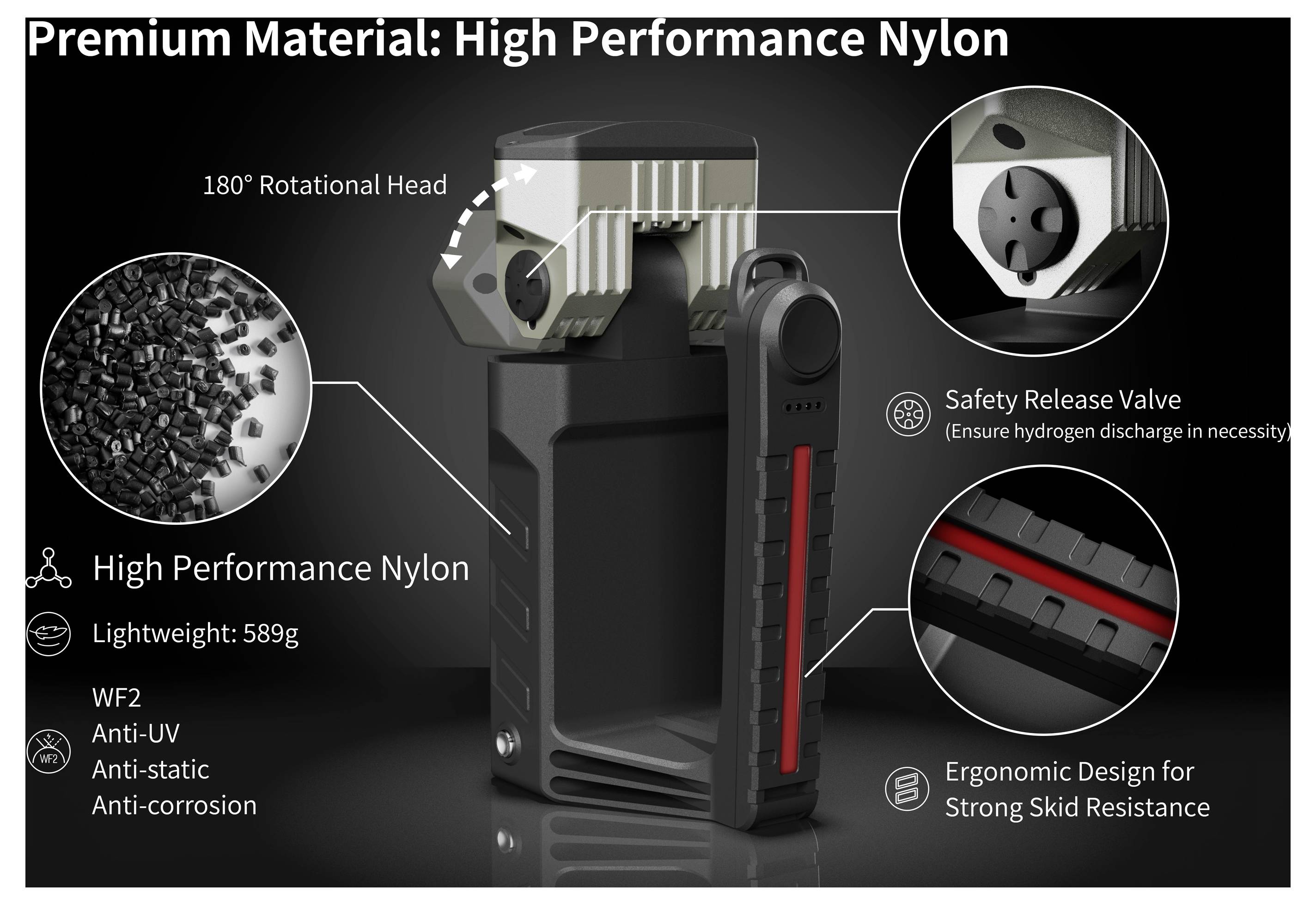

Robust housing

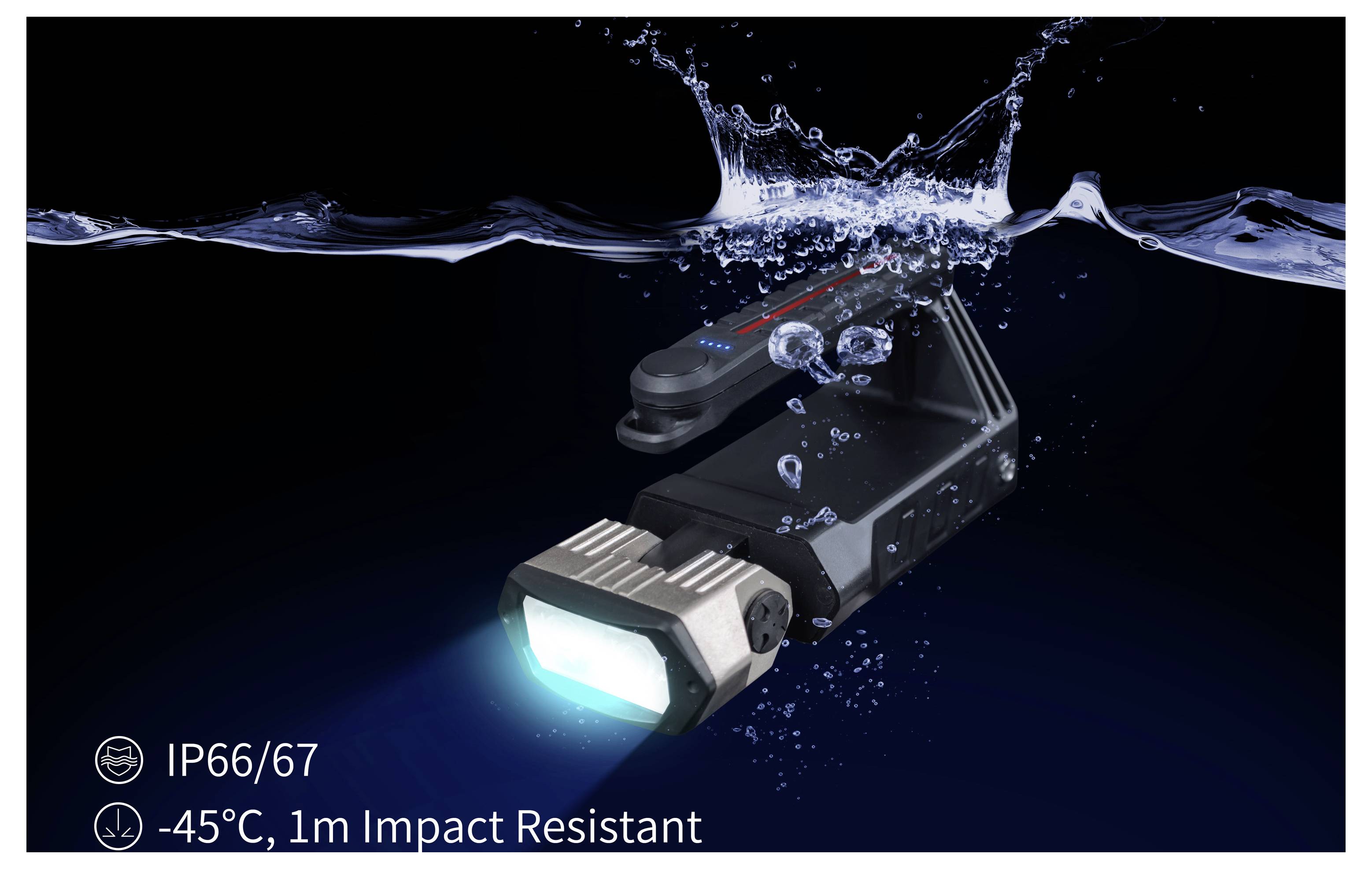

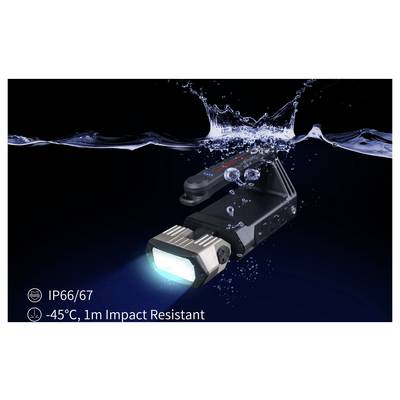

The high performance casing made of flame-retardant nylon and metal is antistatic as well as corrosion resistant. It is certified according to protection class IP66/67, completely waterproof and shock-resistant up to a fall height of 1 meters. By this the hand lamp is effectively protected against the penetration of dust and wetness, WAS ensures the readiness for use even in harsh working environments.

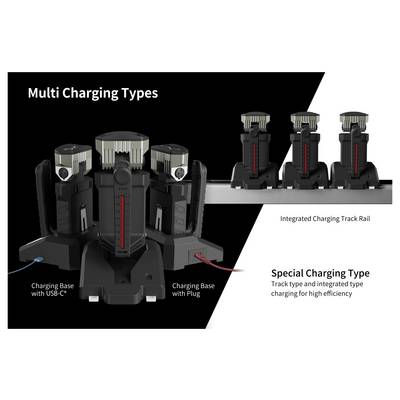

Continuous rechargeable battery and versatile charging options

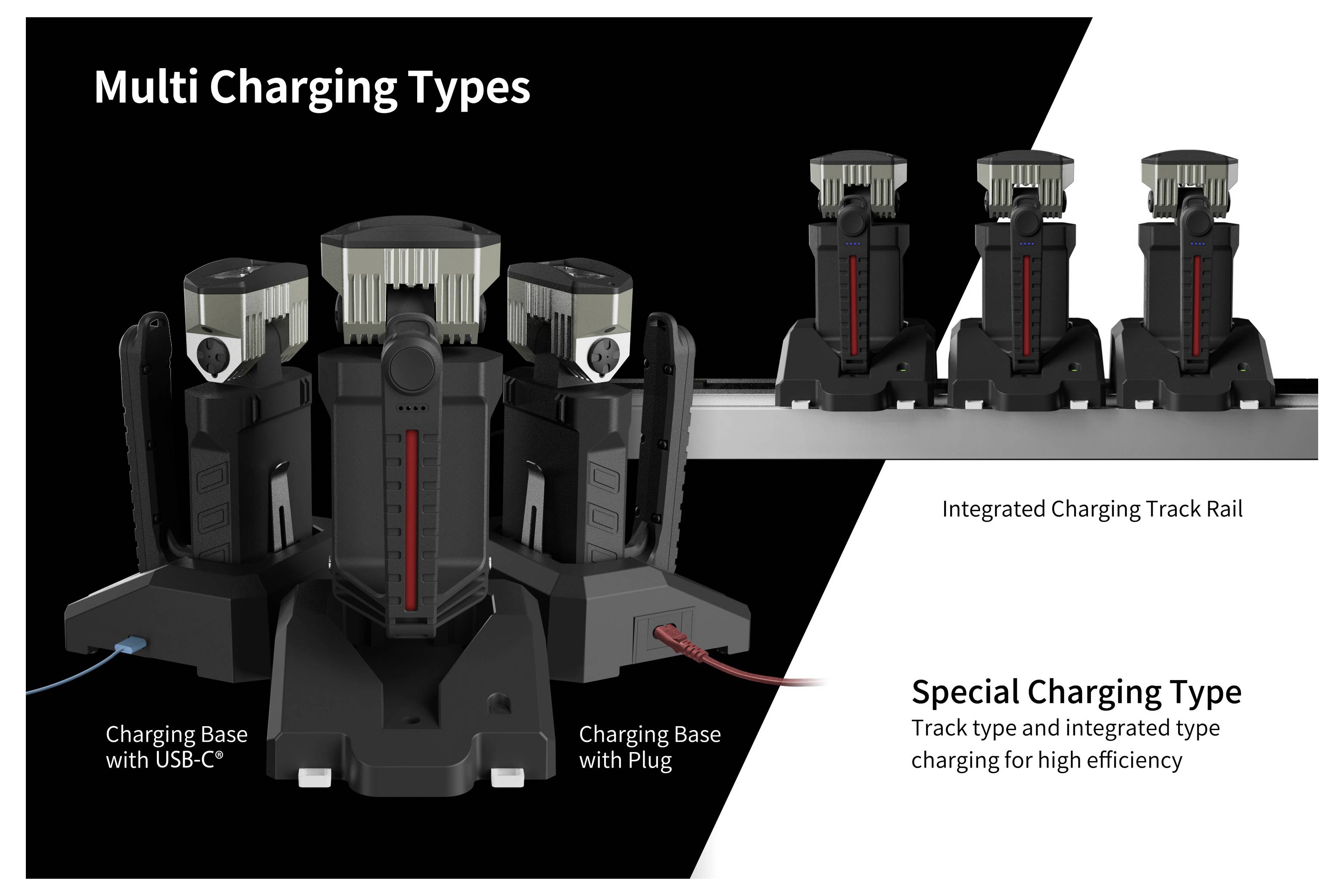

The in-built Li-ion battery enables a lighting duration of up to 24 hours in low-mode and 14 hours in high-mode. This device weighing 610 grams can be flexibly charged using USB-C®, classic mains power or charging station. The charging station also supports the simultaneous charging of multiple devices, while WAS makes it much easier to provide work equipment in professional shift operation.
This text is machine translated.
Certified explosion protection and temperature resistance
The hand lamp has an ATEX certification and is approved for use in hazardous areas of zones 1/2 and 21/22. In addition, the lamp is designed for extreme environmental conditions and ensures its function in a temperature range of -40 to +55 °C. This provides users with a correct lighting solution for sensitive industrial areas.
Flexible lighting modes and rotating light head
The device offers three different lighting modes: A working light (180 lumens), a high light (340 lumens) and an SOS function (180 lumens). The maximum light range is 118 meters. The 180-degree rotating metal head allows the beam to be precisely aligned to the particular work area. An integrated constant current output switch ensures a constant light output.
Robust housing
The high performance casing made of flame-retardant nylon and metal is antistatic as well as corrosion resistant. It is certified according to protection class IP66/67, completely waterproof and shock-resistant up to a fall height of 1 meters. By this the hand lamp is effectively protected against the penetration of dust and wetness, WAS ensures the readiness for use even in harsh working environments.
Continuous rechargeable battery and versatile charging options
The in-built Li-ion battery enables a lighting duration of up to 24 hours in low-mode and 14 hours in high-mode. This device weighing 610 grams can be flexibly charged using USB-C®, classic mains power or charging station. The charging station also supports the simultaneous charging of multiple devices, while WAS makes it much easier to provide work equipment in professional shift operation.
This text is machine translated.
Features
- 180° rotating metal head

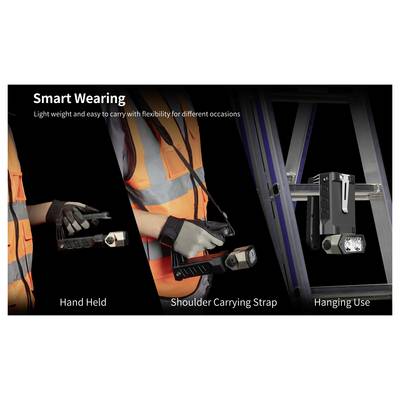

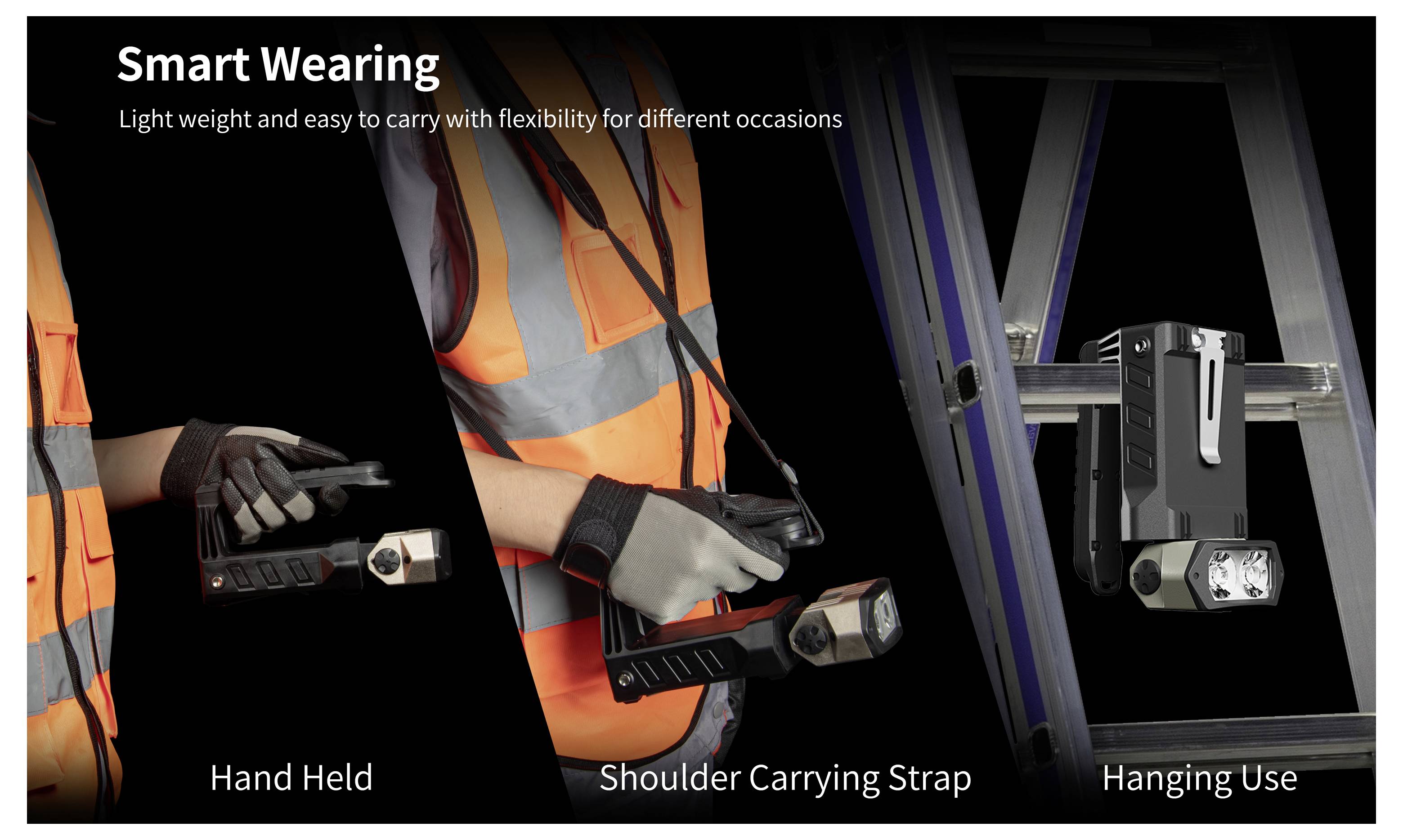

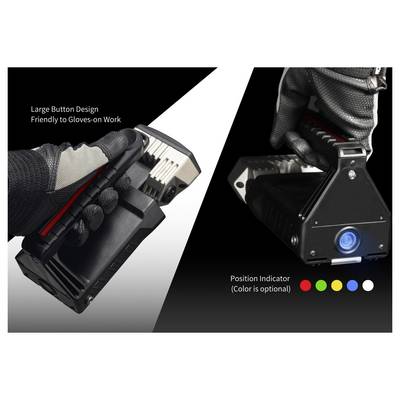

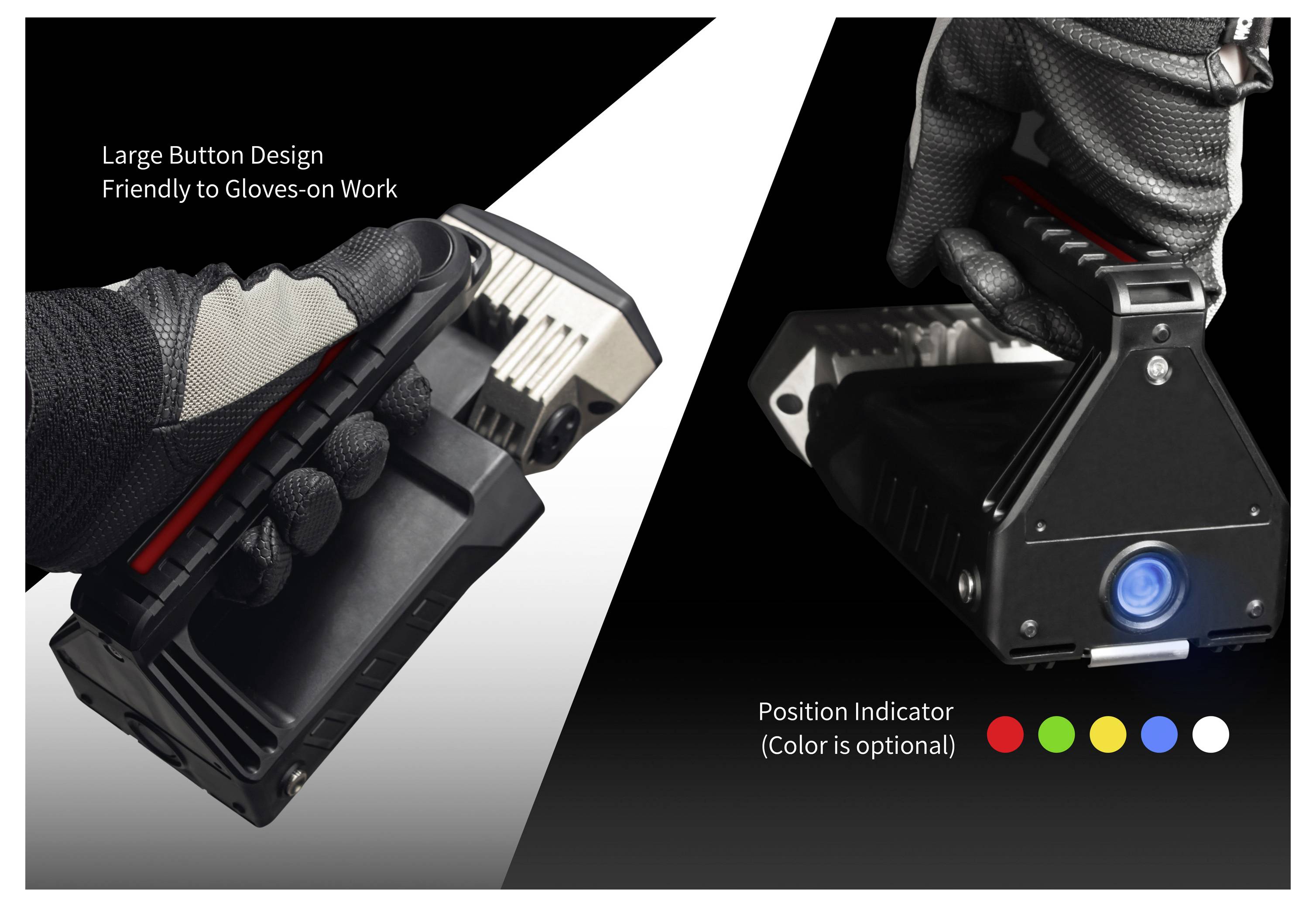

- Lightweight and ergonomic for use on the move
- Supports USB-C® and charging via mains power
- Supports the charging of several devices with charging station

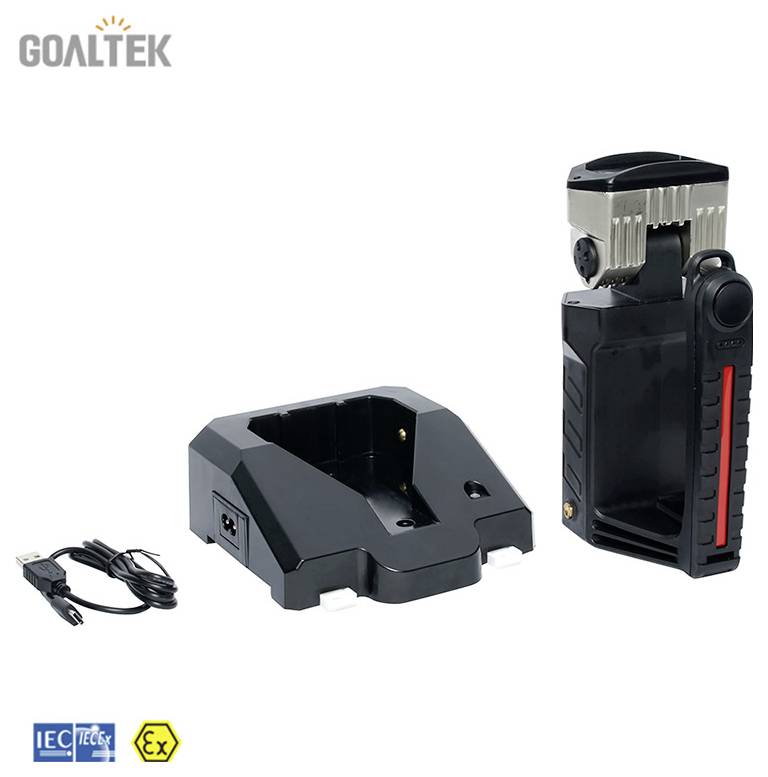

Scope of delivery
- Portable lamp
- Charging station
- AC charging cable
- User manual
