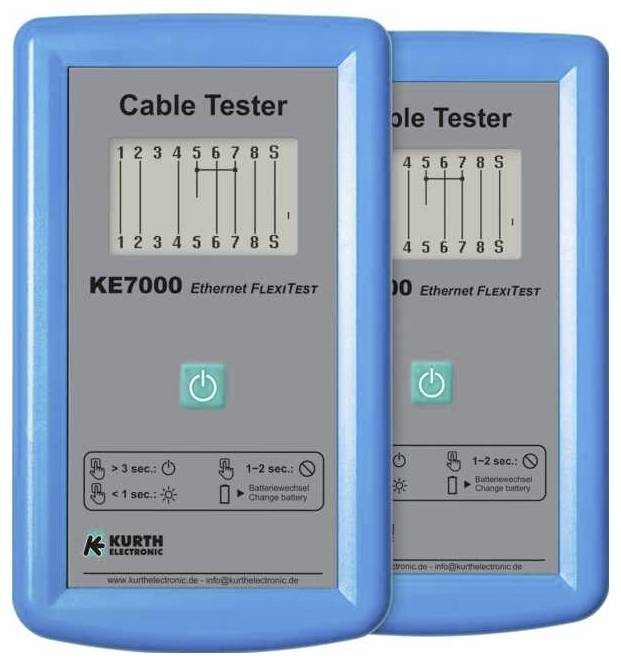

Gossen Metrawatt KE7000 Set Network tester Continuity, Location, Polarity, Break

The KE7000 are cost-effective and robust test devices for patch, LAN and telecommunication cabling in IT and telecommunications for cable lengths up to approx. 150 m.
Unshielded and screened cables with twisted double wires (UTP and STP cables) can be tested and verified in installed networks as well as patch cables. Coaxial cables with BNC and F sockets can be checked for continuity using the RJ45 coaxial adapter. In this case, a device is automatically configured as Master and one as slave. The advantage of using two main devices is that the status of the tests on both devices can be easily read, and WAS simplifies and accelerates the measurement process. With a battery life of up to 100 hours, the measuring operation rarely has to be interrupted.

Any errors such as exchanges, interruptions, short-circuits and screen faults are displayed on the devices' graphical displays.

Bothersome writing of flashing and illuminated LEDs is not necessary. The KE7000 provides clear, fast and immediately usable status information on both sides on the LCD displays for cable lengths up to approx. 150 m.

If the cables to be tested are subject to external voltage, a warning is given indicating the polarity, which of the pins are in the correct position. The devices are protected from accidental contact with telephony supply voltage or PoE (Power over Ethernet) up to 60 V DC.

This text is machine translated.
