Buy Gossen Metrawatt Metraline ISO CHECK Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 1 GΩ | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

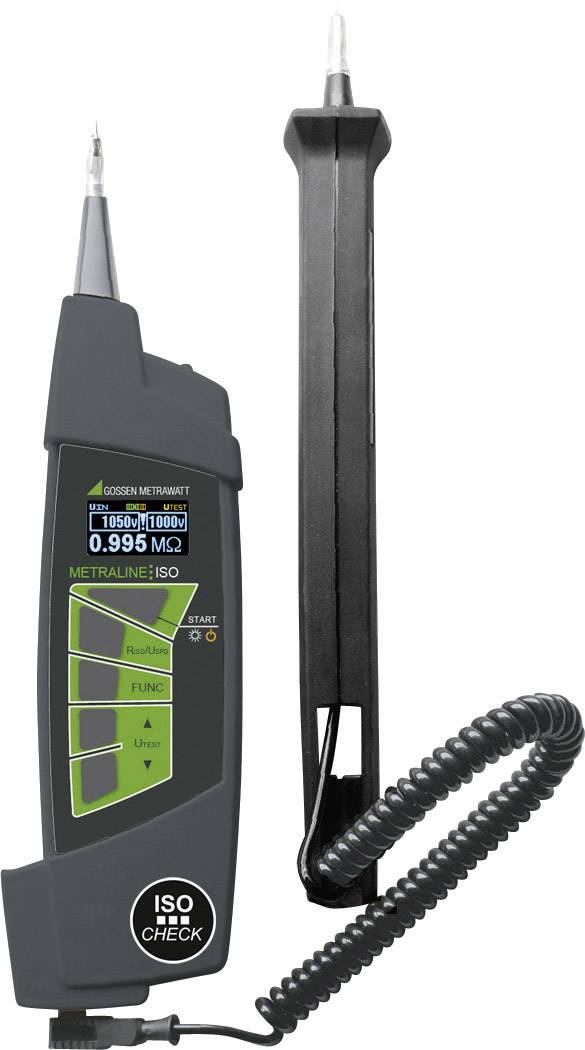

Measuring device with digital display for checking insulation resistance (0.995 MΩ). Includes probes and a connection cable.

Measuring device with digital display for checking insulation resistance (0.995 MΩ). Includes probes and a connection cable.

Gossen Metrawatt

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 769.00 / piece)

€ 769.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Protective measures test device metra line ISO CHECK

Insulation resistance measurement with test voltages from 50 V to 1000 V
Voltage measurement up to 600 V
Measurement of surge protection devices with test voltages from 50 V to 1000 V
Table of popular varistors einblendbar
Digital display, colored background lit OLED display
Signaling of hazardous voltage
LED for measuring point lighting
Patented fixation of the measuring tips
Compact and robust - for rough service inserts and laboratory mode

Technical specifications

Measuring nominal voltage 50 V to 1000 V adjustable in increments of 1 V

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

: IP43

Power supply (details): 4x AAA battery

Dim: (L x W x H) 260 x 70 x 40 mm

Weight: 400 g

Display type: Digital (LED)

Insulation resistance (max.): 1 GΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 0 V

Reading category: CAT II 600 V
CAT III 300 V

Width: 70 mm

Height: 40 mm

Length: 260 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 703759 Gossen Metrawatt Metraline ISO CHECK Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 1 GΩ

User & Safety Instructions

User & Safety Instructions 703759 Gossen Metrawatt Metraline ISO CHECK Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 1 GΩ

Description

The device allows measurements of the insulation resistance with test voltages between 50V and 1000 V according to VDE 0413-1, EN 61557-1-2 (,-2).
The measuring range is from 100 kΩ to 01 GΩ.

This text is machine translated.

Scope of delivery

Batteries
Bag
Documentation CD
Factory calibration certificate
User manual.

Description

The device allows measurements of the insulation resistance with test voltages between 50V and 1000 V according to VDE 0413-1, EN 61557-1-2 (,-2).
The measuring range is from 100 kΩ to 01 GΩ.

This text is machine translated.

Scope of delivery

Batteries
Bag
Documentation CD
Factory calibration certificate
User manual.
