Greisinger GES 175 Needle probe -70 up to 200 °C Sensor type Pt1000
EAN:
Part number:
Item no:
Number
Total (€ 57.99 / piece)
€ 57.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
Greisinger insertion probe for soft plastic media GES 175-KS
- Sensor type Pt1000
- -70 up to 200 °C
- 3.5 mm jack
Technical specifications
- Temperature sensor Pt1000
- Measuring range: -70 to +200 °C
- With 3.5 mm jack plug
- Product type
Needle probe
- Sensor type
Pt1000
- Pick-up time (details)
2 s
- Temperature reading range (min.)
-70 °C
- Temperature reading range (max.)
200 °C

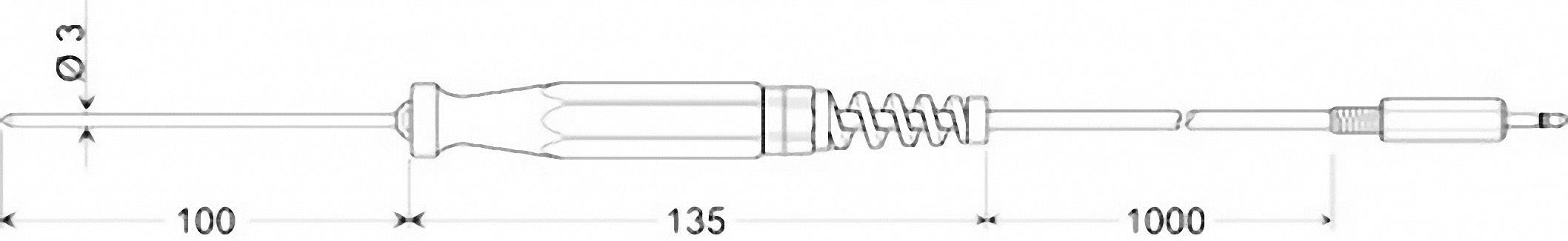

- Dim
(Ø x L) 3 mm x 235 mm
- Probe length
100 mm
Manufacturer's standards (no certificate)
- Connector
3.5 mm jack
- Cable length
1 m
- Temperature reading range
-70 up to 200 °C
- Temperature accuracy
± 0,3 °C
- Compatible with (details)
Suitable for all Greisinger temperature measuring devices with connection for Pt1000-sensor with 3.5mm jack plug
- Length
235 mm
- (Ø)
3 mm
- Connection
Jack plug, 3.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 649974 Greisinger GES 175 Needle probe -70 up to 200 °C Sensor type Pt1000
Description
Pt 1000 Insertion sensor with handle for soft malleable materials. The sensor consists of a thin V4A tube with a diameter of 3 mm with needle shaped insertion tip. The connection to the measuring device is supplied via a 1 m long silicone cable with gold-plated 3.5mm jack plug. The robust plastic handle has a kink protection gland to protect the connection cable.
This text is machine translated.
This text is machine translated.
Features
- Pt 1000 insertion probe
- Thin sensor tube with only 3 mm diameter
- Fast response time
