Greisinger GES 401 Needle probe -50 up to 400 °C Sensor type Pt100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Greisinger insertion probe for soft plastic media GES 401-B.
- Sensor type Pt100
- -50 up to 400 °C
- Mini DIN connector
Technical specifications
- Temperature sensor Pt100
- Measuring range: -50 to +400 °C
- Accuracy: DIN class B
- With 4-pin Mini-DIN connector
- Product type
Needle probe
- Sensor type
Pt100
- Pick-up time (details)
10 s
- Temperature reading range (min.)
-50 °C
- Temperature reading range (max.)
400 °C

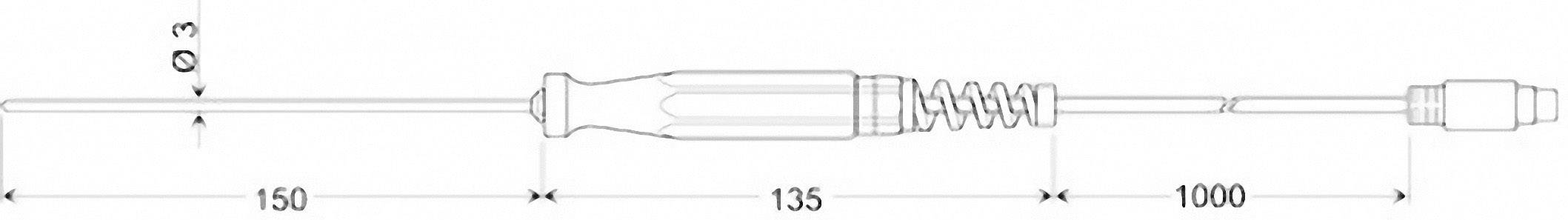

- Dim
(Ø x L) 3 mm x 285 mm
- Probe length
150 mm
Manufacturer's standards (no certificate)
- Connector
Mini DIN connector
- Temperature reading range
-50 up to 400 °C
- Temperature accuracy
± 0,3 °C
- Compatible with (details)
Suitable for all Greisinger temperature measuring devices with connection for Pt100-sensor with mini DIN plug
- Length
285 mm
- (Ø)
3 mm
- Connection
Mini-DIN 4-pin
Documents & Downloads
Datasheet
Datasheet 649948 Greisinger GES 401 Needle probe -50 up to 400 °C Sensor type Pt100
User & Safety Instructions
User & Safety Instructions 649948 Greisinger GES 401 Needle probe -50 up to 400 °C Sensor type Pt100
Description
Insertion probes for soft materials. The sensor consists of a V4A tube with a diameter of 3 mm with needle shaped insertion tip. The connection to the measuring device is supplied via a 1 m long PVC cable with mini DIN plug. The robust plastic handle has a kink protection gland to protect the connection cable.
This text is machine translated.
This text is machine translated.
Features
- Sensor tube made of stainless V4A
- With needle shaped measuring tip
- Plastic handle with anti-kink cable gland
- 1 m PVC cable
- Mini-DIN plug
