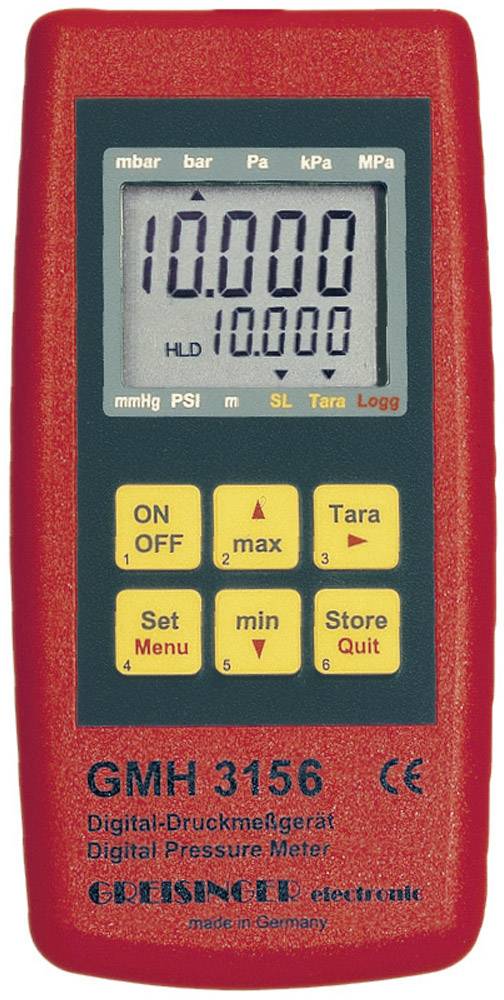

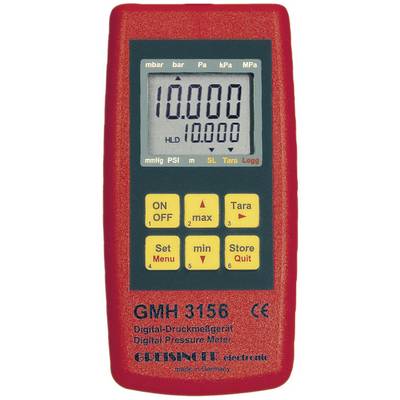

Greisinger GMH 3156 Pressure gauge Air pressure, Liquid 2.5 - 400 bar Datalogger function
EAN:
Part number:
Item no:
Number
Total (€ 479.00 / piece)
€ 479.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Greisinger pressure handheld meter with 2 sensor connections, logger, without sensor GMH 3156
- Universal measurement range depending on sensor
- 2 sensors can be connected
- Built-in data logger
- Differential pressure measurement of two sensors
Technical specifications
- Product type
Pressure gauge
- Reading range
2.5 - 400 bar
- Unit of measurement
Air pressure
Liquid
- Reading range
Depending on the sensor
Manufacturer's standards (no certificate)
- Display range
-19999 to +19999 Counts
- Print resolution
0.000001 bar
- Basic accuracy
± 0.1 % FS
IP65
- Dim
(L x W x H) 142 x 71 x 26 mm
- Weight
150 g
- Features
Datalogger function
- Accuracy
0.1 %
- Reading range (max.)
400 bar
- Reading range (min.)
2.5 bar
- Width
71 mm
- Height
26 mm
- Length
142 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 125867 Greisinger GMH 3156 Pressure gauge Air pressure, Liquid 2.5 - 400 bar Datalogger function
Description
The pressure measuring device allows the easy connection of external sensors. The sensors are calibrated and can be fully replaced. Due to the large number of available sensors it is suitable for almost every requirement in pneumatics, hydraulics, etc. a data logger for 4000 data sets with freely selectable recording rate (1s to 1 h) is integrated. In the measurement cycle "FAST" pressure peaks of > 1 ms can be captured. Freely scalable analogue output 0 - 1 V for connecting to external devices (writer, controller etc.)
This text is machine translated.
This text is machine translated.
Features
- Analogue output.
- Formation of average (shiftable)
- Min/max value memory
- Data Hold
- 2 Logger functions (cyclical, manual)
- Serial Interface
- Power unit jack
- Auto power-off
- Adjustable zero point/pitch
- Wide measurement range, depending on the sensor.
Scope of delivery
- Battery
- User manual.
Hints
Delivery without sensors
