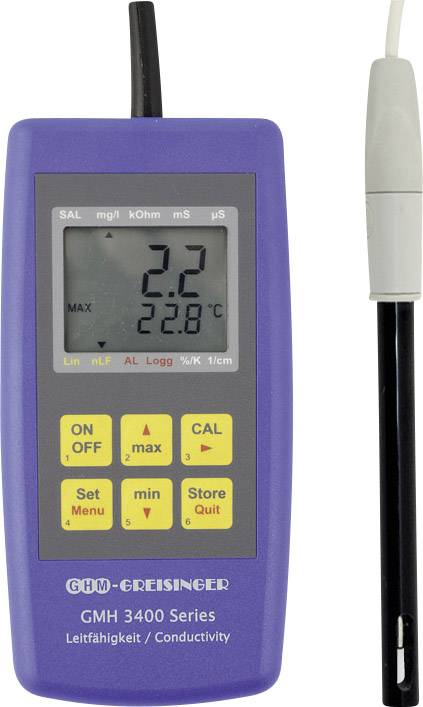

Greisinger GMH 3451 Multi tester TDS, Conductivity, Salinity , Temperature
EAN:
Part number:
Item no:
Number
Total (€ 457.98 / piece)
€ 457.98
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Greisinger conductivity meter with measuring cell and data logger GMH 3451
- Data Loggers
- Analogue output.
- 4-pin measuring cell
Technical specifications
- Spec. Resistance: 0.005 - 100.0 kΩ/cm
- For salinity: 0.0 - 70.0 g/kg
- Product type
Multi tester
- Reading type
TDS
Conductivity
Salinity
Temperature
- Display
Digital
Manufacturer's standards (no certificate)
- Automatic temperature compensation
Yes
- Operating temperature
-5 to +80 °C
- Dim
(L x W x H) 26 x 71 x 142 mm
- Weight
230 g
- Conductivity reading range
0.0 µS - 400.0 mS
- Conductivity reading range (max.)
400.0 mS
- Conductivity reading range (min)
0.0 µS
- TDS reading range
0 - 1999 mg/l
- TDS reading range (max.)
1999 mg/l
- TDS reading range (min.)
0 mg/l
- Temperature reading range
-5 up to +100 °C
- Temperature reading range (max.)
+100 °C
- Temperature reading range (min.)
-5 °C
- Width
71 mm
- Height
142 mm
- Length
26 mm
- Interfaces
Serial
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1305326 Greisinger GMH 3451 Multi tester TDS, Conductivity, Salinity , Temperature
Description
Conductivity measuring device including 4-pin measuring cell with data logger.
This text is machine translated.
This text is machine translated.
Features
- Measurement functions: spec. resistance, salinity, conductivity, TDS and temperature
- Automatic-off function
- Auto range
- Battery status indicator
- Hold function
- Min-/Max-Wertspeicher.
- Min./max. alarm
- Real-time clock
- Cell correction: adjustable 0,800 - 1,200 cm-1 manually or automatically via selectable reference solutions
- Temperature compensation can be switched off
- Compensation Type: non-linear/Linear/no compensation
- Measuring cell: electrode material: graphite. Shaft material: Epoxy
- Serial Interface
- Power unit jack
- IP65 rating
- Electrode dimensions (shaft): approx. 120 mm long, diameter approx. 12 mm, electrode with approx. 1 m cable is firmly connected to the device.
Scope of delivery
- Device including measuring cell
- Battery
- Operating instructions
