Greisinger GMH 3611-L04 DO meter O2 concentration, O2 saturation, Pressure
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 579.00 / piece)
€ 579.00
incl. VAT
14-day return policy included
Highlights & Details

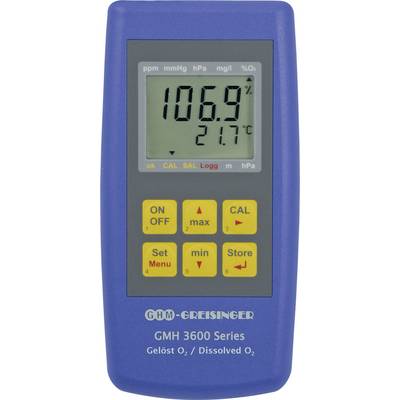

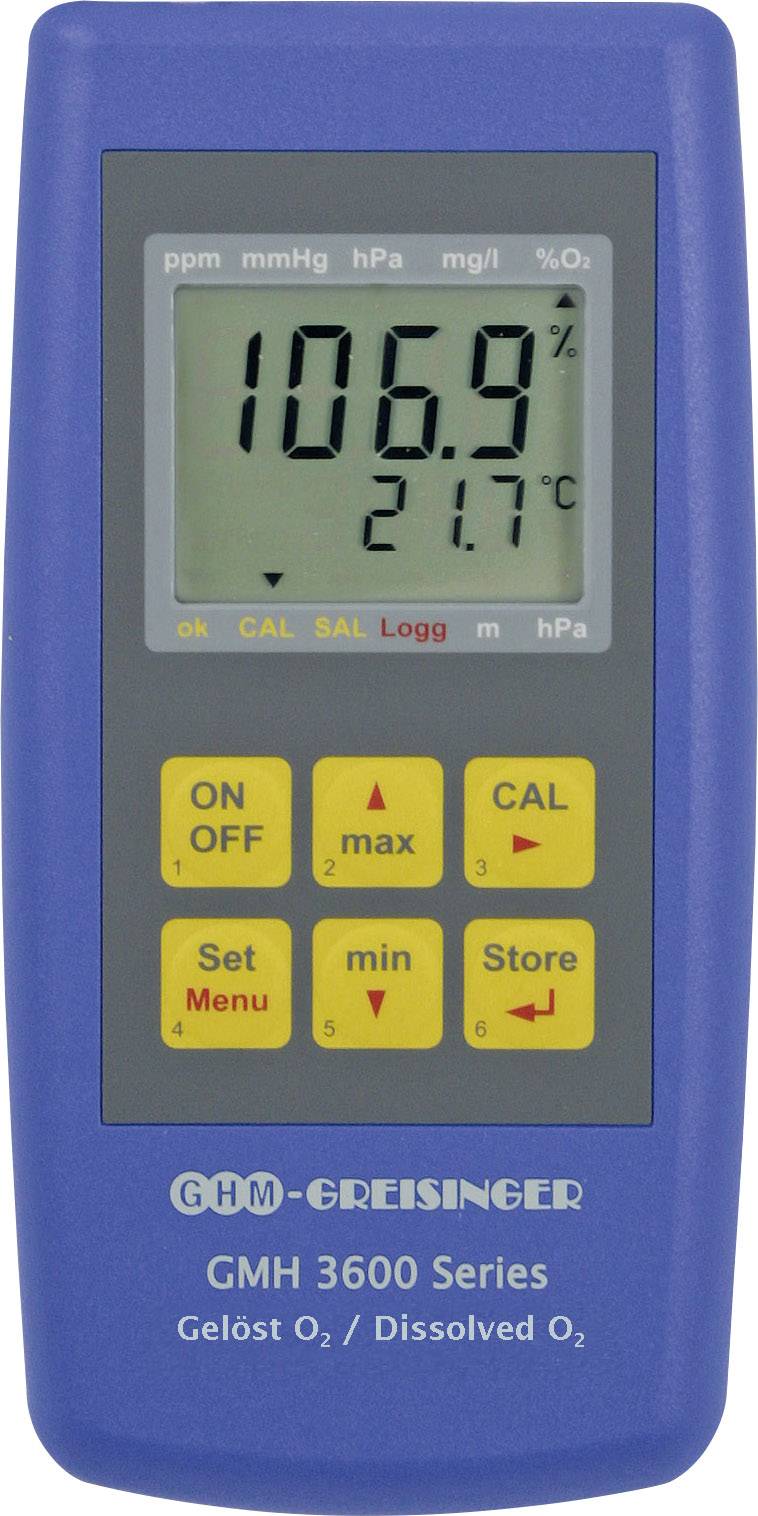

Greisinger handheld dissolved oxygen meter GMH 3611
- Automatic air pressure compensation
- Salinity correction
- Simple calibration
Technical specifications
- Oxygen measuring device
- Working temperature: 0…+40°C
- Data logger: without
- Interface: Serial Interface
- Power supply: 9 V battery
- Measurement range O2 concentration: 0,00… 70.00 mg/l (ppm), resolution can be selected
- Measurement range O2 saturation: 0.0 … Sfr 600.0 % O2, resolution can be selected
- Pressure measurement range: 10... 1200 hPa abs.
- Interface: Serial Interface, galvanically isolated interface converter directly to the RS232 or USB interface of a PC can be connected
- Accuracy: ±1.5% oxygen v. MW ± 0.2 mg/l (0... 25 mg/l) or ± 2.5 % v. MW ± 0.3 mg/l (25... 70 mg/l)
- Temperature accuracy: ±0.1 °C ± 1 Digit
- Accuracy pressure: ±0.5% FS ± 1 digit; ±3 hPa or 0.1% of MW.; ±2 hPa (750 ... 1100 hPa)
- Sensor connection: 6-pole shielded mini-DIN socket
- Sensor: Active membrane type, Electrode front Diameter: approx. 12 mm, total length: approx. 220 mm including kink protection, neck ring: dia. approx. 20 mm, 4 m connection cable with mini DIN plug.
- Cable length 4m
- Product type
DO meter
- Reading type
O2 concentration
O2 saturation
Pressure
- Display
Digital
Manufacturer's standards (with certificate)
- Dim
(L x W x H) 26 x 71 x 142 mm
- Temperature reading range
0.0 up to 50.0 °C
- Temperature reading range (max.)
50.0 °C
- Temperature reading range (min.)
0.0 °C
- Width
71 mm
- Height
142 mm
- Length
26 mm
- Interfaces
Serial interface
Documents & Downloads
Datasheet
Datasheet 1592166 Greisinger GMH 3611-L04 DO meter O2 concentration, O2 saturation, Pressure
User & Safety Instructions
User & Safety Instructions 1592166 Greisinger GMH 3611-L04 DO meter O2 concentration, O2 saturation, Pressure
Description
Meter for dissolved oxygen GMH 3611-L 04, including sensor, cable length 4 m
This text is machine translated.
This text is machine translated.
Features
- Temperature compensation
- Air pressure compensation
- Salinity correction
- calibration
Scope of delivery
- Device, electrode, electrolyte, battery, operating instructions
