Greisinger GSF 50 TF Needle probe -40 up to 200 °C 0 up to 100 RH Sensor type K
EAN:
Part number:
Item no:
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
14-day return policy included
Highlights & Details
Greisinger material humidity probe GSF-50TF
- Sensor type K
- -40 up to 200 °C
- Heating element connector
Technical specifications
- Incl. 1 m connection cable with BNC and type K Mini flat plug
- Product type
Needle probe
- Sensor type
K
- Temperature reading range (min.)
-40 °C
- Temperature reading range (max.)
200 °C
- Dim
(Ø x L) 10 mm x 1100 mm
- Probe length
107 cm
Manufacturer's standards (no certificate)
- Connector
Heating element connector
- Humidity reading range (max.)
100 RH
- Humidity reading range (min.)
0 RH
- Temperature reading range
-40 up to 200 °C
- Humidity reading accuracy
0.1 RH
- Temperature accuracy
± 0,1 °C
- Compatible with (details)
Suitable for all Greisinger temperature measuring devices with connections for BNC and K type (NiCr-Ni) mini flat plugs
- Length
1100 mm
- (Ø)
10 mm
- Connection
Heating element connector
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 649968 Greisinger GSF 50 TF Needle probe -40 up to 200 °C 0 up to 100 RH Sensor type K
Description

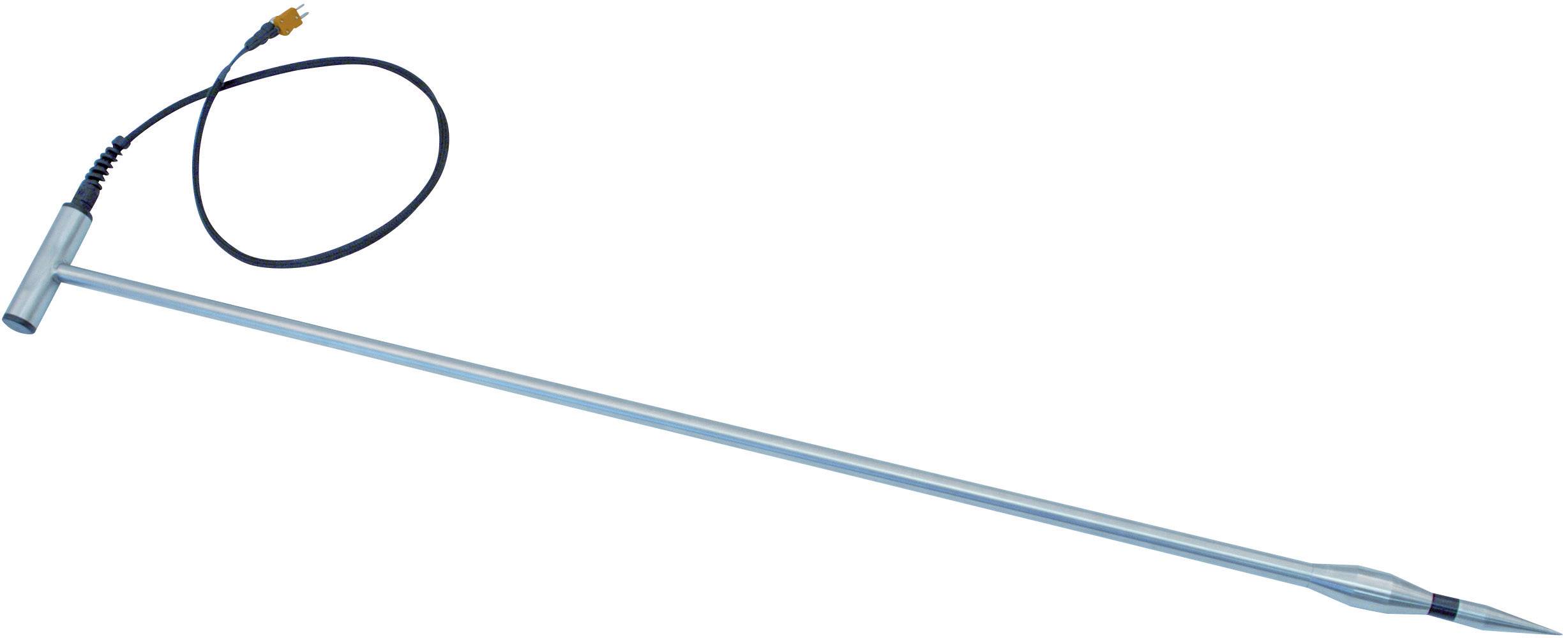

Humidity sensor for measurement in measuring depths of up to 107 cm, including 1 m connection cable. This insertion probe is very well suited for measurement in wood chips, wood wool, wood shavings, straw, hay, grain, sawdust, etc.
The connection to the measuring device via a BNC plug and a type K (NiCr-Ni) Mini flat plug.
This text is machine translated.
The connection to the measuring device via a BNC plug and a type K (NiCr-Ni) Mini flat plug.
This text is machine translated.
Features
- 110 cm long insertion probe
- 1 m long connection cable
- Humidity measurement
- Temperature reading
