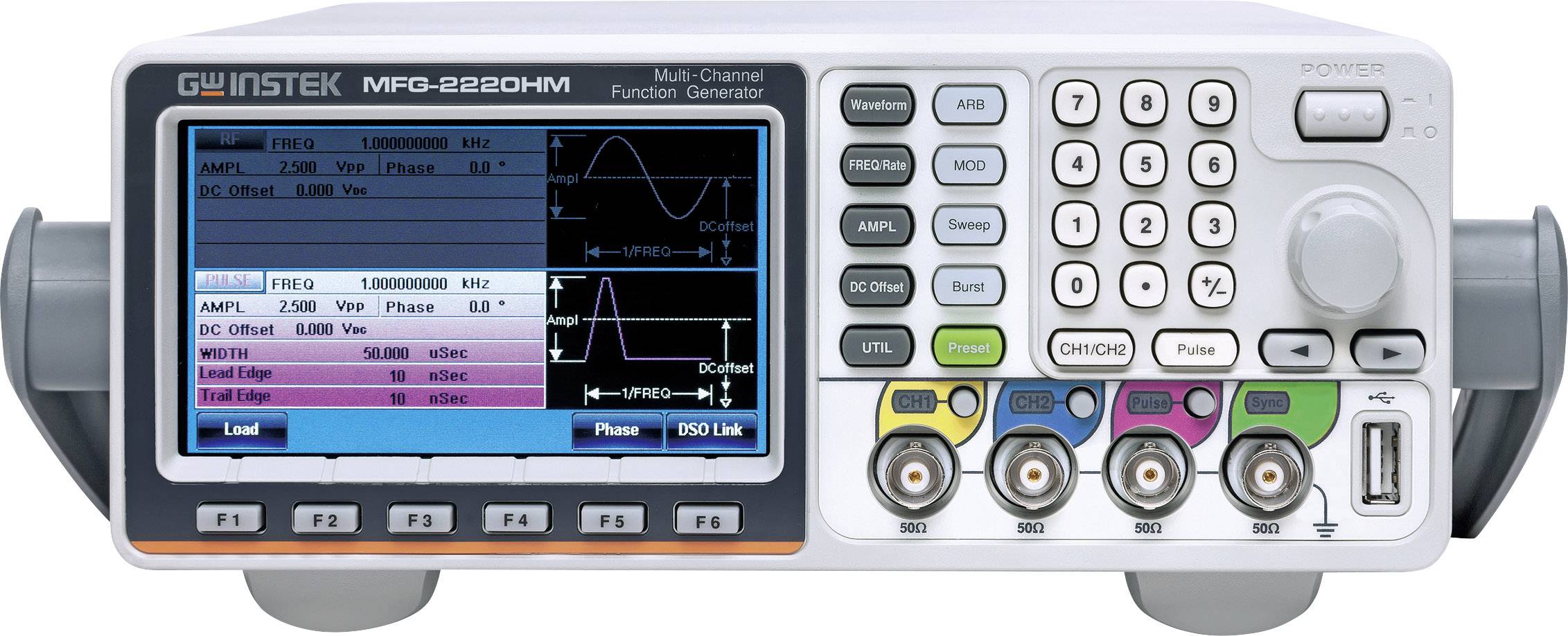

GW Instek MFG-2220HM USB 5 Hz - 150 MHz 2-channel
EAN:
Part number:
Item no:
Number
Total (€ 1,309.00 / piece)
€ 1,309.00
incl. VAT
14-day return policy included
Highlights & Details
- Two equivalent power channels
- The pulse generator reaches 25 MHz
- The function for any waveform offers 250 MSA / s, a repeat rate of 125 MHz, a resolution of 14 bits and a memory depth of 16,000 points
- 5Hz ~ 150MHz Frequency counter
- Different modulation methods: AM, FM, PM, ASK, FSK, PSK, SUM and PWM
- Sweep and burst function
- Device control interface: USB host / USB device / LAN
- 4.3" TFT color display
Technical specifications
- Product type
USB
- Frequency range
5 Hz - 150 MHz
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Max. frequency
150 MHz
- Min. frequency
5 Hz
- Type
MFG-2220HM
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2252477 GW Instek MFG-2220HM USB 5 Hz - 150 MHz 2-channel
Description

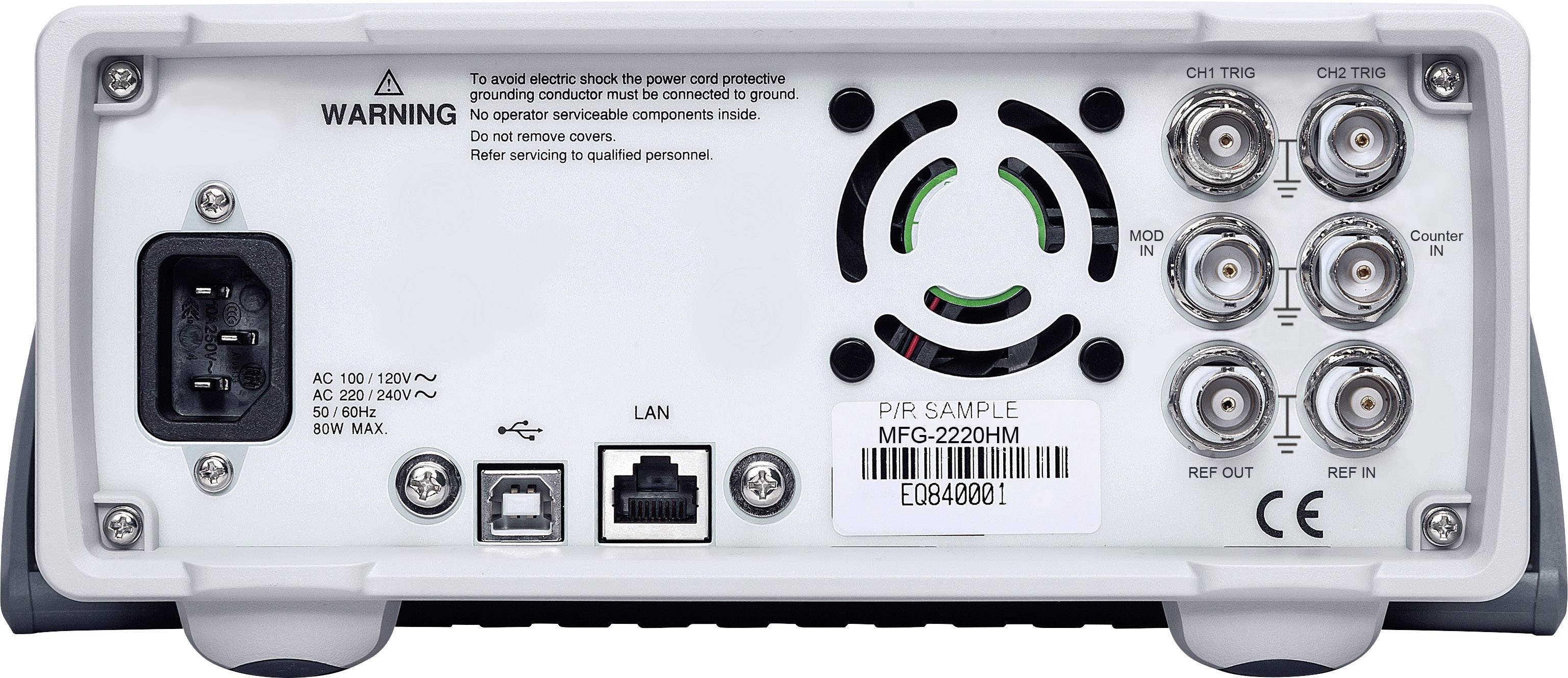

Two-channel 200 MHz model of the series that allows the highest frequency range of the two-channel signal generator model to reach 200 MHz. The MFG-2220 HM has the function Reference input / Reference output, with which up to four units can be controlled via the interfaces, in order to achieve eight channels of phase-synchronous outputs.
This text is machine translated.
This text is machine translated.
