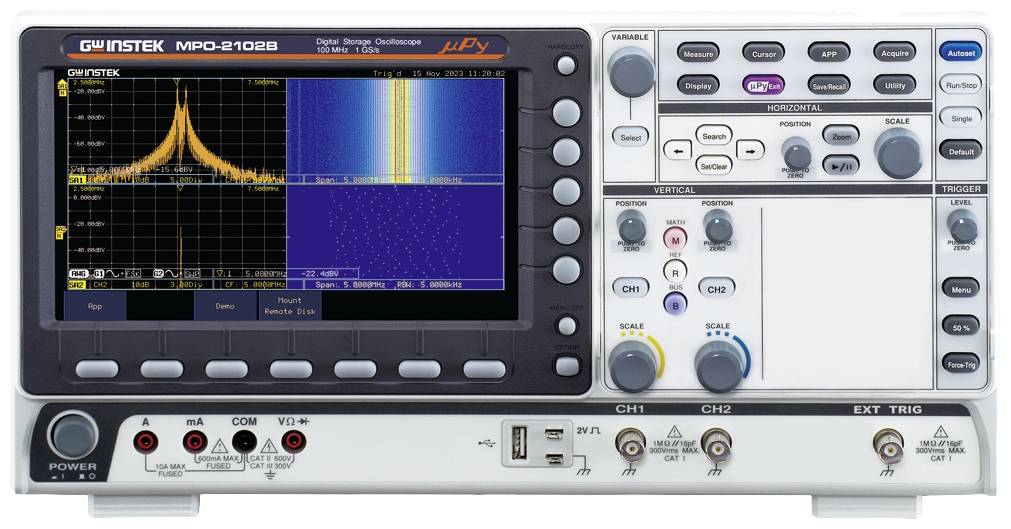

Digital oscilloscope with two channels, displaying frequency spectrum and signal waveform on the screen. Control buttons underneath.

Digital oscilloscope with two channels, displaying frequency spectrum and signal waveform on the screen. Control buttons underneath.

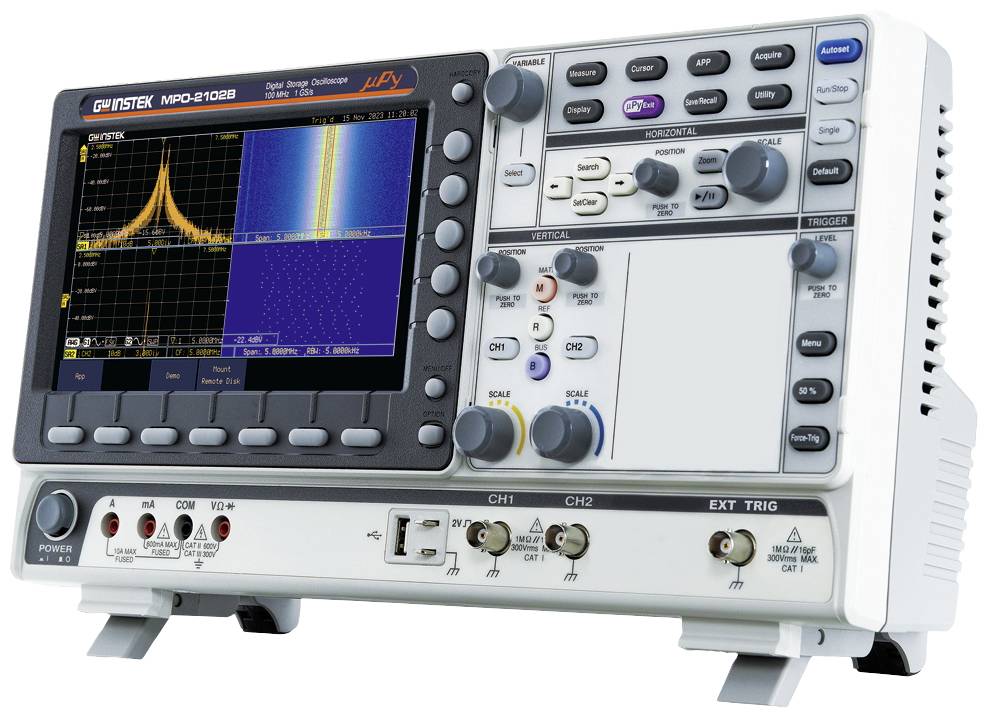

A digital oscilloscope with a screen displays a frequency spectrum and signal waveform. Control buttons and connections are present.

1/2

GW Instek

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,829.00 / piece)

€ 1,829.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

100MHz, 2-channel, Digital Storage Oscilloscope

100 MHz

Technical specifications

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Displays: TFT LCD 8"

Resolution: 8 Bit

Screen size: 20.32 cm

Oscilloscope features: Spectrum analyzer

Time base: 3.5 ns

: Manufacturer's standards (no certificate)

Reading category: CAT I

Vertical deflection: 1 mV/div to 20 mV/div

Input impedance: 1 MΩ

Input coupling: AC/DC/GND

Dim: (L x W x H) 127.30 x 384 x 208 mm

Weight: 3 kg

Display: 800 x 480 p

Width: 384 mm

Height: 208 mm

Length: 127.30 mm

Type: MPO-2102B

Documents & Downloads

Datasheet

Datasheet 3098709 GW Instek MPO-2102B Digital 100 MHz 2-channel 1 GS/s 8 Bit Spectrum analyzer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3098709 GW Instek MPO-2102B Digital 100 MHz 2-channel 1 GS/s 8 Bit Spectrum analyzer 1 pc(s)

Description

The name of the MPO-2000 series is the abbreviation for Multi-function Programmable Oscilloscope. Apart from an oscilloscope, it also includes a spectrum analyzer, an arbitrary wave form generator, a digital multimeter and a DC power supply. In addition to the multifunctional five-function architecture, we have innovatively introduced the Python script function into the MPO-2000, allowing users to perform program control of a small automated test system by setting up a single device test or a multitest without a PC, hence the name MPO.

This text is machine translated.

Description

The name of the MPO-2000 series is the abbreviation for Multi-function Programmable Oscilloscope. Apart from an oscilloscope, it also includes a spectrum analyzer, an arbitrary wave form generator, a digital multimeter and a DC power supply. In addition to the multifunctional five-function architecture, we have innovatively introduced the Python script function into the MPO-2000, allowing users to perform program control of a small automated test system by setting up a single device test or a multitest without a PC, hence the name MPO.

This text is machine translated.
