Oscilloscope with display showing spectral analysis. Buttons and connections for control located below. Primary purpose: signal monitoring and analysis.

Oscilloscope with display showing spectral analysis. Buttons and connections for control located below. Primary purpose: signal monitoring and analysis.

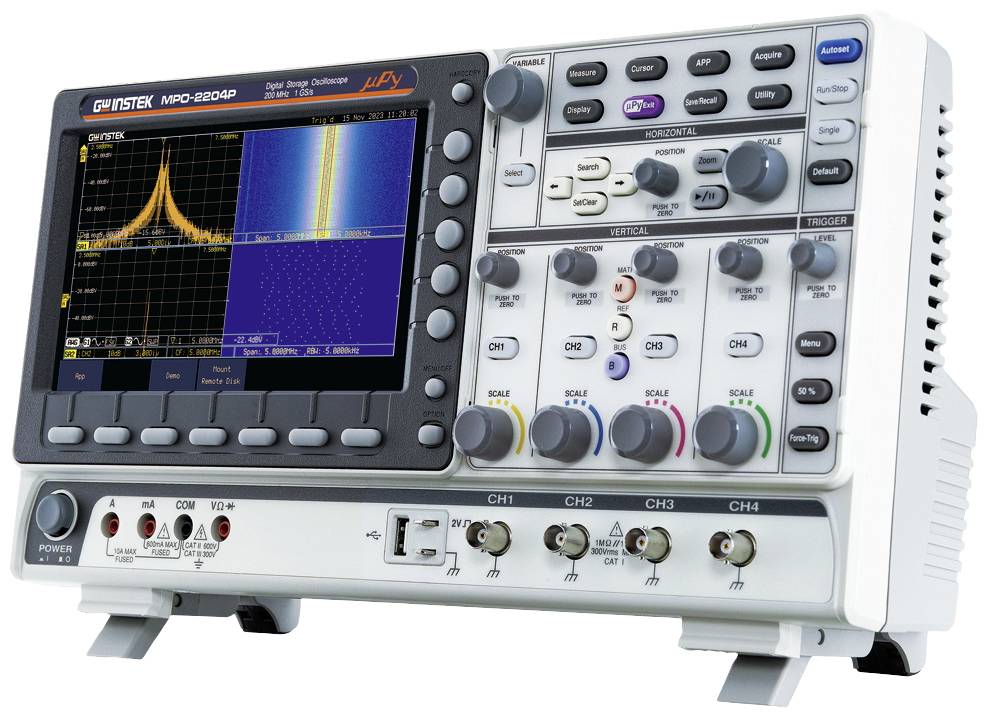

A digital storage oscilloscope with multiple controls and a screen displays a waveform diagram.

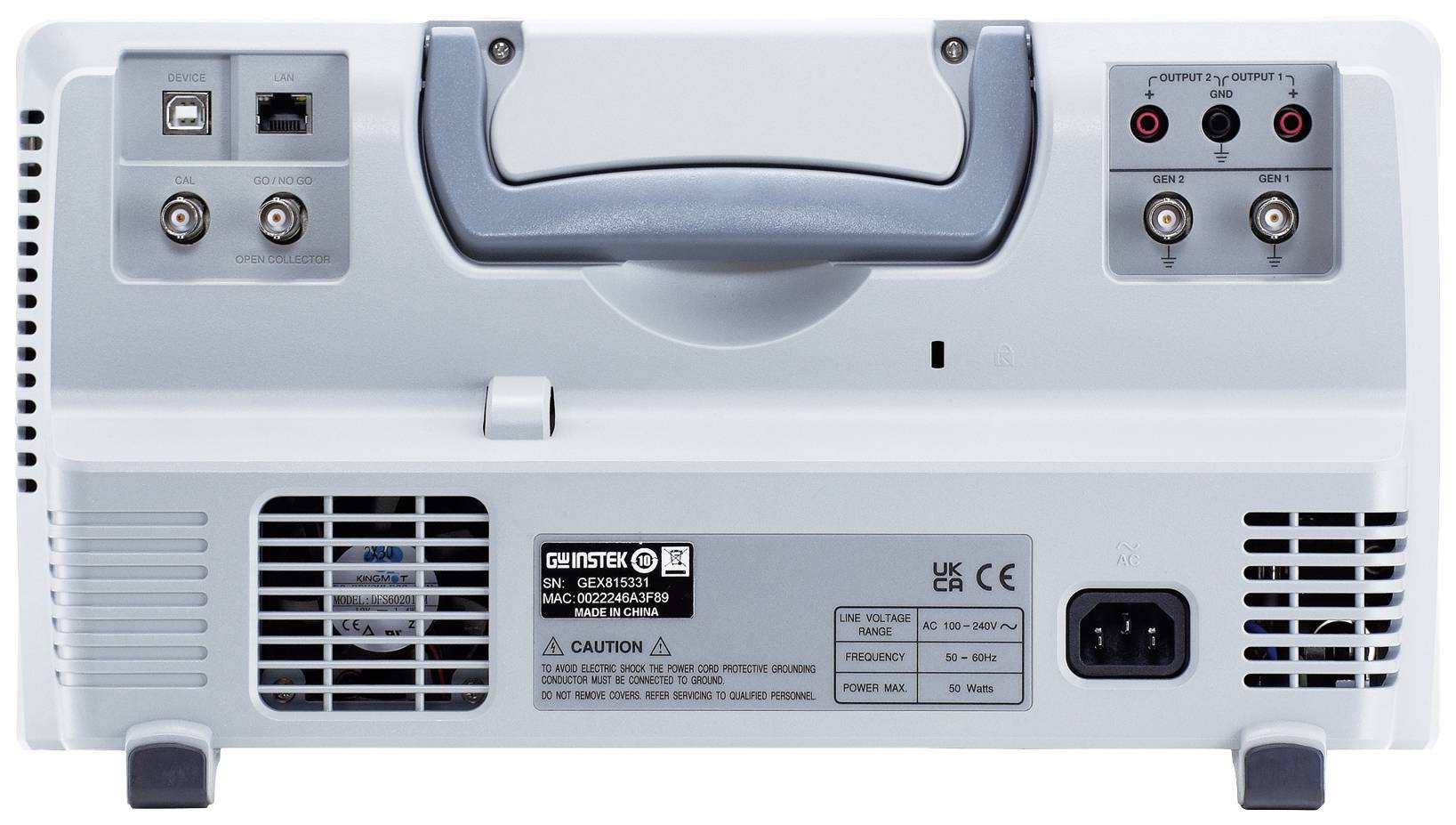

Rear view of an electronic measuring device with connections, fan, and power socket. Handle at the top, information label at the bottom.

1/3

GW Instek

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 2,739.00 / piece)

€ 2,739.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

200MHz, 4-channel, Digital Storage Oscilloscope

200 MHz

Technical specifications

Product type: Digital

Bandwidth: 200 MHz

Channel sample rate: 1 GS/s

Displays: TFT LCD 8"

Resolution: 8 Bit

Screen size: 20.32 cm

Oscilloscope features: Spectrum analyzer

Time base: 1.75 ns

: Manufacturer's standards (no certificate)

Reading category: CAT I

Vertical deflection: 1 mV/div to 20 mV/div

Input impedance: 1 MΩ

Input coupling: AC/DC/GND

Dim: (L x W x H) 127.30 x 384 x 208 mm

Weight: 3 kg

Display: 800 x 480 p

Width: 384 mm

Height: 208 mm

Length: 127.30 mm

Type: MPO-2204P

Documents & Downloads

Datasheet

Datasheet 3098712 GW Instek MPO-2204P Digital 200 MHz 4-channel 1 GS/s 8 Bit Spectrum analyzer 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3098712 GW Instek MPO-2204P Digital 200 MHz 4-channel 1 GS/s 8 Bit Spectrum analyzer 1 pc(s)

Description

The name of the MPO-2000 series is the abbreviation for Multi-function Programmable Oscilloscope. Apart from an oscilloscope, it also includes a spectrum analyzer, an arbitrary wave form generator, a digital multimeter and a DC power supply. In addition to the multifunctional five-function architecture, we have innovatively introduced the Python script function into the MPO-2000, allowing users to perform program control of a small automated test system by setting up a single device test or a multitest without a PC, hence the name MPO.

This text is machine translated.

Description

The name of the MPO-2000 series is the abbreviation for Multi-function Programmable Oscilloscope. Apart from an oscilloscope, it also includes a spectrum analyzer, an arbitrary wave form generator, a digital multimeter and a DC power supply. In addition to the multifunctional five-function architecture, we have innovatively introduced the Python script function into the MPO-2000, allowing users to perform program control of a small automated test system by setting up a single device test or a multitest without a PC, hence the name MPO.

This text is machine translated.
