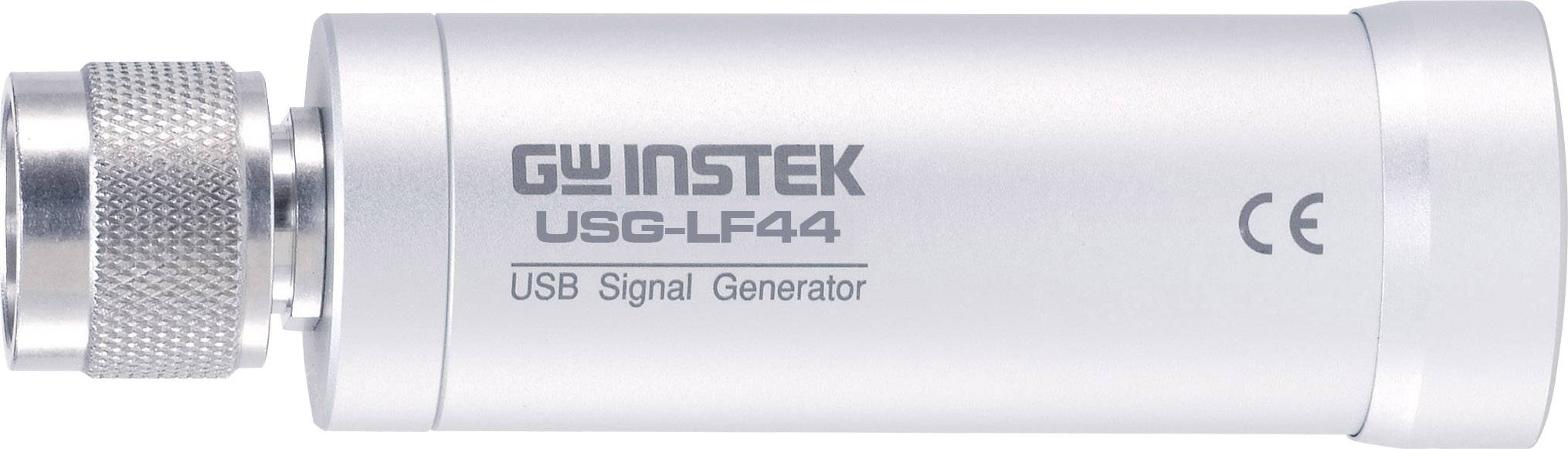

GW Instek USG-LF44 USB 34.5 MHz - 4.4 GHz 1-channel Sinus
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 520.17 / piece)
€ 520.17
plus VAT.
14-day return policy included
Highlights & Details
USB-HF-function generator USG-LF 44
- Bandwidth 34.5-4400 MHz
- Ultra compact
- Mini-USB port
- Can be controlled via Android Smartphone/Tablet (Android app)
- This text is machine translated.
Technical specifications
- Impedance 50 Ω
- Resolution: 10 kHz
- Product type
USB
- Frequency range
34.5 MHz - 4.4 GHz
- Signal output types
Sinus
Manufacturer's standards (no certificate)
- Output
N connector
- Dim
(W x H) 30 mm x 103 mm
- Weight
100 g
- No. of channels
1-channel
- Max. frequency
4.4 GHz
- Min. frequency
34.5 MHz
- Width
30 mm
- Height
103 mm
- Interfaces
USB
- Voltage supply
USB
- Type
USG-LF44
Documents & Downloads
Datasheet
Datasheet 1325777 GW Instek USG-LF44 USB 34.5 MHz - 4.4 GHz 1-channel Sinus
User & Safety Instructions
User & Safety Instructions 1325777 GW Instek USG-LF44 USB 34.5 MHz - 4.4 GHz 1-channel Sinus
Description
Ultra-compact signal generator for constant standard-HF-signals (CW) without modulations. The function generator can be used on the computer via the enclosed software or with Android smartphones/tablets with an app operated and controlled.
This text is machine translated.
This text is machine translated.
Features
- Integrated attenuator (-30 dBm - 0 dBm)
- Fixed frequency
- Wobble function for frequency and performance
- Frequency Hopping
- USB interface
- Available Android App for smartphone or tablet.
Scope of delivery
- USB cable
- CD-ROM with software and operating instructions.
Hints
As Tracking Generator for spectrum analyzer GW Instek GSP-730 can be used.
System requirements
- USB interface · For Windows ®, Linux, Mac, Android.
