Name: Heitronic 501339 Wire connector Push-fit (L x W x H) 111 x 69 x 25 mm 1 pc(s)
Brand: Heitronic
SKU: 2686479
Availability: InStock

A black, T-shaped cable connector with three terminals. Suitable for weatherproof electrical connections.

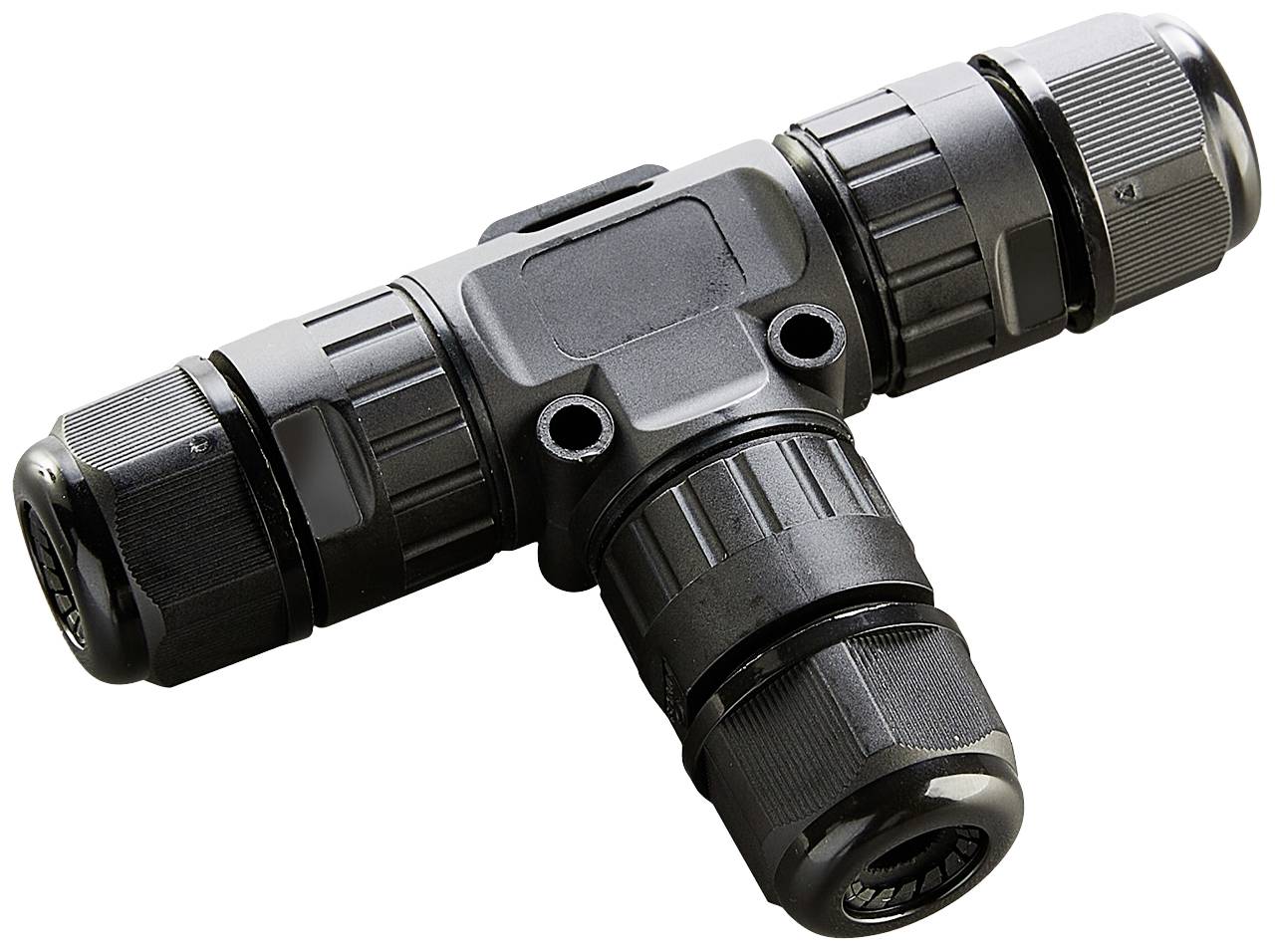

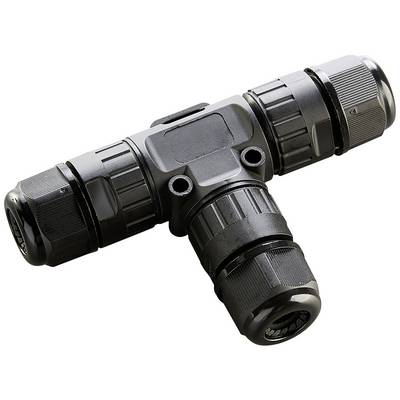

A black, T-shaped, waterproof cable connector with screw locks at each end. Suitable for outdoor installations.

A black, robust T-shaped electrical connector with three cable attachment points in an industrial design.

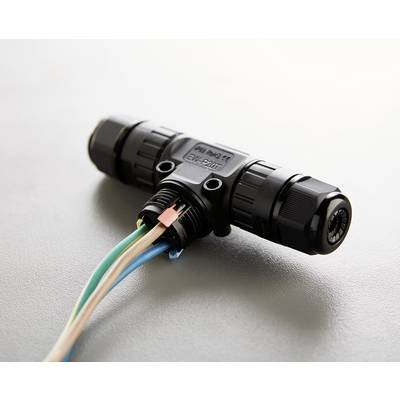

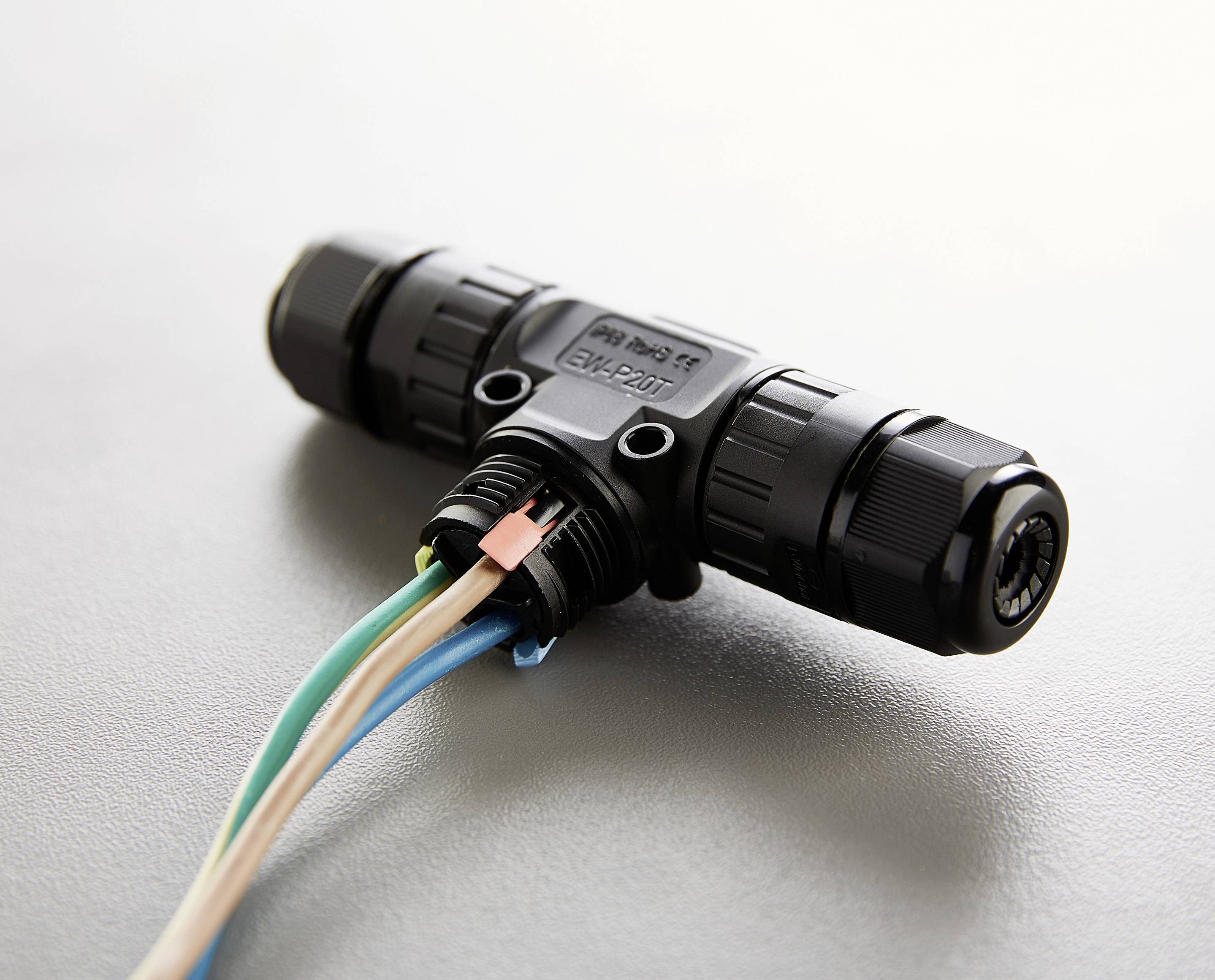

A black T-shaped cable connector with multiple coloured wires, lying on a grey surface.

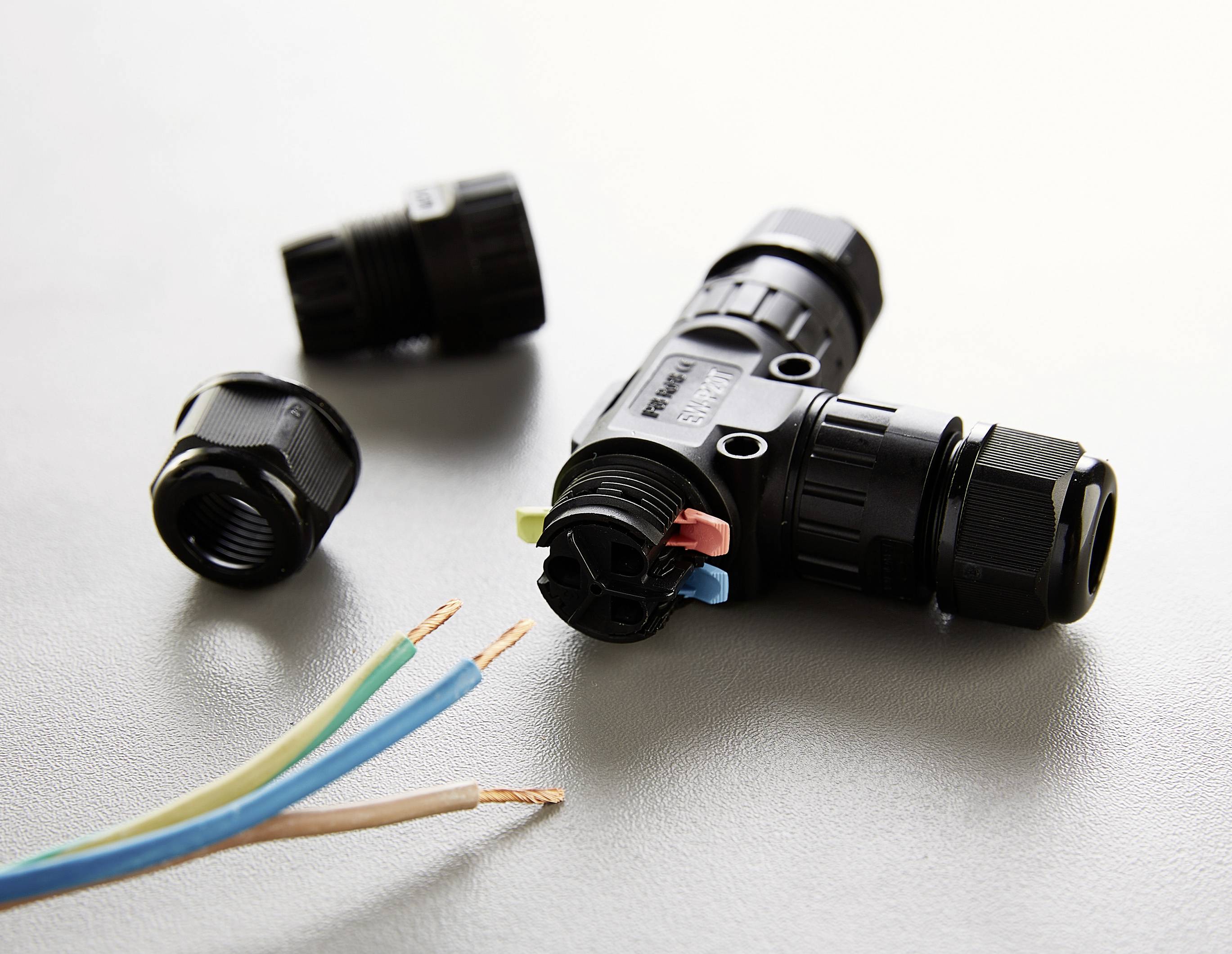

A Y-connector with exposed insulation, three disassembled connection pieces and exposed cable ends on a grey background.

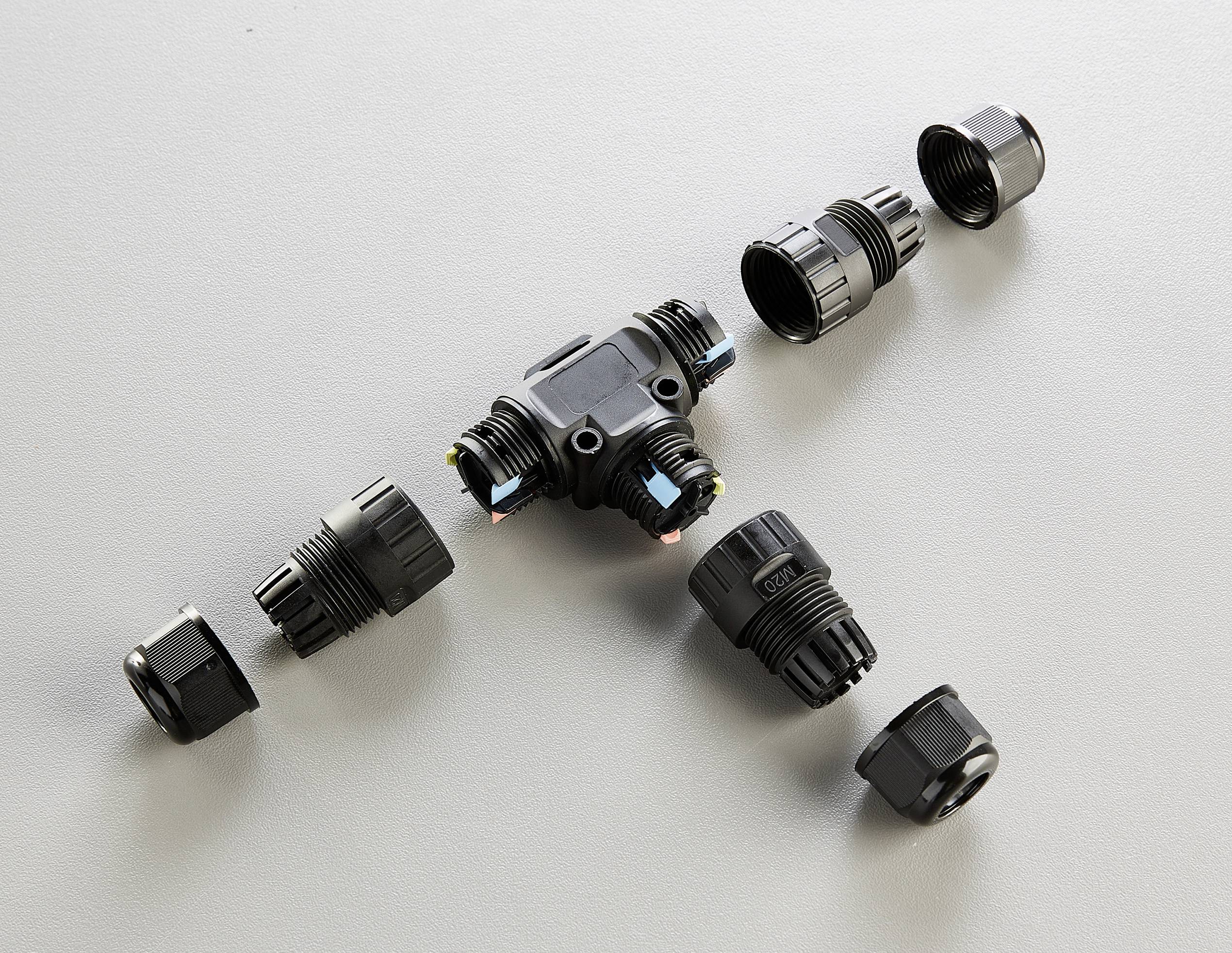

Several black plastic components of a connector are arranged around a central component on a table.

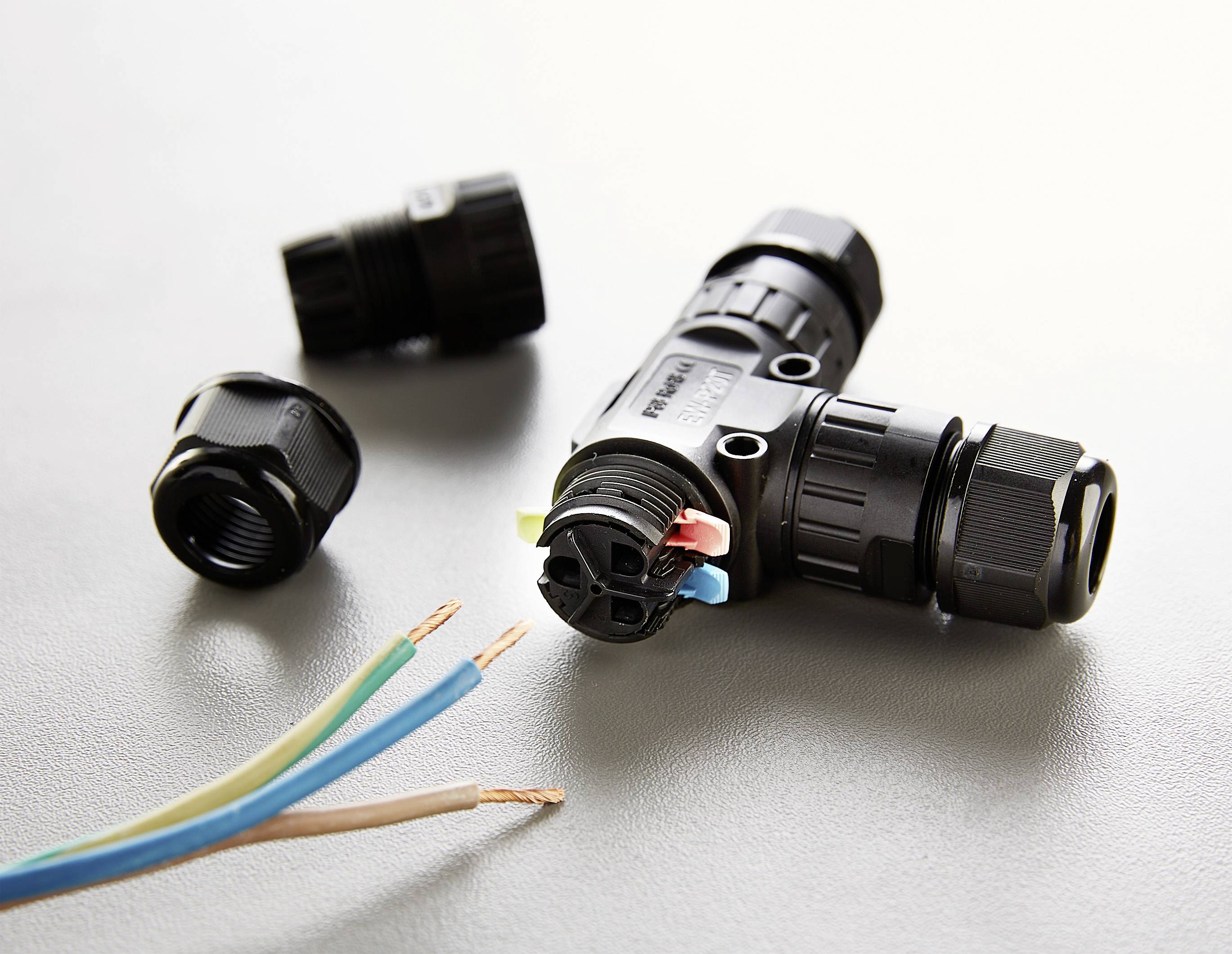

A black T-distributor with plug connections lies on a table next to three exposed wires in blue, yellow-green and brown.

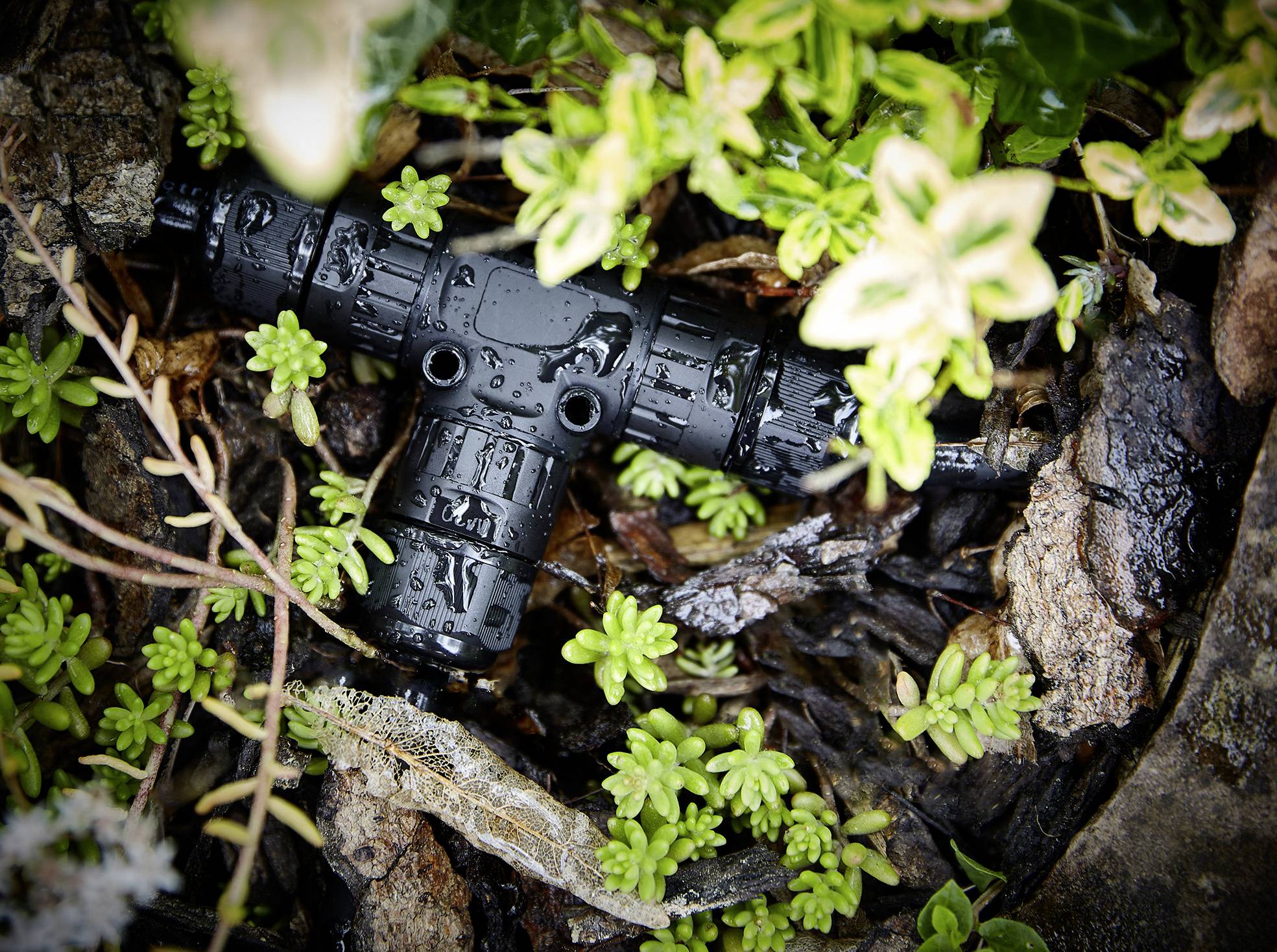

A black plastic pipe with a T-junction lies in damp foliage and is surrounded by green leaves.

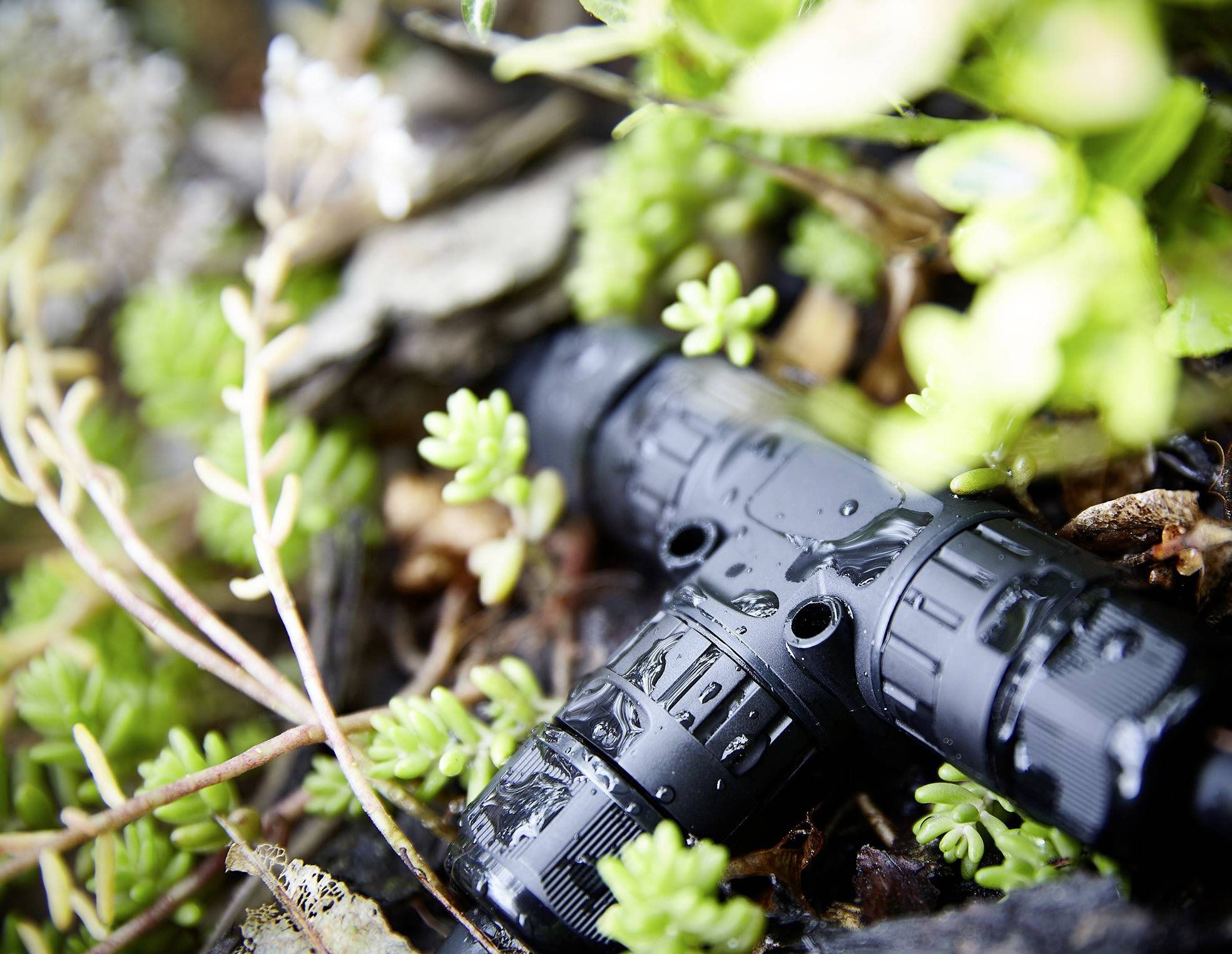

A black, cylindrical object lies among green plants and leaves. It is wet and is situated outdoors.

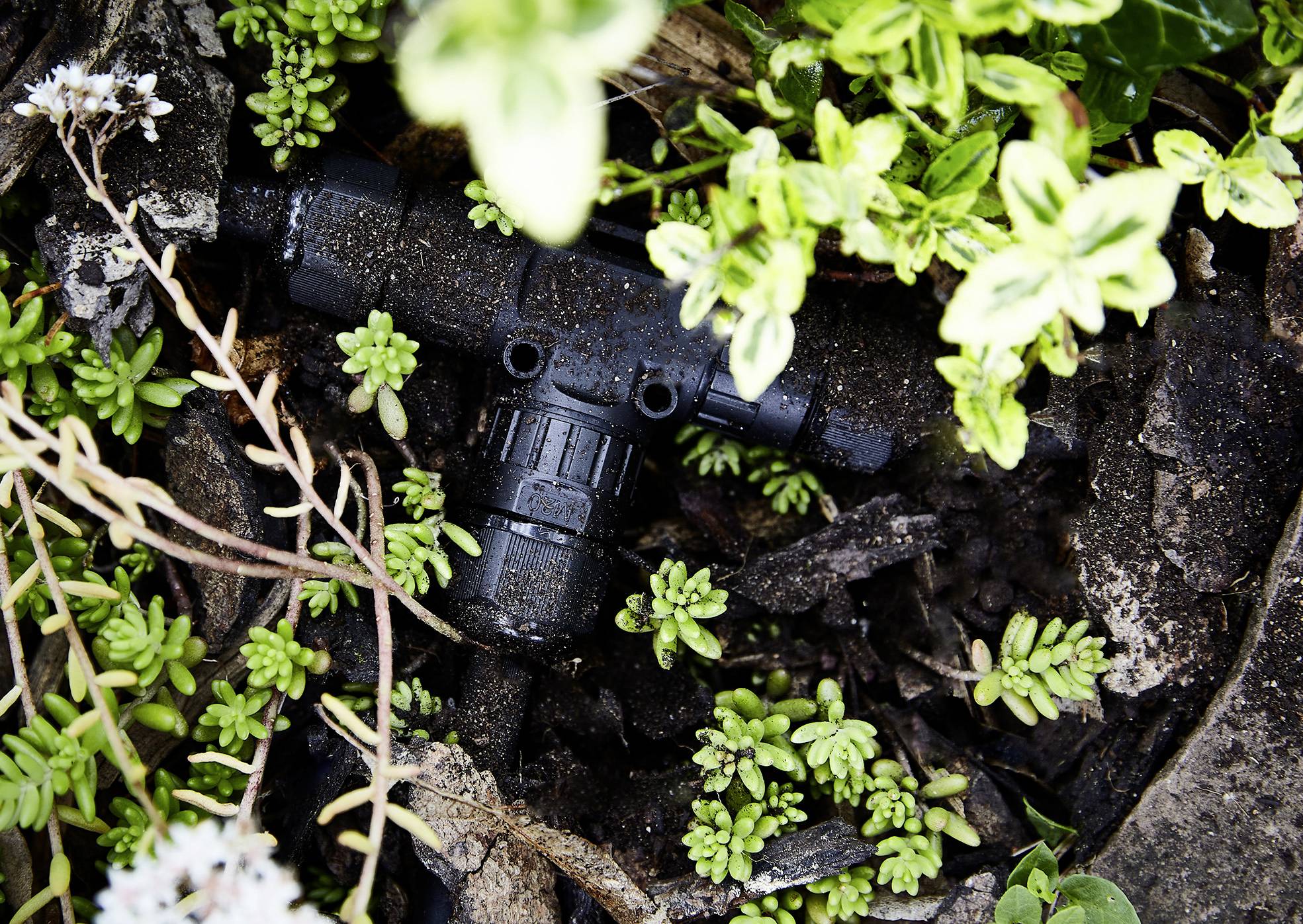

A black irrigation connection in a garden, surrounded by small plants and green foliage.

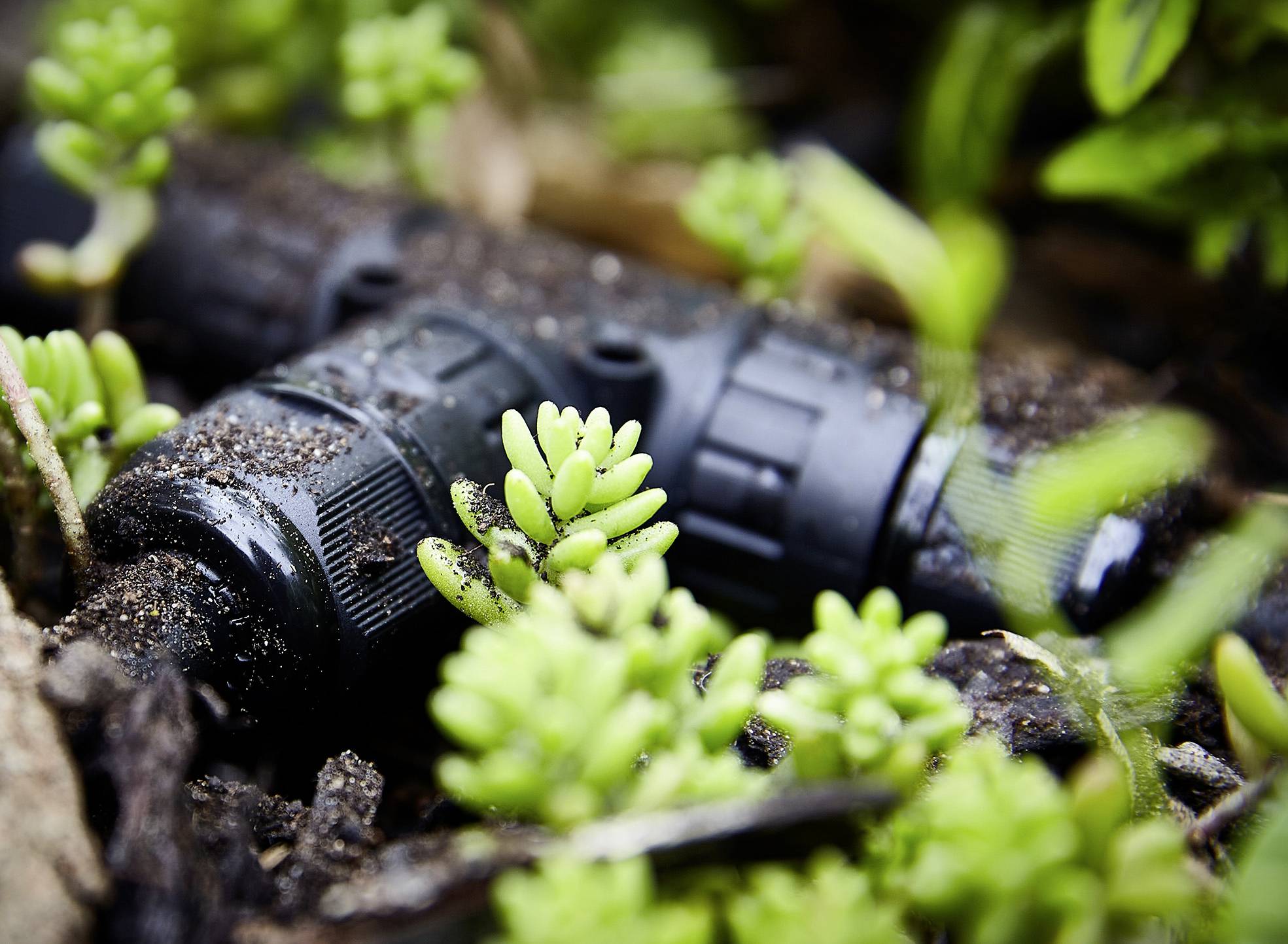

A black irrigation pipe lies in the ground, surrounded by small, green plants. The pipe is partially covered with soil.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

112 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 11.99 / piece)

€ 11.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

T-cable connector 3-pin, IP68, black, 230 V

Connect the earth cable with 9 - 12 mm diameter, easily and reliablyDust- and waterproof up to 1 m depth (IP68)Tool-free cable connection thanks to plug-in terminals

Technical specifications

Number of pins: 3Terminal type: Plug-in terminalFlame-resistant: YesAcid resistant (naturally occurring in soils): YesMaterial: PolyamideProtection class: IP68Suitable for Cable-Ø 9 - 12 mmRated voltage: 400 VMax. load 16 ACan be used for cable cross-section: 0.5 to 1.5 mm²

Product type: Wire connector

Features: Push-fit

Type: T-cable connector, 3-pin

Content: 1 pc(s)

Factory colour: Black

Dim: (L x W x H) 111 x 69 x 25 mm

Length: 111 mm

Width: 69 mm

Height: 25 mm

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 2686479 Heitronic 501339 Wire connector Push-fit (L x W x H) 111 x 69 x 25 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2686479 Heitronic 501339 Wire connector Push-fit (L x W x H) 111 x 69 x 25 mm 1 pc(s)

Warranty Terms

Warranty Terms 2686479 Heitronic 501339 Wire connector Push-fit (L x W x H) 111 x 69 x 25 mm 1 pc(s)

Description

Thanks to the innovative plug-in terminals you can use the watertight T-cable connector to connect cables of 9 - 12 mm diameter without tools. The cable connector is dust proof and waterproof 1 m depth of water (protection type IP68). The cable connector is frost-proof and resistant against most natural acids found in the ground.

This text is machine translated.

Features

Innovative plug-in terminals3-pinsCase made from polyamide, brass and siliconeSimple connection of supply services made of PVC|siliconCable bushings of Ø 9 - 12 mmWith silicone sealing rings can be used for voltages up to 450 V, max. 16 A, also for earth cables with a cross-section of 0.5 - 1.5 mm²Water-resistant according to IP68-certificationResistant to frost and in most of the acids present in the soilWeatherproof, flame resistant and UV-coated materialSuitable for outdoor use

Scope of delivery

T-cable connector 3pin, IP68
Installation instructions.
